Application of Drill Pipe in Directional And Horizontal Wells: The Transitional Role of Heavy-duty Drill Pipe (HWDP)

Directional and horizontal drilling demands more than standard vertical-well pipe design. As inclination increases, drill strings face bending, fatigue, buckling, and high friction against the wellbore, making efficient weight and torque transfer to the bit increasingly difficult. Heavy-Weight Drill Pipe (HWDP) serves as a critical transitional component between flexible drill pipe and rigid drill collars, smoothing stiffness changes to reduce stress concentration and fatigue failure. In directional and horizontal wells, HWDP improves weight-on-bit transfer, reduces torque and drag, and enhances trajectory control while minimizing differential sticking risk. A properly designed drill string must be treated as an integrated system, with conventional drill pipe, HWDP, and drill collars matched to well trajectory, formation conditions, and drilling objectives. Optimizing this configuration at the planning stage improves drilling efficiency, reduces mechanical loading, and supports reliable operations in extended-reach and horizontal wells.

What Is Heavy-Weight Drill Pipe (HWDP)?

Heavy-Weight Drill Pipe (HWDP) is a specialized drill string component that bridges conventional drill pipe and drill collars. It is heavier and stiffer than standard drill pipe but more flexible than drill collars. This intermediate behavior makes HWDP useful in directional, high-angle, and horizontal wells where the string faces increased bending, torque, drag, and fatigue.

Basic Structure at a Glance

Exact configuration depends on manufacturer, dimensions, connection type, and drilling application.

HWDP vs. Conventional Drill Pipe

Conventional drill pipe transmits rotation, circulates fluid, and carries axial loads. HWDP provides greater stiffness and distributed weight where additional support is needed.

HWDP vs. Drill Collars

Drill collars provide weight on bit and BHA stiffness. HWDP creates a gradual stiffness transition instead of an abrupt change from flexible drill pipe to rigid drill collars. This is valuable in directional wells where sudden stiffness changes cause localized mechanical loading.

Why HWDP Matters in Directional and Horizontal Wells

As well inclination increases, the drill string contacts the wellbore more. In horizontal sections, much of the string may lie against the lower side of the hole, increasing friction and making weight transfer to the bit harder.

HWDP helps by:

• Adding weight and stiffness for controlled load distribution

• Retaining more flexibility than drill collars

• Managing bending and fatigue where curvature changes

Selecting HWDP

Consider:

• Well depth and hole size

• Inclination

• Drill-string design

• Required weight on bit

• Torque and drag

• Connection type

• Material properties

• Operating environment

Determine size and configuration as part of the complete BHA and drill-string design.

Why HWDP Plays a Transitional Role in the Drill String

Heavy-Weight Drill Pipe (HWDP) is called a transitional component because it sits mechanically between conventional drill pipe and drill collars. Conventional drill pipe is relatively flexible and mainly transmits torque, circulates fluid, and carries tensile loads. Drill collars are much heavier and stiffer, providing weight on bit and BHA stiffness. HWDP provides an intermediate level of weight and stiffness between the two.

Key Transitional Functions at a Glance

1. Provides a Gradual Stiffness Transition

When flexible drill pipe connects directly to stiff drill collars, mechanical behavior changes abruptly. HWDP creates a more gradual transition in stiffness.

This helps distribute bending and mechanical loads over a larger section of the string. In directional wells, the pipe faces repeated bending through build and drop sections, making this transition especially important.

2. Helps Transfer Weight to the Bit

Maintaining adequate weight on bit is essential for effective drilling. In highly deviated and horizontal wells, gravity and wellbore contact make weight transfer harder. Much of the string may rest against the low side of the hole, increasing friction and drag.

HWDP adds distributed weight while retaining more flexibility than drill collars. Depending on design, this helps provide mechanical loading near the BHA without relying entirely on long drill collar sections.

3. Supports Drill-String Stability

Excessive flexibility can cause undesirable drill-string movement or buckling. Adding HWDP increases local stiffness and influences behavior under compression.

Note: HWDP does not eliminate buckling or stability problems. Actual behavior depends on:

• Well trajectory

• Axial load

• Pipe dimensions

• Hole size

• Friction

• BHA configuration

Evaluate these through proper drill-string design and modeling.

4. Helps Manage Mechanical Loading

Directional and horizontal wells expose the string to torque, drag, bending, and cyclic fatigue. HWDP helps distribute these loads and reduces abrupt stiffness changes between sections.

Wear pads or reinforced areas also protect the pipe where it contacts the wellbore, which is useful in high-angle sections with repeated contact and rotation.

5. A Practical Link Between Drill Pipe and Drill Collars

HWDP is valuable when designing a balanced drill string. Instead of treating drill pipe and drill collars as the only major components, engineers can use HWDP to create a controlled progression of weight and stiffness.

Application of Drill Pipe and HWDP in Directional Wells

Directional wells deviate from vertical to reach a planned underground target. As inclination and azimuth change, the drill string faces more complex mechanical conditions than in a vertical well. Drill pipe and Heavy-Weight Drill Pipe (HWDP) work together to provide torque transmission, fluid circulation, weight transfer, and mechanical stability.

Roles at a Glance

1. Drill Pipe for Torque and Fluid Circulation

Conventional drill pipe forms most of the drill string in a directional well.

• Transmits rotary torque from surface to the BHA

• Carries drilling fluid to the bit

• Must have sufficient tensile and torsional capacity

Directional wells can be much longer than their measured vertical depth. Connections matter because repeated rotation, bending, and loading increase connection stress and fatigue.

2. HWDP for Weight and Stiffness Control

HWDP is commonly positioned between conventional drill pipe and the heavier BHA. Its extra weight and stiffness create a controlled transition between the flexible upper string and the drill collars.

3. Managing Torque and Drag

Torque and drag become more important as the well deviates. Wellbore contact creates friction, making it harder to transfer surface forces to the bit.

The drill pipe and HWDP combination balances flexibility and stiffness. HWDP does not eliminate torque and drag, but proper placement and sizing help manage mechanical loads within the string.

4. Supporting Directional Drilling Performance

Directional drilling requires the string to operate through curved sections while maintaining predictable bottom-hole behavior. HWDP adds stiffness near the BHA without the rigidity of a long drill collar section.

This helps balance:

• Weight transfer

• Drill-string stability

• Flexibility

Actual configuration depends on well trajectory, hole diameter, planned build rate, drilling method, and BHA design.

5. Reducing Excessive Mechanical Stress

Directional drilling subjects components to repeated bending and cyclic loading. Areas near stiffness changes or wellbore curvature see higher stress concentrations.

Appropriate HWDP creates a more gradual transition in mechanical properties and helps distribute loads. Material selection, tool-joint design, inspection, and maintenance remain essential.

6. Selecting the Right Combination

Consider:

• Well depth and inclination

• Hole size and trajectory

• Expected weight on bit

• Torque and drag

• Drilling fluid requirements

• Connection type

• Fatigue conditions

Also consider whether the string will be used for rotary drilling, sliding operations, or both.

Application of HWDP in Horizontal Wells

Key Functions at a Glance

1. Improving Weight Transfer

Transferring sufficient weight to the bit is a main challenge in horizontal drilling. As inclination increases, more of the string rests against the low side of the hole, and friction reduces efficient force transmission to the BHA.

HWDP adds distributed weight versus conventional drill pipe. Its greater mass helps achieve bottom-hole loading while staying more flexible than drill collars. The required amount depends on trajectory, drilling parameters, hole size, and BHA configuration.

2. Managing Drill-String Stiffness

Horizontal wells need a balance between flexibility and stiffness.

HWDP provides intermediate stiffness between drill pipe and drill collars. This creates a gradual mechanical transition through build, tangent, and horizontal sections.

3. Controlling Torque and Drag

Torque and drag are major concerns in extended-reach and horizontal drilling. Long wellbore contact generates significant friction, requiring more surface force and torque as measured depth increases.

HWDP cannot eliminate friction, but its weight and stiffness can be built into torque-and-drag planning. Optimize placement and quantity to balance weight transfer, bending behavior, and contact forces.

4. Supporting Drill-String Stability

During horizontal drilling, compressive loads can cause buckling, which increases wall contact and accelerates wear or fatigue.

HWDP adds stiffness in selected portions and influences stability. However, it is not a universal solution for buckling. Actual behavior depends on:

• Well trajectory

• Axial load

• Pipe dimensions

• Hole clearance

• Friction coefficient

• Rotation

• BHA configuration

5. Improving Wear Management

Continuous wellbore contact increases wear, especially in long horizontal intervals. HWDP designs may include wear pads or reinforced areas for high-contact zones.

This helps extend component life when combined with proper drilling parameters, inspection, hardbanding, and maintenance.

6. HWDP in Extended-Reach Horizontal Wells

HWDP becomes more important as horizontal sections lengthen and mechanical challenges increase. Engineers must consider not only individual component weight and strength but also complete drill-string behavior.

Drill Pipe vs. HWDP vs. Drill Collars: How to Select the Right Combination

Drill pipe, Heavy-Weight Drill Pipe (HWDP), and drill collars each perform different functions in a drilling string. Selecting the right combination is critical in directional and horizontal wells, where torque, drag, bending, fatigue, and weight transfer become more complex. The goal is not to choose one over another but to build a string with the right balance of flexibility, stiffness, strength, and weight.

Component Comparison at a Glance

1. Conventional Drill Pipe: Flexibility and Torque Transmission

Drill pipe makes up most of the drill string. It connects surface equipment to the BHA, transmits rotary torque, and carries drilling fluid.

Its flexible design follows changes in wellbore direction. However, excessive compression or insufficient stiffness can create stability and buckling concerns, especially in highly deviated and horizontal sections.

2. HWDP: The Intermediate Component

HWDP provides a transition between drill pipe and drill collars. It is heavier and stiffer than standard drill pipe but more flexible than drill collars.

3. Drill Collars: Weight and Bottom-Hole Stiffness

Drill collars are substantially heavier and stiffer than drill pipe or HWDP. They provide weight on bit and maintain stiffness near the bit.

Their rigidity suits conventional drilling and specific BHA designs. However, a large amount of drill-collar weight is not automatically suitable for highly deviated or horizontal wells. Consider wellbore contact, friction, and torque and drag.

4. Key Factors for Selecting the Combination

5. Build the String as an Integrated System

A suitable drill string uses the three components according to their mechanical roles:

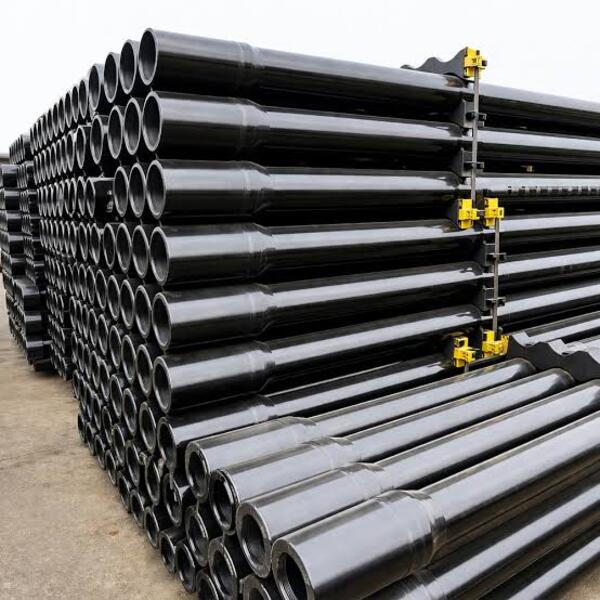

Our Recommended Drill Pipe and HWDP Products and Global Shipping Services

We supply drill pipe and Heavy-Weight Drill Pipe (HWDP) for conventional, directional, and horizontal drilling, matched to well depth, hole size, inclination, torque, drag, and weight-on-bit needs. Our drill pipe delivers sufficient tensile and torsional capacity with flexibility to follow well trajectories, with enhanced fatigue resistance and wear protection for extended-reach and horizontal wells. HWDP bridges flexible drill pipe and rigid drill collars, improving weight transfer, stiffness control, and BHA stability. All products undergo strict dimensional, material, and connection inspections with full traceability documentation. We customize configurations based on well deviation, hole diameter, drilling method, and expected loads rather than one-size-fits-all solutions. Our global shipping services include export bundling, protection, marking, and logistics coordination. Share your size, grade, connection type, quantity, inspection requirements, and destination for an accurate quotation and efficient delivery.

Conclusion:

Heavy-Weight Drill Pipe (HWDP) is a critical transitional component in modern drill-string design, especially for directional and horizontal wells. Heavier and stiffer than conventional drill pipe but more flexible than drill collars, it creates a gradual mechanical transition that reduces stress concentration. In high-inclination wells, HWDP improves weight transfer to the bit while maintaining the flexibility needed for curved wellbore sections, helping manage friction, torque, drag, and cyclic fatigue. It is not a universal replacement for drill pipe or collars; quantity, placement, and connection design must align with well depth, hole diameter, trajectory, expected weight on bit, and BHA configuration. Proper material selection, tool-joint design, and wear protection are essential for durability under repeated bending and wellbore contact. Treating drill pipe, HWDP, and drill collars as an integrated system enables engineers to match the drill string to downhole conditions, making HWDP indispensable for managing mechanical demands in complex well designs.

FAQ：

1. What is the purpose of HWDP in directional drilling?

HWDP provides intermediate weight and stiffness between drill pipe and drill collars, helping manage weight transfer, stability, and mechanical loads.

2. Why is HWDP used in horizontal wells?

HWDP can provide additional distributed weight and stiffness while maintaining more flexibility than drill collars in long horizontal sections.

3. What is the difference between drill pipe and HWDP?

HWDP is heavier and stiffer than conventional drill pipe and is designed to provide a transition between drill pipe and the heavier BHA components.

4. Is HWDP a replacement for drill collars?

No. HWDP and drill collars have different functions and are normally selected together according to the well profile and BHA design.
