Corrosion fatigue of drill pipe and H2S environment: material selection and protective measures

Views: 0 Author: Site Editor Publish Time: 2026-09-20 Origin: Site

Inquire

Drilling in hydrogen sulfide (H₂S) environments significantly increases the risk of drill pipe failure due to corrosion fatigue. This occurs when cyclic mechanical loads interact with corrosive fluids, accelerating crack initiation at surface imperfections. Additionally, H₂S exposure can lead to sulfide stress cracking (SSC) and hydrogen-assisted damage.

Selecting the right drill pipe requires more than checking nominal strength. Engineers must evaluate material hardness, heat treatment, and toughness to ensure compliance with sour-service standards like NACE MR0175/ISO 15156. Effective management also involves controlling drilling fluid chemistry and implementing rigorous inspection programs.

What Is Corrosion Fatigue of Drill Pipe?

Corrosion fatigue is material damage that occurs when a metal component is exposed to a corrosive environment while experiencing repeated or fluctuating mechanical stress. For drill pipe, this combination is critical because the pipe is continuously subjected to tension, compression, bending, torsion, and vibration during drilling.

Quick Overview

Aspect	Details
Definition	Corrosive environment + cyclic mechanical stress
Drill Pipe Loads	Tension, compression, bending, torsion, vibration
Result	Accelerated crack initiation and propagation
Key Factor	Corrosion pits act as stress concentration points
Critical Locations	Pipe body, tool joints, upset areas, connections

How Corrosion Fatigue Develops

Step	Action
1. Cyclic Loading	Repeated stress from drilling operations
2. Surface Defect	Corrosion pit, manufacturing imperfection, or scratch
3. Stress Concentration	Defect concentrates stress
4. Crack Initiation	Crack forms at concentration point
5. Crack Propagation	Continued loading causes crack growth
6. Corrosion Acceleration	Chemical reactions remove material; create pits

Corrosion Fatigue vs. Mechanical Fatigue

Aspect	Mechanical Fatigue	Corrosion Fatigue
Cause	Repeated stress cycles	Repeated stress + corrosive environment
Damage Rate	Standard	May be accelerated
Influencing Factors	Stress, cycles	Stress, cycles, corrosion rate, fluid chemistry, temperature

Relationship with H₂S-Related Cracking

Mechanism	Cause
SSC (Sulfide Stress Cracking)	Susceptible material + tensile stress + H₂S
Corrosion Fatigue	Cyclic loading + corrosive exposure
Note	Different mechanisms—but both contribute to cracking risks in sour service

Why Drill Pipe Is Vulnerable

Factor	Impact
Thousands/millions of cycles	Extended drilling operations
Rotation and bending	Around wellbore
Torque transmission	Torsional loading
Axial load changes	Variable stress
Vibration	Additional cyclic loading
Corrosion	Accelerates deterioration

Control Measures

Measure	Purpose
Material selection	Suitable steel grade
Drilling-fluid management	Control corrosion conditions
Surface protection	Coatings or inhibitors
Inspection	Detect pits and cracks early
Careful handling	Prevent mechanical damage

How H₂S Affects Drill Pipe Performance

Hydrogen sulfide (H₂S) is a major concern in oil and gas drilling. It can interact with steel and increase the risk of corrosion and hydrogen-related cracking. Drill pipe in H₂S environments faces both chemical attack and repeated mechanical stresses.

Key Effects at a Glance

Effect	Mechanism	Consequence
Corrosion & Surface Damage	Electrochemical reactions; pitting	Stress concentration points
Hydrogen-Related Damage	Hydrogen enters steel	SSC; hydrogen-assisted cracking
Fatigue Performance	Corrosion pits + cyclic loading	Reduced crack resistance
Material Susceptibility	Strength, hardness, microstructure	Increased cracking risk

Key Details

1. Corrosion and Surface Damage

Aspect	Details
Mechanism	Electrochemical reactions at steel surface
Result	Corrosion products; localized pitting
Impact	Pits create stress concentration
Combined effect	Corrosion + cyclic loading interact

2. Hydrogen-Related Damage

Aspect	Details
Concern	Hydrogen entering steel
Key mechanism	Sulfide stress cracking (SSC)
Conditions	Susceptible steel + H₂S + tensile stress
Influencing factors	Strength, hardness, microstructure, environment, stress
Note	Different from corrosion fatigue—but may occur together

3. Effect of H₂S Concentration and Environment

Factor	Impact
H₂S partial pressure/concentration	Severity
Temperature and pressure	Corrosion rate
pH and chloride concentration	Environment aggressiveness
Water activity	Corrosion conditions
Drilling-fluid composition	Chemical attack
Exposure time	Cumulative damage

4. Effect on Fatigue Performance

Aspect	Details
Loading	Rotation, bending, torsion
Damage	Corrosion pits, surface defects, hydrogen damage
Result	Reduced crack initiation and propagation resistance
Critical areas	Connections, tool joints, upset sections

5. Implications for Material Selection

Factor	Consideration
Tensile strength	Higher strength ≠ better in H₂S
Hardness	May increase cracking susceptibility
Heat treatment	Affects microstructure
Toughness	Crack resistance
Microstructure	SSC susceptibility
Manufacturing quality	Defect control
Standards	NACE MR0175/ISO 15156

Tip: Higher strength alone does not guarantee better H₂S performance.

Protection Strategy

Measure	Purpose
Suitable material selection	H₂S-resistant steel
Drilling-fluid control	Manage corrosion environment
Stress management	Reduce cyclic loading effects
Inspection	Detect pits, cracks, damage
Maintenance	Prevent failure progression

Material Selection for Drill Pipe in Sour-Service Conditions

Material selection is critical for reducing drill pipe failure risks in sour service. H₂S environments increase risks of corrosion, SSC, hydrogen-assisted cracking, and corrosion fatigue. Selecting based only on tensile or yield strength is not sufficient.

Key Selection Factors at a Glance

Factor	What to Consider	Key Point
Sour-Service Requirements	H₂S concentration, pressure, temperature, pH, chlorides	NACE MR0175/ISO 15156
Strength & Hardness	Axial loads, torque, bending vs. SSC resistance	Higher strength ≠ better H₂S resistance
Chemistry & Microstructure	Composition, heat treatment	Stable properties and cracking resistance
Complete Drill String	Pipe body, tool joints, upsets, connections	Connections are stress concentration points
Quality Control	Chemical, tensile, hardness, NDT	Traceability and documentation
Service Conditions	Actual H₂S environment and loading	No universal material

Key Details

1. Consider Sour-Service Requirements

Factor	Impact
H₂S concentration/partial pressure	Severity
Temperature and pressure	Corrosion conditions
Fluid chemistry and pH	Environment aggressiveness
Chloride content	Corrosion potential
Exposure time	Cumulative damage

Standard: NACE MR0175/ISO 15156 for H₂S-containing environments.

2. Evaluate Strength and Hardness

Aspect	Details
Mechanical strength	Withstand axial, torque, bending, vibration
Higher strength	Not automatically better H₂S resistance
Excessive hardness	May increase SSC susceptibility
Balance	Mechanical performance vs. sour-service resistance
Critical	Hardness limits, heat treatment, microstructure

3. Consider Chemical Composition and Microstructure

Check
Consistent chemical composition
Appropriate heat treatment
Controlled production processes
Material certificates
Inspection records

4. Select the Complete Drill String, Not Only the Pipe Body

Component	Consideration
Pipe body	Base material
Tool joints	Different stress levels
Upsets	Stress concentration
Threaded connections	Thread geometry creates stress concentration
Compatibility	Pipe body and tool-joint material

5. Quality Control and Inspection

Possible Inspection
Chemical analysis
Tensile testing
Hardness testing
Dimensional inspection
Visual examination
NDT (ultrasonic, magnetic particle)
Traceability and documentation

6. Match Material Selection to Actual Service Conditions

Consider
Expected sour-service conditions
Mechanical loading
Temperature and pressure
Drilling-fluid chemistry
Applicable standards
Operating practices

Protective Measures to Reduce Corrosion Fatigue and H₂S Damage

Reducing corrosion fatigue and H₂S-related damage requires more than material selection. A combined protection strategy helps control these factors and extend drill pipe service life.

Key Measures at a Glance

Measure	Purpose	Key Point
Drilling Fluid Control	Reduce corrosion and hydrogen uptake	Monitor pH, H₂S, chlorides
Sour-Service Materials	Resist SSC and hydrogen cracking	NACE MR0175/ISO 15156
Reduce Stress Concentrations	Prevent fatigue crack initiation	Connections, upsets, surface damage
Surface Protection	Reduce steel-fluid contact	Compatible with drilling conditions
Regular Inspection	Detect progressive damage	Visual + NDT
Combined Approach	No single measure eliminates risk	Integrated protection

Key Details

1. Control Drilling Fluid Chemistry

Monitor
pH
H₂S concentration
Chloride content
Other chemical conditions

Actions:

Use corrosion inhibitors per fluid program
H₂S detection and removal systems
Maintain stable fluid chemistry

2. Use Materials Suitable for Sour Service

Evaluate
Material grade
Hardness
Heat treatment
Microstructure
Toughness
Manufacturing quality

Standard: NACE MR0175/ISO 15156 (where applicable)

Caution: Higher strength ≠ better—excessive hardness may increase SSC susceptibility.

3. Reduce Stress Concentrations

Critical Areas	Action
Tool joints	Proper thread design
Threaded connections	Correct machining
Upset sections	Careful handling
Damaged surfaces	Avoid dents, scratches

Tip: Avoid dropping, dragging, or improper handling—damage becomes crack initiation points.

4. Consider Surface Protection

Aspect	Details
Purpose	Reduce steel-fluid contact
Compatibility	Drilling conditions, temperature, loading
Note	Complements—does not replace—material selection and fluid control
Inspection	Identify damaged or deteriorated coatings

5. Apply Regular Inspection and Maintenance

Method	Detects
Visual inspection	Corrosion, dents, wear, surface damage
Magnetic particle testing	Surface/near-surface cracks
Ultrasonic testing	Internal discontinuities
Focus areas	Tool joints, connections, upsets, high-stress areas
Action	Remove unacceptable pipes from service

6. Combine Protection Measures

Integrated Approach
Suitable materials
Controlled drilling-fluid chemistry
Proper handling
Stress management
Surface protection (where appropriate)
Regular inspection

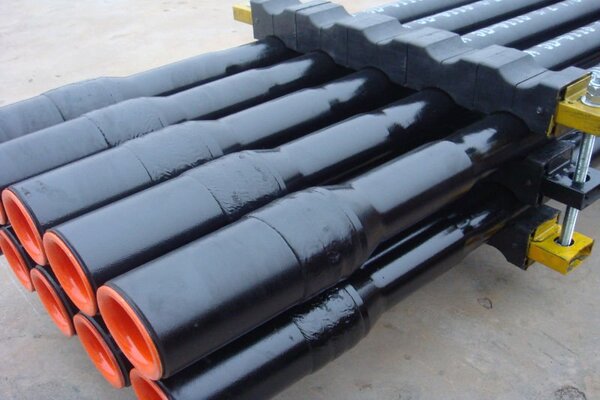

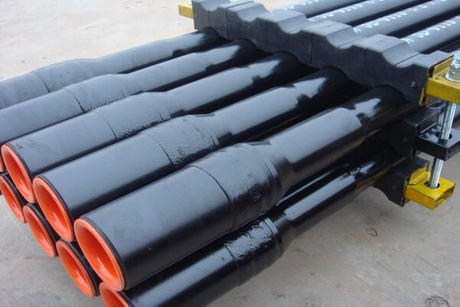

Our Recommended Drill Pipe Products and Global Shipping Services

We supply high-performance drill pipes engineered for sour-service conditions, compliant with NACE MR0175/ISO 15156 standards. Our inventory covers various diameters, wall thicknesses, and connection types to match your specific torque and mechanical loading requirements.

We ensure rigorous quality control, providing full Mill Test Certificates (MTCs) and comprehensive inspection reports—including hardness, ultrasonic, and magnetic particle testing—for every batch. Whether for conventional or directional drilling, our team verifies all technical details to ensure resistance to sulfide stress cracking (SSC) and corrosion fatigue.

Leveraging our expertise in global steel export, we provide end-to-end shipping solutions. From secure bundling and thread protection to coordinated logistics, we ensure your materials arrive safely and on schedule at any international destination. Contact us today with your project specifications for a competitive quotation.

Conclusion

Ensuring drill pipe reliability in H₂S environments requires a comprehensive approach beyond simple material selection. Corrosion fatigue and sulfide stress cracking (SSC) pose significant risks when mechanical loads interact with sour service conditions. Effective management relies on three key pillars: selecting materials with appropriate hardness and toughness compliant with NACE MR0175/ISO 15156, controlling drilling fluid chemistry to limit corrosion, and implementing rigorous non-destructive testing (NDT) to detect early fatigue cracks.

FAQ：

FAQ 1: How does H₂S cause corrosion fatigue in drill pipe?

H₂S can promote corrosion and hydrogen-related damage, which can accelerate crack initiation and growth under repeated mechanical loading.

FAQ 2: What material is suitable for drill pipe in H₂S environments?

The material should meet the applicable sour-service requirements and be selected according to H₂S exposure, stress, temperature, pressure, hardness, and project specifications.

FAQ 3: Does higher-strength drill pipe provide better H₂S resistance?

Not necessarily; excessive strength or hardness can increase susceptibility to certain H₂S-related cracking mechanisms.

FAQ 4: How can corrosion fatigue of drill pipe be reduced?

Appropriate material selection, drilling-fluid control, corrosion protection, proper handling, and regular inspection can help reduce corrosion-fatigue risks.
