Fusion Bonded Epoxy (FBE) coating is essential for protecting steel pipes against corrosion. However, selecting the optimal coating thickness is critical for balancing protection, performance, and cost.
Standard thicknesses like 300μm, 400μm, and 500μm serve different purposes. A 300μm coating suits moderate environments, 400μm offers a practical balance for general pipelines, and 500μm provides enhanced mechanical resistance for demanding conditions. Simply choosing the thickest option does not guarantee better results and may unnecessarily increase costs.
What Is FBE Coating for Steel Pipes?
Fusion Bonded Epoxy (FBE) is a thermosetting protective coating for steel pipes. It provides corrosion resistance and extends pipeline service life—used in oil and gas, water transmission, underground infrastructure, and industrial piping.
Unlike liquid paint, FBE is a dry epoxy powder applied to a heated pipe. The powder melts, flows, and chemically cures into a continuous protective layer bonded firmly to the steel.
Application Process
Step | Action | Key Point |
|---|---|---|
1. Surface Preparation | Abrasive blasting removes rust, mill scale, and dirt | Adhesion depends on cleanliness and profile |
2. Preheating | Heat pipe to specified temperature | Allows powder to melt and flow evenly |
3. Powder Application | Electrostatic spray onto heated pipe | Particles attracted to steel; melt on contact |
4. Curing | Epoxy melts and reacts | Forms durable thermoset coating |
5. Inspection | Check thickness, continuity, adhesion | Holiday detection for pinholes |
Coating Thickness
Thickness | Typical Use |
|---|---|
300μm | Moderate corrosion and handling risks |
400μm | Balance between protection and consumption |
500μm | Additional protection (subject to specification) |
Main Advantages
Advantage | Details |
|---|---|
Strong adhesion | To properly prepared steel |
Good corrosion resistance | Many pipeline environments |
Continuous barrier | Against moisture and corrosive substances |
Good electrical insulation | Supports corrosion-control systems |
Suitable for buried pipelines | When correctly specified and applied |
Relatively uniform coverage | With proper application control |
Key Considerations
Factor | Why It Matters |
|---|---|
Surface preparation | Adhesion quality |
Steel temperature | Proper melting and flow |
Powder properties | Coating performance |
Curing conditions | Final coating properties |
Coating uniformity | Corrosion protection |
Inspection | Quality verification |
300μm vs. 400μm vs. 500μm FBE Coating: Key Differences
FBE coating thickness affects how much epoxy covers the steel—but thickness alone doesn't determine performance. Projects may specify 300μm, 400μm, or 500μm depending on corrosion exposure, mechanical damage risk, installation method, operating conditions, and applicable standards.
Quick Comparison
FBE Thickness | General Characteristics | Potential Application |
|---|---|---|
300μm | Moderate thickness and material consumption | Controlled or moderate service conditions |
400μm | Balanced protection and material usage | Many general buried pipeline applications |
500μm | Thicker layer; potentially greater mechanical resistance | More demanding installation or environmental conditions |
General guidance only—actual requirements depend on coating system, service environment, installation, standards, and project specs.
Key Details
300μm FBE Coating
Aspect | Details |
|---|---|
Protection | Relatively moderate layer |
Best for | Controlled corrosion exposure; low mechanical damage risk |
Advantage | Lower material consumption; economical if technically suitable |
Caution | Don't select just because it costs less—evaluate environment, installation, temperature, service life |
400μm FBE Coating
Aspect | Details |
|---|---|
Protection | Balance between protection, mechanical resistance, and material use |
Best for | Many buried pipeline applications with normal handling and soil exposure |
Advantage | Greater coating layer than 300μm without unnecessary material increase |
Caution | Confirm nominal thickness and tolerance per applicable specification |
500μm FBE Coating
Aspect | Details |
|---|---|
Protection | Thicker protective layer |
Best for | Buried pipelines, difficult installation, stricter coating requirements |
Advantage | More material between steel and external environment |
Caution | Application quality remains critical—proper adhesion and curing essential |
Key Takeaway
Don't Treat As |
|---|
"Good, better, best" |
Simple quality levels |
Correct Approach |
|---|
Select thickness that provides required corrosion and mechanical protection |
Avoid unnecessary cost or processing complexity |
Consider surface prep, adhesion, curing, uniformity, and holiday detection |
How to Choose the Right FBE Coating Thickness
Choosing the right FBE coating thickness means matching the pipeline environment, installation conditions, operating temperature, mechanical risks, and project specs—not simply selecting the thickest option.
Selection Factors at a Glance
Factor | What to Consider | Key Point |
|---|---|---|
Operating Environment | Moisture, salts, chemicals, soil | Aggressive conditions may need thicker coating |
Installation Method | Trench, directional drilling, above-ground | Greater contact = more mechanical protection |
Mechanical Damage Risk | Transport, lifting, handling, backfilling | Thicker helps, but handling also matters |
Operating Temperature | Service temperature range | Confirm manufacturer's recommended range |
Pipe Size & Application | Diameter, wall thickness, final use | Complete design determines coating system |
Standards & Specs | Coating standard, project specification | Follow required thickness and tolerances |
Protection vs. Cost | Environment, risks, service life | Balance protection with unnecessary cost |
Key Details
1. Operating Environment
Condition | Typical Thickness |
|---|---|
Controlled conditions | 300μm (if permitted) |
Higher corrosion exposure | 400μm or 500μm (per coating system) |
2. Installation Method
Method | Consideration |
|---|---|
Conventional trench | Standard protection |
Directional drilling | Greater mechanical stress |
Above-ground | Environmental exposure |
3. Mechanical Damage Risk
Risk Source | Mitigation |
|---|---|
Transport and lifting | Proper packaging and handling |
Backfilling | Careful procedures |
Severe stress | Thicker or specialized coating system |
4. Operating Temperature
Aspect | Details |
|---|---|
Requirement | Coating must suit service temperature |
Higher temps | Can affect coating properties |
Action | Confirm manufacturer's recommended range |
5. Pipe Size & Application
Factor | Consideration |
|---|---|
Large-diameter transmission | Different handling requirements |
Smaller industrial pipe | Different installation conditions |
Note | Diameter alone should not determine thickness |
6. Standards & Project Specifications
Follow |
|---|
Applicable FBE coating standard |
Project specification |
Minimum/nominal thickness |
Permissible tolerances |
Surface prep and application conditions |
Inspection methods and performance requirements |
7. Balance Protection and Cost
Thickness | General Guidance |
|---|---|
300μm | Moderate requirements |
400μm | Balanced option |
500μm | More demanding conditions (if allowed) |
Quality Inspection Requirements for FBE-Coated Steel Pipes
Choosing the right thickness (300μm, 400μm, 500μm) is only the first step—the coating must be properly applied, cured, and inspected.
Inspection Requirements
Inspection | Purpose | Key Point |
|---|---|---|
Surface Preparation | Foundation of reliable coating | Cleanliness and surface profile |
Coating Thickness (DFT) | Verify specified thickness | Nominal value + tolerance |
Holiday Detection | Find pinholes, pores, cracks | High-voltage detector; repair defects |
Visual Inspection | Check overall condition | Bubbles, cracks, blisters, uneven coating |
Adhesion & Curing | Verify bond strength and cure | Per standard or project spec |
Final Documentation | Confirm compliance | Thickness records, test results, certificates |
Key Points
Inspection | Key Point |
|---|---|
Surface prep | Abrasive blast; poor prep = poor adhesion |
Thickness | Measure DFT at specified locations; check thin and thick areas |
Holiday detection | High-voltage test; repair all defects |
Visual | Look for bubbles, cracks, blisters, peeling, uneven coating |
Adhesion/curing | Verify bond and proper cure |
Documentation | Thickness records, holiday results, repair records, certificates |
Conclusion
Effective FBE quality control covers:
Surface preparation – cleanliness and profile
Coating thickness – DFT within specification
Holiday detection – no pinholes or discontinuities
Visual appearance – consistent coverage
Adhesion and curing – proper bond and properties
Final documentation – compliance records

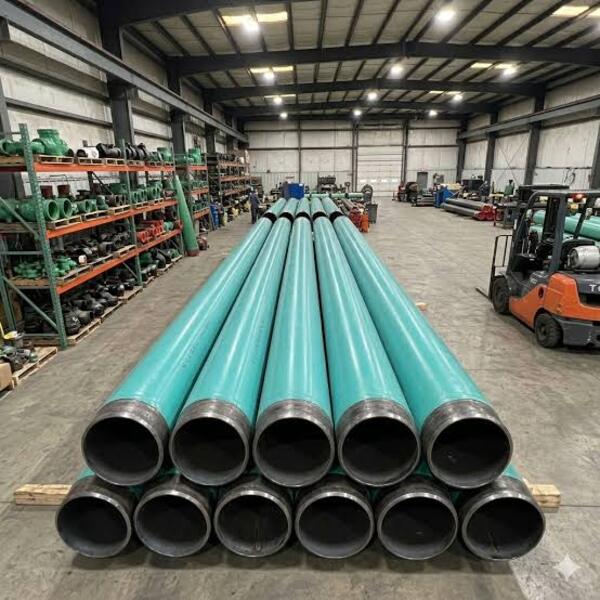

Our Recommended FBE-Coated Steel Pipe Products and Global Shipping Services
We supply premium FBE-coated steel pipes in 300μm, 400μm, and 500μm thicknesses, tailored to balance corrosion protection and cost-efficiency for oil, gas, and water pipelines.
Quality and compliance are paramount. We conduct rigorous inspections—including holiday detection, adhesion tests, and thickness measurement—and provide comprehensive Mill Test Certificates (MTCs) to guarantee full adherence to international standards.
Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure bundling and flexible transportation options (container and break-bulk freight) to prevent transit damage and ensure your coated pipes arrive safely and on time.
To receive a customized product and shipping quotation, please contact us today with your required steel grade, dimensions, FBE coating thickness, testing requirements, quantity, and delivery destination. Our expert team will recommend the optimal FBE-coated steel pipe configuration tailored to your exact project needs.
Common Mistakes When Selecting FBE Coating Thickness
Mistake | Why It's a Problem | How to Avoid |
|---|---|---|
Assuming thicker is always better | Thickness ≠ guaranteed performance | Ensure proper application and curing |
Choosing by price only | Thin coating may cause premature corrosion | Consider environment, installation, service life |
Ignoring installation environment | Soil, moisture, salinity affect requirements | Review conditions and installation method |
Overlooking operating temperature | Different FBE systems have different ranges | Confirm coating suits actual service temp |
Ignoring application quality | Poor prep, preheating, curing reduce adhesion | Control the complete coating process |
Failing to check project specs | Risk of non-compliance | Confirm required system and thickness |
Neglecting inspection and repair | Pinholes, scratches, thin areas compromise coating | Holiday detection, thickness, visual checks |
Key Points
Mistake | Key Point |
|---|---|
Thicker = better? | Not automatically—application and curing matter more |
Price only | Total cost includes maintenance and service life |
Environment | Trenching, directional drilling, backfilling = different stress |
Temperature | Thickness doesn't extend the coating's temperature range |
Application quality | Blasting, preheating, powder application, curing all critical |
Specifications | Check project requirements before production |
Inspection | Complete tests before shipment |
Conclusion:
Selecting the optimal FBE coating thickness is critical for long-term pipeline corrosion protection. The choice between 300μm, 400μm, and 500μm should be based on specific project conditions rather than simply assuming thicker is always better.
A 300μm coating suits moderate environments, 400μm offers a practical balance of protection and cost, and 500μm provides enhanced mechanical resistance for demanding applications. However, long-term performance relies heavily on proper surface preparation, consistent application, and thorough inspections (including holiday detection and adhesion tests).
FAQ：
Q1. Is a 500μm FBE coating better than a 300μm coating?
Not always; the best thickness depends on the service environment, installation conditions, and project specifications.
Q2. When should I choose 400μm FBE coating for steel pipes?
400μm can be a balanced option for applications requiring moderate corrosion and mechanical protection.
Q3. What is the difference between 300μm and 500μm FBE coating?
500μm provides a thicker protective layer than 300μm, but its suitability depends on the coating system and project requirements.
Q4. How is FBE coating thickness tested on steel pipes?
Coating thickness is typically measured using a suitable dry-film thickness gauge at specified locations.
