What Are the Structural Characteristics of Carbon Steel Pipe

Carbon steel pipe is widely used in industrial piping, oil and gas transportation, water systems, construction, power generation, and infrastructure projects. Its popularity comes not only from the properties of carbon steel itself, but also from the practical structure of the pipe. A hollow cylindrical section provides a useful balance between strength, weight, pressure resistance, and material efficiency. By selecting the appropriate outside diameter, wall thickness, steel grade, and manufacturing method, engineers can adapt carbon steel pipe to different operating conditions.

Carbon Steel Pipe Structure at a Glance

These factors work together to determine how a carbon steel pipe performs in service.

1. Hollow Cylindrical Structure

The most fundamental characteristic of carbon steel pipe is its hollow cylindrical cross-section. Unlike a solid steel bar, the hollow structure provides a large internal passage while reducing unnecessary material weight. This makes pipe particularly efficient for transporting water, oil, gas, and other fluids. The cylindrical shape also distributes internal pressure around the pipe wall. For this reason, diameter and wall thickness must be selected according to the design pressure, temperature, fluid characteristics, support conditions, and applicable engineering standard.

2. Wall Thickness Determines Structural Capacity

Wall thickness is one of the most important structural parameters of carbon steel pipe. A thicker wall generally provides greater resistance to:

• Internal pressure

• External loads

• Mechanical impact

• Local deformation

• Corrosion allowance requirements

However, increasing wall thickness also increases weight and material cost. Engineers therefore need to balance structural requirements with project economics rather than simply choosing the thickest available pipe. For industrial projects, wall thickness is normally specified together with the pipe diameter, steel grade, pressure rating, and applicable standard.

3. Steel Grade Controls Material Performance

Carbon steel pipe is available in different grades, and each grade provides different mechanical and chemical characteristics. Depending on the application, commonly specified materials may include grades such as ASTM A106 Grade B, ASTM A53, API 5L Grade B, and higher-strength pipeline grades. The steel grade can influence:

• Yield strength

• Tensile strength

• Toughness

• Weldability

• Temperature capability

Material selection should therefore be based on actual service conditions rather than price alone.

4. Seamless and Welded Structures

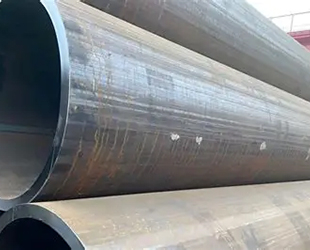

Carbon steel pipe can generally be manufactured as seamless or welded pipe. Seamless carbon steel pipe is produced without a longitudinal weld seam and is commonly selected for applications requiring specific pressure, temperature, or mechanical performance. Welded carbon steel pipe is formed from steel strip or plate and joined along a controlled weld seam. ERW and LSAW are two common manufacturing methods.

The appropriate pipe type depends on the project specification, dimensions, service conditions, and applicable standard.

5. Diameter and Wall Thickness Work Together

Pipe diameter and wall thickness should not be considered independently. A larger diameter increases the internal flow area, while wall thickness contributes to pressure resistance and structural stability. Engineers must evaluate both parameters when designing a piping system. For example, a large-diameter transmission pipeline may require a different wall thickness from a smaller process pipe even when both transport similar fluids. This is why professional pipe selection normally begins with the project’s design conditions rather than a standard catalog size.

6. End Preparation Supports Installation

The pipe ends are another important structural feature.

Depending on the connection method, carbon steel pipe may be supplied with:

• Plain ends

• Beveled ends

• Threaded ends

• Grooved ends

• Customized end preparation

Beveled ends are commonly used for butt welding, while other end configurations may be selected for mechanical or threaded connections. Correct end preparation helps improve installation efficiency and supports consistent joint quality.

7. Surface Protection Extends Service Life

Carbon steel naturally requires consideration of corrosion protection, particularly in outdoor, underground, marine, or chemically aggressive environments. Depending on project requirements, carbon steel pipe may receive:

• External coating

• Internal lining

• Painting

• Hot-dip galvanizing

• Other specified corrosion protection systems

The structural design and surface protection should be considered together to achieve the required service life.

How Do These Structural Features Affect Pipe Selection?

Before purchasing carbon steel pipe, buyers should confirm:

• Outside diameter

• Wall thickness

• Steel grade

• Seamless or welded construction

• Applicable standard

• Pipe length

• End preparation

• Corrosion protection

• Inspection and testing requirements

A complete specification reduces the risk of selecting a pipe that does not match the project’s operating conditions.

Practical Engineering Example

For a large industrial water transmission project, engineers required carbon steel pipe with a large internal flow area while maintaining sufficient structural strength for buried installation. Instead of selecting the maximum available wall thickness, the design team evaluated pipe diameter, wall thickness, external loading, operating pressure, and corrosion protection together. This approach provided the required performance while avoiding unnecessary material weight and installation costs.

FAQ

Q1: What is the most important structural feature of carbon steel pipe?

A1: The combination of outside diameter and wall thickness is fundamental because it affects flow capacity, pressure resistance, weight, and installation requirements.

Q2: Is seamless pipe structurally better than welded pipe?

A2: Not necessarily. Seamless and welded pipes have different manufacturing characteristics. The appropriate choice depends on the application, dimensions, standards, and design requirements.

Q3: Can carbon steel pipe be customized?

A3: Yes. Material grade, diameter, wall thickness, length, end preparation, surface treatment, and inspection requirements can be customized for specific projects.

Q4: Why is wall thickness important?

A4: Wall thickness affects resistance to internal pressure, external loads, deformation, and corrosion allowance. It should be selected according to engineering calculations and applicable standards.

Conclusion

The structural characteristics of carbon steel pipe are defined by more than its cylindrical shape. Diameter, wall thickness, steel grade, manufacturing method, weld structure, end preparation, and corrosion protection all contribute to its performance in service.
