ASTM A106 seamless carbon steel pipe is widely used for high-temperature service in power generation, oil and gas processing, refineries, and industrial facilities. It covers Grades A, B, and C, with Grade B commonly selected for industrial piping. However, material grade alone is insufficient; compatibility with pressure vessel connections, fittings, flanges, valves, and the overall piping system is essential for safe operation. Engineers must verify material and dimensional compatibility, pressure-temperature ratings, welding requirements, and code compliance such as ASME B31.3, ASME B31.1, or the ASME Boiler and Pressure Vessel Code. Incorrect component matching can cause leakage, excessive stress, or premature failure. Material test certificates and traceability records should be reviewed before installation. This article covers ASTM A106 pipe selection, dimensional matching, welding, pressure-temperature limits, common compatibility issues, and sourcing considerations to help engineers, contractors, and buyers reduce installation risks and make informed procurement decisions for reliable industrial piping systems.

What Is ASTM A106 Steel Pipe?

ASTM A106 steel pipe is a seamless carbon steel pipe designed for high-temperature service. It is widely used in oil and gas processing, power generation, refineries, chemical plants, and industrial piping systems. Suitability for pressure service depends on material grade, pipe dimensions, operating conditions, and applicable engineering code.

ASTM A106 covers three grades: Grade A, Grade B, and Grade C. Each grade has specified chemical composition and mechanical-property requirements. Grade B is commonly used in industrial piping because it provides a practical balance of strength and general-purpose performance—but the correct grade must be selected according to system design requirements, not popularity alone.

Main Characteristics

Seamless construction does not mean automatic suitability for every pressure or temperature. Allowable operating conditions must be determined through applicable design code and engineering calculations.

ASTM A106 Grade A, B, and C

Commonly specified minimum mechanical properties—verify the applicable ASTM A106 edition and product requirements for the project.

Selection should reflect required strength, fabrication requirements, and operating environment.

Relevant Standards and Codes

ASTM A106 specifies pipe material and product requirements. Additional standards and codes govern how the pipe is selected, connected, and used within a complete system.

The applicable code determines important design considerations:

• Allowable stress

• Wall thickness

• Pressure-temperature conditions

• Fabrication requirements

Why ASTM A106 Matters for System Compatibility

When connecting ASTM A106 pipe to pressure vessels, flanges, fittings, or valves, engineers must verify more than the pipe grade:

Compatibility Requirements for Pressure Vessel Connections

ASTM A106 steel pipe is commonly used in high-temperature industrial piping systems, including connections to pressure vessels. However, successful connection requires more than selecting a pipe that meets the material specification. The pipe, vessel nozzle, flanges, fittings, gaskets, and bolting must work together under the specified pressure, temperature, and service conditions.

Verify before installation: material compatibility, dimensional requirements, pressure-temperature ratings, and welding procedures. These checks help reduce leakage risks, prevent excessive stress, and ensure code compliance.

Compatibility Checklist at a Glance

1. Material Compatibility

ASTM A106 covers seamless carbon steel pipe in Grades A, B, and C. The selected grade must provide suitable mechanical properties for intended operating conditions.

Evaluate the pipe alongside: pressure vessel nozzle, flange, fitting, and other connected components. Even if two components are both carbon steel, their specifications and mechanical properties may differ.

When connecting carbon steel to stainless steel or alloy steel components: additional evaluation may be necessary. Dissimilar-metal welding can require specific welding procedures, suitable filler metals, and additional controls to address differences in thermal expansion and material behavior.

2. Dimensional and Pressure-Rating Compatibility

Correct dimensions are essential for fitting pipe to pressure vessel nozzles and associated components.

Example: Selecting an ASME B16.5 flange requires checking:

• Nominal size

• Material group

• Facing

• Pressure class

• Applicable pressure-temperature rating

A flange's nominal pressure class should not be treated as a universal allowable pressure. Its rating depends on material and temperature—the complete connection must satisfy governing design requirements.

Wall thickness also affects compatibility. The pipe must meet required pressure-design thickness after considering corrosion allowance and mechanical loads. Changes in wall thickness at connections may require appropriate transition details.

3. Welding and Connection Requirements

Welding is a common method for joining ASTM A106 pipe to pressure vessel nozzles and piping components. Welds must be designed and fabricated according to the applicable code, approved drawings, and project specifications.

The need for preheat, post-weld heat treatment, and NDE depends on material, thickness, service conditions, and governing code requirements.

4. Code Compliance and Final Verification

ASTM A106 defines pipe material requirements—but the completed connection must also comply with the applicable design and fabrication code.

Depending on application, this may include:

• ASME B31.3

• ASME B31.1

• Relevant provisions of the ASME Boiler and Pressure Vessel Code

Before commissioning, verify:

• Material certificates

• Dimensional inspection records

• Welding documentation

• Required examination results

ASTM A106 Compatibility with Piping System Components

ASTM A106 steel pipe is widely used in industrial piping because it is a seamless carbon steel pipe designed for high-temperature service. For reliable operation, it must be compatible with connected components—flanges, fittings, valves, pressure vessel nozzles, and other piping materials.

Compatibility involves more than matching pipe sizes. It requires checking material properties, pressure-temperature ratings, connection details, and applicable design codes.

Compatibility Checklist at a Glance

1. Compatibility with Flanges and Fittings

Commonly connected to carbon steel flanges, elbows, tees, reducers, and other standard components. Select per system design requirements.

Example: ASTM A106 Grade B pipe connected to a suitable carbon steel flange per ASME B16.5. Verify flange material, nominal size, pressure class, facing, and temperature-dependent rating. A matching nominal size alone does not guarantee a compatible or safe connection.

2. Compatibility with Valves and Pressure Vessel Nozzles

Valves and nozzles must satisfy the same overall system requirements. Check connection dimensions, material compatibility, pressure-temperature ratings, and installation arrangements.

Pressure vessel nozzles require careful coordination with vessel design. The piping connection must not introduce unacceptable loads from thermal expansion, vibration, pipe weight, or pressure fluctuations. Evaluate nozzle loads and provide suitable piping supports or flexibility where necessary.

The governing design code determines required checks and fabrication controls—may include ASME B31.3, ASME B31.1, or relevant pressure vessel code requirements.

3. Compatibility with Other Piping Materials

ASTM A106 carbon steel may be connected to stainless steel or alloy steel components when the design permits. Dissimilar-material connections require additional consideration.

Protective coatings, insulation, and environmental conditions may also affect long-term performance. Material selection should reflect the actual service environment—not just nominal designations.

4. Inspection and Compatibility Verification

Before installation, review:

• Material test certificates

• Component specifications

• Dimensional inspection records

• Required welding documentation

Confirm pipe, fittings, flanges, and valves match approved drawings and purchase specifications.

Pressure and Temperature Limits: What Engineers Must Verify

When selecting ASTM A106 steel pipe for pressure vessel connections and industrial piping, engineers must verify that the pipe can withstand the system's design pressure and temperature. Although ASTM A106 seamless carbon steel pipe is intended for high-temperature service, it does not have one universal allowable working pressure or temperature limit. Actual limits depend on material grade, pipe dimensions, design conditions, and applicable engineering code.

Correct evaluation helps prevent excessive stress, leakage, deformation, and premature failure. Assess the entire piping assembly—pipes, flanges, fittings, valves, and pressure vessel connections.

Verification Checklist at a Glance

1. Confirm the Design Pressure and Temperature

Establish design pressure and design temperature—reflecting anticipated operating conditions and relevant design scenarios, not simply normal operating readings.

Applicable design code determines evaluation:

• ASME B31.3 — process piping

• ASME B31.1 — power piping

• Pressure vessel connections must also comply with relevant vessel design and fabrication requirements

2. Verify Pipe Grade and Allowable Stress

ASTM A106 covers Grades A, B, and C with different specified mechanical properties. The selected grade must meet design requirements at intended service temperature.

Important distinction: Specified tensile strength and yield strength are NOT the same as allowable design stress. Allowable stress depends on material, temperature, and governing code.

Use the applicable code's material stress tables and requirements—do not calculate working pressure directly from minimum tensile strength.

Review material test certificates to confirm supplied pipe matches specified grade and applicable product requirements.

3. Check Wall Thickness and Pressure Capacity

Wall thickness is a key factor in pressure design. Required thickness depends on:

• Design pressure

• Pipe diameter

• Allowable material stress

• Weld-related factors (where applicable)

• Other code-specific variables

Also consider:

• Corrosion or erosion allowances

• Manufacturing tolerances

• Mechanical loads

Nominal wall thickness should not automatically be treated as the full thickness available to resist internal pressure.

Flanges, fittings, valves, and pressure vessel nozzles must have suitable ratings and dimensions. A pipe with sufficient wall thickness does not make the entire system safe if a connected component is unsuitable for design conditions.

4. Evaluate High- and Low-Temperature Effects

Thermal expansion matters when hot piping connects to pressure vessels or fixed equipment. Assess pipe supports, flexibility, and nozzle loads to avoid excessive stresses.

5. Final Verification Before Installation

Common Compatibility Problems and How to Avoid Them

ASTM A106 seamless carbon steel pipe is widely used in high-temperature industrial piping and pressure vessel connections. However, meeting the material standard alone does not guarantee suitability for every installation. Compatibility problems can arise from incorrect material selection, mismatched dimensions, unsuitable pressure ratings, improper welding, or insufficient documentation.

Identifying these risks before installation helps engineers improve system safety, reduce maintenance costs, and prevent unexpected downtime.

Common Problems & Solutions at a Glance

1. Incorrect Material Grade Selection

Problem: Selecting an ASTM A106 grade without considering system design conditions. Grades A, B, and C have different specified mechanical properties—the appropriate choice depends on design pressure, temperature, and applicable code requirements.

How to avoid:

• Review engineering specifications, design calculations, and material requirements before ordering

• Confirm grade on pipe marking and material test certificate

• Do not assume a higher-strength grade automatically provides the best solution—weldability, toughness, cost, and service conditions must also be considered

2. Mismatched Dimensions and Pressure Ratings

Problem: Pipe schedule, outside diameter, flange rating, fitting dimensions, or connection details do not match the design. Example: A flange may have the correct nominal size but an unsuitable pressure-temperature rating or facing arrangement—causing assembly difficulties, leakage, or excessive stress.

How to avoid: Verify:

• Nominal pipe size and outside diameter

• Wall thickness and end preparation

• Flange class and facing type

• Gasket selection and bolting requirements

Check that every component is rated for intended operating conditions under applicable code and standards.

3. Improper Welding and Connection Design

Problem: Poor welding practices can weaken a connection or introduce defects. Incorrect filler-metal selection, inadequate joint preparation, unqualified procedures, and insufficient inspection may compromise integrity. Carbon steel to stainless steel connections require particular attention.

How to avoid:

• Use qualified welding procedures and personnel

• Confirm required filler material, preheat, post-weld heat treatment (PWHT), and NDE against governing code and project specification

• Apply additional controls to dissimilar-metal joints when necessary

4. Corrosion and Operating-Condition Mismatches

Problem: ASTM A106 is carbon steel—does not provide universal resistance to corrosive fluids. Water chemistry, chlorides, acidic media, erosion, and external environmental exposure may affect service life. Temperature fluctuations and thermal expansion can place additional loads on pipe supports and vessel nozzles.

How to avoid:

• Evaluate conveyed medium, corrosion allowance, operating temperature, and environmental conditions

• Select suitable coatings, linings, corrosion-control measures, or alternative materials when required

• Review piping flexibility, support locations, and equipment connection loads

5. Incomplete Documentation and Inspection

Problem: Missing material certificates, unclear specifications, or incomplete inspection records make it difficult to verify compliance—resulting in incorrect materials being installed or required testing being overlooked.

How to avoid: Check before acceptance:

• Material test certificates

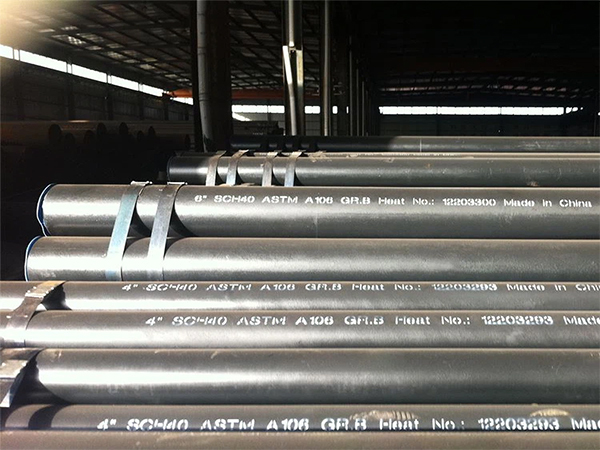

• Pipe markings

• Dimensional inspection records

• Welding documentation

• Required examination and pressure-test records

Our Recommended ASTM A106 Steel Pipes and Global Shipping Services

Supplies ASTM A106 seamless carbon steel pipes in Grades A, B, and C for high-temperature industrial piping and pressure vessel connections. Buyers should specify grade, NPS, outside diameter, wall thickness or schedule, length, end preparation, quantity, design pressure, design temperature, and applicable code. For pressure vessel connections, compatibility with flanges, fittings, valves, and nozzles must be verified before ordering. Required documentation may include material test certificates, chemical and mechanical test results, dimensional inspection records, and agreed nondestructive examination reports. For export orders, we coordinate protective end caps, bundling, packing lists, commercial invoices, transport documents, applicable Incoterms, and destination requirements. Freight costs and delivery times depend on order volume, pipe dimensions, destination, production schedule, and current shipping conditions.

Conclusion:

ASTM A106 seamless carbon steel pipe is widely used in high-temperature industrial piping systems for oil and gas, refineries, power plants, and pressure-related applications. Safe connections require more than selecting the correct grade; engineers must verify compatibility with pressure vessels, flanges, fittings, valves, and other components. Grades A, B, and C have different specified mechanical properties, so the final choice should follow design pressure, design temperature, and the applicable code. Allowable pressure must be determined using the governing design code, allowable stress, pipe dimensions, and corrosion allowance. Welding procedures, filler materials, joint preparation, inspection, dissimilar-material risks, and pipe support design should also be confirmed. Material test certificates, dimensional records, and inspection reports should be reviewed before installation.

FAQ:

Q1: Can ASTM A106 Grade B steel pipe be connected directly to a pressure vessel?

Explain that it may be used in a compatible piping system when the material, nozzle design, connection details, welding, and applicable code requirements are satisfied. The vessel and piping design must be reviewed together.

Q2: Is ASTM A106 Grade B compatible with ASME B16.5 flanges?

Explain that compatibility depends on the flange material, size, facing, pressure class, temperature rating, and connection details—not merely on the pipe grade.

Q3: Can ASTM A106 steel pipe be welded to stainless steel piping?

Discuss the need to evaluate dissimilar-metal welding procedures, filler metal selection, thermal effects, corrosion risks, and applicable code requirements.

Q4: How do I determine the pressure rating of ASTM A106 Grade B pipe?

Explain that allowable pressure depends on pipe dimensions, wall thickness, design temperature, material allowable stress, corrosion allowance, and the governing piping code.
