Slotted screen pipes are essential components in groundwater extraction and geothermal well systems, designed with evenly distributed openings to allow fluid entry while controlling formation particle movement. Properly selected screens improve well efficiency, reduce sediment intake, and support long-term reliability in municipal water supply, agricultural irrigation, industrial groundwater, and geothermal applications. Slot width must match formation particle size and gravel-pack requirements: oversized slots allow excessive sand entry and pump wear, while undersized slots restrict flow or become blocked. Material selection is critical—carbon steel suits certain groundwater conditions, while stainless steel offers improved corrosion resistance for demanding fluid chemistry, temperature, and pressure environments. Key selection factors include material grade compatibility with well fluid chemistry, slot width for particle control, open area for sufficient flow capacity without compromising strength, mechanical strength for installation depth and external loads, and durability against corrosion, erosion, and scaling.

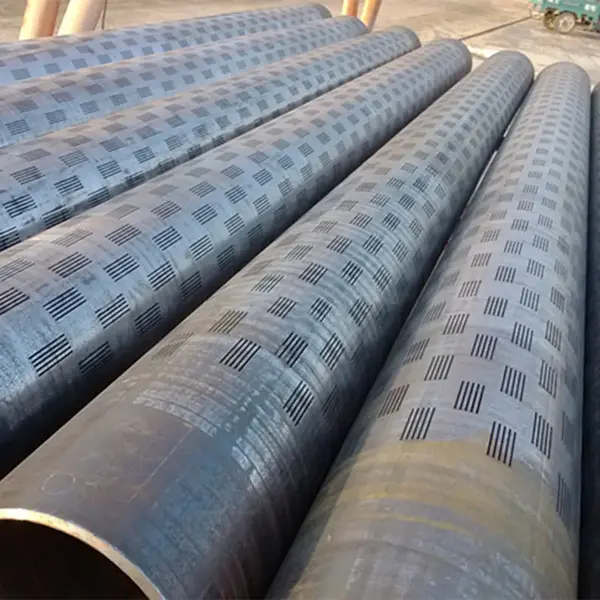

Structure, Materials, and Manufacturing of Slotted Screen Pipes

The structure, material, and manufacturing quality of slotted screen pipes directly affect flow capacity, mechanical strength, and service life. Used in water source wells, industrial groundwater systems, and selected geothermal wells, these pipes must provide sufficient fluid entry while controlling formation particle movement.

Key selection factors: slot design, base pipe material, wall thickness, manufacturing accuracy, and operating environment.

Common Types of Slotted Screen Pipes

Other important design parameters: slot width, length, spacing, distribution, and total open area.

Important balance:

• Larger openings → may increase fluid entry, but can allow more formation particles to enter

• Smaller openings → may improve particle retention, but increase clogging risk

Slot size should be determined from formation particle-size analysis and overall well completion design.

Common Materials

For geothermal wells: material selection deserves particular attention—elevated temperatures, dissolved minerals, corrosive gases, and scaling can affect screen performance.

Manufacturing Process and Quality Control

General process: preparing base pipe → cutting or forming slots → removing burrs → cleaning surface → inspecting finished product. Slots may be produced using mechanical or other suitable cutting methods.

Also confirm before shipment: protective treatments, end connections, and packaging.

Why Manufacturing Quality Matters

Before purchasing, provide the supplier with:

• Required material grade

• Pipe diameter and wall thickness

• Slot dimensions

• Total length and quantity

• Operating conditions

For geothermal applications, also specify: relevant temperature, pressure, and fluid chemistry

Application of Slotted Screen Pipes in Water Source Wells

Slotted screen pipes are important components in water source well construction. They allow groundwater to enter the well while helping control the movement of sand, gravel, and other formation particles. When properly selected and installed, they support stable water production, reduce sediment entry, and improve long-term efficiency.

Water source wells are used in municipal water supply, agricultural irrigation, industrial production, construction projects, and rural water systems—each with different requirements for flow rate, water quality, formation stability, and service life.

Main Functions

A slotted screen does not guarantee sand-free water. Performance depends on formation characteristics, slot dimensions, and whether a gravel pack or another completion method is required.

Selecting the Right Slotted Screen Pipe

Start with an assessment of the aquifer:

• Formation particle size

• Groundwater level

• Expected pumping rate

• Water chemistry

• Required screen depth

Applications Across Different Water Supply Projects

Installation and Maintenance Considerations

Application of Slotted Screen Pipes in Geothermal Wells

Slotted screen pipes play an important role in selected geothermal well designs—allowing geothermal fluids to enter or move through designated well intervals while helping control formation particles. Compared with conventional groundwater wells, geothermal wells may operate under higher temperatures and more demanding chemical and mechanical conditions.

Screen design and material selection must match the specific geothermal resource and well completion requirements.

Main Functions in Geothermal Wells

Slotted screen pipes do not eliminate every risk of sand production, scaling, or blockage. Effectiveness depends on proper design, installation, and maintenance.

Material Selection for High-Temperature Conditions

Material selection is critical in geothermal applications. The screen may be exposed to:

• Elevated temperatures

• Dissolved salts

• Chloride-containing fluids

• Corrosive gases

• Repeated temperature changes

Material selection should be based on actual fluid analysis and project specifications—not temperature alone.

Slot Design and Flow Performance

Slot width, length, spacing, and total open area influence fluid entry and particle control.

Consider:

• Formation's particle-size distribution

• Need for gravel pack

• Expected production or reinjection rates

• Screen's mechanical requirements

• Pressure conditions and potential mineral deposition

In geothermal wells, scaling caused by changes in temperature, pressure, or fluid chemistry can reduce effective open area over time. Appropriate material selection, fluid management, monitoring, and maintenance help limit performance losses.

Installation, Inspection, and Maintenance

Slotted Screen Pipes for Water Wells vs. Geothermal Wells

Slotted screen pipes are used in both water source wells and geothermal wells to provide fluid-entry openings and help control formation particles. However, operating conditions and performance requirements differ significantly:

• Water wells — primarily extract groundwater for supply

• Geothermal wells — handle fluids associated with underground heat resources, facing higher temperatures, more complex fluid chemistry, and demanding pressure conditions

Understanding these differences helps engineers and buyers select the appropriate screen material, slot dimensions, pipe structure, and quality requirements.

Key Differences: Water Wells vs. Geothermal Wells

General guidelines only—actual requirements depend on specific well design, geology, and operating environment.

Differences in Material Selection

Differences in Slot Design and Flow Requirements

In both applications:

• Excessively large slots → may permit unwanted particles to enter

• Excessively small slots → may restrict flow or become more susceptible to blockage

The screen's open area and structural strength must be evaluated together.

How to Choose the Right Slotted Screen Pipe

Before selecting, confirm:

• Well's purpose and target formation

• Pipe diameter and wall thickness

• Slot dimensions

• Material grade

• Required service life

Geothermal projects should additionally provide relevant temperature, pressure, and fluid chemistry data.

The supplier should manufacture the screen according to agreed drawings and specifications—with appropriate dimensional inspection, material verification, and quality documentation.

Installation, Maintenance, and Performance Optimization of Slotted Screen Pipes

Proper installation and regular maintenance are essential for maximizing the service life and operating efficiency of slotted screen pipes. In water source and geothermal wells, incorrect installation, unsuitable slot dimensions, corrosion, scaling, and particle accumulation can reduce fluid flow and increase maintenance costs.

Installation Requirements

Before installation, inspect:

• Pipe diameter, wall thickness, slot dimensions

• Material grade, end connections, surface condition

• Any damage, blocked slots, or dimensional inconsistencies

The screen must be positioned at the designated interval to ensure effective contact with the target aquifer or geothermal formation.

Well development should be performed using a method suitable for the formation and completion system—helps remove fine particles and drilling residues, improving hydraulic connection.

Routine Maintenance and Inspection

Maintenance requirements vary by water chemistry, formation characteristics, operating temperature, and production conditions.

Common maintenance measures:

• Inspect changes in flow rate and pressure loss

• Evaluate sediment accumulation and mineral scaling

• Check for corrosion or damage when inspection is feasible

• Clean or rehabilitate the well using methods compatible with screen material and completion design

• Review operating conditions and adjust maintenance schedule when necessary

Chemical cleaning should only be used after assessing deposit type, material compatibility, and environmental requirements. Inappropriate cleaning chemicals or excessive mechanical force can damage the screen.

Optimizing Screen Performance

Performance optimization begins with correct product selection. Slot width, open area, pipe diameter, wall thickness, and material grade must match well requirements.

Increasing slot size or open area without engineering evaluation may reduce particle retention or compromise structural performance.

During operation, compare changes in pumping rate, drawdown, temperature, and pressure with established baseline measurements. This helps identify whether performance losses result from clogging, scaling, corrosion, pump problems, or broader formation changes.

Why a Complete Management Plan Matters

A reliable management plan combines:

• Product inspection

• Correct installation

• Well development

• Routine monitoring

• Timely maintenance

Procurement teams should retain: material certificates, dimensional inspection records, and product specifications for future reference.

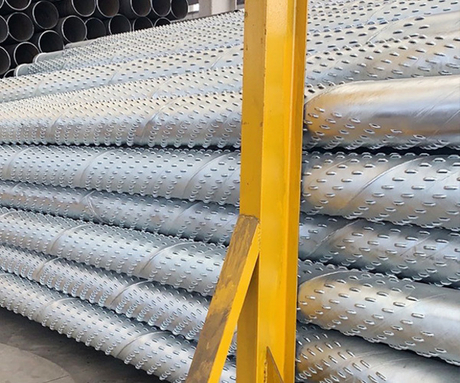

Our Recommended Slotted Screen Pipe Products and Global Shipping Services

Supplies carbon steel, stainless steel, and customized slotted screen pipes for groundwater and geothermal wells. Carbon steel screens provide mechanical strength for conventional water wells, while stainless steel grades such as 304 and 316 offer improved corrosion resistance for demanding fluid chemistry and geothermal conditions. Customized options allow specification of pipe diameter, wall thickness, length, slot width, slot spacing, open area, end connections, and applicable inspection standards. Slot dimensions should be matched to formation particle size, gravel-pack requirements, and expected pumping rates to balance flow capacity with particle control. Before ordering, confirm material grade, manufacturing method, slot tolerances, and quality documentation such as material certificates and dimensional inspection reports. For geothermal applications, provide expected temperature, pressure, and fluid chemistry to support appropriate material evaluation. For international buyers, we coordinate protective packaging, product marking, container loading, commercial invoices, packing lists, and delivery to the agreed destination. Freight costs, transit times, and import requirements depend on the destination and agreed Incoterms. Provide pipe material, dimensions, slot specifications, quantity, application details, and destination to receive a suitable quotation. Careful specification review and coordinated shipping help reduce procurement risks and support reliable well performance.

Conclusion:

Selecting the right slotted screen pipe requires balancing fluid intake efficiency, particle control, corrosion resistance, mechanical strength, and lifecycle cost for water source and geothermal wells. Material grade should match fluid chemistry, temperature, and expected service life: carbon steel suits manageable conditions, while stainless steel or specialized alloys are considered for higher corrosion risks. Slot width, spacing, and open area must be based on formation particle-size analysis and well completion design, including gravel packing where applicable. Pipe diameter, wall thickness, and connection design should withstand installation and operating loads. Manufacturing quality, accurate slot tolerances, and agreed inspection documentation help reduce performance risks. Correct installation, proper well development, and ongoing monitoring of flow, pressure, turbidity, and fluid chemistry are equally important for long-term reliability.

FAQ:

Q1: What is the main purpose of slotted screen pipes in water wells?

Slotted screen pipes allow groundwater to enter the well while helping control the entry of surrounding formation particles.

Q2: Can slotted screen pipes be used in geothermal wells?

Yes, when the screen material, slot design, and mechanical properties are suitable for the geothermal fluid, temperature, pressure, and reservoir conditions.

Q3: How do you choose the correct slot size for a water well?

Slot size should be determined from formation particle-size analysis, well completion design, and the requirements for sand control and flow.

Q4: Which material is better for geothermal slotted screen pipes: carbon steel or stainless steel?

The choice depends on temperature, fluid chemistry, pressure, mechanical loads, and corrosion risks; neither material is universally suitable for every geothermal well.

Q5: What causes slotted screen pipes to lose efficiency?

Common causes include sediment blockage, mineral scaling, corrosion, erosion, and formation changes that restrict fluid flow.
