Differences between Slotted Screen Tubes And Wire-wound Screen Tubes: Comparison of Structure, Strength, And Applicable Scenarios

Choosing the right screen tube is critical for groundwater extraction, water treatment, oil and gas production, and industrial filtration. Slotted screen tubes and wire-wound screen tubes are two common options with distinct structures and performance characteristics. Slotted screens have openings cut directly into the pipe wall, offering a practical solution for many well and industrial applications. Wire-wound screens use profile wire wrapped around support rods, providing uniform slot widths and high open area for improved flow efficiency and particle control. Neither design is universally superior; selection depends on formation particle size, required flow rate, mechanical loads, corrosion resistance, and budget. Incorrect slot sizing can cause sand ingress, equipment damage, or clogging. Mechanical strength, material selection, and wall thickness must also match installation and operating conditions.

What Are Slotted Screen Tubes and Wire-Wound Screen Tubes?

Slotted screen tubes and wire-wound screen tubes are two common filtration products used in water wells, groundwater extraction, oil and gas production, and industrial filtration systems. Both allow fluid to pass while restricting sand, gravel, and other unwanted particles—but their structural designs and manufacturing processes differ, affecting filtration performance, mechanical properties, and suitable applications.

Quick Comparison

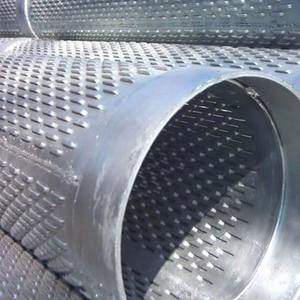

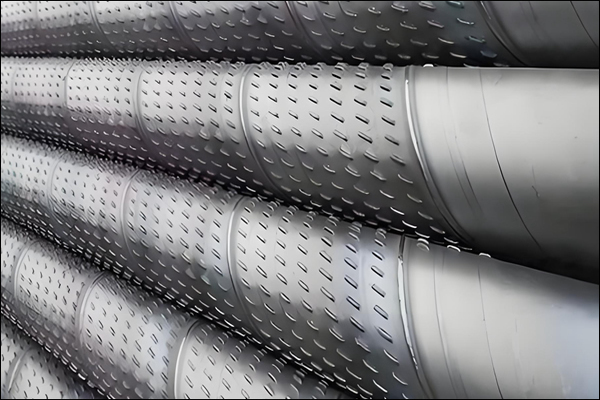

1. Slotted Screen Tubes: Structure and Manufacturing

Manufactured by cutting narrow openings directly into the wall of a steel pipe. Openings may be straight slots or other specified configurations.

Slot dimensions should be selected according to the particle-size distribution of the surrounding formation and required filtration performance.

Common applications:

• Groundwater extraction and water well construction

• Industrial water filtration systems

• Drainage and dewatering projects

• Selected oil and gas well applications where design meets completion requirements

Often considered for projects requiring a relatively straightforward pipe-based structure. Suitability depends on required opening size, structural performance, and operating environment.

2. Wire-Wound Screen Tubes: Structure and Manufacturing

Also known as wire-wrapped screens, they generally consist of support rods surrounded by specially shaped profile wire. The wire is wound around the support structure and secured, commonly through welding, to create continuous filtration openings.

Unlike slotted screens, wire-wound screens use the spaces between adjacent profile wires as filtration openings. The wire profile and manufacturing process help control opening width and consistency.

Buyers should verify load capacity and other mechanical requirements—not assume all wire-wound screens offer the same strength.

Common applications:

• Groundwater and deep-well systems

• Municipal and industrial water treatment

• Irrigation and water supply projects

• Selected oil and gas filtration or sand-control applications

3. Key Structural Differences

The choice should be based on:

• Required filtration accuracy

• Flow rate

• Mechanical loads

• Corrosion conditions

• Project specifications

Slotted Screen Tubes vs. Wire-Wound Screen Tubes: Key Differences

Slotted and wire-wound screen tubes serve similar filtration purposes, but their structural designs influence mechanical strength, flow efficiency, particle retention, and maintenance requirements.

Understanding these differences helps engineers and buyers choose the right screen for water wells, industrial filtration, and selected oil and gas applications.

Comparison Table

1. Structural Design and Manufacturing

Slotted screen tubes — manufactured by cutting slots directly into a steel pipe wall. Design is relatively straightforward—slot width, length, spacing, and arrangement can be specified. Cutting openings removes material from the pipe wall, so slot geometry and distribution must be considered when evaluating structural performance.

Wire-wound screen tubes — profile wire wrapped around longitudinal support rods. Gaps between adjacent wires create filtration openings. This construction allows controlled, continuous openings and can provide a high effective open area. Performance depends on wire profile, support rod design, welding quality, and manufacturing precision.

2. Mechanical Strength and Pressure Resistance

Neither screen type is automatically stronger than the other. Compare verified tensile capacity, collapse resistance, pressure requirements, and installation loads for the specific products under consideration.

3. Filtration Accuracy and Flow Performance

Filtration performance depends largely on opening size and the characteristics of the material being filtered.

A larger open area does not guarantee better performance in every application.

For both types:

• Openings too large → may allow excessive sand to enter

• Openings too small → may restrict flow or increase clogging risk

Selection should consider particle-size distribution, required flow rate, and operating conditions.

4. Clogging, Maintenance, and Service Life

Both screen types can experience clogging from fine particles, mineral deposits, or biological growth. Risk depends on water chemistry, sediment characteristics, opening geometry, and operating practices.

Service life depends on more than screen structure: material quality, corrosion resistance, installation methods, fluid conditions, and maintenance practices also play important roles.

5. Cost and Procurement Considerations

Applicable Scenarios: Which Screen Tube Should You Choose?

Choosing between slotted screen tubes and wire-wound screen tubes depends on filtration requirements, formation conditions, mechanical loads, flow rate, and budget. Both can be effective when properly designed—but their structural differences make them suitable for different operating environments.

Evaluate the application before selecting—not price or general performance claims alone.

Quick Selection Guide

1. When to Choose Slotted Screen Tubes

Commonly considered for water wells, groundwater extraction, drainage, and selected industrial filtration systems. Pipe-based structure and defined openings make them practical for straightforward screening requirements.

A slotted screen may be suitable when:

• Required slot width and arrangement can be achieved by the selected manufacturing process

• The screen must meet specified dimensional and mechanical requirements

• Project involves general groundwater extraction or drainage

• Procurement budget favors a straightforward screen design

• Operating environment is compatible with the selected pipe material

Important considerations:

• Openings too large → may allow excessive sand to enter

• Openings too small → can restrict flow or increase clogging risk

• Slot impact on pipe strength — consider load-bearing capacity, especially with external pressure or demanding installation

2. When to Choose Wire-Wound Screen Tubes

Often considered for applications requiring closely controlled filtration openings and a relatively high effective open area. Profile-wire construction can support consistent slot widths and efficient fluid passage when properly designed.

A wire-wound screen may be suitable when:

• Precise opening control is important for particle retention

• High effective open area is a project priority

• The screen must support a specified flow rate while controlling sediment entry

• Application requires a customized screen configuration

• Project benefits from a design tailored to the formation or filtration medium

Common applications: groundwater wells, water treatment systems, industrial filtration, selected oil and gas applications—provided the product meets completion design and mechanical requirements.

Verify before selecting: support rod configuration, profile-wire dimensions, weld quality, material properties, and load capacity. Filtration advantages do not automatically guarantee greater mechanical strength or longer service life.

3. Selecting Screens for Oil and Gas Wells

Oil and gas well applications may involve high mechanical loads, corrosive fluids, abrasive particles, and demanding installation conditions.

Screen selection should account for:

• Formation characteristics

• Production targets

• Sand-control requirements

• Temperature and pressure

• Corrosion risks

The engineering team should evaluate:

• Tensile capacity

• Collapse resistance

• Erosion resistance

• Connection compatibility

• Installation methods

Neither slotted nor wire-wound screens should be selected solely because they are commonly used in the industry. The screen design must suit the well's completion strategy and operating conditions.

4. Selecting Screens for Water Wells and Industrial Filtration

How to Select the Right Screen Tube for Your Project

Selecting the right screen tube requires more than comparing slotted and wire-wound structures. Buyers must consider filtration accuracy, flow requirements, mechanical strength, material compatibility, and installation conditions. A properly selected screen tube helps control sand entry, maintain fluid flow, reduce maintenance, and improve service life.

Selection Checklist at a Glance

1. Determine the Required Slot Opening

Slot size is one of the most important factors. Openings must allow target fluid to pass while retaining particles that could damage equipment.

Both designs can be manufactured with specified opening sizes—subject to production capabilities and tolerances.

Do not assume smaller openings are always better:

• Too small → may restrict flow or increase clogging risk

• Too large → may allow excessive sand or sediment to enter

The correct opening size should balance particle retention, flow capacity, and maintenance requirements.

2. Evaluate Mechanical Strength and Material Requirements

Screen tubes must withstand installation loads and operating conditions without unacceptable deformation or failure. Required strength depends on application, screen dimensions, installation depth, external pressure, and project-specific factors.

Material selection is equally important. Carbon steel, stainless steel, and other materials have different mechanical and corrosion-resistance characteristics. Choice should reflect:

• Water chemistry and fluid composition

• Temperature

• Exposure to corrosive substances

For oil and gas applications: additional requirements may apply to pressure resistance, erosion, and completion compatibility.

3. Confirm Dimensions and Connection Requirements

Before ordering, specify:

• Outer diameter and length

• Wall thickness or structural configuration

• Opening size

• End connections

Connection type and dimensions must be compatible with adjoining pipes and installation equipment.

Also confirm: dimensional tolerances, straightness requirements, and any special manufacturing details.

Providing drawings or a detailed technical specification reduces misunderstandings and improves quotation accuracy.

4. Review Quality Inspection and Technical Documentation

Agree on inspection requirements before production. Confirm product identification, traceability, and acceptance criteria.

5. Compare Total Project Cost

Purchase price is only one part of total cost. Also consider:

• Installation

• Pumping efficiency

• Maintenance and cleaning

• Replacement frequency

• Expected service life

A lower-cost screen may suit a straightforward application—while a more specialized design may offer benefits where filtration accuracy or flow performance is critical.

Compare products against the same technical requirements for a fair evaluation.

Our Recommended Screen Tube Products and Global Shipping Services

Supplies slotted and wire-wound screen tubes for groundwater extraction, water well construction, water treatment, and industrial filtration. Slotted screens offer customizable slot dimensions cut directly into the pipe wall, while wire-wound screens provide uniform openings and high open area for improved flow efficiency. Buyers should confirm material grade, outer diameter, wall thickness, slot width, support structure, and end connections based on formation conditions and required flow rate. Quality documentation, including material test certificates, dimensional inspection, and weld verification, is available upon request. For international orders, we coordinate export packaging, protective handling, shipping documentation, and delivery to the agreed destination port. To request a quotation, please provide the screen type, material, dimensions, slot opening, quantity, intended application, inspection requirements, and destination port. Confirming technical specifications and shipping terms in advance helps reduce procurement risks and ensures reliable filtration performance for water well and industrial projects.

Conclusion:

Choosing the right screen tube ensures reliable filtration, controlled sand entry, and lower long-term maintenance costs. Slotted screen tubes have openings cut directly into the pipe wall, offering a practical solution when slot dimensions, wall thickness, and load-bearing capacity meet project requirements. Wire-wound screen tubes use profile wire wrapped around support rods, providing controlled slot widths and high open area for improved filtration accuracy and flow efficiency. Neither type is universally superior; selection depends on particle-size distribution, aquifer conditions, target flow rate, fluid composition, temperature, corrosion exposure, and mechanical loads. Oil and gas applications may require additional verification of tensile capacity, collapse resistance, and completion-standard compliance.

FAQ:

FAQ 1: What Is the Main Difference Between Slotted Screen Tubes and Wire-Wound Screen Tubes?

Compare their basic structures: openings cut into a pipe wall versus profile wire wound around support rods.

FAQ 2: Which Screen Tube Has Better Filtration Performance?

Explain that wire-wound screens can offer precise, uniform openings and high effective open area, while actual performance depends on design, opening size, fluid conditions, and installation.

FAQ 3: Are Wire-Wound Screen Tubes Stronger Than Slotted Screen Tubes?

Explain that strength depends on materials, dimensions, structural design, weld quality, and operating loads; neither type is universally stronger.

FAQ 4: How Do I Choose the Correct Slot Size for a Screen Tube?

Explain that selection should consider formation particle-size distribution, required particle retention, and target flow rate.

FAQ 5: Can Slotted and Wire-Wound Screen Tubes Be Customized?

Explain that dimensions, opening sizes, materials, and connections may be customized depending on manufacturing capabilities and project requirements.
