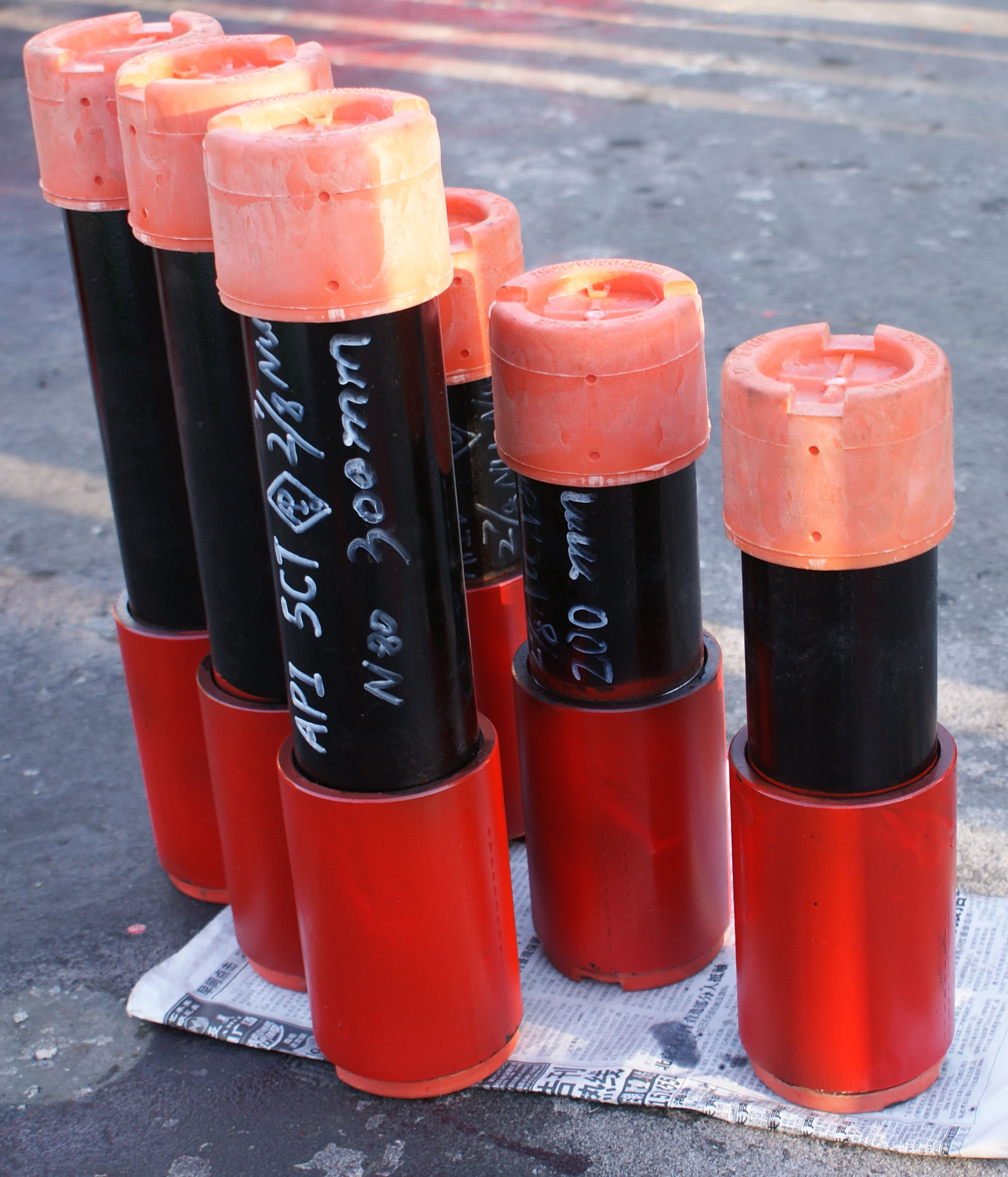

Pup Joint

Short Description:


  • Standards: API 5CT and 5B J55,K55,N80-1,N80-Q,P110, C95
  • Sizes: Tubing Coupling : 2-3/8'' - 4-1/2'' Casing Couping : 4-1/2'' - 20' Length: 2, 3, 4, 6, 8, 10, 12 ft
  • Specification Range: 2-3/8INCH to 20INCH
  • Materials: J55, K55, N80, L80, C90,T95, P110 and Q125
  • T&C: EUE, NUE, STC, LTC, BTC and Premium connection
  • Type: PIN*PIN, PIN*BOX
  • Testing: NDT Etc Related Rules of API 5CT and 5B
  • Packing: By Bundles, Seaworthy Packing
  • Application: Connecting Two Oil Tubing or Casing Pipes
  • Product Detail

    Specification

    Standsrds

    Packings

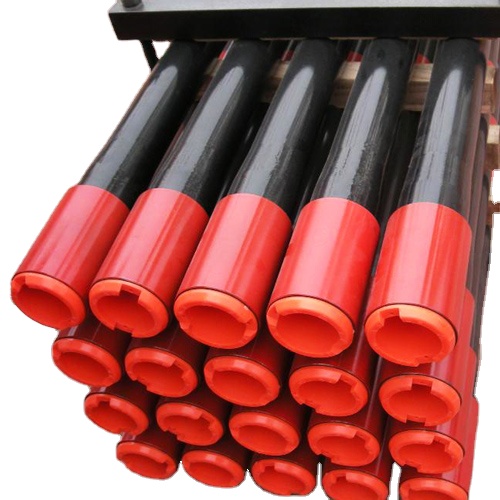

    Pup Joints

    Pup joint is used be adjust height of tubing or casing strings or depth of down-hole tools, and these pup joints are made of seamless steel pipes. Pup joint can be available with tubing pup joint or casing pup joint, and material for pup joint can be avalialbe in J55, K55, N80, L80 or P110, sizes of tubing pup joint range from 2⅜¡± to 4½¡±, and casing pup joint range from 4½¡± to 13⅜¡±, thread of pup joint can be 8RD, 10RD or BTC, length of tubing pup joint are often offered in 2ft, 3ft, 4ft, 6ft, 8ft, 10ft and 12ft, length of pup joint for special purpose can be available as per order. Pup joints are machined with interchangeable Pin & Box thread on two ends or other configuration, one end is equipped with coupling, and another end is protected with closed end thread protector. Nominal weight of tubing pup joint is the same as tubing, and casing pup joint is the same as casing.

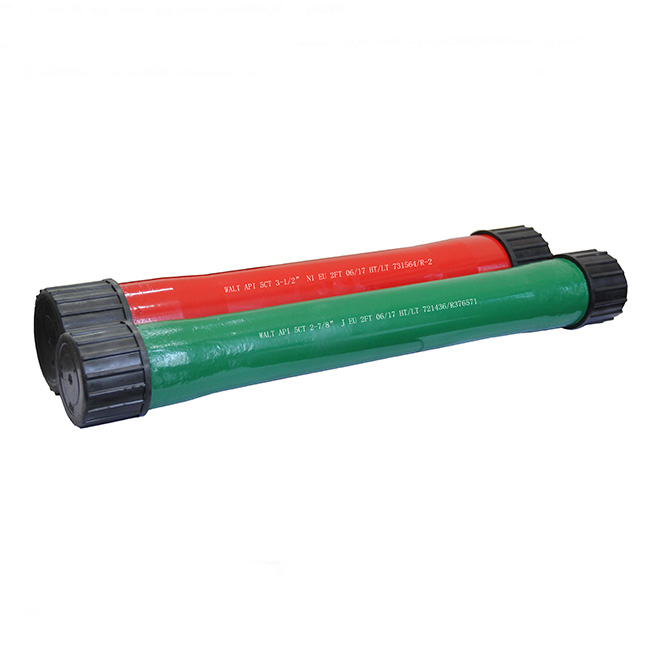

    Tubing pup Joint

    Tubing pup joints are desiged and manufactured as per API 5CT to be used be adjust height of tubings, and tubing pup joints are made of seamless steel tubings. Material grade of tubing pup joint can be avalialbe in J55, K55, N80, L80 or P110, sizes of tubing pup joint range from 2⅜¡± to 4½¡±, thread of pup joint can be 8RD, 10RD or BTC, and end connection types can be NUE and EUE. length of tubing pup joint are often offered in 2ft, 3ft, 4ft, 6ft, 8ft, 10ft and 12ft, length of pup joint for special purpose can be available as per order. Tubing pup joints are machined with interchangeable Pin & Box thread on two ends or other configuration, one end is equipped with coupling, and another end is protected with closed end thread protector. Nominal weight of tubing pup joint is the same as tubing. Tubing pup joints are internally and externally hydrostatic tested with tension and compression loads, and torque tested, electromagnetically inspected, pup joint is full-body drift and straightness visual inspected, and phosphated and dye-penetrant inspected. and finally painted by machine to ensure excellenct appearance. Finished tubing pup joints are often packed by steel belts in bundles, and then fixed in steel rack for easy transportation.

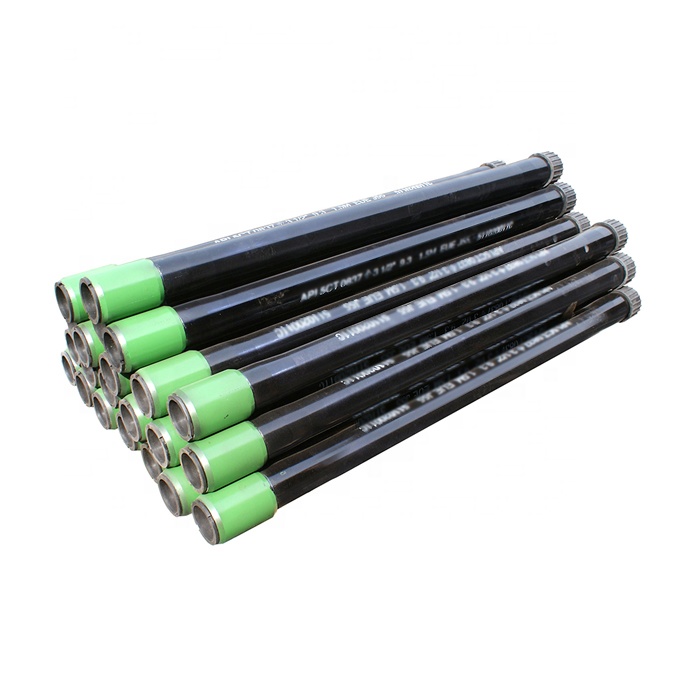

    Casing pup joint

    Casing pup joints are desiged and manufactured as per API 5CT to be used be adjust height of casings, and casing pup joints are made of seamless steel casings. Material grade of casing pup joint can be avalialbe in J55, K55, N80, L80 or P110, sizes of casing pup joint range from 4½¡± to 13⅜¡±, thread of pup joint can be 8RD, 10RD or BTC, length of tubing pup joint are often offered in 2ft, 3ft, 4ft, 6ft, 8ft, 10ft and 12ft, length of pup joint for special purpose can be available as per order. Casing pup joints are machined with interchangeable Pin & Box thread on two ends or other configuration, one end is equipped with coupling, and another end is protected with closed end thread protector. Nominal weight of casing pup joint is the same as casing. Casing pup joints are internally and externally hydrostatic tested with tension and compression loads, and torque tested, electromagnetically inspected, pup joint is full-body drift and straightness visual inspected, and phosphated and dye-penetrant inspected. and finally painted by machine to ensure excellenct appearance. Finished casing pup joints are often packed by steel belts in bundles, and then fixed in steel rack for easy transportation.



    Features

    Transportation or piping systems that carry fluids, slurries or gasses under pressure or vacuum at varying temperatures.

    Reduction of vibration.

    Dampen sound transmission.

    Compensate movements due thermal changes, misalignments caused by wear, load stresses, settling of supporting foundations.

    Molding production with long radius arch.

    Standard measures (length).



    Advantages

    Easy installation, flanges can be rotated.

    For installation with “torsional misalignments”.

    Flanges are not in contact with medium, which enables lower grade material.

    Galvanic surfaces/ coatings possible.

    Gaskets can be eliminated.

    Additional movement capabilities.

    Self cleaning arch (no need filler material).

    Economic.


  • Previous:
  • Next:

  • SPECIFICATIONS

    TUBING PUP JOINT

    OD

    GRADE

    END TYPE

    LENGTH(FT)

    2 3/8″

    J/K/L/N/P

    NUE/EUE

    2/3/4/5/6/8/10/12

    2 7/8″

    J/K/L/N/P

    NUE/EUE

    2/3/4/5/6/8/10/12

    3 1/2″

    J/K/L/N/P

    NUE/EUE

    2/3/4/5/6/8/10/12

    4 1/2″

    J/K/L/N/P

    NUE/EUE

    2/3/4/5/6/8/10/12



    CASING PUP JOINT

    OD

    GRADE

    END TYPE

    4 1/2″

    J/K/L/N/P

    LTC/STC/BTC

    5″

    J/K/L/N/P

    LTC/STC/BTC

    5 1/2″

    J/K/L/N/P

    LTC/STC/BTC

    6 5/8″

    J/K/L/N/P

    LTC/STC/BTC

    7″

    J/K/L/N/P

    LTC/STC/BTC

    7 5/8″

    J/K/L/N/P

    LTC/STC/BTC

    7 3/4″

    J/K/L/N/P

    LTC/STC/BTC

    8 5/8″

    J/K/L/N/P

    LTC/STC/BTC

    9 5/8″

    J/K/L/N/P

    LTC/STC/BTC

    10 3/4″

    J/K/L/N/P

    STC/BTC

    11 3/4″

    J/K/L/N/P

    STC/BTC

    13 3/8″

    J/K/L/N/P

    STC/BTC



    Size / Thread

    Weight*

    Grades

    Length

    Surface treatment

    Coupling

    2 3/8″ EUE

    4.7

    J55 / L80/P110

    R1/R2/R3

    painting

    C/W/N/S

    2 7/8″ EUE

    6.5

    J55 / L80/P110

    R1/R2/R3

    painting

    C/W/N/S

    3 1/2″ EUE

    9.3

    J55 / L80/P110

    R1/R2/R3

    painting

    C/W/N/S

    4 1/2″ EUE

    12.75

    J55 / L80/P110

    R1/R2/R3

    painting

    C/W/N/S

    2 3/8″ NUE

    4.6

    J55 / L80/P110

    R1/R2/R3

    painting

    C/W/N/S

    2 7/8″ NUE

    6.4

    J55 / L80/P110

    R1/R2/R3

    painting

    C/W/N/S

    3 1/2″ NUE

    9.2

    J55 / L80/P110

    R1/R2/R3

    painting

    C/W/N/S

    4 1/2″ NUE

    12.6

    J55 / L80/P110

    R1/R2/R3

    painting

    C/W/N/S

    Standards of tubing pup Joint

    Standard

    Steel Grade

    Yield Strength

    (MPA)

    Tensile Strength

    (MPA)

    Elongation

    min

    max

    min

    API 5CT

    J55

    379

    552

    517

    0.5

    N80

    552

    758

    689

    0.5

    Standards of casing pup Joint

    Grade

    Yield Strength

    Tensile Strength

    Min

    Max

    Min

    Psi

    MPA

    Psi

    MPA

    Psi

    MPA

    J55 55000 379 80000 552 75000 517
    K55 55000 379 80000 552 95000 655
    N80 80000 552 110000 758 100000 689
    L80 80000 552 95000 655 95000 655
    P110 110000 758 140000 965 125000 862

    The outer surface shall be coated (painted) and marked according to API 5CT standard, bundled with wooden cases, pallets, steel belts or other packaging as required by customers.

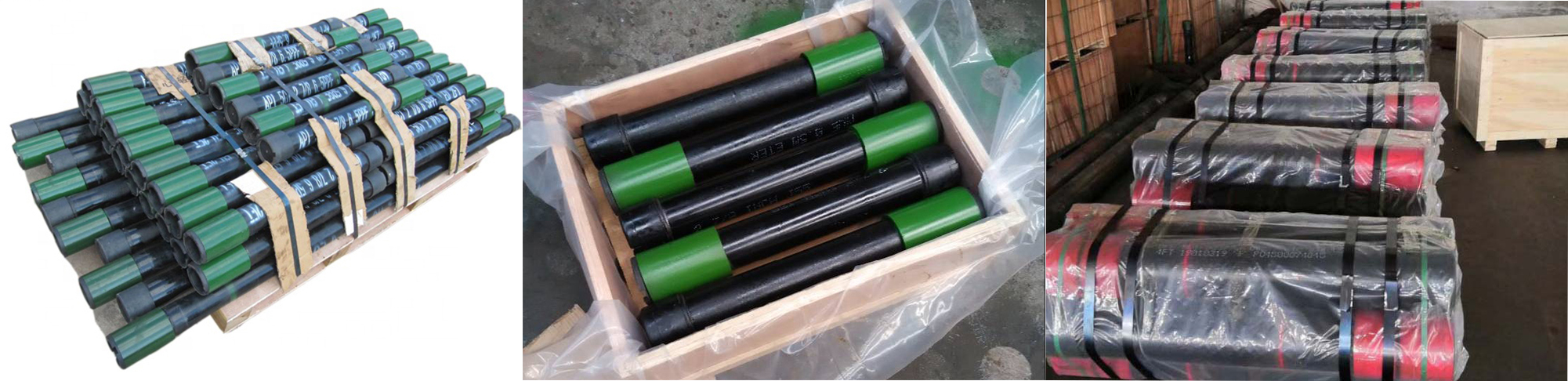

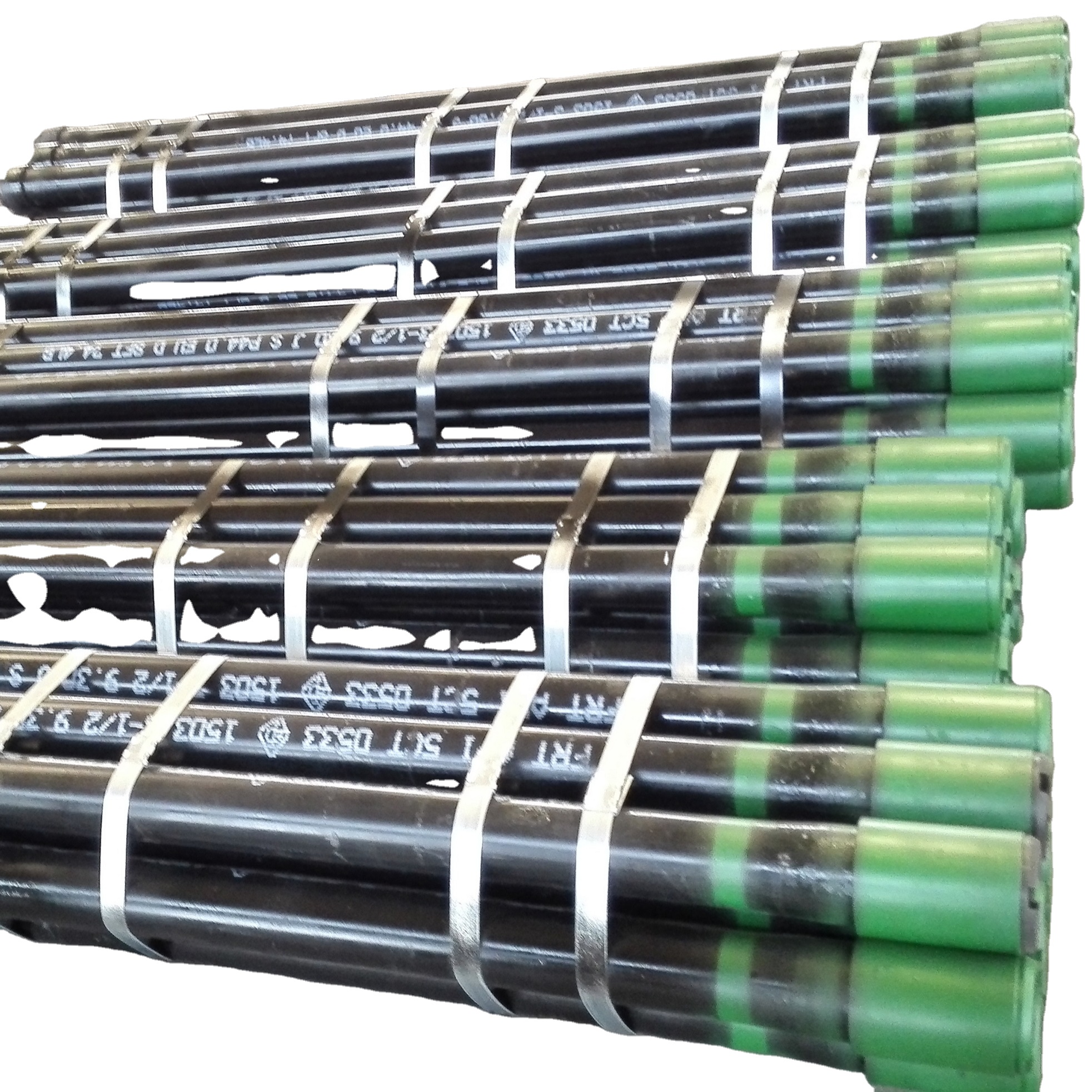

    pup joint packing
