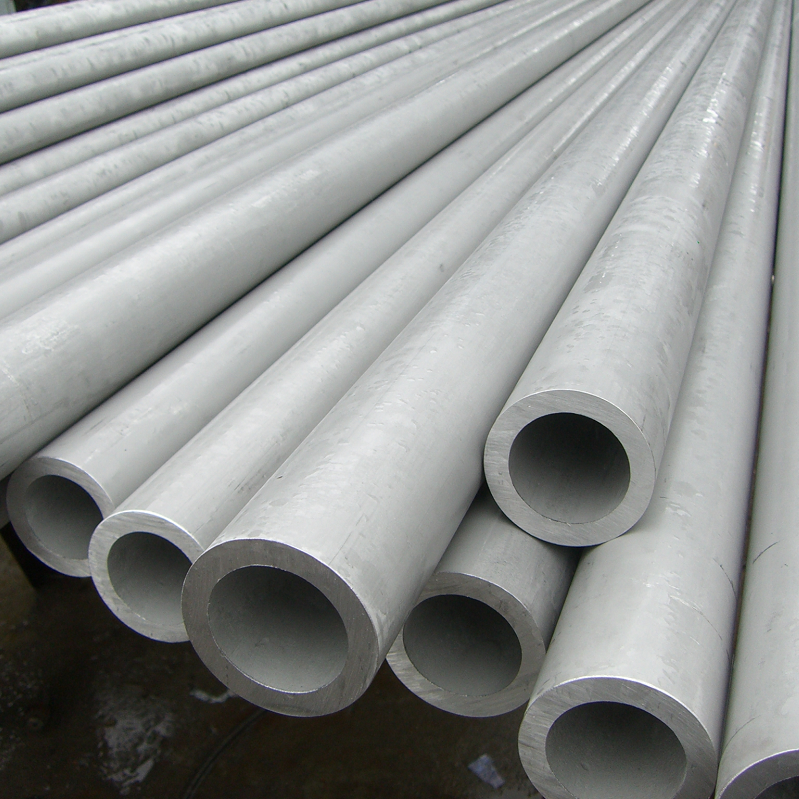

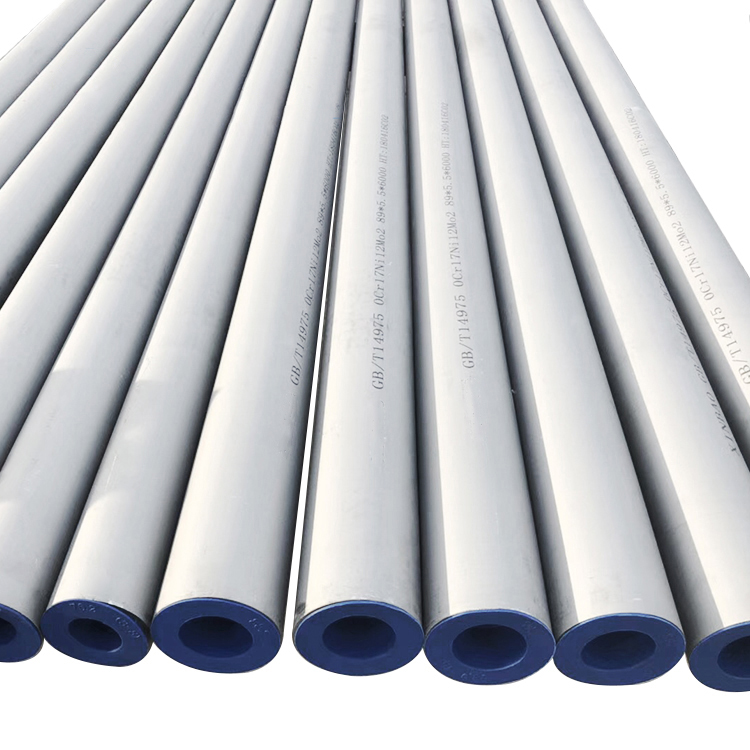

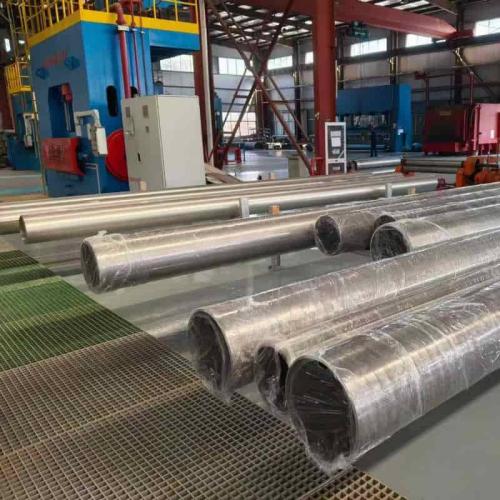

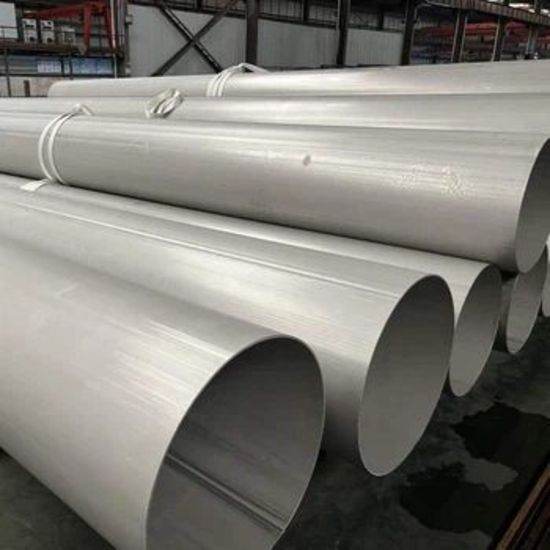

Nickel Alloy Tubes

Short Description:


  • Product: Copper Nickel Alloy Pipe, Seamless Nickel Alloy Pipe, Copper Nickel Alloy Tubing, Alloy 625 Pipe, Alloy 625 Tube, Alloy 600 Tube
  • Grade: UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276) etc
  • Sizes: 1/8″ – 48″ Seamless&Welded
  • Schedules: Sch 10S – XXH
  • Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes
  • Form: Round, Square, Rectangular, Hydraulic Etc
  • Length : Single Random, Double Random & Cut Length.
  • Standard: B725, B474, B517, B705, B619, A358, A312, B464, and B515
  • Product Detail

    Specifications

    Standards

    Surface Finish

    Packing

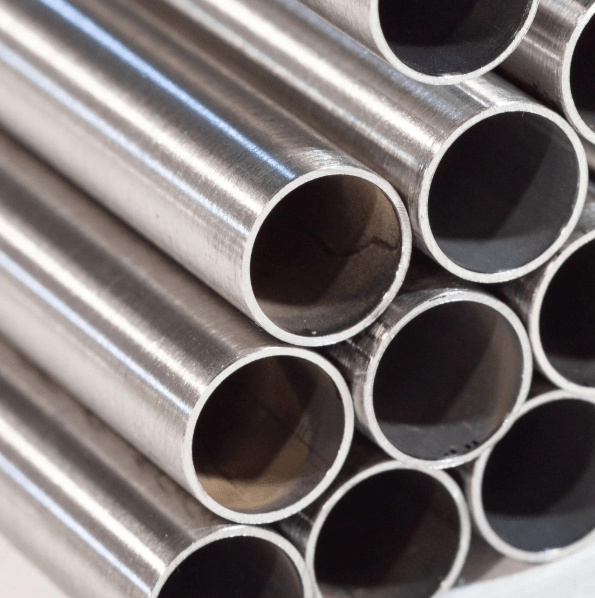

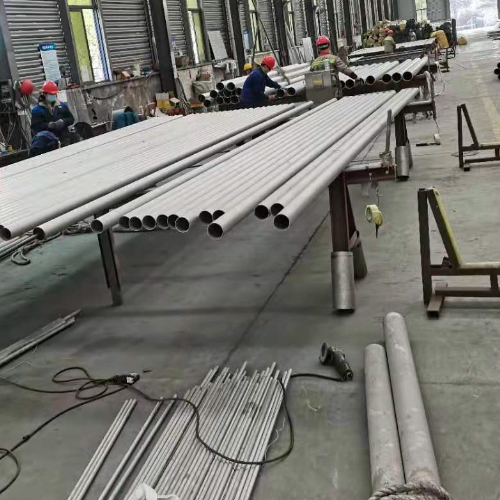

    Nickel alloys are some of the most useful materials for manufacturing technically superior pipes and tubes for industrial applications. Their inherent properties make them viable for a wide range of uses. Nickel alloys are exceptionally corrosion resistant and can be used in high-temperature environments.

    As nickel alloys are so ductile, they are very effectively machined to produce pipes and tubes, while retaining strength. This makes them good for use in heat exchangers in chemical processing, for example, which relies on tubing that can withstand both the hot and corrosive environment. Nickel-based tubes and pipes are also used in steam generators, aircraft systems, and in oil and gas extraction.

    To meet the demand for these high-quality products, there are quite a few variants of nickel alloy pipes and tubes available on the market.

    Common alloys for custom pipe & fittings include: Alloy 200, 201, 330, 400, 600, 601, 625, 718, 800, 800H, 800HP, 800HT, 825, 904L, AL6XN, Alloy 20, Alloy K500, C22, C276, Hastelloy X®, Inconel®, Monel®, Incoloy®.



    Copper Nickel Alloy Pipe Feature:

    1. Excellent corrosion resistant to turbulently used in condensers for coastal power plants, petroleum refineries and chemical plants.

    2. High impingement corrosion resistant to brackish seawater at velocities up to 3 to 4 m/sec used in desalination plants and other seawater condenser application.



    Pipe

    Butt Weld Fittings

    Socket Weld & Threaded Fittings

    Flanges

    Types

    Seamless and Welded

    90º LRs, 90º SRs, 45º Elbows,
    Concentric Reducers, Eccentric Reducers,
    Tees, Reducing Tees and Stub Ends

    90º Elbows, 45º Elbows, Tees,
    Reducing Tees, Couplings and Unions

    Blind, Slip-On, Socket Weld,
    Threaded and Weld Neck

    Sizes

    1/4″ – 8″ Seamless
    1/4″ – 12″ Welded

    1/2″ – 12″

    1/4″ -2″

    1/2″ – 12″

    Schedules

    Sch 10S – XXH

    Sch 10S – 80S



    Sch 10S – 80S

    Pressures



    3000#

    150# – 300#

    * Higher pressure ratings and larger sizes than listed above available upon request.



    Alloy UNS Description
    200 N02200 This alloy provides highly ductile mechanical properties across a wide temperature range.
    825 N08825 An austenitic nickel-iron-chromium-molybdenum-copper alloy providing high levels of corrosion resistance.
    201 N02201 This alloy provides highly ductile mechanical properties across a wide temperature range.
    ALLOY 20 N08020 This alloy has excellent resistance to general corrosion, pitting, and crevice corrosion in chemicals containing chlorides and sulfuric, phosphoric, and nitric acids.
    400 N04400 A ductile nickel-copper alloy with resistance to a variety of corrosive conditions.
    ALLOY 22 N06022 A Ni-Cr-Mo alloy that provides outstanding resistance to pitting, crevice corrosion, intergranular attack, and stress corrosion cracking.
    600 N06600 Nickel Chromium alloy designed for use from cryogenic to 2000°F. It is non-magnetic and readily weldable.
    ALLOY 59 N06059 This alloy is a nickel-chromium-molybdenum alloy with an extra-low carbon and silicon content.
    601 N06601 An austenitic nickel-chromium-iron alloy designed for both heat and corrosion resistance.
    B-2 N10665 This alloy is a solid solution strengthened, nickel-molybdenum alloy, typically used in extreme reducing conditions.
    625 N06625 An austenitic nickel-base super alloy possessing excellent resistance to oxidation and corrosion over a broad range of corrosive conditions.
    C276 N10276 A nickel-molybdenum-chromium-iron-tungsten alloy which is among the most corrosion resistant of alloys currently available.
    686 N06686 An alloy designed for outstanding corrosion resistance in a wide range of severe environments.
    C-2000 N06200 An extremely versatile nickel alloy resistant to corrosion in all acids and chloride solutions, over wide temperature ranges.
    800 N08800 Nickel-iron-chromium alloys designed to resist oxidation and carburization at elevated temperatures. They are highly resistant to chloride stress corrosion cracking and to embrittlement from precipitation of sigma phase.
    G-3 N06985 This alloy has good weldability and resistance to intergranular corrosion in the welded condition.
    904L N08904 This alloy is designed for a middle to high level of corrosion resistance.
    800H N08810 Nickel-iron-chromium alloys designed to resist oxidation and carburization at elevated temperatures. They are highly resistant to chloride stress corrosion cracking and to embrittlement from precipitation of sigma phase.
    G-30 N06030 A high chromium nickel-base alloy which shows superior corrosion resistance over most other nickel and iron-base alloys in commercial phosphoric acids and complex environments containing highly oxidizing acids.
    800HT N08811 Nickel-iron-chromium alloys designed to resist oxidation and carburization at elevated temperatures. They are highly resistant to chloride stress corrosion cracking and to embrittlement from precipitation of sigma phase.






  • Previous:
  • Next:

  • PIPE SIZE (NPS)

    OD

    ID

    SCHEDULES

    WALL

    APPROX LBS PER FT

    1/8″ .405 .307 10, 10S .049 .1863
    .269 40, STD, 40S .068 .2447
    .215 80, XS, 80S .095 .3145
    1/4″ .540 .410 10, 10S .065 .3297
    .364 40, STD, 40S .088 .4248
    .302 80, XS, 80S .119 .5351
    3/8″ .675 .545 10, 10S .065 .4235
    .493 40, STD, 40S .091 .5676
    .423 80, XS, 80S .126 .7388
    1/2″ .840 .674 10, 10S .083 .6710
    .622 40, STD, 40S .109 .8510
    .546 80, XS, 80S .147 1.088
    .466 160 .187 1.304
    .252 XX .294 1.714
    3/4″ 1.050 .884 10, 10S .083 .8572
    .824 40, STD, 40S .113 1.131
    .742 80, XS, 80S .154 1.474
    .614 160 .218 1.937
    .434 XX .308 2.441
    1″ 1.315 1.097 10, 10S .109 1.404
    1.049 40, STD, 40S .133 1.679
    .957 80, XS, 80S .179 2.172
    .815 160 .250 2.844
    .599 XX .358 3.659
    1 1/4″ 1.660 1.442 10, 10S .109 1.806
    1.380 40, STD, 40S .140 2.273
    1.278 80, XS, 80S .191 2.997
    1.160 160 .250 3.765
    .896 XX .382 5.214
    1 1/2″ 1.900 1.682 10, 10S .109 2.085
    1.610 40, STD, 40S .145 2.718
    1.500 80, XS, 80S .200 3.631
    1.337 160 .281 4.859
    1.100 XX .400 6.408
    2″ 2.375 2.157 10, 10S .109 2.638
    2.067 40, STD, 40S .154 3.853
    1.939 80, XS, 80S .218 5.022
    1.689 160 .344 7.462
    1.503 XX .436 9.029
    2 1/2″ 2.875 2.635 10, 10S .120 3.531
    2.469 40, STD, 40S .203 5.793
    2.323 80, XS, 80S .276 7.651
    2.125 160 .375 10.01
    1.771 XX .552 13.70
    3″ 3.500 3.260 10, 10S .120 4.332
    3.068 40, STD, 40S .216 7.576
    2.900 80, XS, 80S .300 10.25
    2.624 160 .438 14.32
    2.300 XX .600 18.58
    3 1/2″ 4.000 3.760 10, 10S .120 4.937
    3.548 40, STD, 40S .226 9.109
    3.364 80, XS, 80S .318 12.51
    2.728 XX .636 22.85
    4″ 4.500 4.260 10, 10S .120 5.613
    4.026 40, STD, 40S .237 10.790
    3.826 80, XS, 80S .337 14.98
    3.624 120 .438 19
    3.438 160 .531 22.51
    3.152 XX .674 27.54
    4 1/2″ 5.000 4.506 STD, 40S .247 12.54
    4.290 XS, 80S .355 17.61
    5″ 5.563 5.295 10, 10S .134 7.770
    5.047 40, STD, 40S .258 14.62
    4.813 80, XS, 80S .375 20.78
    4.563 120 .500 27.04
    4.313 160 .625 32.96
    4.063 XX .750 38.55
    6″ 6.625 6.357 10, 10S .134 9.290
    6.065 40, STD, 40S .280 18.97
    5.761 80, XS, 80S .432 28.57
    5.501 120 .562 35.39
    5.189 160 .719 43.35
    4.897 XX .864 53.16
    8″ 8.625 8.329 10, 10S .148 13.40
    8.125 20 .250 22.36
    8.071 30 .277 24.70
    7.981 40, STD, 40S .322 28.55
    7.813 60 .406 35.64
    7.625 80, XS, 80S .500 43.39
    7.439 100 .594 50.95
    7.189 120 .719 61.71
    7.001 140 .812 67.76
    6.813 160 .906 74.79
    6.875 XX .875 72.42
    10″ 10.750 10.420 10, 10S .165 18.65
    10.250 20 .250 28.04
    10.136 30 .307 34.24
    10.020 40, STD, 40S .365 40.48
    9.750 60, XS, 80S .500 54.74
    9.564 80 .594 64.43
    9.314 100 .719 77.03
    9.064 120 .844 82.29
    8.750 140, XX 1.000 104.1
    8.500 160 1.125 115.6
    12″ 12.750 12.390 10, 10S .180 24.16
    12.250 20 .250 33.38
    12.090 30 .330 43.77
    12.000 STD, 40S .375 49.56
    11.938 40 .406 53.52
    11.750 XS, 80S .500 65.42
    11.626 60 .562 73.15
    11.376 80 .688 88.63
    11.064 100 .844 107.9
    10.750 120, XX 1.000 125.5
    10.500 140 1.125 136.7
    10.126 160 1.312 150.3
    14″ 14.000 13.624 10S .188 27.73
    13.500 10 .250 36.71
    13.375 20 .312 45.61
    13.250 30, STD, 40S .375 54.57
    13.124 40 .438 63.44
    13.000 XS, 80S .500 72.09
    12.814 60 .594 85.05
    12.500 80 .750 106.1
    12.124 100 .938 130.9
    11.814 120 1.09 150.8
    11.500 140 1.250 170.2
    11.188 160 1.406 189.1
    16″ 16.000 15.624 10S .188 31.75
    15.500 10 .250 42.05
    15.375 20 .312 52.27
    15.250 30, STD, 40S .375 62.58
    15.000 40, XS, 80S .500 82.77
    14.688 60 .656 107.5
    14.314 80 .844 136.6
    13.938 100 1.031 164.8
    13.564 120 1.22 192.4
    13.124 140 1.438 223.6
    12.814 160 1.594 245.3
    18″ 18.000 17.624 10S .188 35.76
    17.500 10 .250 47.99
    17.375 20 .312 58.94
    17.250 STD, 40S .375 70.59
    17.124 30 .438 82.15
    17.000 XS, 80S .500 93.45
    16.876 40 .562 104.7
    16.500 60 .750 138.2
    16.126 80 .938 170.9
    15.688 100 1.156 208.0
    15.250 120 1.38 244.10
    14.876 140 1.562 274.20
    14.438 160 1.781 308.5
    20″ 20.000 19.564 10S .218 48.05
    19.500 10 .250 52.73
    19.250 20, STD, 40S .375 78.6
    19.000 30, XS, 80S .500 104.10
    18.812 40 .594 123.10
    18.376 60 .812 155.40
    17.938 80 1.031 208.90
    17.438 100 1.281 256.10
    17.000 120 1.500 296.40
    16.500 140 1.750 341.10
    16.064 160 1.969 379.20
    24″ 24.000 23.500 10, 10S .250 63.41
    23.250 20, STD, 40S .375 96.42
    23.000 XS, 80S .500 125.50
    22.876 30 .562 140.70
    22.626 40 .688 171.30
    22.064 60 .969 238.40
    21.564 80 1.219 296.80
    20.938 100 1.531 357.40
    20.376 120 1.812 429.40
    19.876 140 2.062 483.10
    19.314 160 2.344 542.10
    30″ 30.000 29.376 10, 10S .312 98.93
    29.250 STD, 40S .375 118.65
    29.000 20, XS, 80S .500 157.53
    28.750 30 .625 196.06
    36″ 36.000 35.376 10 .312 118.92
    35.250 STD, 40S .375 142.68
    35.000 XS, 80S .500 189.57
    34.750 30 .625 235.13
    48″ 48.000 47.250 STD, 40S .375 190.74
    47.000 XS, 80S .500 253.65
    Trade Name

    UNS #

    Seamless Tube

    Welded Tube

    Alloy® 20

    N08020

    B/SB729

    B/SB468

    Nickel 200

    N02200

    B/SB161
    B/SB163

    B730

    Nickel 201

    N02201

    B/SB161
    B/SB163

    B730

    Monel® 400

    N04400

    B/SB165
    B/SB163

    B730

    Inconel® 600

    N06600

    B/SB167
    B/SB163

    B/SB516

    Inconel® 625

    N06625

    B/SB444

    B/SB704

    Incoloy® 800

    N08800

    B/SB407
    B/SB163
    A/SA213

    B/SB515

    Incoloy® 800H

    N08810

    B/SB407
    B/SB163
    A/SA213

    B/SB515

    Incoloy® 800HT

    N08811

    B/SB407
    B/SB163
    A/SA213

    B/SB515

    Incoloy® 825

    N08825

    B/SB423
    B/SB163

    B/SB704

    Chemical Composition

    Grade

    Chemical Composition

    C
    max

    Si max

    Mn max

    P
    max

    S
    max

    Ni

    Cr

    Mo

    Ti

    200

    0.15

    0.35

    0.35



    0.010

    99 min



    201

    0.02

    0.35

    0.35



    0.010

    99 min



    400

    0.30

    0.50

    2.00



    0.024

    63 min



    600

    0.15

    0.50

    1.00



    0.015

    72 min

    14 – 17



    601

    0.10

    0.50

    1.00



    0.015

    58 – 63

    21 – 25



    625

    0.10

    0.50

    0.50

    0.015

    0.015

    58 min

    20 – 23

    8 – 10

    0.40 max

    800

    0.10

    1.00

    1.50

    0.03

    0.015

    30 – 35

    19 – 23



    0.15 0.60

    800H

    0.05 0.10

    1.00

    1.50



    0.015

    30 – 35

    19 – 23



    0.15 0.60

    825

    0.05

    0.50

    1.00



    0.03

    38 – 46

    19.5 23.5

    2.5 3.5

    0.6 1.2

    904L

    0.02

    1.00

    2.00

    0.030

    0.015

    24 – 26

    19 23

    4 5





    ALLOY

    NICKEL ALLOY DENSITY

    THERMAL , CONDUCTIVITY

    THERMAL LINEAR , EXPANSION COEFF. , (20-95 °C)

    ELECTRICAL RESISTIVITY , AT 20°C

    G/CM³

    W/M K

    10-6/K

    ΜΩ-CM

    NI 200/201

    8.89 70.20 13.3 9

    NI 205/205 LC

    8.89 75.00 13.3 8.9
    Surface Finish Internal Surface(ID) Exterbal Surface(OD)
    Roughness Average(RA) Roughness Average(RA)
    μ inch μm μ inch μm
    EP Electro Polish 15,10,7,5 0.38,0.25,0.20;0.13 32 0.8
    BA Beight Annealed 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
    AP Annealed & Pickled Not defined Not defined 40 or Not defined 1.0 or Not defined
    MP Mechanical Polish 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8

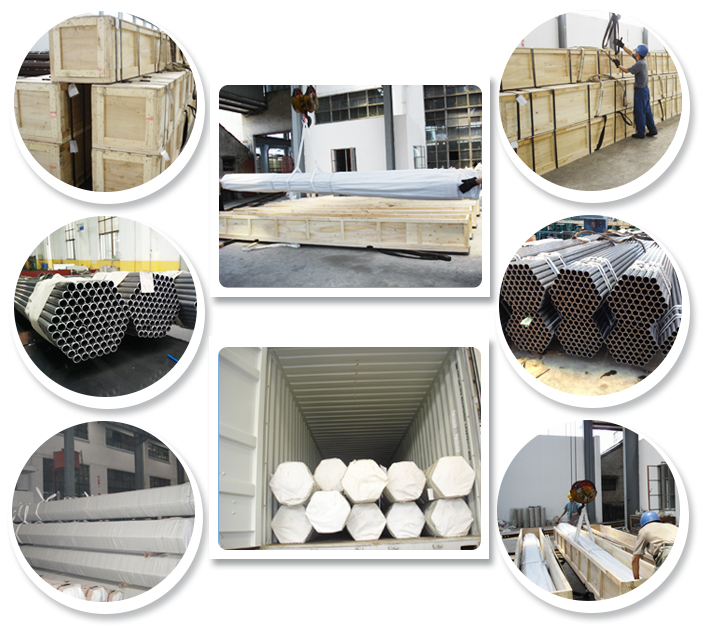

    packing of alloy steelpipe
