API Casing

Short Description:

Keywords: API 5CT Casing, Well Casing, Seamless (SMLS), Electric Resistance Welded (ERW), Casing, Oil Pipe

Size: OD: 4 1/2’’ ~ 20’’ (114.3mm ~ 508mm)；WT: 0.205’’ ~ 0.635’’ (5.21mm ~ 16.13mm)；LENGTH: R1, R2, R3

Standard & Grade: API 5CT J 55/K55/N80/C75/L80/C90/T95/Q125

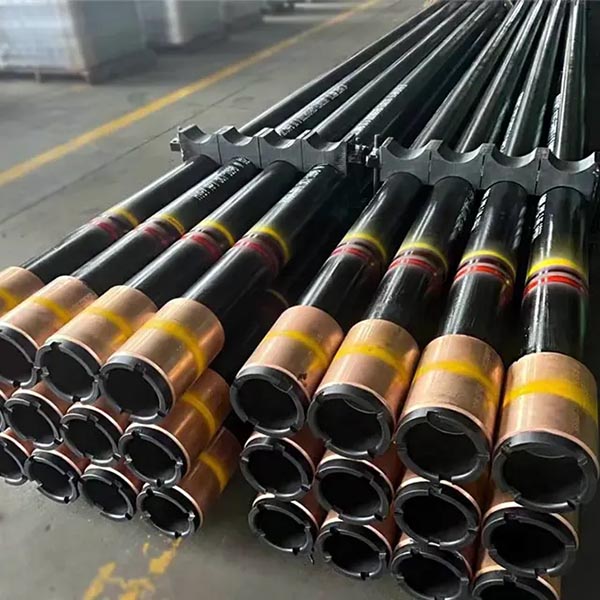

Ends: Beveled, Square Cut, With LTC/STC/BTC/VAM Connection

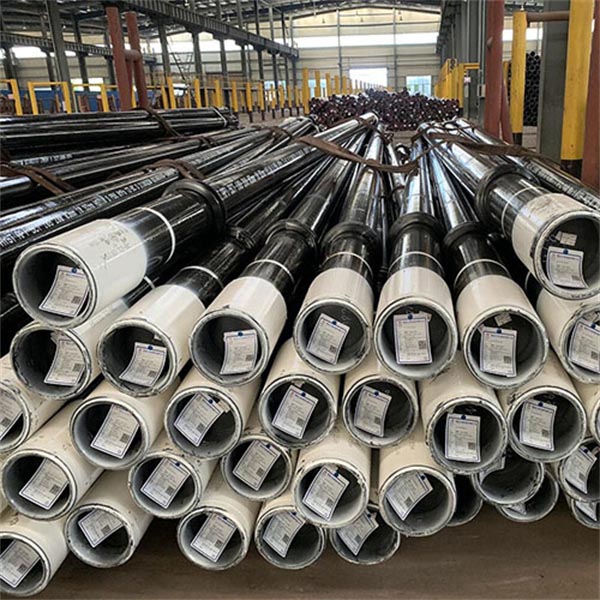

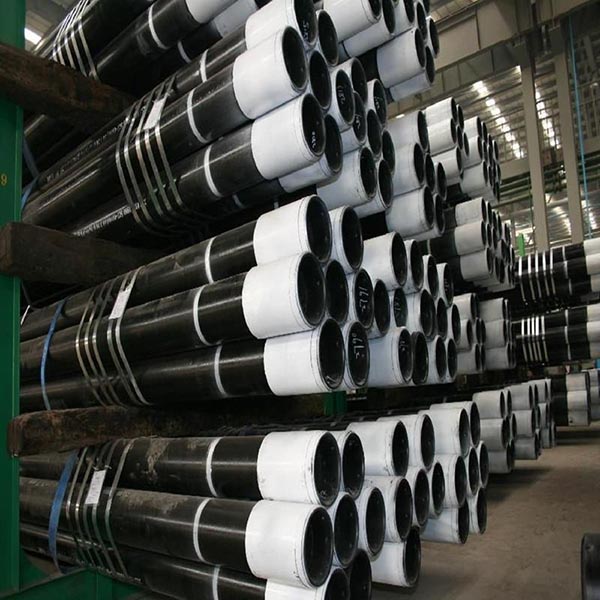

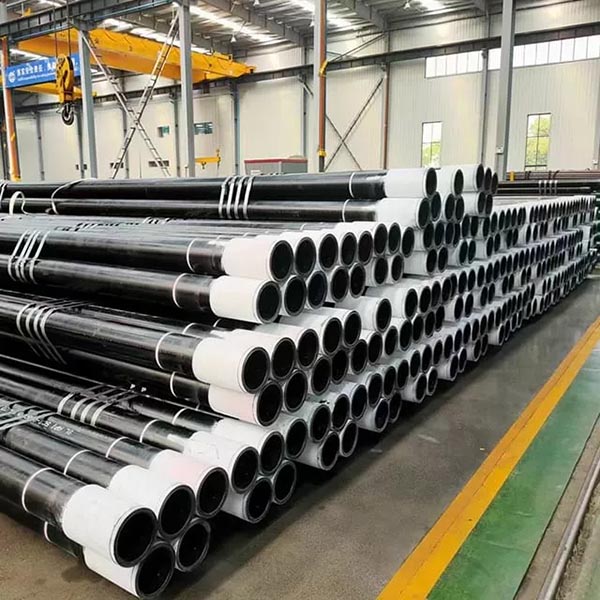

Packing: Protection Caps in Both Ends, Waterproof Paper Wrapped, Two Tags

Usage: Used as the Structural Retainer for the Walls of Oil, Gas Wells

Thread types: STC, LTC, BTC, Special Clearance, Premium Connection

Application: Oil Well Casing Serves As Well Sidewall

Send email to us Download as PDF

Product Detail

Specification

Standard

Painting & Coating

Packing & Loading

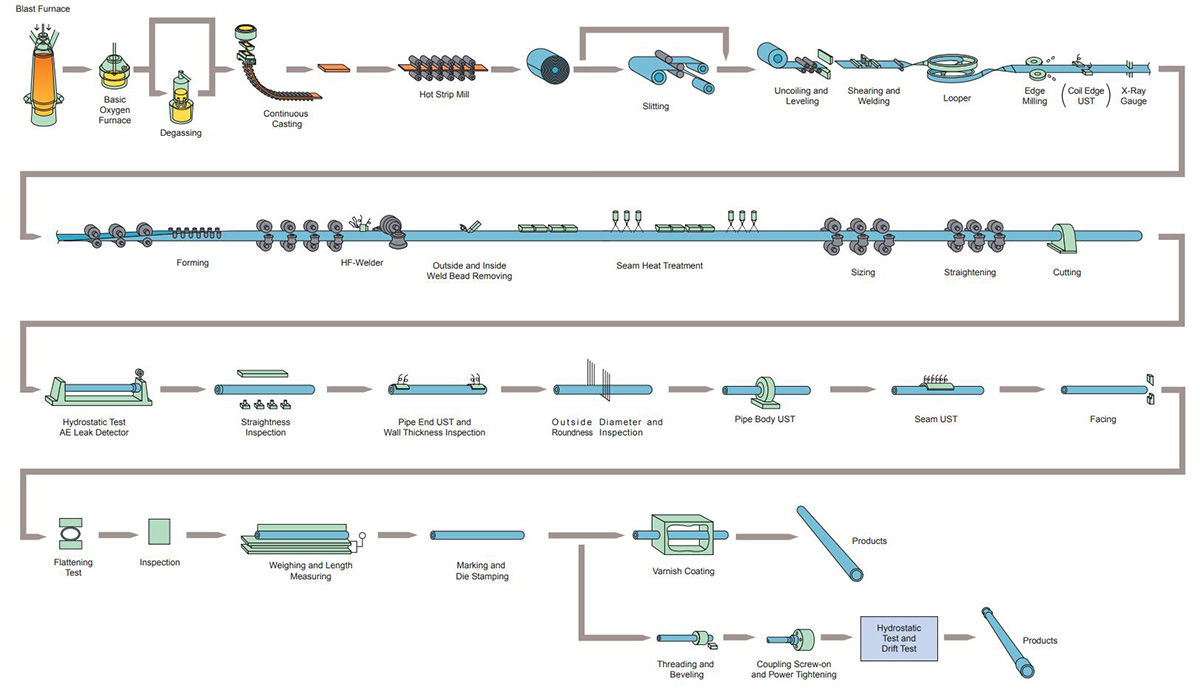

Casing is a large-diameter pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore.It is inserted into a well bore and cemented in place to protect both subsurface formations and the well bore from collapsing and to allow drilling fluid to circulate and extraction to take place. Steel Casing Pipes have smooth wall & minimum yield strength of 35,000 psi.

Well Casing serves as well sidewall. Standards and Technical Conditions for Supply:API Spec 5CT ISO13680 Grade: J55, K55, N80-1,N80-Q, L80-1, L80-9Cr,L80-13Cr,C95, P110. Tread types: NUE, EUE, VAM, STC, LTC, BTC, special clearance, XC,VAM TOP,NEW VAM.

Oil Casing Pipe: Casings are used for fixing the well wall or down hole, which have wide diameters, can be divided into conductor casings, technical casings and Oil casings.

Uses: Well Casing serves as well sidewall.

Standards and Technical Conditions for Supply: API Spec 5CT

Grade of pipe casing: J55, K55, N80-1,N80-Q, L80-1, L80-9Cr,L80-13Cr,C95, P110.

Tread types of pipe casing : STC, LTC, BTC, special clearance, XC,VAM TOP,NEW VAM.

Dimension: OD: 114.3-508mm WT: 5.21-16.13mm

What is API 5CT casing ?

API SPEC 5CT well casing is utilized in fixing the well wall or down hole, which has wider diameters. API SPEC 5CT can be divided into conductor casing, technical casing and oil casing.

API 5CT is standard technical specifications for steel casing pipes used for oil wells in petroleum and natural gas industries.

Common Grades

• J55/K55

• N80/N80Q/L80

• C90

• R95/T95

• P110/C110

• Q125

Connections

API 5CT is applicable to following connections which complied with API SPEC 5B:

• SC: Short round thread casing

• LC: Long ound thread casing

• BC: Buttress thread casing

• NU: Non-upset tubing

• EU: External upset tubing

• IJ: Integral tubing connections

Previous: Ringlock Scaffolding

Next: Nickel Alloy Tubes

Lengths:

Oil Casing	Range 1	Range 2	Range 3
Oil Casing	4.88~7.62	7.62~10.36	10.36~14.63

Dimension:

Labels		Outside diameter D	Nominal linear mass T&C	Wall thickness t	J55	N80	L80	C90	P110	Q125
Labels		mm	kg/m	mm	K55	1/Q?	L80	T95	P110	Q125
1	2	3	4	5	6	7	8	9	10	11
4 1/2	9.5	114.3	14.14	5.21	PS	-	-	-	-	-
4 1/2	10.5	114.3	15.63	5.69	PSB	-	-	-	-	-
4 1/2	11.6	114.3	17.26	6.35	PSLB	PLB	PLB	PLB	PLB	-
4 1/2	13.5	114.3	20.09	7.37	-	PLB	PLB	PLB	PLB	-
4 1/2	15.1	114.3	22.47	8.56	-	-	-	-	PLB	PLB
5	11.5	127	17.11	5.59	PS	-	-	-	-	-
5	13	127	19.35	6.43	PSLB	-	-	-	-	-
5	15	127	22.32	7.52	PSLBE	PLBE	PLBE	PLBE	PLBE	-
5	18	127	26.79	9.19	-	PLBE	PLBE	PLBE	PLBE	PLBE
5	21.4	127	31.85	11.1	-	PLB	PLB	PLB	PLB	PLB
5	23.2	127	34.53	12.14	-	PLB	PLB	PLB	PLB	PLB
5	24.1	127	35.86	12.7	-	PLB	PLB	PLB	PLB	PLB
5 1/2	14	139.7	20.83	6.2	PS	-	-	-	-	-
5 1/2	15.5	139.7	23.07	6.98	PSLBE	-	-	-	-	-
5 1/2	17	139.7	25.3	7.72	PSLBE	PLBE	PLBE	PLBE	PLBE	-
5 1/2	20	139.7	29.76	9.17	-	PLBE	PLBE	PLBE	PLBE	-
5 1/2	23	139.7	34.23	10.54	-	PLBE	PLBE	PLBE	PLBE	PLBE
5 1/2	26.8	139.7	39.88	12.7	-	-	-	P	-	-
5 1/2	29.7	139.7	44.2	14.27	-	-	-	P	-	-
5 1/2	32.6	139.7	48.51	15.88	-	-	-	P	-	-
5 1/2	35.3	139.7	52.53	17.45	-	-	-	P	-	-
5 1/2	38	139.7	56.55	19.05	-	-	-	P	-	-
5 1/2	40.5	139.7	60.27	20.62	-	-	-	P	-	-
5 1/2	43.1	139.7	64.14	22.22	-	-	-	P	-	-
6 5/8	20	168.28	29.76	7.32	PSLB	-	-	-	-	-
6 5/8	24	168.28	35.72	8.94	PSLBE	PLBE	PLBE	PLBE	PLBE	-
6 5/8	28	168.28	41.67	10.59	-	PLBE	PLBE	PLBE	PLBE	-
6 5/8	32	168.28	47.62	12.06	-	PLBE	PLBE	PLBE	PLBE	PLBE
7	17	177.8	25.3	5.87	-	-	-	-	-	-
7	20	177.8	29.76	6.91	PS	-	-	-	-	-
7	23	177.8	34.23	8.05	PSLBE	PLBE	PLBE	PLBE	-	-
7	26	177.8	38.69	9.19	PSLBE	PLBE	PLBE	PLBE	PLBE	-
7	29	177.8	43.16	10.36	-	PLBE	PLBE	PLBE	PLBE	-
7	32	177.8	47.62	11.51	-	PLBE	PLBE	PLBE	PLBE	-
7	35	177.8	52.09	12.65	-	PLBE	PLBE	PLBE	PLBE	PLBE
7	38	177.8	56.55	13.72	-	PLBE	PLBE	PLBE	PLBE	PLBE
7	42.7	177.8	63.54	15.88	-	-	-	P	-	-
7	46.4	177.8	69.05	17.45	-	-	-	P	-	-
7	50	177.8	74.56	19.05	-	-	-	P	-	-
7	53.6	177.8	79.77	20.62	-	-	-	P	-	-
7	57.1	177.8	84.97	22.22	-	-	-	P	-	-
7 5/8	24	193.68	35.72	7.62	-	-	-	-	-	-
7 5/8	26.4	193.68	39.29	8.33	PSLBE	PLBE	PLBE	PLBE	-	-
7 5/8	29.7	193.68	44.2	9.52	-	PLBE	PLBE	PLBE	PLBE	-
7 5/8	33.7	193.68	50.15	10.92	-	PLBE	PLBE	PLBE	PLBE	-
7 5/8	39	193.68	58.04	12.7	-	PLBE	PLBE	PLBE	PLBE	PLBE
7 5/8	42.8	193.68	63.69	14.27	-	PLB	PLB	PLB	PLB	PLB
7 5/8	45.3	193.68	67.41	15.11	-	PLB	PLB	PLB	PLB	PLB
7 5/8	47.1	193.68	70.09	15.88	-	PLB	PLB	PLB	PLB	PLB
7 5/8	51	193.68	76.19	17.45	-	-	-	P	-	-
7 5/8	55.3	193.68	82.3	19.05	-	-	-	P	-	-
8 5/8	24	219.08	35.72	6.71	PS	-	-	-	-	-
8 5/8	28	219.08	41.67	7.72	-	-	-	-	-	-
8 5/8	32	219.08	47.62	8.94	PSLBE	-	-	-	-	-
8 5/8	36	219.08	53.57	10.16	PSLBE	PLBE	PLBE	PLBE	-	-
8 5/8	40	219.08	59.53	11.43	-	PLBE	PLBE	PLBE	PLBE	-
8 5/8	44	219.08	65.48	12.7	-	PLBE	PLBE	PLBE	PLBE
8 5/8	49	219.08	72.92	14.15	-	PLBE	PLBE	PLBE	PLBE	PLBE
9 5/8	32	244.48	48.07	7.92	-	-	-	-	-	-
9 5/8	36	244.48	53.57	8.94	PSLB	-	-	-	-	-
9 5/8	40	244.48	59.53	10.03	PSLBE	PLBE	PLBE	PLBE	-	-
9 5/8	43.5	244.48	64.73	11.05	-	PLBE	PLBE	PLBE	PLBE	-
9 5/8	47	244.48	69.94	11.99	-	PLBE	PLBE	PLBE	PLBE	PLBE
9 5/8	53.5	244.48	79.62	13.84	-	PLBE	PLBE	PLBE	PLBE	PLBE
9 5/8	58.4	244.48	86.91	15.11	-	PLB	PLB	PLB	PLB	PLB
9 5/8	59	244.48	88.4	15.47	-	-	-	P	-	-
9 5/8	64.9	244.48	96.58	17.07	-	-	-	P	-	-
9 5/8	70.3	244.48	104.62	18.64	-	-	-	P	-	-
9 5/8	75.6	244.48	112.5	20.24	-	-	-	P	-	-
10 3/4	32.75	273.05	48.74	7.09	-	-	-	-	-	-
10 3/4	40.5	273.05	60.27	8.89	PSB	-	-	-	-	-
10 3/4	45.5	273.05	67.71	10.16	PSBE	-	-	-	-	-
10 3/4	51	273.05	75.9	11.43	PSBE	PSBE	PSBE	PSBE	PSBE	-
10 3/4	55	273.05	82.59	12.57	-	PSBE	PSBE	PSBE	PSBE	-
10 3/4	60.7	273.05	90.33	13.84	-	-	-	PSBE	PSBE	PSBE
10 3/4	65.7	273.05	97.77	15.11	-	-	-	PSB	PSB	PSB
10 3/4	73.2	273.05	108.93	17.07	-	-	-	P	-	-
10 3/4	79.2	273.05	117.86	18.64	-	-	-	P	-	-
10 3/4	85.3	273.05	126.94	20.24				P
11 3/4	42	298.45	62.5	8.46	-	-	-	-	-	-
11 3/4	47	298.45	69.94	9.53	PSB	-	-	-	-	-
11 3/4	54	298.45	80.36	11.05	PSB	-	-	-	-	-
11 3/4	60	298.45	89.29	12.42	PSB	PSB	PSB	PSB	PSB	PSB
11 3/4	65	298.45	96.73	13.56	-	P	P	P	P	P
11 3/4	71	298.45	105.66	14.78	-	P	P	P	P	P
13 3/8	48	339.72	71.43	8.38	-	-	-	-	-	-
13 3/8	54.5	339.72	81.1	9.65	PSB	-	-	-	-	-
13 3/8	61	339.72	90.78	10.92	PSB	-	-	-	-	-
13 3/8	68	339.72	101.19	12.19	PSB	PSB	PSB	PSB	PSB	-
13 3/8	72	339.72	107.15	13.06	-	PSB	PSB	PSB	PSB	PSB
16	65	406.4	96.73	9.53	-	-	-	-	-	-
16	75	406.4	111.61	11.13	PSB	-	-	-	-	-
16	84	406.4	125.01	12.57	PSB	-	-	-	-	-
16	109	406.4	162.21	16.66	P	P	P	-	P	P
18 5/8	87.5	473.08	130.21	11.05	PSB	-	-	-	-	-
20	94	508	139.89	11.13	PSLB	-	-	-	-	-
20	106.5	508	158.49	12.7	PSLB	-	-	-	-	-
20	133	508	197.93	16.13	PSLB	-	-	-	-	-
P——Plain end; S——Short round thread;L——Long round thread;B——Buttress thread;E——Extreme line.

Mechanical Properties:

Group	Grade	Type	Total elongation under load %	Yield strength Mpa		Tensile strength min MPa	Hardness max
Group	Grade	Type	Total elongation under load %	min	max	Tensile strength min MPa	HRC	HBW
1	2	3	4	5	6	7	8	9
1	J55	-	0.5	379	552	517	-	-
	K55	-	0.5	379	552	655	-	-
	N80	1	0.5	552	758	689	-	-
	N80	Q	0.5	552	758	689	-	-
2	L80	1	0.5	552	655	655	23	241
	L80	9Cr	0.5	552	655	655	23	241
	L80	13Cr	0.5	552	655	655	23	241
	C90	1?2	0.5	621	724	689	25.4	255
	C95	-	0.5	655	758	724	-	-
	T95	1?2	0.5	655	758	724	25.4	255
3	P110	-	0.6	758	965	862	-	-
4	Q125	All	0.65	862	1034	931	-	-

Tolerance

Types of steel tubes	Outer Diameter		Wall Thickness
Cold-rolled tubes	Tube sizes(mm)	Tolerances(mm)	Tolerances(mm)
	＜114.3	±0.79	－12.5%
			－12.5%

Chemical Composition

Standard	Grade	Chemical compositions（％）
API SPEC 5CT	J55	C	Si	Mn	P	S	Cr	Ni	Cu	Mo	V
	K55	0.34～0.39	0.20～0.35	1.25～1.50	≤0.020	≤0.015	≤0.15	≤0.20	≤0.20	/	/
	N80	0.34～0.38	0.20～0.35	1.45～1.70	≤0.020	≤0.015	≤0.15	/	/	/	0.11～0.16
	L80	0.15～0.22	≤1.00	0.25～1.00	≤0.020	≤0.010	12.0～14.0	≤0.20	≤0.20	/	/
	P110	0.26～0.395	0.17～0.37	0.40～0.70	≤0.020	≤0.010	0.80～1.10	≤0.20	≤0.20	0.15～0.25	≤0.08

Mechanical Properties

Grade	Type	Total elongation under load (%)	Yield strength (min)	Yield strength (max)	Tensile strength min Mpa	Hardness Max (HRC)	Hardness Max(HBW)
J55	-	0.5	379	552	517	-	-
K55	-	0.5	379	552	655	-	-
N80	1	0.5	552	758	689	-	-
N80	Q	0.5	552	758	689	-	-
L80	1	0.5	552	655	655	23	241
L80	9Cr	0.5	552	655	655	23	241
L80	13Cr	0.5	552	655	655	23	241
C90	-	0.5	621	724	689	25.4	255
C95	-	0.5	655	758	724	-	-
T95	-	0.5	655	758	724	25.4	255
P110	-	0.6	758	965	862	-	-
Q125	All	0.65	862	1034	931	-	-
