Heavyweight Drill Pipe (HWDP) Specifications And Fittings: From NC-38 To NC-50

Heavy-weight Drill Pipe (HWDP) is a critical component in oil and gas drilling strings, installed between conventional drill pipe and drill collars to provide a gradual transition in stiffness and weight. This design enhances flexibility while managing drilling loads, making it essential for directional, horizontal, and deep drilling operations. HWDP mitigates the risk of drill-pipe buckling under compressive loads, offering superior resistance compared to standard drill pipe. Selecting the correct HWDP involves more than just pipe-body diameter; engineers must evaluate outside diameter, wall thickness, tool-joint dimensions, and material properties. Rotary-shouldered connections like NC-38, NC-40, NC-46, and NC-50 are standard, each with distinct load-transfer characteristics that must match the existing drill string for optimal torque transmission. Proper selection based on well depth, trajectory, and expected torque ensures reliable performance.

Heavyweight Drill Pipe Specifications and Key Dimensions

Heavy weight Drill Pipe (HWDP) specifications determine how the component performs in the drill string. Unlike conventional drill pipe, HWDP has a heavier wall and greater unit weight, providing more stiffness and load capacity while staying more flexible than drill collars. When selecting HWDP, engineers should consider the pipe body, tool joints, connection, length, and mechanical properties as one complete system.

Key Specifications at a Glance

2.1 Outside Diameter and Inside Diameter

OD must be compatible with the rest of the BHA. A suitable ID maintains circulation rate while controlling pressure losses. Evaluate OD and ID together, not independently.

2.2 Wall Thickness and Unit Weight

HWDP has a heavier wall than conventional drill pipe, contributing to increased weight, stiffness, and resistance to compressive loads.

Determine required weight from the drilling program and BHA design, not by choosing the heaviest product available.

2.3 Length and Joint Configuration

HWDP is commonly supplied in standardized joint lengths, though dimensions vary by manufacturer and project. Total length depends on BHA configuration, well trajectory, drilling loads, and operational objectives.

Each joint includes tool joints connecting adjacent sections. Check:

• Tool-joint OD and ID

• Tool-joint length

• Shoulder configuration

These directly affect connection performance and compatibility.

2.4 Connection Specifications

Connection type is a critical part of HWDP specification. Rotary-shouldered connections include NC-38, NC-40, NC-46, and NC-50, each with different dimensional and load-transfer characteristics.

A mismatch can cause assembly problems and increase the risk of thread or shoulder damage.

2.5 Material and Mechanical Properties

HWDP must have suitable mechanical properties for expected drilling loads:

• Tensile strength

• Yield strength

• Toughness

• Hardness

• Fatigue resistance

Material selection should account for deep wells, directional drilling, high torque, cyclic loading, and corrosive environments. Identify applicable manufacturing and inspection standards in the purchase specification.

2.6 Center Upsets and Wear Features

Many HWDP designs include a center upset or wear-resistant section around the middle of the pipe body. These provide extra protection during wellbore contact.

Hardbanding may be applied to tool joints or wear areas to reduce external wear and improve service life. Select the configuration based on well conditions and drilling requirements.

2.7 What Buyers Should Confirm

NC-38, NC-40, NC-46, and NC-50 Connections Explained

Rotary-shouldered connections are critical for Heavyweight Drill Pipe (HWDP) because they transfer torque, tension, compression, and bending loads between joints. NC connections are widely used in drill strings. NC-38, NC-40, NC-46, and NC-50 are common options.

Selection should not be based only on the connection number. Thread dimensions, shoulder configuration, tool-joint size, make-up torque, and drill-string compatibility must all be considered.

Connection Comparison at a Glance

Verify actual dimensions against the applicable connection specification and manufacturer's data.

Quick Notes per Connection

Connection Compatibility Is Essential

Do not select a connection based only on pipe-body diameter. The connection must match the mating component and the complete BHA.

Before purchasing HWDP, confirm:

• Thread profile

• Connection dimensions

• Tool-joint OD and ID

• Shoulder requirements

• Make-up torque

• Material properties

• Inspection standards

HWDP Fittings and Connection Components

Heavyweight Drill Pipe (HWDP) performance depends not only on the heavy-wall pipe body but also on tool joints, rotary-shouldered connections, center upsets, wear protection, and thread protection. These fittings connect joints securely and help the drill string withstand torque, tension, compression, bending, and repeated loading.

For HWDP using NC-38, NC-40, NC-46, or NC-50 connections, each component must match the pipe body and adjacent drill-string components.

Key Components at a Glance

Tool Joints

Enlarged components attached to HWDP ends that provide the threaded connection between joints.

Tool joints must match the pipe body and selected connection. Accurate machining matters because poor thread geometry affects make-up, load transfer, and service life.

Rotary-Shouldered Connections

These provide the mechanical link between drill-string components.

Performance depends on thread condition, shoulder contact, make-up torque, dimensional accuracy, and mating component compatibility. Confirm the exact connection specification before ordering.

Center Upsets and Wear Pads

Many HWDP designs include a center upset that increases outside diameter around the middle of the pipe to protect against wellbore wear.

Useful in directional and deviated wells. Size should match wellbore and casing dimensions to avoid clearance problems.

Hardbanding

A wear-resistant material applied to designated areas, commonly around tool joints.

Specify hardbanding requirements when rotational contact is significant.

Thread Protectors

Thread protectors shield machined threads during transportation, storage, and handling from impact, dirt, moisture, and damage. Rotary-shouldered connections rely on accurate thread and shoulder surfaces, so even small damage affects performance.

Inspection of Fittings and Connections

Inspect fittings together with the pipe body:

• Thread dimensions

• Shoulder condition

• Tool-joint dimensions

• Surface condition

• Hardbanding quality

• Nondestructive testing

Used HWDP may need extra inspection for fatigue cracks, washouts, excessive wear, or connection damage.

Why Component Compatibility Matters

HWDP performance depends on the complete assembly. A high-strength pipe body cannot compensate for a mismatched connection or damaged tool joint.

Specify as one procurement package:

• Pipe dimensions

• Tool-joint configuration

• NC connection

• Center upset

• Hardbanding

• Thread protection

• Inspection requirements

How to Select HWDP Specifications for Different Drilling Conditions

Selecting the correct Heavyweight Drill Pipe (HWDP) requires more than choosing a larger pipe size or heavier unit weight. HWDP works as part of the complete drill string, so its specifications should match well depth, trajectory, expected loads, drilling method, and bottom-hole assembly (BHA). Proper selection balances weight, stiffness, flexibility, torque capacity, and fatigue resistance.

Selection Factors at a Glance

5.1 Consider Well Depth and Drilling Loads

Well depth affects axial load and torque on the drill string. Deep wells may need HWDP with suitable wall thickness, unit weight, and mechanical properties.

A heavier HWDP is not automatically better. Excessive weight increases handling requirements and affects drill-string design. Calculate required weight on bit and evaluate load distribution before selecting HWDP.

5.2 Select the Appropriate Pipe Dimensions

OD matters most in deviated and horizontal wells. Evaluate all dimensions as a complete set.

5.3 Match the NC Connection to the Drill String

HWDP may use NC-38, NC-40, NC-46, or NC-50 connections depending on dimensions and load-transfer needs.

A larger NC connection is not automatically appropriate. Select it based on the complete BHA and expected loads.

5.4 Consider Directional and Horizontal Drilling

Directional and horizontal wells create significant wellbore contact. Factors affecting performance include:

• Dogleg severity

• Side forces

• Friction

• Buckling

• Vibration

The HWDP should balance stiffness and flexibility. Center upsets, wear pads, and suitable hardbanding help control external wear. Fatigue resistance is especially important under repeated bending and cyclic loading.

5.5 Consider Deep and High-Load Applications

Deep drilling exposes HWDP to higher axial loads, torque, pressure, and cyclic stresses. Evaluate:

• Material strength

• Tool-joint capacity

• Connection integrity

• Fatigue performance

For demanding applications, buyers may require additional inspection, dimensional verification, NDT, and detailed material documentation.

5.6 Evaluate Corrosion and Temperature Conditions

Drilling environments may expose HWDP to corrosive fluids, H₂S, and high temperatures.

Review material selection and protective measures against the applicable drilling specification.

5.7 Check Compatibility With the Complete BHA

Evaluate HWDP as part of the complete BHA. Its dimensions and connection must be compatible with:

• Drill pipe

• Drill collars

• Stabilizers

• Jars

• Subs

• Other components

Confirm before purchasing:

• OD, ID, wall thickness, unit weight

• Joint length and tool-joint dimensions

• NC connection

• Center upset and hardbanding

• Material grade and inspection requirements

Inspection, Testing, and Quality Control of HWDP

Heavyweight Drill Pipe (HWDP) operates under repeated tension, compression, torque, bending, and vibration. Proper inspection and quality control are essential before delivery. A complete program should cover the pipe body, tool joints, connections, hardbanding, dimensions, and material properties.

Quality Control at a Glance

6.1 Chemical Composition and Material Verification

Chemical analysis verifies the steel meets specified requirements. Key elements may include carbon, manganese, chromium, nickel, molybdenum, and other alloying elements.

Heat numbers should link to production records and material certificates, confirming the origin and specification of each batch.

6.2 Mechanical Property Testing

Mechanical testing verifies sufficient strength and ductility.

For demanding applications, also consider fatigue resistance and cyclic loading, not just static strength.

6.3 Dimensional Inspection

Check:

• Outside and inside diameter

• Wall thickness

• Overall and joint length

• Tool-joint dimensions

• Center-upset dimensions

• Connection dimensions

• Thread profile and pitch

• Shoulder condition

Accurate dimensions prevent assembly problems and ensure proper clearance.

6.4 Thread and Connection Inspection

NC-38, NC-40, NC-46, and NC-50 connections need precise machining and careful inspection. Check for dimensional accuracy, damage, galling, deformation, and wear.

Correct make-up torque is also critical.

6.5 Nondestructive Testing

NDT identifies defects without damaging the HWDP. Methods may include:

• Ultrasonic testing (UT)

• Magnetic particle inspection (MPI)

• Electromagnetic inspection

NDT is valuable for detecting cracks in high-stress areas such as tool joints, connection regions, and hardbanding zones.

6.6 Hardbanding and Wear Inspection

Inspect hardbanded areas for:

• Proper application

• Cracking

• Excessive wear

• Dimensional problems

• Bonding quality

Poor application or excessive wear reduces effectiveness and may affect casing interaction.

6.7 Documentation and Traceability

Request relevant documents:

• Material Test Certificates (MTCs)

• Inspection reports

• Dimensional records

• NDT reports

• Connection inspection data

Each product should be traceable to its material heat, production batch, and inspection records.

6.8 Final Quality Control

Before shipment, conduct a final inspection covering:

• Surface condition

• Dimensions

• Connections

• Markings

• Thread protection

• Packaging

Install thread protectors properly to prevent transport damage.

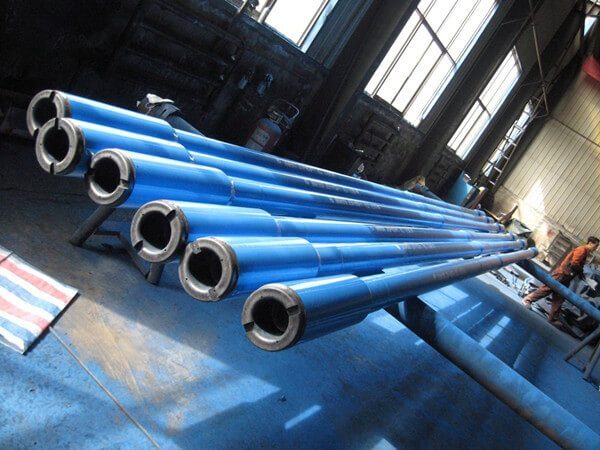

Our Recommended Heavyweight Drill Pipe Products and Global Shipping Services

We supply premium Heavyweight Drill Pipe (HWDP) for oil and gas drilling, providing essential weight, stiffness, and load transfer for diverse drilling conditions. Our HWDP range features customizable outside diameters, wall thicknesses, and lengths, with standard rotary-shouldered connections including NC-38, NC-40, NC-46, and NC-50 to ensure seamless BHA integration. Enhanced options like center upsets, wear pads, and hardbanding are available to maximize wear resistance in directional wells. Rigorous quality control includes dimensional checks, nondestructive testing (NDT), and hardbanding inspection, supported by full Material Test Certificates (MTCs) and traceability records. We offer customized solutions tailored to specific well trajectories and technical specifications. For international projects, our global shipping services ensure safe delivery via protective thread protectors, export-grade bundling, and coordinated logistics. From precise connection selection to final inspection, we provide a complete supply chain solution for reliable drilling performance.

Conclusion

Heavyweight Drill Pipe (HWDP) is a critical transition component in the drill string, bridging conventional drill pipe and drill collars to provide necessary weight and stiffness while maintaining flexibility. Selecting the correct HWDP requires a holistic understanding of the drilling environment, matching pipe-body dimensions, wall thickness, and unit weight to wellbore and hydraulic requirements. The connection type is equally vital; standard rotary-shouldered connections like NC-38, NC-40, NC-46, and NC-50 vary significantly in load-transfer characteristics and must be chosen based on complete drill-string compatibility rather than size alone. Enhanced features such as hardbanding and wear pads further optimize performance in demanding directional or horizontal wells by reducing external wear. Rigorous quality control, including dimensional inspection, nondestructive testing, and verification of Material Test Certificates, ensures the integrity of the tool joints and pipe body. Ultimately, HWDP selection should be treated as an integrated system evaluation, considering torque, compression, and fatigue loads. By aligning specifications with actual drilling conditions and ensuring seamless BHA integration, operators can achieve reliable drill-string performance and operational safety.

FAQ：

1. What is heavyweight drill pipe (HWDP) used for?

HWDP provides additional weight and stiffness between conventional drill pipe and drill collars while helping reduce buckling and fatigue risks.

2. What is the difference between NC-38 and NC-50 connections?

NC-38 and NC-50 differ mainly in connection dimensions and load-transfer capacity, so selection depends on the drill-string design and required loads.

3. What are the common HWDP connection types?

Common NC connections include NC-38, NC-40, NC-46, and NC-50, with selection based on pipe dimensions, loads, and connection compatibility.

4. What fittings are commonly used with HWDP?

Common fittings and features include tool joints, rotary-shouldered connections, center upsets, wear pads, hardbanding, and thread protectors.
