Views: 0 Author: Site Editor Publish Time: 2026-09-04 Origin: Site
Selecting the correct schedule for ASTM A53 Grade B steel pipe is essential for balancing safety, performance, and cost. Pipe schedules like Sch 20, Sch 40, Sch 80, and XXS dictate the wall thickness for a given nominal pipe size, directly impacting pressure capacity and flow characteristics.
Sch 40 is the most common general-purpose choice, offering a practical balance of strength and cost. Sch 80 and XXS provide thicker walls for high-pressure or demanding environments, while Sch 20 is suited for lower-pressure applications. However, selecting a thicker schedule increases material weight, transportation costs, and reduces the internal diameter.
Proper selection requires calculating the minimum wall thickness based on design pressure, temperature, corrosion allowance, and applicable engineering codes.
What Do Sch 20, Sch 40, Sch 80, and XXS Mean?
When buying ASTM A53 Grade B steel pipe, terms such as Sch 20, Sch 40, Sch 80, and XXS are commonly used to describe pipe wall thickness. These designations are important because wall thickness affects pressure capacity, weight, internal diameter, cost, and fabrication requirements.
Key Point – Schedule ≠ Steel Grade
Term | Meaning |
|---|---|
ASTM A53 Grade B | Material and manufacturing requirements |
Schedule (Sch) | Wall thickness for a specific nominal pipe size |
What Does Pipe Schedule Mean?
Aspect | Details |
|---|---|
Definition | Standardized designation for wall thickness |
Actual Thickness | Depends on nominal pipe size (NPS)—Sch 40 is not one fixed thickness for all diameters |
Ordering | Specify NPS + required schedule or exact wall thickness |
Reference Standard | ASME B36.10M for welded and seamless wrought steel pipe |
Schedule Overview
Designation | Relative Wall Thickness | Typical Consideration |
|---|---|---|
Sch 20 | Relatively thin | Lower-pressure applications where permitted |
Sch 40 | Medium | General-purpose applications |
Sch 80 | Thick | Higher-pressure or demanding service |
XXS | Very thick | Severe pressure or mechanical requirements |
Detailed Summary
Schedule | Description | Key Points |
|---|---|---|
Sch 20 | Thin wall—lower material weight, handling, and cost | Select only when design conditions permit—not just because it's cheaper |
Sch 40 | Most common—practical balance of thickness, performance, weight, cost | Used in water, air, construction, industrial piping—widely available |
Sch 80 | Thicker wall than Sch 40—greater pressure and load resistance | Higher weight, cost, and fabrication demands—for higher-pressure or demanding service |
XXS | Very heavy wall—substantially thicker than common schedules | For severe pressure or mechanical requirements—reduces internal diameter, affects flow |
Important Note
Consideration | Action |
|---|---|
Schedule number alone is not enough | Check exact wall thickness for the specific NPS |
Schedule ≠ pressure rating | Determine actual required wall thickness from design conditions |
Selection factors | Design pressure, temperature, pipe size, corrosion allowance, applicable code, project requirements |
Key Takeaway
Sch 20, Sch 40, Sch 80, and XXS are wall-thickness designations, not different ASTM A53 material grades.
Choose the appropriate schedule based on design pressure, temperature, pipe size, corrosion allowance, applicable code, and project requirements—not just price or availability.
ASTM A53 Grade B Steel Pipe: Key Specifications
ASTM A53 Grade B steel pipe is widely used for mechanical and pressure applications, as well as for ordinary steam, water, gas, and air lines. It is available as both seamless and welded pipe, making it suitable for a wide range of industrial and construction projects.
Key Specifications
Specification | Details |
|---|---|
Material Grade | ASTM A53 Grade B—chemical composition and mechanical properties |
Minimum Yield Strength | ~35,000 psi (240 MPa) |
Minimum Tensile Strength | ~60,000 psi (415 MPa) |
Manufacturing Types | Seamless or welded |
Size Designation | Nominal Pipe Size (NPS) |
Wall Thickness | Schedule (Sch 20, Sch 40, Sch 80, XXS)—varies by NPS |
Length | Standard or custom per customer requirements |
End Finish | Plain ends, beveled ends, threaded ends—depends on pipe type, size, application |
Testing | Hydrostatic, mechanical, dimensional, weld examination—NDT and third-party available |
Manufacturing Types
Type | Description | Key Point |
|---|---|---|
Seamless | No longitudinal weld | Produced without weld—specify when required |
Welded | Formed from strip/plate—edges joined | Available in various sizes—specify type on purchase order |
Dimensions – NPS & Schedule
Term | Meaning |
|---|---|
NPS | Nominal Pipe Size—standardized outside diameter |
Schedule | Wall thickness for a given NPS—Sch 20, Sch 40, Sch 80, XXS |
Key Point | Schedule number does not represent one universal thickness—varies with NPS |
Ordering Information Checklist
Item | Include |
|---|---|
Standard | ASTM A53 Grade B |
Type | Seamless or welded |
Size | NPS |
Wall thickness | Schedule or exact thickness |
Length | Required |
End finish | Plain, beveled, threaded |
Quantity | Total |
Testing | Hydrostatic, mechanical, NDT, third-party |
Surface/coating | If applicable |
Destination/shipping | Delivery requirements |
Key Takeaway
ASTM A53 Grade B – pipe material requirements
NPS and schedule – dimensions and wall thickness
Understanding these specifications is essential when choosing between Sch 20, Sch 40, Sch 80, and XXS for a particular piping system.
Sch 20 vs. Sch 40 vs. Sch 80 vs. XXS: Key Differences
For ASTM A53 Grade B steel pipe, Sch 20, Sch 40, Sch 80, and XXS mainly differ in wall thickness. For the same nominal pipe size, a thicker-wall designation generally provides greater resistance to internal pressure and mechanical loads. However, the actual pressure rating must be calculated according to the applicable design code and operating conditions.
Comparison Table
Schedule | Relative Wall Thickness | Main Advantage | Typical Consideration |
|---|---|---|---|
Sch 20 | Relatively thin | Lower weight and cost | Lower-pressure service where permitted |
Sch 40 | Medium | Balanced performance | General-purpose piping |
Sch 80 | Thick | Greater wall thickness | Higher-pressure or demanding service |
XXS | Very thick | Heavy-duty construction | Severe or specially specified service |
Detailed Overview
Schedule | Description | Key Points |
|---|---|---|
Sch 20 | Lightweight and economical | Lower weight, easier handling, lower cost—less allowance for corrosion, wear, mechanical damage—select only when design code and project spec permit |
Sch 40 | Common general-purpose choice | Practical balance of thickness, strength, weight, availability, cost—commonly used for water, air, steam, mechanical, process piping—availability varies by diameter, type, market |
Sch 80 | Thicker wall for demanding service | Greater pressure and load resistance—higher weight and cost—more fabrication effort—select based on engineering requirements, not just "safer" thickness |
XXS | Heavy-wall pipe | Very thick—severe pressure or mechanical requirements—higher weight, transport cost, fabrication demands—smaller internal diameter for same OD |
What Changes as Wall Thickness Increases?
Factor | Effect |
|---|---|
Weight | Increases—more steel per meter, higher material cost, higher transport and handling costs |
Pressure Resistance | Improves—greater resistance to internal pressure and external loads |
Corrosion Allowance | Increases—additional material available, but corrosion allowance should be determined by engineering assessment, not assumed from schedule |
Inside Diameter | Decreases—for same OD, affects fluid velocity, pressure loss, flow capacity |
Fabrication | More demanding—different welding parameters, more prep time—welding procedure based on actual material, thickness, requirements |
Which Schedule Is Better?
Condition | Recommended Schedule |
|---|---|
Thin wall meets design requirements | Sch 20 |
Widely used balance needed | Sch 40 |
Additional wall thickness for demanding conditions | Sch 80 |
Severe pressure or very heavy walls required | XXS |
Key Takeaway
Sch 20 is suitable when a thin wall meets design requirements, Sch 40 offers a widely used balance, Sch 80 provides additional wall thickness for more demanding conditions, and XXS is intended for applications requiring very heavy walls.
Final selection based on:
NPS
Design pressure and temperature
Allowable stress
Corrosion allowance
External loads
Applicable design code
Project specifications
A thicker pipe is not automatically safer—the correct schedule provides required performance while avoiding unnecessary material, weight, fabrication, and transportation costs.
How to Select the Correct Wall Thickness for A53 Grade B Pipe
Selecting the correct wall thickness for ASTM A53 Grade B steel pipe requires more than choosing between Sch 20, Sch 40, Sch 80, and XXS. The selected thickness must satisfy the pressure, temperature, mechanical, corrosion, and code requirements of the piping system.
Selection Process
Step | Action | Key Point |
|---|---|---|
1. Determine Pipe Size | Identify NPS and OD | Same schedule ≠ same wall thickness for different NPS—check dimensional standard |
2. Determine Design Pressure | Identify maximum design pressure—not just normal operating | Use applicable piping design code—consider allowable stress, pipe diameter, weld factors, design conditions |
3. Determine Design Temperature | Establish max and min design temperatures | Temperature affects allowable material stresses—pipe suitable at room temp may have different allowable conditions at elevated temps |
4. Calculate Required Minimum Wall Thickness | Use design code or engineering standard—consider material, diameter, pressure, temperature, design factors | Do not use general rules (e.g., "Sch 40 is good for this pressure") without checking actual pipe size and conditions |
5. Add Corrosion/Erosion Allowance | Add appropriate allowance based on service conditions, material compatibility, historical data, engineering requirements | Do not assume standard schedule automatically provides adequate corrosion allowance |
6. Consider External Loads | External pressure/vacuum, bending, supports, thermal expansion, vibration, impact, soil/traffic loads (buried) | Can influence required wall thickness—may require calculations beyond simple internal-pressure design |
7. Select Standard Schedule | Compare calculated minimum thickness with available standard dimensions—Sch 20, Sch 40, Sch 80, XXS, or other | Selected pipe must satisfy minimum wall and dimensional tolerances |
8. Check Fabrication & Cost | Welding, cutting, bending, installation, weight, material availability, transport | Objective: technically adequate and economically reasonable |
Selection Example
Step | Action |
|---|---|
1 | Engineer calculates minimum required wall thickness: 7 mm (pressure + corrosion allowance) |
2 | Check standard wall thickness for required NPS |
3 | If Sch 40 does not provide sufficient thickness after tolerances → consider Sch 80 |
4 | Confirm final choice using applicable design code and project specification |
Ordering Information
Item | Provide |
|---|---|
NPS | Pipe size |
Design pressure | Max pressure |
Design temperature | Min and max |
Corrosion allowance | Expected service conditions |
Pipe length | Required |
ASTM A53 Grade B | Material requirement |
Applicable code | Design standard |
Key Takeaway
Engineering calculation first, schedule selection second.
Sch 20, Sch 40, Sch 80, and XXS are convenient standardized options, but the schedule itself does not determine whether a pipe is safe for a particular service.
Which A53 Grade B Pipe Schedule Should You Choose?
Choosing between Sch 20, Sch 40, Sch 80, and XXS ASTM A53 Grade B steel pipe depends on the actual requirements of the piping system. There is no single schedule that is suitable for every application. The correct choice should be based on design calculations, applicable codes, operating conditions, and project specifications.
Quick Selection Guide
Schedule | Relative Wall Thickness | Best Consideration |
|---|---|---|
Sch 20 | Thin | Lower wall requirements where permitted |
Sch 40 | Medium | General-purpose applications |
Sch 80 | Thick | Higher-pressure or demanding service |
XXS | Very thick | Severe or specially specified requirements |
When to Choose Each Schedule
Schedule | When to Choose | Key Points |
|---|---|---|
Sch 20 | Calculated minimum wall thickness is low—design code permits thin-wall pipe | Lower weight, easier handling, lower cost—less allowance for corrosion, erosion, mechanical damage—select only after confirming actual wall thickness meets minimum requirements |
Sch 40 | Practical balance of thickness, strength, weight, cost, availability | Common general-purpose choice—suitable for water, air, mechanical, construction, industrial piping when design requirements met—actual pressure capacity depends on NPS, wall thickness, temperature, material, design code |
Sch 80 | Design requires greater wall thickness—higher pressure or mechanical loads | Thicker wall than Sch 40—higher weight, cost, fabrication/installation requirements—select based on actual engineering requirements |
XXS | Severe pressure or mechanical conditions—project specification requires substantial wall thickness | Very heavy-wall—not to be selected just because it's thickest—significantly higher weight, handling, fabrication, shipping costs |
How to Make the Final Choice
Step | Action |
|---|---|
1 | Calculate required minimum wall thickness first |
2 | Select appropriate standard pipe dimension afterward |
3 | Confirm design pressure, temperature, corrosion allowance, external loads, seamless/welded, design code, testing, length, end prep |
Key Principle
Select the lightest standard wall thickness that safely and fully meets the design requirements—not automatically the thickest pipe available.
Condition | Action |
|---|---|
Sch 20 satisfies calculated requirement | No technical reason to purchase Sch 80 or XXS |
Sch 40 is insufficient | Heavier schedule may be necessary |
Sch 40 is often practical | Not automatically correct—Sch 20, Sch 80, or XXS may be more appropriate |
Ordering Checklist
Item | Confirm |
|---|---|
NPS and OD | Pipe size |
Design pressure | Max |
Design temperature | Min and max |
Minimum wall thickness | Calculated |
Corrosion/erosion allowance | Required |
External mechanical loads | Consider |
Seamless or welded | Manufacturing type |
Applicable design code | Compliance |
Testing and inspection | Requirements |
Length and end prep | Specifications |
Our ASTM A53 Grade B Steel Pipe Products & Shipping Services

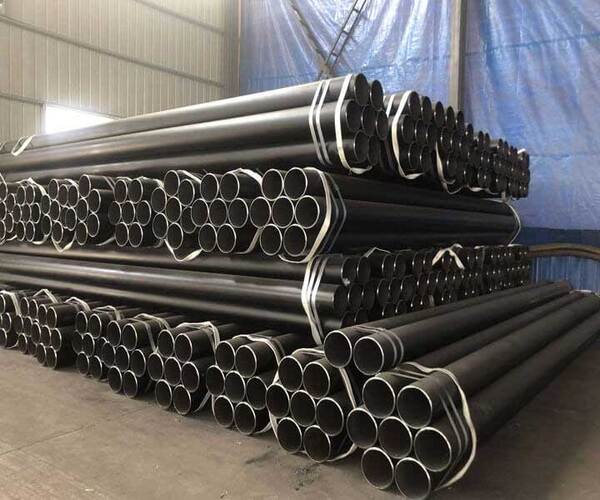

We supply premium ASTM A53 Grade B steel pipes in seamless and welded configurations. We offer a comprehensive range of schedules, including Sch 20, Sch 40, Sch 80, and XXS, to meet diverse industrial, construction, and pressure-piping requirements.
Quality and compliance are paramount. We conduct rigorous inspections—including hydrostatic, mechanical, and nondestructive testing—and provide comprehensive Mill Test Certificates (MTCs) to guarantee full adherence to ASTM A53 standards.
Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure packaging and flexible transportation options (container and bulk freight) to prevent transit damage and ensure your pipes arrive safely and on time.
To receive a customized product and shipping quotation, please contact us today with your required NPS, schedule, quantity, testing requirements, and delivery destination. Our expert team will recommend the optimal ASTM A53 Grade B pipe configuration tailored to your exact project needs.
Conclusion
Selecting the correct wall thickness for ASTM A53 Grade B steel pipe is essential for a safe and cost-effective piping system. Schedules like Sch 20, Sch 40, Sch 80, and XXS offer different thickness options, but the thickest pipe is not always the best choice.
Sch 40 is a popular general-purpose option, while Sch 80 and XXS are suited for high-pressure applications. However, proper selection requires engineering calculations based on design pressure, temperature, corrosion allowance, and applicable codes. Over-specifying wall thickness unnecessarily increases material, welding, and shipping costs, while also reducing the internal diameter.
FAQ:
1. What is the difference between Sch 40 and Sch 80 A53 Grade B pipe?
Sch 80 has a thicker wall than Sch 40 for the same nominal pipe size. It generally provides greater resistance to pressure and mechanical loads but also costs more and weighs more.
2. Is Sch 40 suitable for ASTM A53 Grade B pipe?
Sch 40 is a common general-purpose option for A53 Grade B pipe, but it is not automatically suitable for every application. The required schedule should be confirmed through design calculations.
3. Is XXS thicker than Sch 80?
Yes, XXS is generally a very heavy-wall designation and is thicker than Sch 80 for many standard pipe sizes. Always check the actual dimensions for the required NPS.
4. How do I choose the correct A53 Grade B pipe schedule?
Consider NPS, design pressure, design temperature, corrosion allowance, external loads, applicable design code, and project requirements. Calculate the required minimum wall thickness before selecting the closest suitable schedule.
5. Is Sch 20 suitable for high-pressure applications?
Not necessarily. Sch 20 has a relatively thin wall, so it should only be used when its actual thickness meets the pressure and other design requirements for the specific pipe size.
6. Does a thicker pipe schedule mean a stronger steel grade?
No. Pipe schedule refers to wall thickness, while ASTM A53 Grade B refers to the material grade and applicable product requirements. A thicker wall does not change the steel grade.
