Formation matching is essential when selecting slotted screen pipes for water wells, geothermal wells, agricultural irrigation, and industrial groundwater extraction. Screen performance depends on how well slot width, open area, pipe diameter, wall thickness, and material grade align with particle-size distribution, groundwater flow, formation stability, and well depth. Oversized slots allow sand production and pump wear, while undersized slots increase clogging risk and reduce well efficiency. Proper formation-screen matching improves sand control, stabilizes water intake, reduces maintenance costs, and extends service life. Slot design should also consider gravel packing, water chemistry, installation method, and expected operating conditions.

What Are Slotted Screen Pipes and How Do They Work?

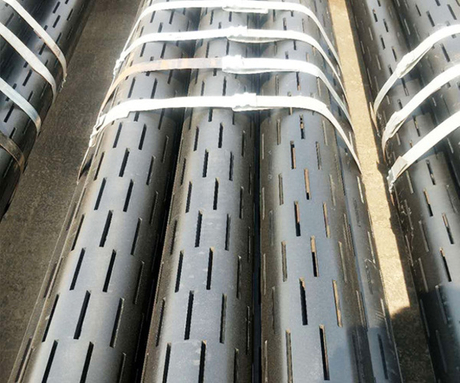

Slotted screen pipes are specialized steel pipes designed to control the entry of sand, gravel, and other formation particles while allowing groundwater to flow into a well. Widely used in water wells, geothermal wells, agricultural irrigation systems, and industrial groundwater extraction projects.

Unlike ordinary steel pipes, slotted screen pipes have multiple narrow openings cut into their pipe walls, designed according to the geological conditions of the well, especially the particle-size distribution of the surrounding formation.

1. Basic Structure

Base pipe material: carbon steel, stainless steel, or another suitable material—depending on groundwater chemistry, corrosion risks, temperature, and project requirements.

2. How Do Slotted Screen Pipes Work?

Simple filtration and water-intake principle: When a pump extracts groundwater, water from the surrounding formation moves toward the well and passes through the slots into the pipe.

Openings are designed to restrict entry of larger formation particles while allowing water to flow through.

Effectiveness depends on: slot width, formation particle size, groundwater velocity, and use of gravel packing where required.

Proper well development helps remove loose materials and establish a more stable formation around the screen.

3. Common Manufacturing Methods

Commonly manufactured by cutting openings into the wall of a base pipe—depending on production equipment and required specifications, slots may be produced through mechanical cutting or other precision cutting methods.

Manufacturing quality should focus on:

These factors influence filtration performance, structural strength, and installation quality.

4. Slotted Screen Pipes Compared with Other Well Screens

The most suitable option depends on formation conditions, particle retention requirements, water intake demand, and mechanical design.

Main Well Conditions Suitable for Slotted Screen Pipes

Slotted screen pipes are commonly used in water wells, geothermal wells, agricultural irrigation systems, and industrial groundwater extraction projects. However, their suitability depends on geological conditions, formation stability, groundwater flow, and required sand control.

In general, slotted screen pipes are suitable for formations where particle-size distribution and stability can be evaluated and matched with appropriate slot dimensions.

Quick Selection Guide

1. Stable Coarse Sand and Gravel Formations

Often suitable—particle sizes are relatively large and may provide good groundwater permeability.

Appropriately designed slot openings can allow water to enter the well while retaining larger particles.

Required slot width should be determined through formation sampling and particle-size analysis—not selected solely according to general formation description.

For loose or poorly graded gravel: gravel packing may be considered to improve particle retention and stabilize the area around the screen.

2. Medium-Sand Formations

Can be suitable when openings are correctly matched to the formation's particle-size distribution.

Main design challenge: balance sand control and water intake.

Evaluate before determining slot width: formation's sieve analysis results, groundwater flow requirements, and well completion method.

3. Geothermal Wells

May be used to support groundwater intake and circulation—suitability depends on formation characteristics and temperature/chemical properties of geothermal water.

Material selection is particularly important:

• Groundwater may contain dissolved minerals or corrosive substances

• Consider corrosion resistance, operating temperature, pressure conditions, wall thickness, and mechanical strength

4. Agricultural and Industrial Water Wells

Often require stable groundwater extraction over extended operating periods.

5. Formations with Relatively Low Fine-Particle Content

Generally easier to manage with slotted screen pipes.

Excessive fine particles can migrate toward openings, accumulate on screen surface, and reduce water flow.

In formations containing substantial fines: consider narrower openings, gravel packing, alternative screen designs, or additional well-development measures. A geological investigation should determine whether a slotted screen alone can provide adequate filtration.

6. Key Conditions to Confirm Before Selection

Formation Types and Slotted Screen Pipe Matching Principles

Selecting the correct slotted screen pipe requires a clear understanding of the surrounding geological formation—different formations have different particle sizes, permeability, and stability. These characteristics directly affect slot width, open area, sand retention, and groundwater intake efficiency.

A screen that does not match the formation may allow excessive sand to enter the well or become blocked by fine particles. Evaluate formation samples and particle-size distribution before determining screen specifications.

Formation Matching Guide

1. Coarse Sand and Gravel Formations

Relatively large particles and good permeability—often suitable for slotted screen pipes when slot dimensions are properly selected.

Main objective: retain formation particles that could damage pumps or reduce well stability—while allowing sufficient groundwater flow.

Slot width should be determined from sieve analysis and required particle-retention level.

In loose gravel formations: gravel packing may provide additional filtration and support around the screen. Gravel size and gradation should be selected according to formation characteristics and well completion design.

2. Medium-Sand Formations

Common in groundwater extraction projects—can be suitable for slotted screen pipes, but slot width must be carefully controlled.

Review the particle-size distribution curve to determine appropriate opening size. Also consider required open area to maintain suitable flow velocity through the screen.

3. Fine-Sand Formations

Require more careful screen selection—small particles can migrate through relatively large openings or accumulate on the screen surface.

Narrower slot openings may improve particle retention—but can also increase clogging risk.

Depending on formation uniformity and stability, consider gravel packing, a wire-wrapped screen, or another suitable filtration arrangement.

Do not select a slotted screen for fine sand based only on nominal slot width—full completion design and expected well-development process must also be evaluated.

4. Clay-Rich and Silty Formations

Generally more challenging for slotted screen applications—fine particles can block openings, reduce permeability, and make well development difficult.

In these conditions: a conventional slotted screen alone may not provide satisfactory long-term performance.

Possible measures:

• Properly designed gravel pack

• Isolating unsuitable formation intervals

• Selecting an alternative screen structure

• Formation stabilization or other well-completion measures

5. Mixed and Layered Formations

Some wells pass through several geological layers with different particle sizes—for example, coarse gravel above or below fine sand and silt layers.

Using one slot specification across the entire well may not provide the best result.

Engineers should:

• Identify productive formation intervals

• Determine whether separate screen sections with different slot dimensions are necessary

• Use blank casing across intervals where water entry is not intended (per well design)

6. Using Particle-Size Analysis to Determine Slot Width

Sieve analysis is an important tool for screen selection. Formation samples are passed through sieves with different mesh sizes to determine proportion of particles within each size range—results used to develop a particle-size distribution curve.

This information helps evaluate required particle-retention level and select suitable slot openings.

Important: There is no single slot-width formula that applies to every well. Final design should also consider: formation uniformity, gravel-pack requirements, groundwater flow, and chosen well-development method.

Key Technical Factors for Selecting Slotted Screen Pipes

Selecting the right slotted screen pipe requires more than choosing a pipe diameter or slot width. The screen must provide sufficient groundwater intake, retain unwanted formation particles, and withstand installation and operating loads.

Specifications should be determined according to: geological conditions, well depth, groundwater chemistry, and expected service environment.

Key Technical Factors at a Glance

1. Slot Width and Particle Retention

One of the most important factors—determines which formation particles can pass through the pipe wall and influences risk of sand production and clogging.

Use formation sampling and sieve analysis to understand particle-size distribution before selecting slot width.

Final slot size should balance particle retention, water intake, and selected completion method.

2. Open Area and Water Intake Capacity

Open area = total area of slots available for groundwater to enter the pipe. Suitable open area helps distribute water intake and control flow velocity through the screen.

Important: Increasing open area should not compromise the pipe's mechanical strength—slot length, spacing, arrangement, and remaining wall material all affect structural performance.

Required open area should be calculated according to: expected pumping rate, screen length, formation permeability, and well design.

3. Pipe Diameter and Wall Thickness

For deep wells or demanding installation conditions: pay particular attention to tensile strength and collapse resistance.

4. Material Selection and Corrosion Resistance

Base pipe material should be selected according to: groundwater chemistry, temperature, and service conditions.

Factors influencing corrosion and scaling: pH, chloride content, dissolved oxygen, and mineral concentration.

Also consider: project budget, expected service life, and maintenance requirements.

5. Mechanical Strength and Installation Conditions

Slotted screen pipes must maintain structural integrity during transportation, handling, lowering, and long-term operation.

Mechanical performance depends on: base material, dimensions, slot geometry, and manufacturing quality. Confirm selected specifications meet well's design loads.

6. Manufacturing Accuracy and Quality Inspection

Depending on purchase specification: request material test certificates, dimensional inspection records, slot-size reports, and other relevant quality documents.

7. Installation and Maintenance Requirements

Screen selection should also consider well completion method: gravel packing, screen placement, well development, and future cleaning procedures can affect long-term performance.

For formations containing fine particles: additional filtration or development measures may be necessary.

In areas with high mineral content: evaluate the possibility of scaling and blockage.

When Are Slotted Screen Pipes Unsuitable or Require Additional Design Measures?

Slotted screen tubes are widely used in water wells, geothermal wells, and industrial groundwater extraction systems—but they are not suitable for every geological formation or operating environment.

When formation particles are too fine, groundwater contains high levels of corrosive substances, or well conditions create excessive mechanical loads—a standard slotted screen design may not provide sufficient filtration or structural performance.

Challenging Conditions & Possible Measures

1. Very Fine Sand and Unstable Formations

Small particles may pass through openings that are too wide—leading to sand production and pump abrasion. If slot width is reduced excessively, fine particles may accumulate around openings and restrict groundwater flow.

For unstable formations: conduct detailed particle-size analysis and evaluate formation stability.

Final solution should be based on geological data—not slot width alone.

2. Clay-Rich and High-Silt Formations

Formations containing large amounts of clay and silt are more likely to cause screen clogging—fine particles can accumulate on the screen surface or inside openings, reducing effective water intake area.

In these conditions, conventional slotted screens may require additional filtration or formation-stabilization measures.

Evaluate whether gravel packing, alternative screen structures, or selective completion of more productive layers would provide better long-term performance.

Well development and appropriate maintenance procedures are also important for controlling sediment accumulation.

3. Highly Corrosive or High-Temperature Groundwater

Standard carbon steel slotted screen pipes may not provide sufficient corrosion resistance in every groundwater environment. High chloride concentrations, low pH, dissolved gases, and other aggressive substances can accelerate material degradation.

Geothermal wells may also expose screens to elevated temperatures and mineral scaling.

Material compatibility should be confirmed for actual water conditions.

4. Deep Wells and High Mechanical Loads

Deep wells may expose screen pipes to significant installation loads and external pressure. Insufficient wall thickness or mechanical strength may cause deformation or collapse—affecting water intake and well operation.

For these applications, check:

• Tensile strength

• Collapse resistance

• Connection strength

• Reduction in structural capacity caused by slot cutting

Evaluate together: pipe diameter, wall thickness, material grade, and slot arrangement.

5. Formations with Highly Variable Particle Sizes

Some wells pass through multiple layers containing coarse gravel, medium sand, fine sand, and silt. A single slot specification may not provide effective particle control across all intervals.

This approach allows screen configuration to respond more closely to local formation conditions.

6. When Should an Alternative Screen Be Considered?

Our Recommended Slotted Screen Pipe Products and Global Shipping Services

Supplies slotted screen pipes for water wells, geothermal projects, agricultural irrigation, and industrial groundwater extraction. Product specifications should be matched to formation conditions and well completion design, including base pipe material (carbon steel or stainless steel), outer diameter, wall thickness, slot width, slot arrangement, pipe length, and connection type. Quality inspection should confirm slot consistency, remaining wall thickness, dimensional accuracy, surface condition, and material certification. Packaging and global shipping arrangements are confirmed according to pipe dimensions, bundling requirements, destination port, trade terms, and delivery schedule. To request a quotation, provide the formation characteristics, pipe material, outer diameter, wall thickness, slot width, quantity, and delivery destination.

Conclusion:

Slotted screen pipes are essential for water wells, geothermal projects, agricultural irrigation, and industrial groundwater extraction. Correct selection requires matching slot width, open area, pipe diameter, wall thickness, and material to formation particle-size distribution, groundwater conditions, and well depth. Coarse sand and gravel formations allow wider openings, while fine sand, silt, or clay-rich layers may require narrower slots, gravel packing, or alternative screen designs. Multi-layer wells often benefit from different screen sections rather than a single specification. Buyers should also evaluate corrosion resistance, collapse resistance, connection strength, installation loads, and future maintenance.

FAQ:

Q1: What type of formation is suitable for slotted screen pipes?

- Stable coarse- to medium-sand and gravel formations can be suitable when slot width is correctly matched to the particle-size distribution.

Q2: Can slotted screen pipes be used in fine sand formations?

- They can be used in some fine-sand formations, but narrow slot openings, gravel packing, or alternative screen designs may be needed to control sand production and clogging.

Q3: How do I choose the correct slot width for a water well?

- Use formation sieve analysis and the well completion design to determine the required particle-retention level and opening size.

Q4: Are slotted screen pipes suitable for geothermal wells?

- They can be suitable when the pipe material, slot design, and mechanical strength meet the geothermal well's temperature, groundwater chemistry, and operating conditions.

Q5: What is the difference between slotted screen pipes and wire-wrapped screen pipes?

- Slotted screens have openings cut into the pipe wall, while wire-wrapped screens use shaped wire around support rods to create continuous openings. Their filtration characteristics and structural designs differ.
