The Role of Slotted Screen Pipes in Gravel-packed Well Completion

Slotted screen pipes are essential for gravel-packed well completion, helping control sand production, retain gravel, and allow efficient fluid entry. They are widely used in water wells, oil and gas wells, and geothermal wells. During production, fine particles can enter the well and cause equipment wear or reduced efficiency. A properly designed slotted screen works with a gravel pack to filter formation sand while supporting stable flow. Slot width, length, distribution, and open area directly affect filtration performance, flow resistance, and mechanical strength. Screens can be manufactured from carbon steel or stainless steel, depending on well environment, fluid chemistry, corrosion risk, and service life. Effective sand control requires matching slot width to gravel size, evaluating formation characteristics, and ensuring proper installation. Selecting the right screen helps reduce maintenance costs, protect downstream equipment, and improve long-term well reliability.

How Slotted Screen Pipes Work in Gravel-Packed Well Completion

Slotted screen pipes work together with gravel packing to control sand production while allowing formation fluids to enter a well. Their performance depends on the interaction between screen slots, gravel size, formation particles, and well design—when properly matched, the system provides effective filtration, stable fluid flow, and reliable well operation.

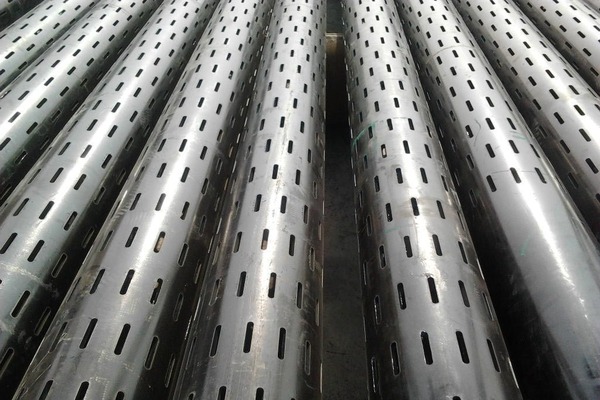

Basic Structure of a Slotted Screen Pipe

A tubular component with multiple openings cut into its wall—slots are distributed along the pipe per the required design, providing pathways for fluid to enter the well.

Material selection: Carbon steel may be considered for general applications; stainless steel where greater corrosion resistance is required.

The Role of the Gravel Pack

During gravel-packed completion, specially selected gravel is placed in the annular space between the screen pipe and surrounding borehole or casing. The gravel forms a permeable layer around the screen—acting as a filtration medium.

If gravel is unsuitable: fine particles may migrate through the pack, or the gravel may become less permeable than required.

How Fluid Flows Through the System

The screen retains the gravel while providing an entry path for fluid. However, screen and gravel pack must be designed as one system:

• Slot width too large → may allow gravel to enter the pipe

• Openings unnecessarily small → may increase plugging risk or restrict flow

Factors Affecting Screen Performance

Regular monitoring of production rate, pressure changes, and sand content helps operators identify potential problems—such as screen plugging or gravel-pack damage.

Key Functions of Slotted Screen Pipes in Gravel-Packed Wells

Slotted screen tubes are essential components of gravel-packed well completion systems—providing a controlled entry path for formation fluids while helping retain the gravel pack and reduce unwanted sand production.

Design directly affects filtration performance, fluid-flow efficiency, and long-term well reliability. Understanding main functions helps well operators and project engineers select suitable products for water wells, oil and gas wells, geothermal wells, and other underground fluid collection applications.

Key Functions at a Glance

1. Sand Control and Particle Retention

Primary function: support sand control. In unconsolidated or weakly consolidated formations, fine sand and other particles can move toward the well during production.

In gravel-packed completion: gravel acts as main filtration layer—helps retain formation particles. Slotted screen holds gravel in place while allowing fluid to pass through openings.

Important: Slot width must be matched to selected gravel size and overall completion design.

• Slots too wide → gravel may enter screen

• Slots too narrow → risk of blockage may increase

2. Fluid Inflow and Production Efficiency

Allows water, oil, or other target fluids to enter the well. Slot number, width, length, and distribution determine available flow area.

Appropriately designed screen provides sufficient inflow capacity while limiting excessive flow resistance.

Important balance: Open area must be balanced against pipe's mechanical strength—removing too much material from pipe wall can reduce load-bearing capacity.

Required flow performance depends on: well's production target, formation permeability, fluid properties, and operating conditions. Evaluate screen together with gravel pack—not slot dimensions in isolation.

3. Gravel Pack Retention and Well Stability

Maintains position of gravel pack around screen. Properly installed gravel pack creates a permeable filtration layer between formation and well intake.

Screen pipes alone cannot guarantee well stability. Also necessary: correct gravel selection, suitable completion design, and careful installation—to prevent voids, bridging, and uneven packing.

4. Protection of Downstream Equipment

Reducing sand entering the well helps protect pumps, valves, pipelines, and other production equipment from abrasive wear.

Level of protection depends on: formation, gravel-pack design, slot dimensions, and operating conditions. Select slotted screen pipes according to actual sand-control requirements of each well.

5. Supporting Long-Term Well Performance

Slotted screen pipes contribute to reliable well operation when material and dimensions suit the service environment.

Before procurement, assess: slot-width accuracy, pipe diameter, wall thickness, open area, mechanical strength, and corrosion risks. Quality inspection and proper installation are equally important.

Common Types and Materials of Slotted Screen Pipes

Slotted screen pipes are widely used in gravel-packed well completion, water wells, oil and gas production, geothermal projects, and industrial filtration systems. They allow fluids to enter the well while helping retain the surrounding gravel pack and control unwanted particle movement.

Selection requires consideration of: manufacturing method, material, slot dimensions, mechanical strength, and operating environment. Different types offer different advantages—base selection on technical requirements, not price alone.

Common Types of Slotted Screen Pipes

Common Materials for Slotted Screen Pipes

Carbon steel slotted screen pipes — often considered for general well applications where mechanical strength and budget are important. A suitable coating or corrosion-control strategy may be needed—depending on water chemistry and service environment.

Stainless steel slotted screen pipes — may be appropriate where greater corrosion resistance is required. Specific grade must be selected according to: chloride concentration, temperature, pH, and other relevant conditions. Stainless steel does not provide universal resistance to every corrosive environment.

For wells exposed to particularly aggressive fluids or demanding temperatures: specialized corrosion-resistant alloys may be considered after a technical assessment.

How to Select the Appropriate Type and Material

Before purchasing, confirm:

• Required pipe diameter and wall thickness

• Slot width and slot spacing

• Overall length and connection type

Design should also account for:

• Gravel size and formation particle distribution

• Expected flow rate

• Installation loads

• Downhole pressure conditions

Quality checks should include: slot-width accuracy, dimensional tolerances, surface condition, mechanical properties, and material traceability. Corrosion resistance should be assessed against actual well environment—not material name alone.

For gravel-packed completions: screen design and gravel selection must work together.

• Slots too wide → may allow gravel to enter the pipe

• Excessively narrow openings → may increase plugging risk or restrict flow

How to Select the Right Slotted Screen Pipe for Gravel Packing

Selecting the right slotted screen pipe is essential for effective sand control, stable fluid production, and reliable gravel-packed well completion. An unsuitable screen may allow gravel to enter the well, restrict fluid flow, or become damaged during installation.

Evaluate together: slot dimensions, pipe specifications, material properties, and operating conditions.

Selection Checklist at a Glance

1. Determine the Correct Slot Width

One of the most important factors—affects gravel retention, particle control, and potential for screen plugging.

For gravel-packed wells: slot width should be determined according to gravel size distribution and completion design. The screen must retain selected gravel while allowing formation fluid to pass efficiently.

Request accurate slot-width tolerances and verify through appropriate inspection.

2. Choose the Right Pipe Diameter and Wall Thickness

Slotted pipes require particular attention—cutting openings into pipe wall reduces remaining load-bearing section. Evaluate mechanical performance of the finished slotted pipe—not just uncut base pipe properties.

3. Evaluate Open Area and Flow Capacity

Total open area determines how much space is available for fluid to enter the screen.

Slot number, length, width, and distribution should balance hydraulic performance with structural strength.

Required flow capacity should be calculated based on: expected production rate, fluid properties, formation permeability, and completion design.

4. Select a Suitable Material

Before ordering, assess: fluid chemistry, temperature, pressure, and expected service life. Corrosion protection may also be required for carbon steel screens.

5. Verify Quality and Manufacturing Accuracy

For demanding projects: specify required inspection methods and acceptance criteria before production.

6. Match the Screen to the Gravel-Pack Design

A slotted screen pipe should never be selected independently of the gravel pack.

Must be coordinated:

• Gravel grading

• Formation particle distribution

• Screen opening dimensions

• Installation methods

Our Recommended Slotted Screen Pipe Products and Global Shipping Services

Supplies slotted screen pipes for gravel-packed well completion, water wells, oil and gas production, geothermal projects, and industrial filtration. We offer carbon steel screens for strength and cost-effectiveness, and stainless steel screens for enhanced corrosion resistance in aggressive fluid environments. Customized specifications are available, including pipe diameter, wall thickness, length, slot width, slot spacing, open area, and connection type. Quality control covers slot-width accuracy, dimensional tolerances, surface condition, material identification, and connection quality. Slot design should match the gravel size and sand-control requirements to retain the gravel pack while allowing efficient fluid entry. For international orders, we coordinate sea freight or other suitable transportation, protective packaging, and export documentation. Before requesting a quotation, please confirm the material grade, dimensions, slot specifications, quantity, applicable standards, inspection requirements, and destination port. Clear technical requirements and planned logistics help reduce procurement risks and support reliable well-completion performance.

Conclusion:

Slotted screen pipes are essential for gravel-packed well completion, supporting sand control, gravel retention, and stable fluid entry in water wells, oil and gas production, and geothermal projects. Slot width must match the selected gravel size: overly wide slots allow gravel entry, while overly narrow slots increase plugging risk. Pipe diameter, wall thickness, slot distribution, and open area should balance flow capacity with mechanical strength. Carbon steel offers cost-effective strength, while stainless steel provides enhanced corrosion resistance for aggressive fluid environments. Quality control should verify slot-width accuracy, dimensions, material grade, and inspection documentation. Proper installation, controlled gravel placement, and monitoring of production rate, pressure, and sand content help reduce downtime.

FAQ:

Q1: What is the purpose of a slotted screen pipe in a gravel-packed well?

A slotted screen allows formation fluid to enter the well while retaining the surrounding gravel pack, helping reduce sand production.

Q2: How do you determine the correct slot size for a gravel-packed well?

Slot size should be determined from the gravel-pack grading, particle-retention requirements, and completion design to retain the gravel while allowing sufficient fluid flow.

Q3: Why is gravel packing used with slotted screen pipes?

The gravel pack creates a controlled filtration layer that helps prevent formation sand from entering the well and can improve sand-control performance.

Q4: What materials are commonly used for slotted screen pipes?

Carbon steel and stainless steel are common options. The appropriate material depends on corrosion conditions, mechanical requirements, fluid chemistry, and project specifications.

Q5: What causes a slotted screen pipe to become blocked?

Blockage may result from fine particles, mineral deposits, biological growth, or improper gravel-pack design and installation.
