How Are Flanges Manufactured? A Look at the Production Process of an Industrial Connection Component

A flange may look like a relatively simple ring of steel, but its manufacturing accuracy directly affects how reliably a piping system can be connected, sealed, inspected, and maintained. In pressure piping, a flange must match the pipe, gasket, bolts, and mating flange while meeting the specified dimensional and material requirements. For this reason, flange manufacturing is a controlled process that typically includes raw material selection, forging or forming, heat treatment, machining, dimensional inspection, and final quality control. For carbon steel flanges, ASTM A105/A105M covers forged carbon steel piping components including flanges, while ASTM A961/A961M provides common requirements for steel flanges and other forged piping components.

What Is a Flange?

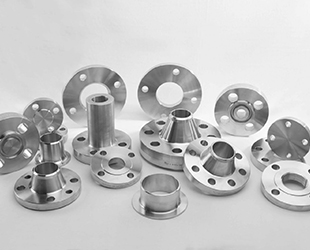

A flange is a mechanical connection component used to join pipes, valves, fittings, pumps, and other equipment. Bolts pass through the flange holes to connect two mating components, while a gasket is normally placed between the sealing faces where the design requires it. Common flange types include:

• Weld Neck Flange

• Slip-On Flange

• Blind Flange

• Socket Weld Flange

• Threaded Flange

• Lap Joint Flange

The selection depends on pipe size, pressure class, temperature, material, connection method, and applicable project specification.

What Materials Are Used to Manufacture Flanges?

Material selection starts with the service conditions and applicable standard. Carbon steel grades such as ASTM A105/A105M are widely used for forged piping components in ambient and elevated-temperature pressure service. Alloy steel and stainless steel grades may be selected when higher-temperature performance, corrosion resistance, or other special properties are required. ASTM A961/A961M also identifies common material specifications for steel flanges and forged piping components. Before production, the manufacturer verifies the material grade, heat number, chemical composition, and material documentation.

How Does the Flange Manufacturing Process Work?

1. Raw Material Preparation

Production begins with suitable steel billet, bar, or other approved forging stock, depending on the manufacturing route.

The material is identified by heat number to maintain traceability throughout production.

2. Heating

The steel is heated to the temperature required for forging or forming. Heating must be sufficiently controlled to support uniform deformation without creating unnecessary metallurgical problems.

3. Forging or Forming

For forged flanges, controlled deformation changes the heated steel into the approximate flange shape.

Forging can improve material continuity and help produce the required mechanical properties. The actual forging method depends on flange size, design, material, and production equipment.

4. Heat Treatment

After forging, heat treatment may be required according to the material specification.

Depending on the grade and applicable requirements, processes can include normalizing, annealing, tempering, or other specified treatments. ASTM A105/A105M includes heat-treatment requirements for covered forged carbon steel piping components.

Heat treatment helps establish the required microstructure and mechanical properties.

5. Machining

Once the forged blank has been prepared, precision machining creates the final geometry. Machining may include:

• Outside diameter

• Bore diameter

• Flange thickness

• Bolt-hole diameter

• Bolt-hole spacing

• Raised face or other sealing face

• Hub dimensions

• Edge and transition areas

This stage is critical because even a small dimensional error can affect assembly or gasket sealing.

How Is Flange Quality Controlled?

Quality control continues throughout production rather than being limited to the final inspection.

Chemical Composition

Material chemistry is verified against the specified grade. ASTM A961/A961M includes requirements related to heat and product analysis for applicable steel piping components.

Mechanical Testing

Depending on the applicable specification, mechanical testing may include tensile properties, hardness, and impact testing where required.

Dimensional Inspection

Inspectors verify critical dimensions such as:

• Flange OD

• Bore

• Thickness

• Bolt-hole diameter

• Bolt-hole quantity

• Bolt-circle diameter

• Facing dimensions

• Surface and NDT Inspection

Visual inspection identifies surface imperfections. Additional nondestructive testing may be specified according to the material, application, and purchase requirements. The required inspection method should always follow the applicable standard and project specification rather than assuming that every flange requires the same test program.

Why Is Traceability Important?

Traceability allows the finished flange to be connected to its original steel heat and manufacturing records.

A typical chain is: Steel Heat → Raw Material → Forging → Heat Treatment → Machining → Inspection → Marking → MTC

For international projects, this information is particularly important because buyers may need to verify material certificates, inspection results, and product identification during installation or future maintenance.

What Documents Should Buyers Receive?

The documentation package depends on the purchase order and applicable standards. It may include:

• Material Test Certificate (MTC)

• Chemical analysis

• Mechanical test results

• Heat-treatment records

• Dimensional inspection report

• NDT report where required

• Product identification and traceability records

• Third-party inspection documents where specified

For pressure piping projects, documentation should be agreed before production starts so that inspection requirements are clear to both the manufacturer and buyer.

Conclusion

Flange manufacturing is more than simply cutting a steel ring and drilling bolt holes. A reliable flange is produced through a controlled sequence of material selection, heating, forging, heat treatment, machining, inspection, and traceability. The final component must have the correct material, dimensions, sealing geometry, mechanical properties, and identification for its intended piping application. For buyers, the most important information to confirm before ordering includes flange type, size, pressure class, material grade, facing, applicable standard, inspection requirements, quantity, and documentation. Providing these details at the quotation stage helps the manufacturer establish the correct production and quality-control plan from the beginning.
