How to Install Seamless Steel Pipe in Fluid Transportation Projects

Seamless steel pipe is widely used in fluid transportation systems where reliable pressure containment and consistent material performance are required. But selecting the right pipe is only the beginning. Poor handling, incorrect alignment, inadequate joint preparation, or incomplete testing can compromise pipeline integrity even when the pipe meets specifications. For oil, gas, water and other industrial fluid transportation projects, installation should be controlled from material receiving through commissioning. The exact requirements depend on the transported medium, design pressure and temperature, installation environment, applicable code and project specification.

1. Verify the Pipe Before Installation

Before installation begins, confirm that the delivered pipe matches the approved engineering specification.

Check:

• Applicable pipe standard and grade

• Outside diameter and wall thickness

• Length and end preparation

• Heat number and material traceability

• Material test certificates

• Surface condition

• Required inspection records

For oil and gas pipeline applications, API Specification 5L covers seamless and welded line pipe, including requirements related to manufacturing, inspection, testing, marking and traceability. The current 47th edition was published in June 2026 and includes updates across areas such as NDT, hydrotest requirements, toughness, sour service and CO₂ transportation. A pipe should not be considered interchangeable with another simply because the OD and wall thickness are the same. Material grade, specification and service conditions must also match the approved design.

2. Inspect the Pipe After Transportation

Mill inspection does not eliminate the need for receiving inspection. Before the pipe is moved to the installation area, check the body and ends for:

• Dents

• Gouges

• Deformation

• Corrosion

• Damaged bevels

• Foreign material inside the bore

Pipe ends deserve particular attention because damage can affect fit-up and joint quality. Maintain pipe identification throughout the installation process so that heat numbers and relevant material records can be traced to the completed pipeline where required.

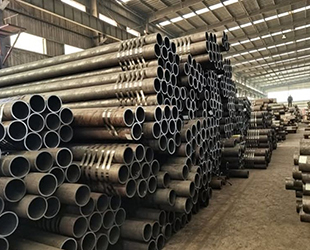

3. Handle and Store Pipe Carefully

Seamless steel pipe should be lifted, transported, and positioned with suitable equipment. Do not:

• Drop pipe from lifting equipment

• Drag pipe directly across the ground

• Allow pipe ends to strike hard surfaces

• Use unsuitable lifting tools

• Place pipe where standing water can accumulate

These precautions are especially important when pipe has a factory-applied coating. ASME B31.4 requires care during handling, hauling, stringing and storage to prevent damage to pipe and coatings. Handling should protect both the pipe body and any prepared ends or coating systems.

4. Control Alignment and Joint Preparation

Before joining pipe sections, verify alignment, end condition and joint preparation against the approved installation procedure. Where welded joints are specified, welding should follow the qualified welding procedure, including applicable requirements for welders, consumables, preheating, interpass temperature and post-weld treatment. Do not force a pipe into alignment with excessive external loads or modify bevel geometry without technical approval. For flanged, threaded or other connection systems, the applicable connection standard and manufacturer's installation requirements should be followed instead of applying welding procedures.

5. Keep the Internal Bore Clean

Internal cleanliness is often overlooked during pipeline construction. Prevent soil, water, welding debris, tools, and other foreign materials from entering the pipe. When installation is interrupted, open pipe ends should be protected. Before closing a pipeline section, inspect the internal bore and remove unacceptable contamination according to the project procedure. Cleanliness is particularly important where contamination could affect pumps, valves, meters or other downstream equipment.

6. Control Supports, Bending and Installation Loads

The pipeline should be installed according to the approved route, alignment and support design. For aboveground systems, supports need to accommodate pipe weight, operating loads and thermal movement where applicable. For buried pipelines, trench preparation, bedding, lowering and backfilling should follow the project construction requirements. Where field bending is permitted, the approved bending method and allowable limits must be followed. Excessive bending or forced alignment can cause deformation and introduce additional stresses into the pipe.

7. Complete Inspection and Pressure Testing

Installation inspection should cover more than visual appearance. Depending on the project, requirements may include:

• Visual inspection

• Girth-weld NDT

• Dimensional checks

• Coating inspection

• Joint identification

• Pressure or leak testing

• Documentation review

For liquid transportation systems, ASME B31.4 addresses design, materials, construction, assembly, inspection, testing, operation and maintenance. Pressure-testing parameters should never be copied from another project. Test pressure, duration, medium, test section and acceptance criteria must be established by the governing code and approved project procedure.

Common Installation Mistakes to Avoid

Installing before verifying material records: Pipe identity and certificates should be confirmed before installation.

Dragging pipe on the ground: This can damage the pipe body, ends or coating.

Forcing poor alignment: Excessive external force can introduce unwanted stresses.

Leaving pipe ends open: Soil, water, and debris can enter the bore.

Welding without an approved procedure: Joint quality depends on controlled welding parameters and qualified personnel.

Using generic pressure-test values: Testing must follow the applicable code and project procedure.

Losing traceability: Installed pipe and joint records should remain linked to the project documentation.

Before Installation: 7 Checks

Before the first pipe is installed, confirm:

Specification — Grade, dimensions and standard match the approved design.

Condition — No unacceptable transportation or handling damage.

Traceability — Heat numbers and material records are identifiable.

End Preparation — Bevels, threads or flanges meet the specified requirements.

Cleanliness — Internal surfaces are free from unacceptable contamination.

Installation Procedure — Approved joining, alignment and handling procedures are available.

Inspection Plan — NDT, testing and documentation requirements are clearly defined.

Conclusion

Installing seamless steel pipe in a fluid transportation project is a controlled engineering process, not simply an exercise in connecting pipe sections. Reliable performance depends on material verification, careful handling, correct alignment, controlled joining, internal cleanliness, appropriate support and complete inspection and testing. For project-based procurement, installation requirements should be considered before the pipe is ordered. Providing the fluid medium, design pressure, temperature, pipe dimensions, material grade, applicable code, connection method and inspection requirements allows the supplier to evaluate the specification against the actual project conditions.
