Application of ASTM A106 in Power Plant Steam Systems: Material Selection for Boiler Piping And Steam Lines

ASTM A106 seamless carbon steel pipe is widely used in power plant steam systems for main steam lines, auxiliary steam, vents, and drains. Designed for high-temperature service, it offers mechanical strength, seamless construction, and standardized grades A, B, and C. Grade B is commonly selected for general high-temperature carbon steel piping, but suitability must be verified against operating temperature, design pressure, allowable stress, wall thickness, and applicable codes such as ASME B31.1 where relevant. ASTM A106 compliance alone does not guarantee fitness for every steam application; alloy steel or other standards may be required at very high temperatures or for specific boiler pressure parts. Proper material selection, inspection, traceability, and quality control help reduce leakage, deformation, and maintenance risks, supporting safe, reliable, and cost-effective steam transportation in thermal power plants.

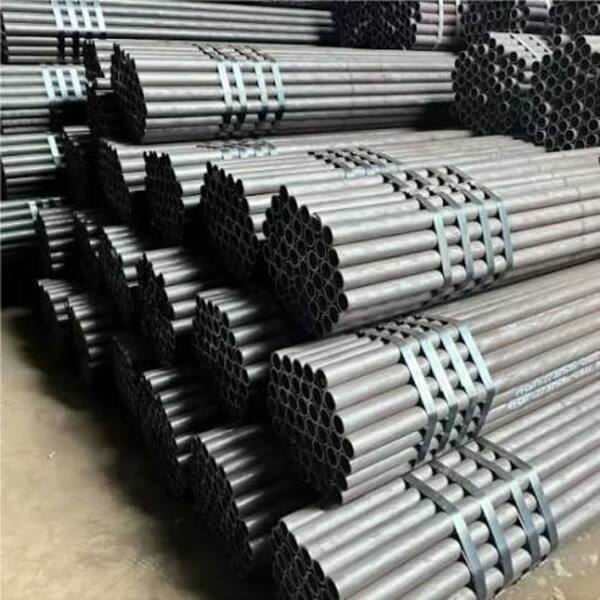

ASTM A106 Carbon Steel Pipe

ASTM A106 is a widely used specification for seamless carbon steel pipe intended for high-temperature service. It is commonly considered for industrial process piping, power plant steam lines, and other systems that must withstand elevated temperatures and internal pressure.

Suitability depends on operating conditions, pipe dimensions, material grade, and applicable design code. Understanding the specification and grade differences helps engineers and procurement teams select the right pipe.

ASTM A106 Overview

ASTM A106 covers seamless carbon steel pipe for high-temperature service. The specification sets requirements for chemical composition, mechanical properties, manufacturing, and testing.

Because it is seamless, the pipe has no longitudinal weld seam—advantageous for applications specifying seamless piping. However, it does not eliminate the need for material inspection, pressure design, and installation quality control.

Available in three grades: Grade A, Grade B, and Grade C.

Grade Comparison Table

Typical minimum requirements—confirm the applicable ASTM A106 edition and product requirements.

Grade B is commonly specified for general high-temperature carbon steel piping—a practical balance of strength and availability. Grade A may suit where lower strength meets design requirements. Grade C offers higher strength, but selection should be based on engineering calculations, not strength alone.

Higher yield strength does not automatically mean better high-temperature performance. Consider allowable stress at design temperature, material chemistry, wall thickness, and code requirements.

Chemical Composition and Material Performance

ASTM A106 specifies limits for carbon, manganese, phosphorus, sulfur, and other elements—controlling consistency, strength, and fabrication characteristics.

• Carbon influences strength and weldability

• Other elements contribute to overall properties

Verify actual chemical composition against the specification and project requirements.

For steam piping, weldability is particularly important because field and shop welding are common. Establish appropriate welding procedures, welder qualifications, and any required preheating or post-weld heat treatment per the applicable code.

ASTM A106 vs. Other Pipe Standards

Alloy steel under ASTM A335 may be required where operating temperatures or allowable stress exceed carbon steel suitability. For power plants, base selection is based on actual service conditions—not a simple standard comparison.

Main Applications of ASTM A106 in Power Plant Steam Systems

ASTM A106 seamless carbon steel pipe is commonly used in industrial piping that requires reliable performance at elevated temperatures and pressures. In power plants, it serves in selected steam lines, auxiliary piping, and supporting systems where its mechanical properties meet design requirements.

Its main advantage is suitability for high-temperature service within established design limits. Not every power plant pipeline operates under the same conditions—evaluate temperature, pressure, fluid characteristics, dimensions, and applicable codes before selecting this material.

Application Comparison Table

1. Main Steam Piping

Transports steam from boiler/superheater toward the turbine. May experience high temperatures, substantial internal pressure, thermal expansion, and repeated operating cycles.

ASTM A106 may be considered when its allowable stress at design temperature satisfies engineering requirements. For higher-temperature or more demanding service, alloy steel such as ASTM A335 may be necessary.

Selection should include wall-thickness calculations, stress analysis, thermal expansion assessment, and power piping code verification. Material grade alone cannot determine suitability for a main steam line.

2. Auxiliary Steam Lines

Supply steam for startup, shutdown, and normal operation—supporting heating, deaeration, sealing, or other functions.

ASTM A106 Grade B is often considered for general high-temperature piping when strength and temperature limits meet design conditions. Its seamless construction and established requirements simplify procurement.

Before installation, confirm operating pressure, temperature variations, pipe size, and connection requirements. Material must be compatible with specified welding and inspection procedures.

3. Boiler-Related Piping and Feedwater Systems

ASTM A106 may be used in certain external boiler piping and utility systems, depending on design and code. However, do not automatically specify it for boiler tubes or other boiler pressure parts.

Boiler tubes, superheater tubes, and reheater tubes may require dedicated specifications such as ASTM A192, A210, or A213. The correct material depends on component, temperature, pressure, and construction code.

Feedwater and condensate piping also require careful evaluation—carbon steel is common, but grade and specification must match actual fluid conditions and design requirements.

4. Drain, Vent, and Bypass Lines

These lines help control steam flow, remove condensate, balance pressure, and support safe startup/shutdown.

ASTM A106 may suit when specified pressure and temperature fall within design limits. Pay attention to transient conditions—rapid temperature changes and pressure fluctuations.

Proper sizing, support design, drainage, and installation quality minimize water hammer, vibration, and leakage risks.

5. Ensuring Reliable Performance

Reliable performance depends on more than choosing ASTM A106 pipe. Verify:

• Material certificates, chemical composition, mechanical test results

• Dimensional tolerances and traceability

• Welding procedures, NDE, pressure testing, and other inspections per code and project specs

ASTM A106 Grade Selection for Boiler Piping and Steam Lines

Selecting the right ASTM A106 grade is essential for the safety, reliability, and service life of power plant piping. ASTM A106 covers seamless carbon steel pipe for high-temperature service in three grades: A, B, and C. Each has different mechanical property requirements, so evaluate operating conditions and design requirements before choosing.

For boiler piping and steam lines, consider design pressure, operating temperature, dimensions, allowable stress, welding requirements, and the applicable piping code. The highest-strength grade is not automatically best—high-temperature performance depends on allowable stress and other properties, not just room-temperature tensile strength.

Grade Comparison Table

Commonly specified minimum mechanical properties. Confirm the applicable ASTM A106 edition and product requirements before procurement.

1. Grade A: For Suitable Lower-Strength Requirements

Grade A has 48,000 psi (330 MPa) minimum tensile and 30,000 psi (205 MPa) minimum yield strength.

May be considered where its specified properties satisfy design requirements. Do not select solely because a pipeline operates at relatively low pressure—also evaluate operating temperature, required wall thickness, allowable stress, and code limits.

For steam systems, use Grade A only when engineering calculations confirm it can safely withstand expected operating and transient loads.

2. Grade B: A Common Choice for General Steam Piping

Grade B has 60,000 psi (415 MPa) minimum tensile and 35,000 psi (240 MPa) minimum yield strength.

Commonly specified for industrial piping—may suit auxiliary steam lines, selected high-temperature process piping, and other power plant services when design conditions permit.

Its established requirements and broad industrial use make Grade B a practical procurement option. However, it is not automatically suitable for every main steam line or boiler application. Verify allowable stress at design temperature and confirm dimensions meet pressure and mechanical requirements.

3. Grade C: When Higher Specified Strength Is Required

Grade C has 70,000 psi (485 MPa) minimum tensile and 40,000 psi (275 MPa) minimum yield strength.

Higher specified strength may benefit designs requiring properties beyond Grades A or B. Do not select Grade C based on yield strength alone.

Assess allowable stress at operating temperature, chemical composition, weldability, availability, and project-specific qualification requirements. For particularly demanding steam conditions, alloy steel may be more appropriate than any ASTM A106 carbon steel grade.

4. Key Factors for Final Grade Selection

Key Factors in Selecting ASTM A106 for Steam Piping

Selecting ASTM A106 seamless carbon steel pipe for power plant steam systems requires careful evaluation of operating conditions, material properties, pipe dimensions, and applicable codes. Although ASTM A106 is designed for high-temperature service, not every grade or size suits every steam line. Correct selection maintains safety, reduces maintenance costs, and extends service life.

Key Selection Factors at a Glance

1. Operating Temperature and Pressure

Temperature and pressure are the first factors. As temperature rises, allowable stress of carbon steel generally decreases—a pipe that meets pressure requirements at room temperature may not suffice under actual operating conditions.

Determine design pressure and design temperature, then verify allowable stress using the applicable piping code (e.g., ASME B31.1 for power piping). Main steam lines may require alloy steel if conditions exceed carbon steel limits.

2. Pipe Grade, Outside Diameter, and Wall Thickness

Dimensions matter equally. OD and wall thickness affect pressure capacity, weight, installation, and cost. Calculate required wall thickness per the design code, including corrosion allowance, manufacturing tolerances, and mechanical loads.

• Thicker than needed → higher procurement and installation costs

• Insufficient thickness → safety and reliability risk

3. Chemical Composition and Mechanical Properties

Chemical composition affects strength, weldability, and other characteristics. Verify compliance with ASTM A106 limits for carbon, manganese, phosphorus, sulfur, and other specified elements.

Mechanical properties (tensile and yield strength) must meet the selected grade. Higher room-temperature strength does not automatically mean better elevated-temperature performance—base selection on properties and allowable stresses relevant to actual service.

4. Manufacturing Quality and Inspection

Specify additional inspections when required by the project—do not assume they are included in every standard supply.

5. Welding and Installation Requirements

Steam piping often requires shop and field welding. Establish welding procedures, inspection requirements, preheating or post-weld heat treatment based on material, wall thickness, service conditions, and code.

Also address pipe supports, thermal expansion, vibration, and alignment during design. Poor installation can cause leakage, excessive stress, or premature failure even when the pipe meets specification.

6. Long-Term Reliability and Total Cost

Consider expected service life, maintenance requirements, inspection accessibility, and operating cycles. Frequent startup/shutdown produces thermal stresses affecting integrity over time.

Compare total cost of ownership—not purchase price alone. A suitable pipe with verified documentation and consistent quality reduces installation problems, unplanned shutdowns, and replacement costs.

ASTM A106 vs. Other Steel Pipe Materials for Power Plants

Selecting the right steel pipe material is essential for safe, reliable power plant operation. Although ASTM A106 seamless carbon steel is widely used in high-temperature industrial piping, it is not suitable for every steam system. Engineers may also consider ASTM A53 carbon steel, ASTM A335 alloy steel, or stainless steel, depending on temperature, pressure, corrosion conditions, and design codes.

Material Comparison Table

1. ASTM A106 vs. ASTM A53

ASTM A106 — Seamless carbon steel for high-temperature service. Often considered for high-temperature process piping and suitable steam lines.

ASTM A53 — Covers steel pipe in different manufacturing types (seamless and welded) for applications defined by its specification. May suit general mechanical, pressure, and other permitted piping applications.

Do not treat them as interchangeable just because both cover carbon steel pipe. Check operating conditions, material properties, product form, and code acceptance.

2. ASTM A106 vs. ASTM A335 Alloy Steel Pipe

ASTM A335 — Seamless ferritic alloy steel for high-temperature service. Includes alloying elements such as chromium and molybdenum, improving high-temperature strength, oxidation resistance, and resistance to certain degradation forms.

Commonly considered for demanding steam systems—main steam, superheater, and reheater piping.

• ASTM A106 — more economical when carbon steel satisfies design requirements

• ASTM A335 — necessary when temperature or allowable stress makes carbon steel unsuitable

Base the decision on code-based allowable stresses, service conditions, fabrication requirements, and lifecycle cost—not material price alone.

3. ASTM A106 vs. Stainless Steel Pipe

Stainless steel may be considered when corrosion resistance is a major concern. Chromium content provides corrosion resistance under suitable conditions; specific grades offer different mechanical and temperature characteristics.

Stainless steel is not automatically best for every steam line. Suitability depends on steam chemistry, contaminants, temperature, pressure, and corrosion mechanisms. It can also have higher material and fabrication costs.

• Clean steam service with manageable corrosion and suitable design conditions → ASTM A106 may be cost-effective

• Greater corrosion resistance needed → suitable stainless steel grade may be preferable

4. How to Choose the Right Material

Our Recommended ASTM A106 Steel Pipe Products and Global Shipping Services

Supplies ASTM A106 seamless carbon steel pipes in Grades A, B, and C for power plant steam lines, auxiliary steam, vents, and drains. Grade B is commonly selected, but suitability must be confirmed against design temperature, pressure, allowable stress, dimensions, and applicable codes. Buyers should specify the grade, edition, OD, wall thickness, length, quantity, end preparation, inspection, and documentation before requesting a quotation. Material test certificates, chemical and mechanical test results, and heat-number traceability should be verified before acceptance. For international orders, pipes can be arranged for container or bulk shipment with protective bundling, end caps, clear marking, and complete export documents. Confirming the grade, size, inspection requirements, destination, and delivery schedule early helps reduce procurement risks and supports reliable steam piping operation.

Conclusion

ASTM A106 seamless carbon steel pipe is a practical choice for suitable power plant steam lines, auxiliary steam piping, vents, and drains, thanks to its standardized grades, mechanical properties, and seamless construction. Grades A, B, and C offer different strength levels, with Grade B commonly used for general high-temperature service. However, higher strength does not automatically ensure better performance; selection must consider design pressure, temperature, allowable stress, wall thickness, welding, inspection, and applicable codes such as ASME B31.1 where relevant. ASTM A106 is not automatically suitable for boiler pressure parts or very high-temperature main steam lines, where alloy steel such as ASTM A335 may be required.

FAQ：

Q1: Can ASTM A106 Grade B be used for power plant steam lines?

ASTM A106 Grade B may be suitable for certain steam lines when its allowable stress, temperature limits, wall thickness, and other requirements meet the applicable design code and project specifications.

Q2: Which ASTM A106 grade is best for high-pressure steam piping?

There is no universally best grade. Selection depends on design pressure, operating temperature, pipe dimensions, allowable stress, and applicable code requirements.

Q3: Is ASTM A106 suitable for boiler tubes?

ASTM A106 is intended for seamless carbon steel pipe for high-temperature service, but it should not automatically be treated as a boiler-tube specification. Boiler pressure parts may require different materials and applicable boiler codes.

Q4: What is the difference between ASTM A106 and ASTM A335 for power plant piping?

ASTM A106 covers seamless carbon steel pipe for high-temperature service, while ASTM A335 covers seamless ferritic alloy-steel pipe intended for high-temperature service. Alloy steel may be required for some elevated-temperature applications where carbon steel is unsuitable.
