Detailed Explanation of 3PE Anti-corrosion Steel Pipe Manufacturing Process: The Complete Flow From Surface Treatment To Cooling Finishing

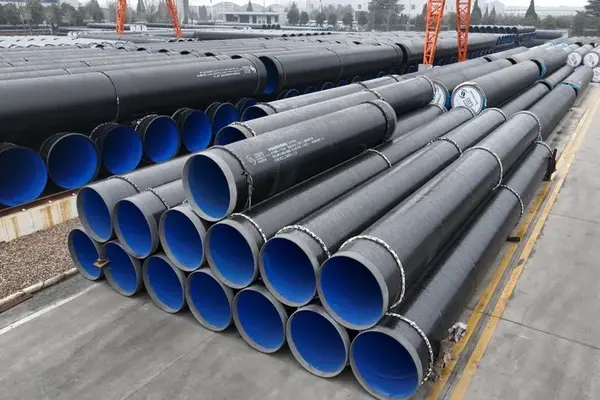

3PE anti-corrosion steel pipe features a three-layer polyethylene coating system: a fusion-bonded epoxy (FBE) primer for corrosion resistance and strong adhesion to steel, a copolymer adhesive interlayer for reliable bonding, and a tough polyethylene (PE) outer layer to protect against moisture, soil, chemicals, and mechanical damage. Manufacturing begins with abrasive blasting to achieve the required surface cleanliness and roughness, directly impacting coating adhesion and performance. After controlled cooling, final inspection covers coating thickness, visual checks, adhesion testing, and holiday detection to ensure defect-free coverage. Widely used in buried oil and gas pipelines, water transmission, heating networks, and industrial infrastructure, 3PE combines epoxy's chemical resistance with PE's physical durability into a coordinated, long-lasting protection system. Proper surface treatment, layer application, and quality control are essential for reliable performance in demanding pipeline environments.

Steel Pipe Inspection and Pre-Treatment Before 3PE Coating

Steel pipe inspection and pre-treatment are essential before applying a 3PE anti-corrosion coating. Final coating quality depends heavily on the steel surface condition and dimensional quality of the pipe. Before entering the coating line, each pipe should be checked and prepared per the applicable standard and project requirements.

Key Steps at a Glance

1. Steel Pipe Inspection

Check the pipe for:

• Outside diameter

• Wall thickness

• Length

• Ovality

• Straightness

• Surface condition

Defects to look for:

• Cracks and dents

• Deep scratches and pits

• Laminations

• Weld irregularities

• Excessive rust

Any defect affecting coating adhesion or pipeline performance should be addressed before coating.

2. Surface Contamination

Steel pipes may contain contaminants from manufacturing, storage, and handling:

These must be removed before abrasive blasting and coating.

3. Preliminary Cleaning

The exact procedure depends on the pipe's initial condition and the 3PE coating system requirements.

4. Abrasive Blast Cleaning

After preliminary cleaning, the pipe undergoes abrasive blast cleaning. This process:

• Removes remaining mill scale, rust, and attached contaminants

• Creates a controlled surface profile

• Provides a better bonding base for the FBE layer

5. Moisture Control

The steel surface should be sufficiently dry before coating. Excessive humidity, condensation, or water can interfere with epoxy adhesion and cause coating defects.

Monitor temperature and environmental conditions during preparation and coating stages.

6. Final Surface Inspection

Before coating, confirm the steel is:

• Clean

• Dry

• Free from visible contamination

• Free from unacceptable surface defects

Surface cleanliness and roughness should meet the specified requirements for the selected 3PE system.

Surface Treatment: Shot Blasting and Steel Surface Preparation

Surface treatment is a critical stage in manufacturing 3PE anti-corrosion steel pipe. After inspection and preliminary cleaning, the pipe must be thoroughly prepared before the three-layer coating is applied. The main goals are to remove rust, mill scale, oil, dust, and other contaminants while creating a suitable surface profile for strong coating adhesion.

Key Objectives at a Glance

Shot Blasting for Steel Surface Cleaning

Shot blasting (abrasive blast cleaning) prepares the external pipe surface. Abrasive particles are propelled at high speed, removing rust, mill scale, dirt, and firmly attached materials.

Process control matters. Abrasive type, particle size, blasting speed, equipment condition, and operating pressure affect the final surface condition.

Removing Oil, Grease, and Other Contaminants

Oil and grease must be removed because abrasive blasting alone may not eliminate all oily contamination. These substances prevent proper FBE bonding.

After cleaning, the pipe should be free from:

• Visible dust

• Moisture

• Loose particles

• Other contaminants

A clean substrate allows uniform contact with the first coating layer and reduces peeling or localized failure risk.

Controlling Surface Roughness

Abrasive blasting creates small irregularities that increase contact area between steel and FBE coating. This mechanical anchoring improves adhesion.

The surface profile should be controlled per:

• Coating manufacturer's requirements

• Applicable project specifications

Consistent preparation produces more uniform coating thickness and performance along the pipe.

Preventing Moisture and Flash Rust

Clean steel can develop flash rust if exposed to moisture for too long. Control:

The prepared pipe should enter coating as soon as practical. If contamination or flash rust occurs, additional surface treatment may be needed.

Final Surface Inspection

Before applying FBE, check the steel surface for:

• Cleanliness

• Roughness

• Visible defects

• Moisture

Correct any unacceptable areas before the pipe moves to the coating line.

First Layer: Fusion-Bonded Epoxy (FBE) Powder Coating

The fusion-bonded epoxy (FBE) coating is the first layer of a 3PE anti-corrosion steel pipe system. It is applied directly to the prepared steel surface and provides the primary corrosion-resistant foundation for the adhesive and polyethylene layers. FBE quality directly influences the adhesion and durability of the finished 3PE coating.

Key Process Steps at a Glance

Preheating the Steel Pipe

After shot blasting, the pipe is heated to the temperature required by the FBE system.

Temperature monitoring is essential throughout the process.

Applying FBE Powder

Once the pipe reaches temperature, epoxy powder is applied using an electrostatic spray system. Charged particles are attracted to the heated steel and form a uniform layer.

When powder contacts the hot pipe, it melts, flows, and forms a continuous coating. The FBE layer helps prevent water, oxygen, salts, and corrosive substances from reaching the steel.

Insufficient thickness or surface defects reduce corrosion protection effectiveness.

Curing and Adhesion

After application, the epoxy cures under controlled conditions to develop required mechanical and chemical properties.

Strong adhesion between epoxy and steel is critical. The prepared surface profile provides a bonding base, while correct heating and curing help form a durable protective layer.

The FBE layer also provides a suitable surface for the next layer — the copolymer adhesive bonds the epoxy to the polyethylene outer layer.

Inspection of the FBE Layer

After application, inspect for:

• Appearance

• Thickness

• Continuity

• Other specified requirements

Additional tests may verify adhesion, curing, or coating integrity. Repair unacceptable defects before the pipe proceeds to the next stage to prevent them from being covered by subsequent layers.

Second Layer: Adhesive Application

The adhesive layer is the second layer in a 3PE anti-corrosion steel pipe coating system. It sits between the fusion-bonded epoxy (FBE) layer and the polyethylene (PE) outer layer. Its main function is to bond these two materials, which have different chemical and physical properties. Without a properly applied adhesive layer, the PE coating may not bond reliably to the FBE layer.

Key Points at a Glance

Function of the Adhesive Layer

FBE provides corrosion resistance and strong adhesion to steel. PE provides a durable external barrier against moisture, soil, chemicals, and mechanical damage. However, these layers cannot bond directly without an intermediate material.

The adhesive layer:

• Chemically and mechanically bonds with the FBE surface

• Provides strong adhesion to the PE layer

• Creates an integrated three-layer structure

Timing of Adhesive Application

After FBE application and reaching the required condition, the adhesive is applied under controlled processing conditions.

The adhesive is applied uniformly around the pipe circumference. Consistent application avoids weak areas, insufficient bonding, or excess accumulation.

Controlling Adhesive Thickness

Adhesive thickness must meet the coating specification.

Production personnel monitor:

• Pipe speed

• Adhesive temperature

• Application equipment

• Material condition

Importance of Bonding Performance

The adhesive layer supports overall 3PE durability. During transportation, installation, and service, the pipe may face impact, bending, temperature changes, moisture, and soil pressure.

Third Layer: Polyethylene Extrusion and External Coating

The polyethylene (PE) outer layer is the third and final layer of a 3PE anti-corrosion steel pipe coating system. After FBE and adhesive layers are applied, polyethylene provides a tough external barrier against moisture, soil, chemicals, impact, and mechanical damage during transportation, installation, and service.

Key Points at a Glance

Preparing the Polyethylene Material

PE material is heated in an extrusion system until molten. The selected grade and processing parameters depend on the coating system, pipe specifications, and project requirements.

Stable material temperature is important for consistent coating. Poorly controlled conditions can cause variations in thickness, appearance, or bonding.

Polyethylene Extrusion and Application

Molten polyethylene is applied continuously around the pipe. Depending on the production line, the PE layer can be formed by:

• Extrusion coating

• Side-wrapping process

The adhesive layer provides the bonding interface between hot PE and the FBE coating beneath it. As PE is applied, it forms a continuous external protective layer.

Controlling Coating Thickness

PE thickness is controlled per the applicable standard and project specification.

Monitor coating parameters continuously. The finished surface should be smooth and free from bubbles, cracks, wrinkles, exposed areas, or other defects.

Bonding With the Underlying Layers

The PE outer layer must remain securely bonded to the adhesive and FBE layers throughout service life. Good bonding reduces delamination risk and maintains 3PE integrity.

Transition to Cooling and Inspection

After PE application, the coated pipe moves to the cooling stage. Controlled cooling allows the PE layer to solidify and stabilize before final inspection.

The external surface should remain continuous and properly formed. Subsequent inspection evaluates:

• Coating thickness

• Appearance

• Continuity

• Other project requirements

Cooling, Inspection, and Finishing of 3PE Coated Steel Pipe

Key Steps at a Glance

Controlled Cooling of the Coated Pipe

Immediately after polyethylene application, the coating is hot and soft. The pipe must be cooled under controlled conditions so the PE layer solidifies and achieves the required physical properties.

Ensure the pipe reaches a suitable handling temperature before subsequent operations.

Visual Inspection

After cooling, inspect the external coating for:

• Cracks

• Exposed steel

• Blisters and wrinkles

• Peeling

• Excessive roughness

• Other irregularities

Pay special attention to pipe ends and transition areas, which may require additional finishing or coating protection. Repair visible defects per the applicable procedure.

Coating Thickness and Continuity Testing

Take thickness measurements at representative locations and around the pipe circumference. Follow the applicable coating specification for test voltage and procedure. Not every project requires the same inspection program — base testing on the approved technical specification.

Repair and Finishing

If defects are found, qualified personnel should repair them using an approved procedure:

Pipe ends may also be finished per project requirements to facilitate welding, field joint coating, and installation.

Final Quality Control and Marking

Before shipment, the finished pipe undergoes final quality verification. Records may include:

• Pipe identification

• Coating information

• Inspection results

• Repair records where applicable

Conclusion:

3PE steel pipe quality depends on strict control at every manufacturing stage. The process begins with pipe inspection and surface cleaning to remove oil, rust, and contaminants, followed by shot blasting to achieve the required cleanliness and surface profile for reliable FBE adhesion. The fusion-bonded epoxy (FBE) layer provides the primary corrosion-resistant foundation, while the adhesive interlayer bonds FBE to the tough polyethylene (PE) outer layer, which shields against moisture, soil, chemicals, and mechanical damage. Controlled cooling and final inspection—including thickness measurement, visual checks, and holiday detection—ensure defect-free coverage before delivery. Poor surface preparation, inconsistent adhesive application, or inadequate PE thickness can compromise the entire system. For buried oil, gas, water, and industrial pipelines exposed to harsh environments, a properly manufactured 3PE coating delivers durable external corrosion protection. Consistent process control from pre-treatment through final testing is essential for long-term pipeline reliability.

FAQ:

1. What are the three layers of 3PE coating?

3PE consists of a fusion-bonded epoxy (FBE) layer, a copolymer adhesive layer, and an outer polyethylene (PE) layer.

2. Why is surface treatment important before 3PE coating?

Proper surface treatment removes rust, mill scale, and contaminants while creating a suitable profile for strong FBE adhesion.

3. What is the function of FBE in 3PE coating?

FBE provides the primary corrosion-resistant layer and bonds directly to the prepared steel surface.

4. Why is an adhesive layer used in 3PE?

The adhesive layer bonds the FBE coating to the polyethylene outer layer, helping maintain the integrity of the three-layer system.

5. What is the purpose of the polyethylene outer layer?

The PE layer protects the underlying coating from moisture, chemicals, soil, impact, and mechanical damage.
