Views: 0 Author: Site Editor Publish Time: 2026-09-18 Origin: Site
Fusion Bonded Epoxy (FBE) coating is a premier solution for protecting steel pipes against corrosion in oil and gas, water transmission, and infrastructure projects. Unlike conventional liquid paints, FBE uses a dry epoxy powder electrostatically applied to a preheated steel surface, forming a durable, chemically bonded protective layer.
The coating process involves rigorous surface preparation, including abrasive blasting to Sa 2.5 grade, followed by precise temperature control during application. This ensures optimal melting, flow, and curing, resulting in a continuous barrier with superior adhesion, chemical resistance, and cathodic disbondment protection.
What Is FBE Coating for Steel Pipes?
Fusion Bonded Epoxy (FBE) coating is a protective coating used to reduce external corrosion on steel pipes. It creates a barrier between steel and the environment—widely used in pipelines exposed to moisture, soil, chemicals, and salts.
Quick Overview
Aspect | Details |
|---|---|
Type | Thermoset epoxy powder coating |
Function | Protective barrier against corrosion |
Form | Dry epoxy powder |
Application | Electrostatic spray onto heated steel |
Key feature | Fusion + curing forms a continuous coating |
Typical use | Underground, water, oil & gas, industrial pipelines |
How FBE Coating Works
Step | Action |
|---|---|
1. Surface Preparation | Remove oil, grease, rust, mill scale |
2. Abrasive Blasting | Create a clean surface with a suitable profile |
3. Preheating | Heat pipe for powder melting |
4. Electrostatic Spray | Powder applied to heated surface |
5. Melting & Flow | Powder melts and spreads over steel |
6. Curing | Cross-linked polymer structure forms |
Main Characteristics
Characteristic | Details |
|---|---|
Strong adhesion | With proper surface preparation |
Corrosion resistance | Barrier against moisture and corrosive substances |
Uniform coverage | Controlled powder distribution |
Mechanical resistance | Useful for pipeline applications |
Limitation | Can be damaged by severe impact or improper handling |
Key Selection Considerations
Factor | Why It Matters |
|---|---|
Temperature | Coating performance |
Chemical exposure | Resistance requirements |
Soil conditions | Corrosion environment |
Immersion requirements | Protection needs |
Cathodic protection | Compatibility |
Installation methods | Coating damage risk |
Complete FBE Steel Pipe Coating Process
FBE coating quality depends on controlling every stage. From cleaning to inspection, each step affects adhesion, thickness, corrosion resistance, and long-term performance.
Process Steps at a Glance
Step | Action | Key Point |
|---|---|---|
1. Pre-Coating Inspection | Check surface defects, oil, grease, rust | Remove contaminants before blasting |
2. Shot Blasting | Remove mill scale, rust, oxides | Creates a bonding profile |
3. Pipe Preheating | Heat to required temperature | Affects melt, flow, curing, adhesion |
4. Electrostatic Spraying | Charged powder applied to grounded pipe | Controls thickness and coverage |
5. Melting & Curing | Powder melts, flows, cross-links | Essential for mechanical and corrosion properties |
6. Final Inspection | Visual, thickness, holiday, adhesion | Repair defects before shipment |
Key Details
1. Pre-Coating Inspection and Pipe Cleaning
Check |
|---|
Surface defects |
Oil, grease, dirt |
Moisture |
Rust and contaminants |
Dry surface condition |
2. Shot Blasting and Surface Preparation
Aspect | Details |
|---|---|
Purpose | Remove mill scale, rust, oxides |
Result | Controlled surface profile for bonding |
Check | Cleanliness and roughness per specification |
Risk if poor | Weak adhesion, premature failure |
3. Pipe Preheating
Aspect | Details |
|---|---|
Purpose | Melt and flow epoxy powder |
Control | Consistent around pipe |
Too much/too little | Affects thickness, flow, curing, adhesion |
Temperature | Per powder formulation and manufacturer |
4. Electrostatic Spraying of FBE Powder
Factor | Impact |
|---|---|
Pipe rotation | Coating uniformity |
Spray distance | Coverage |
Powder flow | Thickness |
Equipment settings | Consistency |
5. Melting, Flowing, and Curing
Aspect | Details |
|---|---|
Process | Powder melts, flows, forms a continuous layer |
Curing | Cross-linked protective film |
Importance | Required mechanical and corrosion properties |
Cooling | Controlled conditions before inspection |
6. Final Inspection and Testing
Check |
|---|
Visual inspection |
Coating thickness measurement |
Holiday or pinhole detection |
Adhesion testing |
Defect repair per approved procedure |
Key Parameters Affecting FBE Coating Quality
FBE coating quality depends on controlling surface preparation, temperature, powder properties, application settings, thickness, and curing. If any parameter is outside the range, the coating may have poor adhesion, uneven thickness, pinholes, or reduced corrosion resistance.
Key Parameters at a Glance
Parameter | What to Control | Key Point |
|---|---|---|
Surface Cleanliness | Remove oil, grease, rust, moisture, dust | Proper profile for bonding |
Preheating Temperature | Per powder manufacturer requirements | Consistent around pipe surface |
Powder Quality & Storage | Technical spec; storage conditions; shelf life | Consistent application and curing |
Electrostatic Parameters | Flow rate, spray distance, voltage, rotation | Uniform coating; avoid thin/thick areas |
Coating Thickness | Per project or coating standard | Measure at multiple locations |
Curing Conditions | Pipe temperature, formulation, required conditions | Develop final properties |
Handling & Cooling | Suitable equipment and procedures | Prevent scratches and impact damage |
Key Details
1. Surface Cleanliness
Check |
|---|
Oil, grease, rust, moisture |
Mill scale, dust, contaminants |
Abrasive blasting cleanliness level |
Surface profile per coating system |
Protection from contamination after blasting |
2. Steel Pipe Preheating Temperature
Condition | Effect |
|---|---|
Too low | Powder may not flow or fuse |
Too high | Affects appearance and performance |
Control | Continuous and consistent around the pipe |
3. FBE Powder Quality and Storage
Factor | Impact |
|---|---|
Technical specification | Coating performance |
Storage conditions | Powder stability |
Shelf life | Application characteristics |
Contamination | Curing problems |
4. Electrostatic Application Parameters
Factor | Impact |
|---|---|
Powder flow rate | Thickness |
Spray distance | Coverage |
Voltage | Particle attraction |
Pipe rotation | Uniformity |
Equipment condition | Consistency |
5. Coating Thickness and Uniformity
Condition | Effect |
|---|---|
Too thin | Insufficient protection |
Too thick | Affects curing; higher material consumption |
Measurement | At appropriate locations around pipe |
6. Curing Conditions
Aspect | Details |
|---|---|
Depends on | Pipe temperature, formulation, required conditions |
Insufficient curing | Reduced performance |
Uncontrolled heating | Affects coating system |
Action | Monitor and record production parameters |
7. Handling and Cooling
Aspect | Details |
|---|---|
Risk | Damage if moved/stacked before cooling |
Prevention | Suitable handling equipment and procedures |
Avoid | Scratches, impact damage, coating separation |
FBE Coating Inspection and Quality Control
FBE coating inspection confirms that coated pipes meet project specifications and provide reliable corrosion protection. Quality control covers the entire process—from surface preparation to final inspection.
Inspection Methods at a Glance
Method | Purpose | Key Point |
|---|---|---|
Surface Preparation Inspection | Verify cleanliness and profile | Recontamination risk after blasting |
Coating Thickness Measurement | Verify specified thickness | Calibrated equipment; multiple locations |
Visual Inspection | Identify surface defects | Pinholes, bubbles, cracks, bare spots |
Holiday/Pinhole Detection | Find discontinuities exposing steel | Electrical detector; per thickness and spec |
Adhesion Testing | Evaluate bond strength | Reveals prep, application, or curing issues |
Curing & Material QC | Verify powder and process conditions | Batch traceability and production records |
Repair & Final Release | Correct defects; confirm compliance | Reinspect repaired areas before shipment |
Key Details
1. Surface Preparation Inspection
Check |
|---|
Cleanliness |
Surface profile |
Dust and moisture |
Visible contamination |
Recontamination after blasting |
2. Coating Thickness Measurement
Aspect | Details |
|---|---|
Too thin | Reduced corrosion protection |
Too thick/uneven | Application control problems |
Measurement | Representative locations around pipe |
Equipment | Properly calibrated |
Records | Maintained for traceability |
3. Visual Inspection
Check For |
|---|
Pinholes |
Bubbles |
Cracks |
Wrinkles |
Bare spots |
Inclusions |
Uneven coverage |
Impact damage |
4. Holiday and Pinhole Detection
Aspect | Details |
|---|---|
Purpose | Identify discontinuities exposing steel |
Method | Electrical detector |
Detects | Pinholes, voids, small breaks |
Voltage | Per coating thickness, specification, equipment |
Action | Mark and repair per approved procedure |
5. Adhesion Testing
Aspect | Details |
|---|---|
Purpose | Evaluate coating-to-steel bond strength |
Method | Per project specification; representative pipes or panels |
Poor adhesion indicates | Inadequate prep, contamination, unsuitable conditions, improper curing |
Action | Document and compare with acceptance criteria |
6. Curing and Material Quality Control
Verify |
|---|
FBE powder batch information |
Storage conditions |
Shelf life |
Application parameters |
Pipe temperature |
Curing conditions |
Production records for traceability |
7. Repair and Final Release
Step | Action |
|---|---|
Repair | Per approved procedure |
Reinspect | Confirm repaired areas meet criteria |
Final review | Inspection records, test results, material docs, traceability |
Release | Before shipment |
Our Recommended FBE-Coated Steel Pipe Products and Global Shipping Services

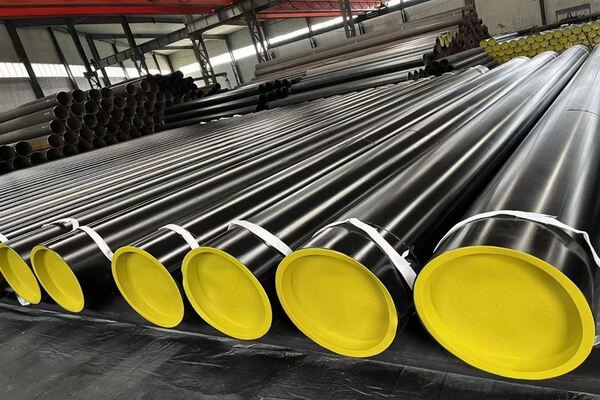

We supply certified FBE-coated steel pipes tailored for oil and gas, water transmission, and infrastructure projects. Our base pipes are available in seamless, ERW, LSAW, and SSAW configurations, customized to your specific diameter, wall thickness, and steel grade requirements.
We execute a rigorous coating process—from abrasive blasting to electrostatic spraying and curing—ensuring superior adhesion and corrosion resistance. Every batch undergoes strict quality control, including holiday detection and adhesion testing, backed by full Mill Test Certificates (MTCs) for complete traceability.
Understanding the logistics of global export, we provide end-to-end shipping solutions with specialized packaging to prevent coating abrasion during transit. Contact us today with your technical specifications and destination for a competitive quotation.
Applications of FBE-Coated Steel Pipes
FBE-coated steel pipes are widely used where pipelines need external corrosion protection and durable surface performance. The coating forms a continuous protective layer against moisture, soil, salts, and other corrosive factors.
Applications at a Glance
Application | Typical Use | Key Considerations |
|---|---|---|
Water Transmission | Raw/treated water pipelines, municipal networks | Moisture, corrosive soil, long distances |
Oil & Gas Pipelines | Underground transmission lines | Moisture, salts, chemicals, soil conditions |
Industrial Pipeline Systems | Water, chemicals, process fluids | Temperature, fluid characteristics, environment |
Underground & Buried Pipelines | Long-term soil and groundwater contact | Surface prep, continuity, thickness, handling |
Infrastructure & Utility | Municipal water, utility systems, buried networks | Structural properties + corrosion protection |
Key Details
1. Water Transmission and Distribution
Aspect | Details |
|---|---|
Use | Raw water or treated water over long distances |
Challenge | Moisture and corrosive soil |
Solution | FBE isolates steel from the environment |
Applications | Water supply, municipal infrastructure, pumping, treatment |
2. Oil and Gas Pipelines
Aspect | Details |
|---|---|
Use | Underground pipeline construction |
Challenge | Moisture, salts, chemicals, varying soil |
Solution | Protective barrier between steel and environment |
Note | May include cathodic protection as an additional measure |
3. Industrial Pipeline Systems
Aspect | Details |
|---|---|
Use | Water, chemicals, process fluids |
Selection basis | Operating temperature, fluid characteristics, environment |
Caution | Not a universal solution for every chemical or temperature condition |
4. Underground and Buried Pipelines
Aspect | Details |
|---|---|
Use | Long-term soil and groundwater contact |
Solution | FBE barrier between steel and soil |
Essential | Surface prep, coating continuity, thickness, careful handling |
5. Infrastructure and Utility Projects
Aspect | Details |
|---|---|
Use | Municipal water, utility systems, buried networks |
Advantage | Combines steel structural properties with engineered corrosion protection |
Selection Factors
Factor | Why It Matters |
|---|---|
Pipe specification | Product compliance |
Environmental exposure | Coating requirements |
Operating conditions | Temperature, fluid, pressure |
Coating requirements | Thickness, adhesion, continuity |
Installation method | Coating damage risk |
Applicable standards | Mandatory compliance |
Conclusion
Achieving reliable corrosion protection with FBE-coated steel pipes depends on rigorous process control and quality assurance. The coating process begins with abrasive blasting to ensure a clean, profiled surface for optimal adhesion, followed by precise preheating and electrostatic powder spraying. Proper curing creates a continuous, durable barrier essential for water transmission, oil and gas, and infrastructure pipelines.
Key selection factors include base pipe specifications, coating thickness, environmental conditions, and strict inspection standards like holiday detection and adhesion testing. Even high-quality coatings require careful handling and specialized packaging to prevent damage during transportation and installation.
FAQ：
1. What are the main steps in the FBE steel pipe coating process?
The main steps include pipe cleaning, shot blasting, preheating, electrostatic spraying of FBE powder, melting and curing, cooling, and final inspection.
2. Why is shot blasting important before FBE coating?
Shot blasting removes rust, mill scale, and contaminants while creating a suitable surface profile that improves FBE coating adhesion.
3. How is FBE powder applied to steel pipes?
FBE powder is electrostatically charged and sprayed onto a properly heated steel pipe, where the powder melts, flows, and cures into a continuous protective coating.
4. How is the quality of FBE coating inspected?
Inspection can include visual examination, coating thickness measurement, holiday detection, adhesion testing, and other tests specified by the applicable standard or project requirements.
