Views: 0 Author: Site Editor Publish Time: 2026-08-25 Origin: Site
Stainless steel ball valves are essential for controlling fluid and gas flow in water, chemical, and industrial piping systems. Utilizing a simple quarter-turn mechanism, these valves offer rapid operation, compact construction, and excellent corrosion resistance. Common grades include 304 for general use and 316 for superior resistance to chlorides and harsh environments.
However, selecting the right valve requires more than just checking the pipe size. Buyers must carefully evaluate critical factors such as pressure ratings, operating temperatures, fluid types, connection methods, and seat materials to ensure compatibility and prevent premature failure.
Whether operated manually or via pneumatic and electric actuators, proper specification is key to achieving reliable performance and extending service life.

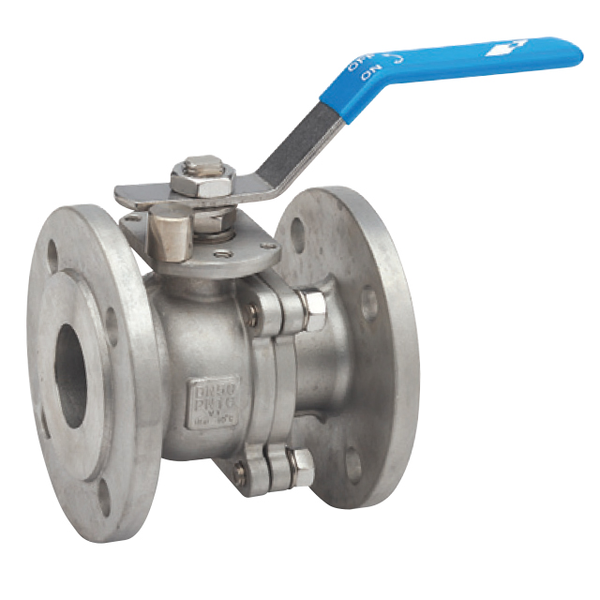

What Is a Stainless Steel Ball Valve?
A stainless steel ball valve is a quarter-turn valve used to start, stop, or control the flow of liquids and gases in a piping system. It uses a spherical ball with a central opening to regulate the passage of the medium. When the opening aligns with the pipeline, the valve is open. When the ball rotates 90 degrees, the solid side blocks the passage and stops the flow.
Main Components
Component | Function |
|---|---|
Valve body | Contains internal components; connects valve to piping system |
Ball | Main shut-off component; opening allows or blocks flow |
Stem | Connects ball to handle/actuator; transfers turning force |
Seats | Hold ball in position; create tight seal when closed |
Handle or actuator | Manual or automatic operation |
How It Works
Position | Ball Rotation | Flow Status |
|---|---|---|
Handle aligned with pipeline | Ball opening aligns with pipe | Open |
Handle perpendicular to pipeline | Ball rotates 90° | Closed |
Common Stainless Steel Grades
Grade | Key Properties | Best For |
|---|---|---|
304 | Good corrosion resistance | Water, plumbing, general industrial applications |
316 | Better chloride resistance (molybdenum added) | Corrosive environments, chemical exposure |
Port Designs
Design | Description | Best For |
|---|---|---|
Full-port | Flow passage close to pipe ID | Minimizes flow restriction |
Reduced-port | Smaller passage | Compact, economical where full flow is not required |
Key Features
Feature | Benefit |
|---|---|
Quarter-turn operation | Simple and quick open/close |
Compact design | Space-saving |
Reliable shut-off | Tight sealing |
Corrosion resistance | Suitable for demanding applications |
Important Note
Aspect | Consideration |
|---|---|
Primary service | On/off service |
Throttling | Standard ball valves are not designed for continuous throttling—may cause premature wear |
Types and Key Features of Stainless Steel Ball Valves
Stainless steel ball valves are available in different designs to meet the requirements of various piping systems. While their basic operating principle is the same, differences in construction, port design, connection type, and operation method can affect installation, maintenance, and performance.
Types of Stainless Steel Ball Valves
Type | Description | Best For |
|---|---|---|
Two-Piece Valve | Two main body sections; simple construction | General-purpose piping, compact spaces, cost-sensitive applications |
Three-Piece Valve | Three body sections; center section removable without disconnecting ends | Regular inspection, cleaning, or maintenance |
Full-Port Valve | Flow passage close to pipe ID | Minimizes flow restriction and pressure loss |
Reduced-Port Valve | Smaller internal passage | Compact, economical where slight flow restriction is acceptable |
Connection Types
Connection | Description | Best For |
|---|---|---|
Threaded | Screwed connection; no welding required | Smaller piping systems; thread standard must match pipe/fitting |
Flanged | Bolts and gaskets | Larger valves; systems requiring frequent maintenance and easy removal |
Operation Methods
Type | Operation | Best For |
|---|---|---|
Manual | Hand-operated handle | Applications with infrequent or local operation |
Automated | Pneumatic or electric actuator | Remote control; integration into industrial control systems |
Key Technical Features to Check
Feature | Why It Matters |
|---|---|
Stainless steel grade | 304 or 316—affects corrosion resistance |
Pressure rating | Must meet system's maximum operating pressure |
Temperature range | Depends on valve materials and sealing components |
Seat and seal materials | Must be compatible with the operating medium |
Valve size | Must match piping system and flow requirements |
Port design | Full-port or reduced-port per flow needs |
Connection standard | Must be compatible with pipeline and fittings |
Selection Summary
Application Need | Recommended Valve Type |
|---|---|
General-purpose, cost-effective | Two-piece, reduced-port |
Regular maintenance required | Three-piece |
Minimize flow restriction | Full-port |
Compact/space-limited | Reduced-port |
Frequent disconnection | Flanged |
Remote/automated control | Actuated (pneumatic or electric) |
Key Takeaway
There is no single stainless steel ball valve suitable for every application. The best choice depends on:
Fluid – chemical compatibility
Pressure and temperature – rating limits
Flow requirements – full or reduced port
Connection method – threaded or flanged
Maintenance conditions – two-piece or three-piece
Advantages and Applications of Stainless Steel Ball Valves
Stainless steel ball valves are widely used in fluid-control systems because they combine a simple operating mechanism with good corrosion resistance and mechanical strength. Their quarter-turn design allows users to open or close the valve quickly, while stainless steel construction makes them suitable for many demanding environments.
Key Advantages
Advantage | Explanation | Benefit |
|---|---|---|
Good Corrosion Resistance | Stainless steel resists rust and corrosion in many environments; 316 offers better chloride resistance | Suitable for water, moisture, and certain chemicals |
Durable Construction | Strong mechanical strength and durability | Reliable service over long periods when correctly selected and operated |
Quick Operation | 90° quarter-turn operation | Fast open/close compared with multi-turn valves |
Reliable Shut-Off | Ball and seat create tight sealing interface | Dependable shut-off performance with correct seat material and installation |
Low Maintenance | Simple internal structure; few moving parts | Reduced maintenance; three-piece designs simplify inspection and servicing |
Compact Design | Effective shut-off in a small package | Useful where installation space is limited |
Common Applications
Application | Typical Use | Key Considerations |
|---|---|---|
Water & Plumbing | Residential, commercial, industrial water lines | Threaded models convenient for smaller piping |
Chemical Processing | Chemical fluid control | Ensure material, seat, and seal are chemically compatible; 316 for higher corrosion risks |
Food & Beverage | Food processing equipment | Corrosion resistance and cleanable surface; meet hygiene and regulatory requirements |
Pharmaceutical | Pharmaceutical piping and equipment | Select valves specifically designed for hygienic/sanitary service |
Oil, Gas & Industrial | Utility and process systems | Check pressure, temperature, material compatibility, and applicable standards |
Selection Summary
Application Need | Recommended Grade/Type |
|---|---|
General water/plumbing | 304 stainless steel |
Corrosive/chloride environments | 316 stainless steel |
Hygienic/sanitary service | Sanitary-design stainless steel valve |
Space-limited installation | Compact ball valve design |
Regular maintenance access | Three-piece design |
Key Takeaway
Stainless steel ball valves offer:
Corrosion resistance – reliable in many environments
Durability – strong mechanical strength
Quick operation – 90° quarter-turn
Reliable shut-off – tight sealing
Low maintenance – simple design
Compact size – space-efficient
These advantages depend on proper selection. Evaluate valve grade, pressure rating, temperature range, seal material, connection type, and intended application before installation.
How to Select the Right Stainless Steel Ball Valve
Selecting the right stainless steel ball valve is important for reliable flow control, safe operation, and long service life. Different piping systems have different requirements, so a valve should be selected based on actual working conditions—not size alone.
Selection Factors
Factor | Key Considerations | Why It Matters |
|---|---|---|
Valve Size | Match pipe diameter and required flow rate | Too small restricts flow; too large increases cost without benefit |
Stainless Steel Grade | 304 (general) vs. 316 (better chloride resistance) | Determined by fluid and surrounding environment |
Pressure & Temperature Ratings | Maximum operating pressure and temperature; consider fluctuations | Seats and seals perform differently at varying temperatures |
Fluid / Gas | Water, air, oil, chemicals—check compatibility of body, seats, and seals | Medium directly affects material selection |
Connection Type | Threaded (smaller systems) vs. flanged (larger, easier maintenance) | Must match existing pipe and fittings |
Port Design | Full-port (minimizes flow restriction) vs. reduced-port (compact, economical) | Based on flow rate, pressure loss, and system design |
Operation Method | Manual (basic on/off) vs. automated (pneumatic/electric actuator) | Frequent/remote/automatic operation requires actuation |
Standards & Quality | Product standards, pressure ratings, testing, certifications | Ensures compliance and quality; request technical specs and documentation |
Quick Selection Guide
Application Need | Recommended Option |
|---|---|
General water/plumbing | 304 stainless steel, threaded, manual |
Corrosive/chloride environment | 316 stainless steel |
Minimize flow restriction | Full-port design |
Compact/space-limited | Reduced-port design |
Frequent remote operation | Automated (pneumatic or electric) |
Easy maintenance removal | Flanged connection |
Regular maintenance access | Three-piece design |
Pre-Order Checklist
Item | Check |
|---|---|
Pipe size | Match valve size |
Stainless steel grade | 304 or 316 per environment |
Pressure rating | Meets maximum system pressure |
Temperature range | Sufficient for operating conditions |
Fluid compatibility | Body, seats, seals compatible |
Connection type | Threaded or flanged—match pipe |
Port design | Full or reduced |
Operation | Manual or actuated |
Standards | Certifications and documentation |
Key Takeaway
The right stainless steel ball valve should match:
Pipe size – correct flow capacity
Stainless steel grade – 304 or 316 per environment
Fluid, pressure, temperature – compatibility and ratings
Connection type – threaded or flanged
Port design – full or reduced
Operating method – manual or automated

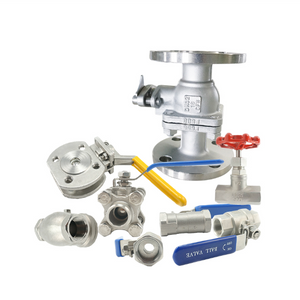

Our Stainless Steel Ball Valve Products, Customization & Shipping
We supply premium stainless steel ball valves engineered for reliable flow control in water, chemical, and industrial piping systems. Our comprehensive product range includes 304 and 316 stainless steel options, available in two-piece or three-piece designs, full-port or reduced-port configurations, and threaded or flanged connections.
Quality and customization are at the core of our services. We manufacture our valves to exact specifications and offer extensive customization options, including manual, pneumatic, or electric actuation, tailored to your specific pressure, temperature, and medium requirements. We also conduct rigorous quality inspections and provide comprehensive documentation to guarantee compliance with your project standards.
Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure packaging and flexible transportation options—including container shipping—to prevent transit damage and ensure your valves arrive safely and on time.
From technical consultation to final delivery, we provide a complete, reliable supply chain. To receive a customized product and shipping quotation, please contact us today with your required valve size, stainless steel grade, connection type, operating conditions, and delivery destination. Our expert team will recommend the optimal stainless steel ball valve configuration tailored to your project's exact requirements.
Installation and Maintenance Tips
Proper installation and regular maintenance are important for keeping stainless steel ball valves operating reliably. Although 304/316 stainless steel ball valves have a relatively simple design, incorrect installation, excessive force, or unsuitable operating conditions can cause leakage, thread damage, or premature wear. Following basic procedures helps extend valve service life and reduce maintenance costs.
Installation Checklist
Step | Key Actions | Why It Matters |
|---|---|---|
Check Valve Before Installation | Verify model, size, pressure rating, connection type, material; inspect for damage | Ensures valve is suitable for intended fluid, pressure, and temperature |
Clean the Pipeline | Remove dirt, metal particles, welding slag; confirm thread compatibility | Prevents damage to valve seat or ball |
Install Correctly | Follow manufacturer instructions; use thread sealant if required; avoid excessive tightening | Prevents thread damage and ensures reliable sealing |
Avoid Using Valve as Support | Pipe must be properly supported—do not rely on valve body | Prevents additional stress and leakage |
Check for Leakage | Gradually introduce medium; inspect body, connections, sealing areas | Identifies problems before system operation |
Operation Guidelines
Guideline | Why It Matters |
|---|---|
Quarter-turn operation—smooth, without excessive force | Prevents damage to valve components |
Standard ball valves = fully open or fully closed | Continuous throttling increases wear on ball and seats |
Maintenance Checklist
Item | What to Check |
|---|---|
Leakage | Around valve body and connections |
Handle/actuator | Damage or wear |
Corrosion | Surface damage |
Operating resistance | Unusual stiffness |
Seals and seats | Wear |
Bolts/connections | Loose fasteners |
Maintenance Frequency
Environment | Recommended Frequency |
|---|---|
Standard conditions | Regular scheduled inspections |
Demanding / corrosive | More frequent inspections |
Conclusion
Stainless steel ball valves are essential for reliable fluid control in industrial and commercial piping. However, selecting the right valve requires evaluating your specific operating conditions rather than just the pipe size.
Key considerations include choosing the correct stainless steel grade (304 for general use or 316 for corrosive environments), pressure rating, temperature range, and connection type. Valve construction also matters: two-piece designs are common for general use, while three-piece valves offer easier maintenance. Additionally, selecting between full-port and reduced-port designs, as well as manual or automated actuation, ensures optimal flow control.
Proper installation and maintenance are equally critical to preventing seal damage and ensuring long-term reliability. Partnering with an experienced supplier simplifies this process, providing expert recommendations, quality documentation, and secure shipping.
FAQ：
1. What is a stainless steel ball valve used for?
It is mainly used to start or stop the flow of liquids or gases in piping systems. Its quarter-turn design allows quick and reliable shut-off.
2. Is 304 or 316 stainless steel better for ball valves?
Neither is always better. 304 is suitable for many general applications, while 316 offers better resistance to chlorides and certain corrosive environments.
3. How do I choose the right stainless steel ball valve?
Consider the valve size, stainless steel grade, pressure, temperature, fluid type, connection, seal material, and operating method.
4. What is the difference between a two-piece and three-piece ball valve?
A two-piece valve has a simpler construction, while a three-piece valve can generally be disassembled more easily for maintenance or cleaning.
5. Can stainless steel ball valves be used for high-pressure applications?
Yes, some are designed for high-pressure service. Always confirm that the valve's pressure rating meets the system's maximum operating pressure.
