What Are The Applications of Drill Pipe in Deepwater And Ultra-deepwater Drilling?

Drill pipe is a critical component of the drill string in deepwater and ultra-deepwater drilling, connecting surface equipment to the bottom-hole assembly and drill bit. It simultaneously transmits rotational torque and drilling force to the bit, provides an internal flow path for drilling fluid to cool the bit and carry cuttings to the surface, and supports the entire drill string under extreme mechanical loads. In deepwater environments, drill pipe must withstand tension, compression, torsion, bending, vibration, cyclic fatigue, and corrosive conditions, including sour service with H₂S. Proper selection based on steel grade, tensile strength, torsional capacity, fatigue resistance, connection design, dimensions, and corrosion protection is essential for reliable drilling performance across long and demanding well sections.

What Is Drill Pipe for Deepwater and Ultra-Deepwater Wells?

Drill pipe is a tubular component that connects surface drilling equipment with the bottom-hole assembly (BHA) and drill bit. In deepwater and ultra-deepwater wells, the drill string can extend through several kilometers of water and formation, creating demanding requirements for strength, fatigue resistance, connection integrity, and dimensional accuracy.

Drill Pipe at a Glance

Basic Structure

A typical drill pipe consists of a pipe body and tool joints at both ends.

• Pipe body: Main tubular structure

• Tool joints: Larger outside diameter and stronger connection areas

Threaded tool-joint connections allow multiple pipes to be assembled into a continuous drill string. The connection must withstand repeated make-up and break-out while transmitting torque and maintaining a reliable pressure seal.

Main Functions in Deepwater Wells

Mud travels through the internal bore to the BHA and bit, then returns to the surface through the annular space.

In deep and extended wells, the string faces tensile loads, torsion, bending, vibration, and fatigue. Proper pipe selection helps the system withstand these conditions.

Material Grades and Dimensions

Deepwater drill pipe comes in different steel grades, sizes, wall thicknesses, and tool-joint configurations.

Strength alone is not enough. Fatigue, connections, corrosion, and drilling dynamics must also be considered.

Standards and Quality Control

Drill pipe for offshore applications is normally manufactured and inspected per applicable industry standards and project requirements.

Quality control may include:

• Dimensional inspection

• Mechanical testing

• Thread inspection

• Non-destructive testing

• Material traceability

For corrosive or sour-service environments, additional material and inspection requirements may apply. Evaluate H₂S exposure, drilling-fluid chemistry, and well conditions during material selection.

Summary

Main Applications of Drill Pipe in Deepwater and Ultra-Deepwater Drilling

Drill pipe performs several essential functions in deepwater and ultra-deepwater drilling. As water depth and well depth increase, the drill string becomes longer and faces greater tensile, torsional, bending, and fatigue loads. Properly selected drill pipe provides the mechanical and hydraulic connection between the surface drilling system, bottom-hole assembly (BHA), and drill bit.

Main Applications at a Glance

1. Drilling Long and Deep Well Sections

Drill pipe forms a continuous drilling string through long well sections. Deepwater wells may need substantial pipe length to reach the target formation below the seabed.

The upper drill string must support the weight of the pipe below it, making tensile strength critical. Select pipe grade, wall thickness, tool-joint dimensions, and connection strength based on expected loads.

2. Transmitting Torque and Weight to the Drill Bit

Drill pipe transfers rotational torque from the top drive through the string to the BHA and bit. It also helps deliver controlled weight on bit during drilling.

In deep and directional wells, torque and drag can increase significantly. Excessive torque or vibration can accelerate wear and fatigue damage. Proper drill-string design helps maintain stable energy transmission to the bit.

3. Circulating Drilling Fluid

The internal bore of drill pipe provides a primary flow path for drilling fluid.

This circulation removes cuttings, cools and lubricates the bit, and supports wellbore pressure control. Internal diameter and connection design must provide suitable hydraulic performance.

4. Directional and Extended-Reach Drilling

Deepwater wells often have deviated or extended sections to reach target formations from offshore locations. Drill pipe in these wells faces repeated bending, contact, torque, and fatigue.

5. High-Pressure and High-Temperature Applications

Some deepwater wells encounter high-pressure, high-temperature (HPHT) conditions at greater depths. Drill pipe and connections must maintain adequate mechanical and sealing performance.

Material selection should consider:

• Tensile and torsional requirements

• Temperature

• Drilling-fluid chemistry

• Potential corrosive contaminants

How to Select Drill Pipe for Deepwater and Ultra-Deepwater Projects

Selecting drill pipe for deepwater and ultra-deepwater drilling requires more than choosing a diameter and steel grade. Long drill strings face high tensile loads, torque, bending, vibration, fatigue, and corrosion. Match the pipe to the well design, drilling conditions, bottom-hole assembly, and applicable industry requirements.

Selection Steps at a Glance

1. Consider Water Depth and Total Well Depth

Water depth and total measured depth affect drill string length and weight. As the string gets longer, upper pipe sections carry greater tensile loads. Calculate expected axial loads and select a grade and configuration with adequate capacity.

2. Evaluate Tensile and Torsional Loads

Drill pipe must withstand axial tension and rotational torque. Deep and extended-reach wells can generate significant torque and drag, especially in highly deviated sections.

Select pipe with sufficient tensile and torsional strength for planned drilling parameters, with appropriate design margins.

3. Select the Appropriate Pipe Size and Wall Thickness

The largest or thickest pipe is not automatically best. Weight and hydraulic performance must also be considered.

4. Choose the Correct Steel Grade

High-strength grades may be needed for deep or extended wells with high tensile and torsional loads. However, grade selection involves more than yield strength.

Consider:

• Fatigue resistance

• Toughness

• Connection performance

• Corrosion conditions

• Operating temperature

5. Check Connection Design

Tool-joint connections are critical load-bearing points. Selection should consider:

• Torque capacity

• Sealing performance

• Fatigue behavior

• Make-up requirements

• Compatibility with drilling equipment

Proper thread inspection and controlled make-up procedures reduce connection damage during repeated operations.

6. Consider Corrosion and Sour-Service Conditions

Drilling fluids and formation fluids can create corrosive environments. If hydrogen sulfide (H₂S) or other corrosive contaminants are expected, the material and drilling program should meet relevant sour-service requirements.

Corrosion control, inspection, and proper handling help reduce premature damage to pipe and connections.

7. Review Standards and Quality Requirements

Selected drill pipe should comply with applicable API specifications, manufacturer requirements, and project standards.

Quality control may include:

• Dimensional inspection

• Mechanical testing

• Non-destructive testing

• Thread inspection

• Material traceability

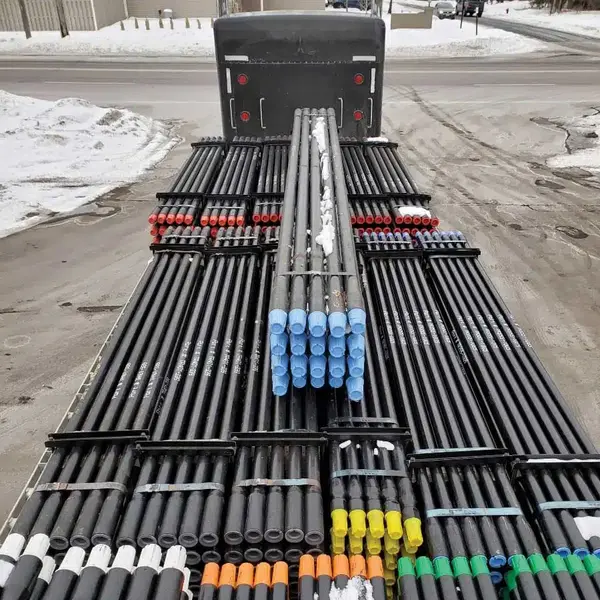

Our Recommended Drill Pipe Products and Global Shipping Services

We supply high-performance drill pipe for deepwater and ultra-deepwater drilling projects, engineered to withstand high tensile loads, torsional stress, bending, fatigue, and aggressive drilling-fluid conditions. Our product range covers various sizes, grades, wall thicknesses, lengths, and tool-joint configurations, tailored to well depth, drilling trajectory, and BHA design. For extended-reach wells, we offer configurations optimized for tensile strength, torsional capacity, and fatigue resistance. Rigorous quality control includes dimensional inspection, material verification, mechanical testing, thread inspection, and non-destructive testing, with full material certificates provided. We also provide solutions for corrosive and H₂S environments. Our global shipping services include export packing, thread protection, container or bulk shipment, and complete documentation to ensure safe international delivery. Share your pipe size, grade, connection type, and project requirements for tailored drill pipe solutions.

Common Challenges When Using Drill Pipe in Deepwater Drilling

Deepwater drilling places higher demands on drill pipe than conventional operations. Long drill strings, complex trajectories, high loads, and harsh offshore conditions increase the risk of fatigue, connection damage, corrosion, and drilling instability.

Main Challenges at a Glance

1. High Tensile and Torsional Loads

As well depth increases, the drill string becomes longer and heavier. Upper sections carry substantial axial loads, while the whole string may face high rotational torque.

In directional or extended-reach wells, torque and drag increase further. If loads exceed pipe or connection capacity, deformation or premature failure may occur.

2. Fatigue from Repeated Bending

Drill pipe experiences repeated bending as it rotates through deviated sections. Cyclic loading can initiate and grow fatigue cracks, especially at stress concentration areas.

• Inspect tool-joint connections regularly

• Monitor high-stress areas

• Control drilling parameters to reduce cyclic loads

3. Connection Wear and Thread Damage

Connections are repeatedly made up and broken out. Improper torque, contamination, impact, or excessive wear can damage threads and reduce performance.

• Use thread inspection and proper handling

• Use thread protectors during transport and storage

• Follow controlled make-up procedures

4. Corrosion and Sour-Service Conditions

Drill pipe may face corrosive drilling and formation fluids. If H₂S is present, sour-service considerations become important because it can cause material degradation and cracking.

Include material selection, fluid management, inspection, and corrosion control in the drilling program.

5. Vibration and Drilling Dynamics

Excessive vibration increases fatigue damage, connection wear, and equipment stress. Monitor drilling parameters and maintain stable conditions.

6. Inspection and Maintenance

Key practices include:

• Dimensional checks

• Thread inspection

• Non-destructive testing

• Material traceability

Conclusion:

Drill pipe is a fundamental component of deepwater and ultra-deepwater drilling systems, connecting surface equipment, the bottom-hole assembly, and the drill bit. It simultaneously transmits torque and mechanical energy to the bit, provides a critical flow path for drilling fluid circulation, and supports the entire drill string under extreme mechanical loads. As well depth increases, drill pipe must withstand substantial tensile stress, torsional loads, bending, vibration, cyclic fatigue, and corrosive conditions including H₂S exposure. Connection areas require special attention due to repeated make-up and break-out operations. Selecting the right drill pipe involves a comprehensive evaluation of well depth, water depth, pipe dimensions, steel grade, connection type, fatigue resistance, corrosion protection, and hydraulic requirements. Rigorous quality control, including dimensional inspection, mechanical testing, and non-destructive testing, is equally critical. With proper engineering and inspection, drill pipe ensures efficient, controlled drilling and maintains mechanical and hydraulic integrity throughout demanding deepwater operations.

FAQ：

1. What type of drill pipe is used in deepwater drilling?

Drill pipe is selected according to well depth, loads, pipe size, grade, connection type, and applicable drilling requirements.

2. Why does deepwater drilling require high-strength drill pipe?

Long drill strings are exposed to higher tensile, torsional, bending, and fatigue loads.

3. How does drill pipe handle fatigue in deepwater wells?

Suitable material, connection design, drilling practices, inspection, and maintenance help manage fatigue risks.

4. What standards apply to deepwater drill pipe?

Drill pipe should comply with applicable API specifications, project requirements, and manufacturer quality standards.
