Views: 0 Author: Site Editor Publish Time: 2026-09-17 Origin: Site
Fusion Bonded Epoxy (FBE) coating is essential for protecting ultra-large-diameter steel pipes in municipal water supply, raw water transmission, and long-distance pipeline projects. This thermosetting epoxy powder forms a continuous, tightly bonded protective layer that effectively shields steel from moisture, soil, and chemical corrosion, significantly extending pipeline service life.
FBE coating quality depends on strict process control: surface preparation to Sa2.5 grade, precise preheating temperature, uniform powder application, and proper curing. Comprehensive inspection—including coating thickness measurement, holiday detection, and adhesion testing—ensures compliance with standards such as AWWA C213 and ISO 21809-2.
What Is FBE Coating for Water Transmission Steel Pipes?
Fusion Bonded Epoxy (FBE) is a protective coating system for steel pipes. Unlike liquid paint, FBE is a dry thermosetting epoxy powder applied to a heated steel surface—melting, flowing, and curing into a continuous protective layer.
Quick Overview
Aspect | Details |
|---|---|
Type | Thermosetting epoxy powder coating |
Purpose | Isolate steel from moisture and corrosive elements |
Application | Buried, submerged, or exposed pipeline systems |
Key protection | Water, soil, dissolved salts, environmental exposure |
Relevant standards | AWWA C213, ISO 21809-2, CSA Z245.20 |
How FBE Coating Works
Step | Action |
|---|---|
1. Surface Preparation | Remove oil, grease, rust, mill scale |
2. Abrasive Blasting | Achieve required cleanliness and surface profile |
3. Preheating | Heat pipe to specified temperature |
4. Powder Application | Electrostatic spray onto heated steel |
5. Melting & Spreading | Powder melts and flows across surface |
6. Curing | Controlled temperature and curing conditions |
7. Bond Formation | Strong bond; continuous barrier |
Key requirement: Proper adhesion and uniform coverage—defects expose steel and create corrosion points.
Key Characteristics
Characteristic | Benefit |
|---|---|
Good adhesion | Strong bond to steel |
Corrosion resistance | Protects against moisture and chemicals |
Chemical resistance | Withstands various environments |
Moisture penetration resistance | Barrier against water |
Relatively smooth surface | Beneficial for pipeline applications |
Note: FBE is not automatically suitable for every water transmission project. Consider:
Factor |
|---|
Coating formulation |
Thickness |
Service temperature |
Water chemistry |
Installation conditions |
Exposure environment |
Drinking-water requirements (jurisdiction-specific) |
Coating Thickness and Inspection
Aspect | Details |
|---|---|
Thickness | Meet selected system and project spec |
Too thick | Not necessarily better; may cause defects |
Too thin | Reduced protection |
Inspection | Surface prep, visual, DFT, holiday detection, adhesion |
Standards that may apply:
Standard |
|---|
AWWA C213 |
ISO 21809-2 |
CSA Z245.20 |
FBE Coating Process for Ultra-Large-Diameter Steel Pipes
Ultra-large-diameter pipes have large surface areas and demanding service conditions. Consistent surface preparation, coating application, curing, and inspection are essential for strong adhesion, uniform thickness, and reliable corrosion protection.
Process Steps at a Glance
Step | Action | Key Point |
|---|---|---|
1. Surface Inspection & Cleaning | Remove oil, grease, dirt, rust, mill scale | Contaminants affect adhesion |
2. Abrasive Blast Cleaning | Achieve required cleanliness and profile | Monitor humidity, condensation, temperature |
3. Pipe Preheating | Heat to specified temperature | Consistent around circumference |
4. Electrostatic Application | Spray epoxy powder onto heated steel | Uniform coverage around entire pipe |
5. Fusion & Curing | Powder melts, flows, cures | Monitor temperature, time, line speed |
6. Cooling & Final Inspection | Controlled cooling; coating checks | Visual, DFT, holiday detection, adhesion |
Key Details
1. Pipe Surface Inspection and Cleaning
Check |
|---|
Oil, grease, dirt, moisture |
Rust, mill scale |
Surface defects |
Contaminant removal before blasting |
2. Abrasive Blast Cleaning
Aspect | Details |
|---|---|
Purpose | Remove mill scale and corrosion products |
Result | Roughened profile for bonding |
Clean-up | Remove dust and abrasive residues |
Monitor | Humidity, condensation, steel surface temperature |
3. Pipe Preheating
Aspect | Details |
|---|---|
Purpose | Affects powder melt, flow, bond, cure |
Control | Consistent around pipe surface |
Range | Per manufacturer and approved procedure |
4. Electrostatic Application
Aspect | Details |
|---|---|
Method | Electrostatic spray |
Particles | Attracted to prepared surface; melt on contact |
Critical for large pipes | Uniform coverage around circumference |
Watch | Coating thickness; difficult areas |
5. Fusion and Curing
Factor | Impact |
|---|---|
Temperature | Curing quality |
Heating time | Coating performance |
Powder characteristics | Coating properties |
Line speed | Process consistency |
Insufficient curing | Affects performance |
Poor control | Defects |
Action: Monitor and record production parameters per approved procedure.
6. Cooling and Final Inspection
Check |
|---|
Visual inspection |
Dry-film thickness (DFT) |
Holiday detection |
Adhesion testing (where required) |
Repair of handling damage per approved procedure |
Key FBE Coating Inspection Standards and Tests
Inspection ensures FBE-coated pipes provide continuous corrosion protection, strong adhesion, and service resistance. Requirements should follow project specifications, coating manufacturer requirements, and industry standards.
Inspection Methods at a Glance
Test | Purpose | Key Point |
|---|---|---|
Surface Preparation | Verify cleanliness and profile | Essential for adhesion |
Coating Thickness (DFT) | Verify specified thickness range | Too thin or too thick = problems |
Visual Inspection | Detect visible defects | Pinholes, blisters, cracks, runs |
Holiday Detection | Find discontinuities exposing steel | Voltage per thickness and standard |
Adhesion Testing | Evaluate bond strength | Reveals process control issues |
Cure Verification | Confirm adequate curing | Check production records |
Key Details
Reference Standards
Standard | Application |
|---|---|
AWWA C213 | Water pipeline coating |
ISO 21809-2 | Pipeline coatings |
CSA Z245.20 | Pipeline coating systems |
Tip: Confirm the applicable standard for the specific pipe, coating system, and water service.
1. Surface Preparation Inspection
Check |
|---|
Surface cleanliness |
Surface profile |
Removal of oil, grease, rust, mill scale, dust |
No coating until requirements met |
2. Coating Thickness Measurement
Aspect | Details |
|---|---|
Method | Calibrated coating-thickness gauges |
Locations | Designated points across pipe surface |
Too thin | Inadequate protection |
Excessive/uneven | Poor process control; performance issues |
3. Visual Inspection
Check For |
|---|
Pinholes |
Blisters |
Cracking |
Runs |
Bubbles |
Uneven coverage |
Contamination |
Mechanical damage |
4. Holiday Detection Testing
Aspect | Details |
|---|---|
Purpose | Identify discontinuities exposing steel |
Detects | Pinholes, small cracks, breaks |
Method | Per coating thickness and applicable standard |
Action | Repair and retest as required |
5. Adhesion Testing
Aspect | Details |
|---|---|
Purpose | Evaluate bond strength |
Poor adhesion causes | Inadequate prep, contamination, incorrect preheating, improper curing |
Value | Reveals coating-process control issues |
6. Cure and Process Verification
Check |
|---|
Adequate curing |
Steel temperature records |
Powder application conditions |
Curing conditions |
Traceability to pipes or batches |
Third-party inspection (if required) |
Common FBE Coating Defects and Their Causes
FBE coating quality depends on surface preparation, application, curing, inspection, and handling. Defects occur when any part of the process is poorly controlled.
Common Defects at a Glance
Defect | Causes | Prevention |
|---|---|---|
Insufficient Thickness | Incorrect settings, uneven spraying, improper rotation | Check with calibrated equipment; repair if outside criteria |
Excessive/Uneven Thickness | Excessive powder, wrong settings, unstable temperature | Regular thickness measurements |
Poor Adhesion | Inadequate blasting, oil/grease, dust, wrong preheating | Monitor surface prep and temperature; adhesion testing |
Pinholes & Holidays | Contamination, moisture, application problems | Holiday detection; repair and retest |
Blisters & Bubbles | Trapped gases, moisture, contamination | Control surface prep, heating, environment |
Mechanical Damage | Handling, stacking, transport, installation | Proper lifting, packaging, handling procedures |
Key Details
1. Insufficient Coating Thickness
Aspect | Details |
|---|---|
Cause | Incorrect powder settings, uneven spraying, improper rotation |
Risk | Less effective moisture and corrosion protection |
Action | Check with calibrated equipment; repair outside acceptance criteria |
2. Excessive or Uneven Coating Thickness
Aspect | Details |
|---|---|
Cause | Excessive powder, incorrect settings, unstable temperature, inconsistent speed |
Risk | Poor process control; performance issues |
Action | Regular thickness measurements during production |
3. Poor Adhesion
Cause |
|---|
Inadequate abrasive blasting |
Remaining oil or grease |
Dust contamination |
Improper surface profile |
Incorrect preheating |
Insufficient curing |
Action: Monitor surface preparation and temperature control; perform adhesion testing where required.
4. Pinholes and Holidays
Aspect | Details |
|---|---|
Cause | Contamination, moisture, application problems, inadequate coverage |
Risk | Exposed or potentially exposed steel |
Detection | Holiday detection (not always visible) |
Action | Repair and retest per approved procedure |
5. Blisters and Bubbles
Aspect | Details |
|---|---|
Cause | Trapped gases, moisture, contaminants, incorrect preheating |
Risk | Coating separation |
Prevention | Careful surface prep; control environmental and heating conditions |
6. Mechanical Damage
Aspect | Details |
|---|---|
Cause | Handling, stacking, transportation, installation |
Types | Scratches, dents, impact marks, coating chips |
Risk | Exposed steel |
Prevention | Proper lifting, protective handling, suitable packaging |
Action | Inspect and repair per applicable procedure |

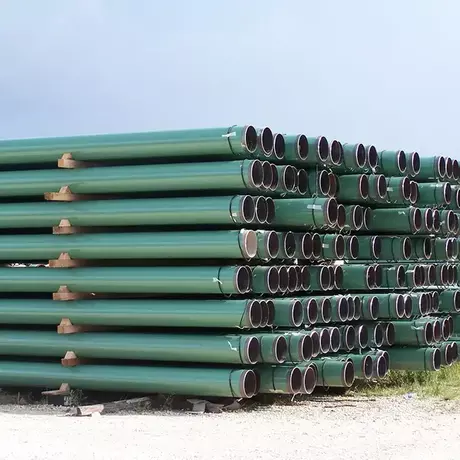

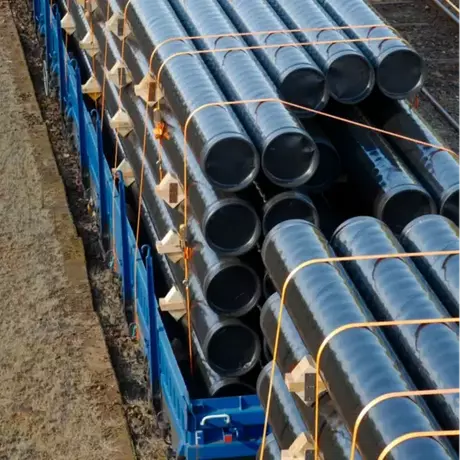

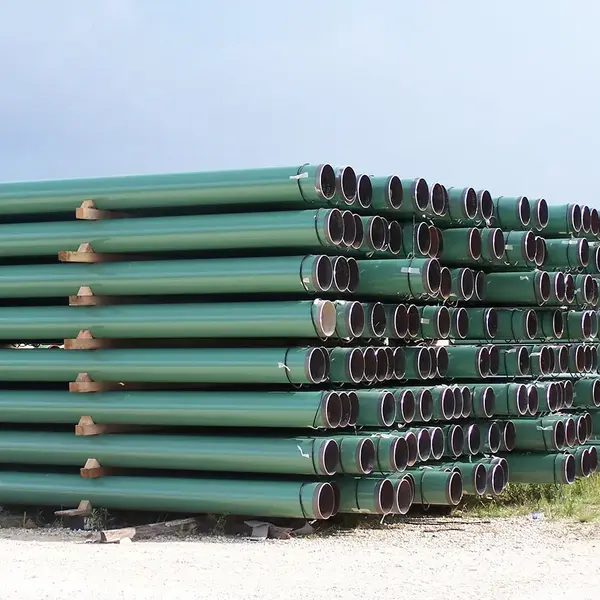

Our Recommended FBE-Coated Steel Pipes and Global Shipping Services
We supply premium FBE-coated ultra-large-diameter steel pipes engineered for major water transmission and municipal infrastructure projects. Our rigorous coating process—featuring abrasive blast cleaning, controlled preheating, and precise curing—ensures superior corrosion resistance and strong adhesion, compliant with AWWA C213 and ISO 21809-2 standards.
Quality and traceability are paramount; all products undergo comprehensive inspection, including holiday detection, thickness measurement, and adhesion testing, backed by full documentation. We support customized preparation, including end protection and export packaging, to prevent transit damage. Beyond manufacturing, we provide end-to-end global shipping solutions, coordinating secure bundling and flexible transportation to ensure your piping arrives safely and on time.
To receive a customized product and shipping quotation, please contact us today with your required dimensions, coating specifications, and delivery destination. Our expert team will recommend the optimal piping configuration tailored to your exact project needs.
Conclusion
FBE coating delivers long-term corrosion protection for ultra-large-diameter water transmission pipelines, but performance depends on systematic quality control—not just the coating material alone. Proper surface preparation to Sa2.5 grade, controlled preheating, precise powder application, and thorough curing are essential for achieving strong adhesion and uniform coverage on large pipe surfaces.
Comprehensive inspection—including dry-film thickness measurement, holiday detection, and adhesion testing—identifies defects before installation, while compliance with standards such as AWWA C213, ISO 21809-2, and CSA Z245.20 must be confirmed per project specifications. Equally critical are careful handling, protective packaging, and complete quality documentation to prevent transit damage and ensure full traceability.
FAQ:
1. What is the FBE coating process for steel water pipes?
FBE coating involves surface preparation, abrasive blasting, preheating, epoxy powder application, fusion, curing, and final inspection.
2. How is FBE coating thickness checked?
Coating thickness is typically measured with calibrated dry-film thickness gauges according to the applicable specification.
3. What is a holiday test for FBE-coated steel pipes?
A holiday test detects pinholes and other coating discontinuities that may expose the steel substrate.
4. Which standards are commonly used for FBE-coated water transmission pipes?
Standards such as AWWA C213, ISO 21809-2, and CSA Z245.20 may be referenced, depending on the coating system and project requirements.
