What Is FBE Coated Steel Pipe? A Complete Analysis of The Principle of Fusion Bonded Epoxy Powder Coating for Corrosion Protection.

Views: 1 Author: Site Editor Publish Time: 2026-09-14 Origin: Site

Inquire

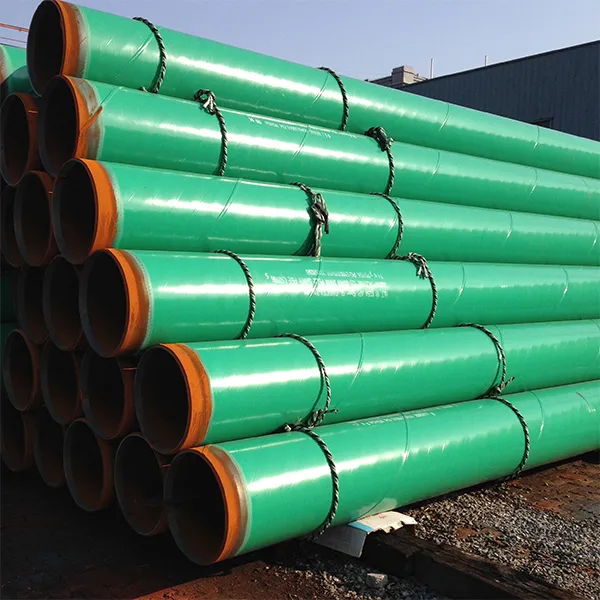

FBE-coated steel pipes are protected by a Fusion-Bonded Epoxy layer, providing superior corrosion resistance for oil, gas, and water pipelines. The FBE process involves heating the steel and electrostatically applying epoxy powder, which melts and cures to form a dense, continuous barrier.

This thermosetting coating offers exceptional adhesion, chemical resistance, and protection against moisture and soil stress. While highly effective for underground and industrial applications, selecting the right coating requires evaluating operating temperatures, soil conditions, and mechanical demands. In high-risk environments, multi-layer systems like 3LPE or 3LPP may be preferred.

How Does Fusion-Bonded Epoxy Powder Coating Work?

Fusion-bonded epoxy (FBE) coating protects steel pipe through surface preparation, electrostatic powder application, heat fusion, and chemical curing. Unlike liquid paint, FBE is a dry epoxy powder that melts on a heated steel surface, forming a continuous protective coating with strong adhesion.

Process Steps at a Glance

Step	What Happens	Key Point
1. Surface Preparation	Abrasive blasting removes rust, mill scale, oil, and moisture	Clean, roughened surface for bonding
2. Pipe Preheating	Pipe heated to specified temperature	Melts powder; temperature must be controlled
3. Electrostatic Application	Charged powder sprayed onto grounded pipe	Even adhesion; controlled thickness
4. Melting & Fusion	Powder melts, flows, forms continuous film	Fills irregularities; strong adhesion
5. Chemical Curing	Epoxy cross-links into hard, stable coating	Main corrosion protection
6. Inspection & QC	Thickness, visual, holiday detection, adhesion tests	Verifies coating quality

Step-by-Step Details

1. Surface Preparation

Aspect	Details
Requirement	Free from rust, mill scale, oil, grease, dust, moisture
Method	Abrasive blasting
Purpose	Clean, slightly roughened surface
Risk if poor	Poor adhesion, blistering, peeling, localized corrosion

2. Pipe Preheating

Aspect	Details
Purpose	Melt powder on contact
Control	Temperature must be carefully monitored
Too low	Powder may not flow or cure properly
Too high	Can affect coating properties

3. Electrostatic Powder Application

Aspect	Details
Method	Electrostatic spray
Principle	Charged powder + grounded pipe = even adhesion
Control	Application rate for specified thickness
Goal	Uniform layer without thin spots or defects

4. Melting & Fusion

Aspect	Details
Process	Powder melts on hot steel; molten epoxy flows
Result	Continuous film; fills surface irregularities
Adhesion	Molten epoxy interacts with prepared steel surface

5. Chemical Curing

Aspect	Details
Reaction	Cross-linking (thermosetting)
Result	Hard, stable coating
Protection	Against water, oxygen, salts, corrosive substances
Adhesion	Prevents corrosion beneath coating

6. Inspection & Quality Control

Check	Purpose
Coating thickness	Specified coverage
Visual inspection	Surface defects
Holiday detection	Pinholes and discontinuities
Adhesion testing	Bond strength (where required)

Key Properties and Advantages of FBE-Coated Steel Pipe

FBE-coated steel pipe combines steel's structural strength with fusion-bonded epoxy's corrosion protection. Performance depends on the steel substrate, coating formulation, surface preparation, application conditions, and quality control.

Key Properties at a Glance

Property	Benefit
Corrosion Resistance	Continuous barrier against water, oxygen, salts, soil
Strong Adhesion	Prevents moisture ingress; reduces peeling/delamination
Moisture & Chemical Resistance	Suitable for damp soil, groundwater, industrial fluids
Mechanical & Abrasion Resistance	Withstands handling, transport, and installation
Continuous & Uniform Protection	Consistent coverage; no weak points
Environmental Advantages	Powder-based; no large solvent quantities

Properties in Detail

1. Excellent Corrosion Resistance

Aspect	Details
Function	Continuous barrier between steel and corrosive substances
Protection against	Water, oxygen, salts, soil
Applications	Underground, buried, industrial piping
Benefit	Extended service life; reduced maintenance

2. Strong Adhesion to Steel

Aspect	Details
Mechanism	Heated epoxy powder melts and bonds to prepared surface
After curing	Firmly attached protective layer
Benefit	Prevents moisture ingress; reduces peeling/delamination
Requirement	Effective abrasive blasting + process control

3. Good Resistance to Moisture & Chemicals

Aspect	Details
Resistance	Water and many chemicals
Valuable for	Damp soil, groundwater, industrial fluids
Note	Chemical resistance depends on epoxy formulation and operating conditions
Selection	Consider specific chemical exposure and service temperature

4. Mechanical & Abrasion Resistance

Aspect	Details
Resistance	Impact, abrasion, handling damage
Useful during	Transportation, handling, installation, underground construction
Caution	Not damage-proof—rough handling can damage coating
Action	Inspect and repair damaged areas per project procedure

5. Continuous & Uniform Protection

Aspect	Details
Application	Powder fused directly onto heated steel
Result	Relatively uniform coating with consistent coverage
Why important	Exposed areas, pinholes, or thin sections = corrosion starting points

6. Environmental & Application Advantages

Aspect	Details
Powder-based	No large quantities of liquid solvents
Advantage	Durable protective coating with controlled factory application
vs. Uncoated Steel	Substantially better external corrosion protection
vs. 3LPE	FBE is simpler (single epoxy layer); 3LPE may offer greater mechanical/moisture protection in demanding applications

Comparison: FBE vs. 3LPE

Factor	FBE	3LPE
Structure	Single epoxy layer	Multilayer system
Application	Simpler	More complex
Mechanical protection	Good	Greater
Moisture protection	Good	Greater (in demanding applications)

Conclusion

Main advantages of FBE-coated steel pipe:

Strong adhesion
Corrosion resistance
Moisture resistance
Chemical resistance
Mechanical durability

FBE Coating Application Process and Quality Inspection

FBE-coated pipe performance depends on epoxy powder quality plus surface preparation, application, curing, and inspection. A controlled process ensures strong adhesion, uniform thickness, and reliable corrosion protection.

Process Steps at a Glance

Step	What Happens	Key Point
1. Surface Preparation	Abrasive blasting removes contaminants	Clean, profiled surface for adhesion
2. Pipe Heating	Heated to specified temperature	Melts powder; controls temperature
3. Electrostatic Application	Charged powder sprayed onto grounded pipe	Uniform thickness
4. Fusion & Curing	Powder melts, flows, cross-links	Hard, durable coating
5. Thickness Inspection	Non-destructive measurements	Meet specified requirements
6. Holiday & Visual Inspection	Detect pinholes and defects	Repair defective areas
7. Adhesion & Other Tests	Evaluate bond strength and properties	Per applicable standard

Key Points

Step	Key Point
Surface prep	Remove rust, mill scale, oil, dust; abrasive blasting
Heating	Too low = poor flow/curing; too high = affected performance
Application	Charged powder + grounded pipe; adjust for thickness
Fusion & curing	Continuous film; chemical cross-linking; controlled cooling
Thickness	Too thin = poor protection; too thick = affected performance
Holiday test	Finds pinholes and discontinuities
Visual	Finds bubbles, cracks, blisters, uneven coverage
Adhesion	Bond strength to steel; impact, flexibility, curing tests

Key Principle

Careful blasting + controlled preheating + accurate application + proper curing + systematic inspection = reliable corrosion protection

Conclusion

FBE coating is one integrated process:

Surface preparation – clean, profiled steel
Preheating – correct temperature
Electrostatic application – uniform coverage
Fusion & curing – hard, adherent coating
Thickness inspection – meet requirements
Holiday & visual inspection – detect and repair defects
Adhesion & other tests – verify performance

Applications of FBE-Coated Steel Pipes

FBE-coated steel pipes are widely used where steel must be protected from external corrosion, moisture, chemicals, and soil exposure. The epoxy layer creates a durable barrier while maintaining the steel's mechanical strength and pressure capacity.

Applications at a Glance

Application	Why FBE Is Used	Key Considerations
Oil & Gas Transmission	Isolates steel from moisture, salts, soil	Field joint protection; coating selection
Water Supply & Transmission	Protects buried pipes from soil/groundwater	Extends service life; reduces maintenance
Underground & Buried Pipelines	Withstands varying soil conditions	Controlled handling, backfilling, installation
Chemical & Petrochemical	Resists many chemicals and industrial conditions	Select formulation per chemical, temperature, exposure
Fire Protection & Industrial	Factory-applied coverage; reduces field painting	External corrosion protection

Key Details

1. Oil & Gas Transmission Pipelines

Aspect	Details
Challenge	Pipelines cross deserts, wetlands, agricultural land
Solution	FBE isolates steel from moisture, salts, soil
Important	Field joint protection after installation

2. Water Supply & Water Transmission

Aspect	Details
Challenge	Buried pipes exposed to soil and groundwater
Solution	Epoxy barrier reduces steel-moisture contact
Benefit	Extended service life; reduced maintenance

3. Underground & Buried Pipeline Systems

Aspect	Details
Challenge	Varying moisture, pH, salts, electrical properties
Solution	Strong coating-to-steel adhesion maintains barrier
Important	Control transportation, handling, backfilling

4. Chemical & Petrochemical Facilities

Aspect	Details
Challenge	Moisture and potentially aggressive environments
Solution	FBE resists many chemicals and industrial conditions
Note	Select formulation per chemical, concentration, temperature, exposure time
Caution	FBE is not universally resistant to every chemical

5. Fire Protection & Industrial Infrastructure

Aspect	Details
Application	Industrial water systems, fire protection, utility piping
Benefit	Factory-applied coating; consistent coverage
Advantage	Reduces need for additional field painting

Selection Factors

Factor	Why It Matters
Operating temperature	Coating performance
Soil conditions	Corrosion environment
Chemical exposure	Formulation selection
Installation method	Coating damage risk
Mechanical loading	Durability requirements
Pipe size	Application feasibility
Expected service life	Long-term protection

Our Recommended FBE-Coated Steel Pipe Products and Global Shipping Services

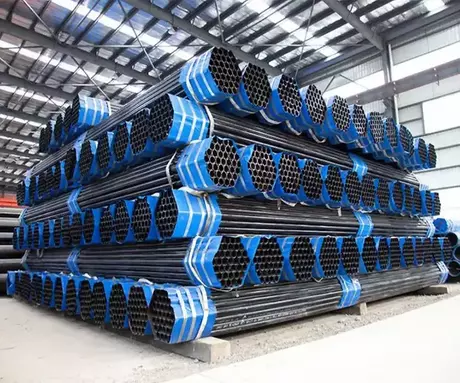

We supply premium FBE-coated steel pipes, including seamless, ERW, LSAW, and SSAW options. Manufactured to API 5L, ASTM, and EN standards, our pipes provide superior corrosion protection for oil, gas, and water infrastructure.

Quality and compliance are paramount. We conduct rigorous inspections—including holiday detection, coating thickness measurement, and visual examination—and provide comprehensive Mill Test Certificates (MTCs) to guarantee full adherence to international standards.

Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure bundling and flexible transportation options (container and break-bulk freight) to prevent transit damage and ensure your coated pipes arrive safely and on time.

Common Mistakes When Selecting or Using FBE-Coated Steel Pipes

FBE-coated pipes provide effective corrosion protection—but performance depends on correct selection, coating quality, handling, and installation. Avoiding common mistakes reduces repair costs and project delays.

Common Mistakes at a Glance

Mistake	Why It's a Problem	How to Avoid
Wrong coating for environment	Soil, moisture, chemicals, UV affect performance	Review project requirements; consider 3LPE/3LPP
Ignoring surface preparation	Weak bond; coating failure	Control abrasive blasting for cleanliness and profile
Incorrect coating thickness	Too thin = poor protection; too thick = performance issues	Follow manufacturer, standards, and specs
Ignoring operating temperature	Reduced long-term performance	Provide accurate service temperature data
Poor handling & transportation	Scratches, chips, impact damage	Use proper lifting, padding, procedures
Failing to repair damage	Exposed steel; corrosion starts	Inspect and repair per approved procedure
Skipping quality inspection	Problems appear later	Visual, thickness, holiday, adhesion, documentation

Key Points

Mistake	Key Point
Wrong coating	FBE not best for every environment; consider multi-layer systems
Surface prep	High-quality powder can't fix poorly prepared steel
Thickness	Per manufacturer recommendations and standards; check systematically
Temperature	Provide normal and maximum service temps when ordering
Handling	Prevent dragging, striking, and unsuitable lifting equipment
Repair	Fix scratches, holidays, damaged areas before installation/burial
Inspection	Visual, thickness, holiday detection, adhesion, documentation review

Conclusion

FBE-coated steel pipes provide superior corrosion protection for oil, gas, and water pipelines by forming a strong, continuous epoxy barrier. This fusion-bonded epoxy coating offers excellent adhesion, chemical resistance, and durability, making it highly effective for underground and industrial applications.

However, selecting the right pipe requires evaluating operating temperatures, soil conditions, and mechanical loads. Proper handling and installation are also critical to maintaining the coating's integrity. For demanding environments, multi-layer systems like 3LPE may be required.

FAQ：

FAQ 1: What does FBE mean in steel pipe?

FBE stands for Fusion-Bonded Epoxy, a thermosetting epoxy powder coating applied to steel pipe for corrosion protection.

FAQ 2: How is FBE coating applied to steel pipes?

The steel pipe is cleaned and heated, then epoxy powder is electrostatically sprayed onto its surface, where it melts, flows, and cures into a protective coating.

FAQ 3: Is FBE coating suitable for underground steel pipes?

Yes, FBE-coated steel pipes are widely used for buried pipelines because the coating provides strong corrosion resistance and adhesion to steel.

FAQ 4: What is the difference between FBE and 3LPE coating?

FBE is a single fusion-bonded epoxy coating, while 3LPE combines epoxy, adhesive, and polyethylene layers to provide additional mechanical and moisture protection.
