How To Distinguish between Grade E, X, G, And S of Drill Pipe? A Complete Explanation of Steel Grade And Strength Grade.

Drill pipe steel grades are critical for oil and gas drilling operations, where pipes transmit torque, drilling fluid, and axial loads under extreme stress. Specified according to API Specification 5DP, common grades include E, X, G, and S, representing increasing minimum yield strength levels. Grade E suits conventional drilling with moderate loads, while Grades X and G offer higher tensile capacity for demanding conditions. Grade S provides the highest yield strength for applications involving very high loads. However, selecting the optimal grade requires more than just strength; factors such as well depth, drill-string length, fatigue, temperature, and corrosion resistance must be evaluated. Pipe dimensions, weight, and tool-joint connections also significantly impact performance and hydraulic characteristics. In corrosive environments containing hydrogen sulfide, additional material specifications beyond standard grades may be required.

What Do Grade E, X, G, and S Mean for Drill Pipe?

The letters E, X, G, and S identify different steel grades for API drill pipe. They are mainly distinguished by specified mechanical properties, especially minimum yield strength. Understanding these grades matters because drill pipe must withstand high tensile, torsional, bending, and fatigue loads during drilling.

Grade Comparison at a Glance

Higher grades provide greater resistance to permanent deformation under tensile loading. However, grade selection should be based on the complete drilling application, not the assumption that the highest-strength grade is automatically best.

Grade E Drill Pipe

Grade E is a lower-strength grade with a minimum yield strength of approximately 75 ksi (517 MPa).

• Suits conventional drilling where loads stay within design limits

• Considered when tensile and torsional requirements are moderate

• Use should be confirmed through drill-string calculations

Grade X Drill Pipe

Grade X provides higher strength than Grade E, with a minimum yield strength of approximately 95 ksi (655 MPa).

The increased yield strength gives greater tensile load capacity and suits higher mechanical loads. It can be considered for deeper wells or increased drill-string loading when dimensions, connections, fatigue requirements, and operating conditions are also suitable.

Grade G Drill Pipe

Grade G has a minimum yield strength of approximately 105 ksi (724 MPa), higher than Grades E and X.

Overall performance depends on more than pipe-body yield strength.

Grade S Drill Pipe

Grade S is a high-strength grade with a minimum yield strength of approximately 150 ksi (1,034 MPa). It suits applications requiring substantially higher strength.

Because of its high yield strength, Grade S provides greater tensile capacity. However, proper selection for the specific well remains essential. Consider:

• Fatigue

• Stress concentration

• Connection performance

• Corrosion

• Manufacturing quality

Key Point

E, X, G, and S indicate different specified strength levels, not a simple ranking of overall drill pipe quality.

Select the grade according to:

Drill Pipe Strength Grade Comparison: E vs. X vs. G vs. S

The steel grade of drill pipe directly affects its ability to withstand tensile and other mechanical loads during drilling. API drill pipe grades E, X, G, and S are commonly distinguished by their specified minimum yield strengths. As the grade increases, the pipe generally provides higher resistance to permanent deformation under tensile loading. However, strength grade is only one factor in selection.

Grade Comparison at a Glance

Grade E: 75 ksi Yield Strength

Grade E has a minimum yield strength of approximately 75 ksi. It suits operations where calculated drill-string loads stay within this lower-strength grade's capacity.

For conventional drilling with moderate tensile and torsional demands, Grade E may balance mechanical performance and material requirements. Suitability still depends on well depth, drill-string configuration, pipe dimensions, and operating conditions.

Grade X: 95 ksi Yield Strength

Grade X raises minimum specified yield strength to approximately 95 ksi, providing greater resistance to yielding under tensile loading compared to Grade E.

It can be considered for longer drill strings or more demanding well designs. Note: Increasing steel grade does not remove the need to evaluate fatigue, bending, connections, and other stresses.

Grade G: 105 ksi Yield Strength

Grade G provides a minimum yield strength of approximately 105 ksi, positioned above Grades E and X.

Grade S: 150 ksi Yield Strength

Grade S has a minimum yield strength of approximately 150 ksi, substantially higher than E, X, and G. It provides increased tensile capacity for very high drill-string loads.

Do not select Grade S automatically because it has the highest yield strength. High-strength pipe must still meet requirements for:

• Fatigue performance

• Connections

• Dimensions

• Corrosion conditions

• Overall drill-string design

Strength Is Not the Only Selection Factor

Yield strength is an important reference, but drill pipe performance also depends on:

How to Choose the Right Drill Pipe Grade?

Selecting the right drill pipe grade requires more than choosing the highest available yield strength. Grade E, X, G, and S provide different strength levels, but the right choice depends on well depth, drill-string loads, pipe dimensions, connection design, fatigue exposure, corrosion conditions, and project requirements. Base selection on the complete drilling system.

Selection Steps at a Glance

1. Evaluate Well Depth and Drill-String Loads

Well depth is an important starting point. A longer drill string generally creates greater tensile loading on upper sections.

Calculate expected tensile, torsional, and bending loads rather than selecting by depth alone. The grade should provide sufficient strength with an appropriate safety margin.

2. Consider Tensile and Torsional Requirements

Drill pipe must withstand axial and rotational loads. It transmits torque from surface to bit while carrying drill-string weight and forces.

Higher-strength grades resist tensile yielding better, but torsional capacity also depends on:

• Pipe dimensions

• Wall thickness

• Tool-joint design

• Connection geometry

Selecting a higher steel grade alone does not determine the complete load capacity.

3. Evaluate Drilling Trajectory and Fatigue

Directional and horizontal wells expose drill pipe to repeated bending and cyclic loading, making fatigue performance important.

Evaluate:

• Stress concentration

• Bending cycles

• Connection performance

• Expected drilling conditions

A higher yield strength grade does not automatically eliminate fatigue-related risks.

4. Consider Corrosion and H₂S Conditions

Evaluate the drilling fluid and formation environment. Corrosive fluids or hydrogen sulfide (H₂S) can affect material performance and may require:

• Specific material selection

• Hardness controls

• Additional testing

• Sour-service compliance

Do not simply select a higher-strength grade for sour service. Review the complete material specification against applicable requirements.

5. Match Grade With Pipe Size and Connection

Consider grade together with:

The connection is critical because it experiences high stresses. Match the pipe body grade with an appropriate connection and tool-joint configuration.

6. Balance Performance and Cost

Higher-strength pipe provides more load capacity, but it may not be necessary for every well. Using a grade that greatly exceeds design requirements raises costs without operational benefit.

Balance:

• Required strength

• Fatigue performance

• Corrosion resistance

• Availability

• Inspection requirements

• Service conditions

• Cost

Drill Pipe Grade vs. Drill Pipe Size and Weight

Drill pipe grade, size, and weight are closely related factors in drill-string design. Although Grade E, X, G, and S indicate different material strength levels, the steel grade alone does not determine overall load capacity. Outside diameter, wall thickness, nominal weight, and connection design must also be considered.

Key Factors at a Glance

1. Drill Pipe Grade Determines Material Strength

The main difference between E, X, G, and S is specified mechanical strength, particularly minimum yield strength. Minimum yield strength generally increases from Grade E to X, G, and S.

Note: A small-diameter Grade S pipe will not always have greater load capacity than a larger or heavier lower-grade pipe. Material strength and pipe geometry work together.

2. Outside Diameter and Wall Thickness Affect Capacity

Drill pipe comes in different outside diameters and wall thicknesses.

Two pipes of the same Grade X can have different tensile and torsional capacities because their diameters and wall thicknesses differ. Always evaluate grade together with required dimensions.

3. Nominal Weight Is Also Important

Drill pipe weight is expressed as nominal weight per unit length. Heavier pipe generally has a thicker wall and different mechanical and handling characteristics.

Increasing weight is not automatically beneficial because it adds load to the upper drill string.

4. Connections Can Limit Overall Performance

The pipe body is only one part of the system. Tool joints and threaded connections transmit torque and tensile loads between pipe sections.

Selecting a higher grade without checking connection design may not increase overall performance. Treat pipe body, tool joint, and connection as one system.

5. Match Size and Weight With Well Conditions

Drill pipe size and weight should match:

• Wellbore diameter

• Required drilling depth

• Hydraulic requirements

• Directional profile

• Available drilling equipment

Larger or heavier pipe adds structural capacity but can affect annular clearance, fluid circulation, handling, and total drill-string weight.

For deep, directional, or horizontal wells, balance:

• Tensile strength

• Stiffness

• Torsional capacity

• Fatigue resistance

• Hydraulic performance

6. Grade, Size, and Weight Should Be Selected Together

The correct specification combines:

Steel grade + outside diameter + wall thickness/nominal weight + tool-joint and connection design

Select Grade E, X, G, or S only after required loads and service conditions are established.

Application Scenarios for E, X, G, and S Grade Drill Pipe

Grade E, X, G, and S drill pipes are designed for different mechanical strength levels. Their application depends mainly on expected drill-string loads, well depth, drilling trajectory, pipe dimensions, connection design, and service environment. A higher grade is not automatically correct for every project. The selected grade should provide sufficient strength for actual operating conditions.

Application Scenarios at a Glance

1. Grade E for Conventional Drilling

Grade E has a minimum yield strength of approximately 75 ksi (517 MPa). It suits conventional drilling where tensile and torsional loads stay within design capacity.

• Moderate-depth wells

• Applications without exceptionally high mechanical stress

• Projects where calculations show higher strength is unnecessary

Note: Suitability still depends on pipe size, wall thickness, connection type, and operating conditions. Do not select Grade E simply because a well is classified as conventional.

2. Grade X for Higher Load Requirements

Grade X has a minimum yield strength of approximately 95 ksi (655 MPa), higher than Grade E.

Confirm final selection through drill-string load calculations.

3. Grade G for Demanding Drilling Conditions

Grade G provides a minimum yield strength of approximately 105 ksi (724 MPa). Its higher strength suits more demanding conditions with significant tensile, torsional, or combined loads.

It may be considered for:

• Deeper drilling

• Directional wells

• Applications with increased mechanical stress

Directional drilling adds bending and cyclic loading, so evaluate fatigue behavior and connection performance. Treat Grade G as part of the complete drill-string design, not a universal upgrade from Grade X.

4. Grade S for Very High Strength Requirements

Grade S has a minimum yield strength of approximately 150 ksi (1,034 MPa), the highest of the four grades.

It may be selected for very high tensile loads or particularly demanding conditions. Deep and extended-reach drilling creates substantial loads, making higher-strength material important when supported by engineering calculations.

Note: Grade S is not automatically best. Increased strength must be compatible with:

• Pipe dimensions

• Connections

• Fatigue requirements

• Inspection procedures

• Overall drilling program

5. Consider Service Environment Separately

Consider E, X, G, and S grades alongside environmental conditions. Corrosive drilling fluids and H₂S exposure create additional material requirements.

Steel strength grade alone does not determine sour-service suitability. For corrosive or H₂S environments, specify:

• Appropriate material

• Testing requirements

• Hardness controls

• Inspection procedures

• Service requirements

6. Select the Grade According to Actual Conditions

Our Recommended Drill Pipe Products and Global Shipping Services

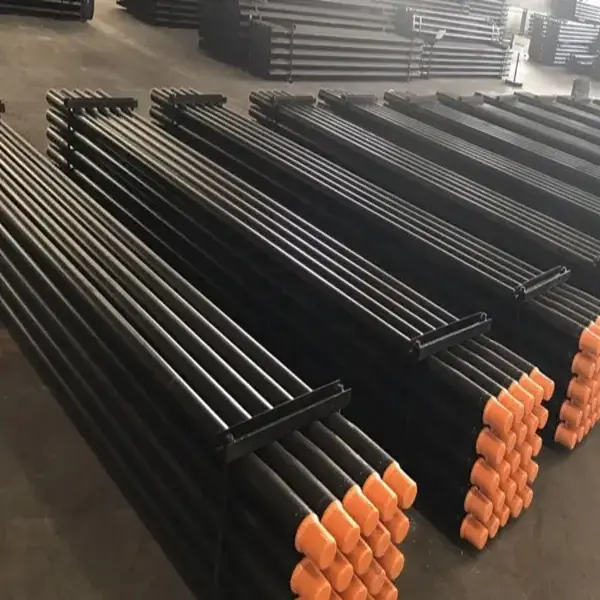

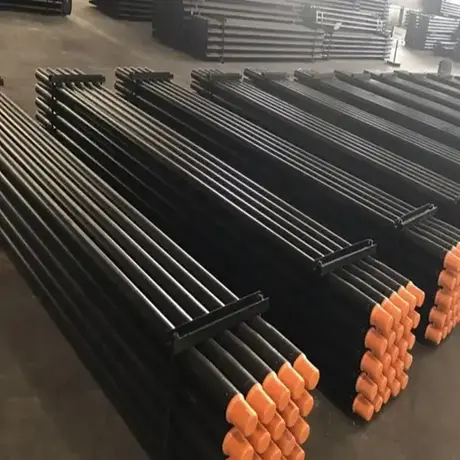

We supply API 5DP drill pipe in Grades E, X, G, and S, covering a range of sizes, nominal weights, lengths, and tool-joint configurations for oil and gas drilling projects. Grade E suits moderate mechanical loads, while Grades X and G offer higher strength for demanding conditions, and Grade S provides very high yield strength for heavy-load applications. Our product selection is matched to well depth, drilling loads, operating environment, and project specifications. Available options include various outside diameters, wall thicknesses, and connection types to coordinate with wellbore design, drill-string configuration, and hydraulic requirements. All products undergo strict quality control, including chemical composition, mechanical properties, dimensional inspection, thread and connection quality checks, and non-destructive testing as required. Full traceability and material certificates are provided. Export orders feature protective bundling, end protection, and optimized loading to prevent damage during international transit. Our global shipping services support efficient transportation planning for large-volume, long-length drill pipe shipments. To request a quotation, provide your drill pipe grade, outside diameter, nominal weight, length, connection type, quantity, applicable standard, and destination port for a tailored product and logistics proposal.

Conclusion

Selecting the correct drill pipe grade is critical for safe drill-string design. Grades E, X, G, and S represent increasing minimum yield strengths, but higher grades are not always the best choice. Selection must be based on actual loads, including tensile stress, torque, bending, and fatigue, as well as well depth and trajectory. Steel grade should be evaluated alongside pipe dimensions, wall thickness, and connection types, as these factors collectively determine load capacity. Service environment is equally important; corrosive conditions or H₂S exposure require specific material and inspection standards beyond simple strength metrics. Choosing Grade S when Grade E or X suffices adds unnecessary cost without performance benefits. The optimal strategy involves a complete engineering evaluation of well conditions, expected stresses, and applicable standards to balance performance, availability, and cost. This ensures a reliable, cost-effective drill pipe configuration tailored to the specific drilling operation.

FAQ：

FAQ 1: What is the difference between Grade E, X, G, and S drill pipe?

The main difference is their specified mechanical strength levels, with E, X, G, and S representing progressively higher minimum yield strength grades.

FAQ 2: Which drill pipe grade is the strongest, E, X, G, or S?

Among these commonly specified API drill pipe grades, Grade S has the highest minimum yield strength.

FAQ 3: Is Grade S drill pipe always better than Grade E drill pipe?

No. The appropriate grade depends on drilling loads, well conditions, fatigue requirements, connections, and the applicable project specification.

FAQ 4: What factors should be considered when selecting a drill pipe grade?

Key factors include well depth, tensile and torsional loads, drilling trajectory, pipe size and weight, fatigue, corrosion conditions, connection type, and applicable standards.
