Views: 3 Author: Site Editor Publish Time: 2026-07-29 Origin: Site
Pipe elbows are critical components in industrial piping systems, but their unique geometry makes them highly susceptible to corrosion. The change in flow direction creates turbulence, uneven flow distribution, and increased friction, which can accelerate surface damage. When combined with exposure to corrosive fluids, high temperatures, and harsh external environments, elbows are at significant risk of wall thinning, leakage, and unexpected system failures.
Preventing elbow corrosion requires a comprehensive approach. Material selection is paramount; depending on the operating conditions, engineers may choose carbon steel with protective coatings, stainless steel, or specialized alloys. Beyond material choice, modern pipeline systems employ multiple defense strategies. These include applying anti-corrosion coatings, utilizing cathodic protection, optimizing pipeline design, and conducting regular inspections to detect early signs of wear.
Main Causes of Corrosion in Pipe Elbows
Pipe elbows are more susceptible to corrosion than straight pipes due to their curved structure. Understanding corrosion causes helps select materials, improve design, and apply effective protection.
Key Causes
Cause | Description | Prevention |
|---|---|---|
Chemical Corrosion | Reaction with acids, alkalis, salts, or aggressive chemicals in transported fluids | Select chemically resistant materials; control fluid concentration and temperature |
Electrochemical Corrosion | Contact with electrolytes (water with salts/minerals) creates corrosion cells; galvanic corrosion between dissimilar metals | Isolate dissimilar metals; use compatible materials |
Erosion-Corrosion | Combined fluid movement and chemical attack—turbulence at elbows accelerates wear from high-speed fluids or particles | Optimize elbow design; control flow velocity; use erosion-resistant materials |
Environmental Corrosion | External exposure to moisture, humidity, seawater, industrial gases, soil, and temperature changes | Apply protective coatings; use corrosion-resistant surface treatments |
Material & Manufacturing Factors | Unsuitable materials, poor surface treatment, welding defects, damaged coatings expose metal to corrosion | Strict QC: material inspection, dimensional checks, surface testing |
Summary
Action | Benefit |
|---|---|
Chemical-resistant materials + proper coatings | Reduced corrosion rates |
Controlled flow + optimized design | Minimized erosion-corrosion |
Regular inspection + quality manufacturing | Early defect detection |
Pipe elbow corrosion results from chemical, electrochemical, erosion, environmental, and manufacturing factors. Proper material selection, coatings, flow control, and quality control extend service life and improve pipeline safety.
Effective Methods to Prevent Corrosion of Pipe Elbows
Preventing pipe elbow corrosion requires material selection, protective technologies, design optimization, and regular maintenance. A comprehensive strategy extends service life and improves system reliability.
Key Prevention Methods
Method | Key Actions | Benefit |
|---|---|---|
Select Corrosion-Resistant Materials | Carbon steel (general), stainless steel (chemical/food/pharma), alloy steel (high-temp/pressure) | Reduces corrosion risk; matches material to operating conditions |
Apply Protective Coatings | Epoxy, 3PE/3LPE, zinc coatings; barrier against moisture, chemicals, oxygen | Prevents surface corrosion; inspect and repair damaged coatings promptly |
Use Cathodic Protection | Sacrificial anode or impressed current systems for underground/marine pipelines | Controls electrochemical corrosion; effective for buried and submerged systems |
Optimize Design & Installation | Suitable elbow radius; reduce turbulence; proper alignment, welding, and stress control | Minimizes erosion-corrosion; prevents stress concentration areas |
Perform Regular Inspection | Visual checks, UT thickness testing, corrosion monitoring, NDT | Early defect detection; prevents unexpected failures |
Follow Quality Standards | Comply with ASTM, ASME, EN; conduct material, surface, dimensional, and performance testing | Ensures consistent quality; reliable performance |
Summary
Action | Result |
|---|---|
Quality materials + coatings | Reduced surface corrosion |
Cathodic protection + design optimization | Extended service life |
Regular inspection + maintenance | Fewer unexpected failures |
Our Pipe Elbow Solutions & Global Shipping
Our Products

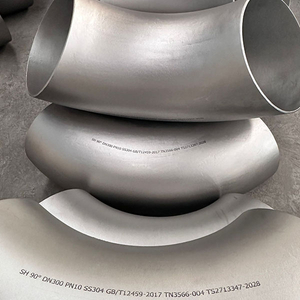

Ensure the safety and reliability of your piping systems with our premium steel pipe elbows. We supply a comprehensive range of Carbon Steel, Stainless Steel, and Alloy Steel elbows in both Long and Short Radius configurations. Available in various sizes and pressure ratings, our products are fully customizable to meet your specific engineering requirements.
Strict Quality Control
To prevent corrosion and guarantee long-term durability, we employ strict quality control throughout the manufacturing process. Every elbow undergoes rigorous testing, including:
Chemical analysis & mechanical property tests
Dimensional & surface inspections
Full compliance with international standards (ASTM, ASME, EN)
Anti-Corrosion Protection
For harsh environments, we offer advanced surface treatments to extend pipeline life, including 3PE, epoxy, and zinc coatings.
Global Shipping & Export
We provide secure, export-standard packaging and flexible shipping solutions via containers.
Trade Terms: FOB, CIF, CFR, and EXW
Export Support: Complete documentation for seamless customs clearance
Get a Quote
Partner with us for dependable pipe elbow solutions, competitive pricing, and efficient global delivery. Contact us today for a customized quote!
Conclusion
Preventing pipe elbow corrosion is essential for safety, efficiency, and long-term reliability. Elbows face complex conditions—turbulence, pressure changes, chemicals, and environmental factors—making them more vulnerable than straight pipes.
Key Causes: Chemical corrosion, electrochemical reactions, erosion-corrosion, environmental exposure, and material/manufacturing issues.
Prevention Methods:
Material selection: Carbon steel, stainless steel, or alloy steel based on application
Protective coatings: Epoxy, 3PE/3LPE, zinc coatings as barriers
Design & installation: Optimize elbow radius; reduce turbulence; proper alignment and stress control
Regular inspection: Visual checks, UT thickness testing, corrosion monitoring for early detection
Supplier Selection: Choose manufacturers with high-quality materials, strict QC, compliance with ASTM, ASME, EN, and customized solutions for unique temperature, pressure, and corrosion requirements.
FAQ:
FAQ 1: Why do pipe elbows corrode faster than straight pipes?
Explain the effects of fluid turbulence, flow direction changes, erosion-corrosion, and stress concentration in elbow areas.
FAQ 2: What is the best method to prevent corrosion of pipe elbows?
Discuss the combined use of corrosion-resistant materials, protective coatings, cathodic protection, and regular maintenance.
FAQ 3: Which materials are most resistant to pipe elbow corrosion?
Explain the advantages of stainless steel, alloy steel, and specially coated carbon steel elbows for different applications.
FAQ 4: How often should pipe elbows be inspected for corrosion?
Discuss inspection frequency based on operating environment, fluid type, pressure conditions, and industry requirements.
