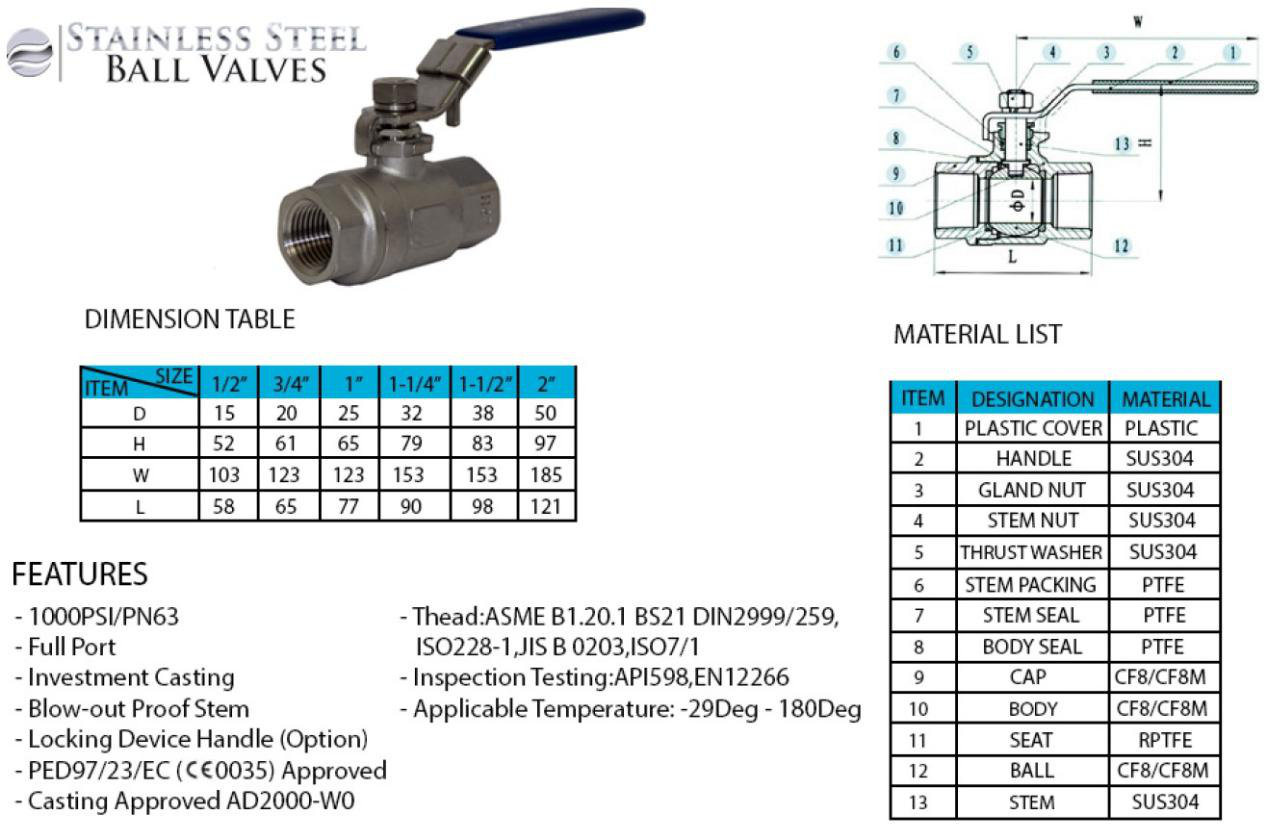

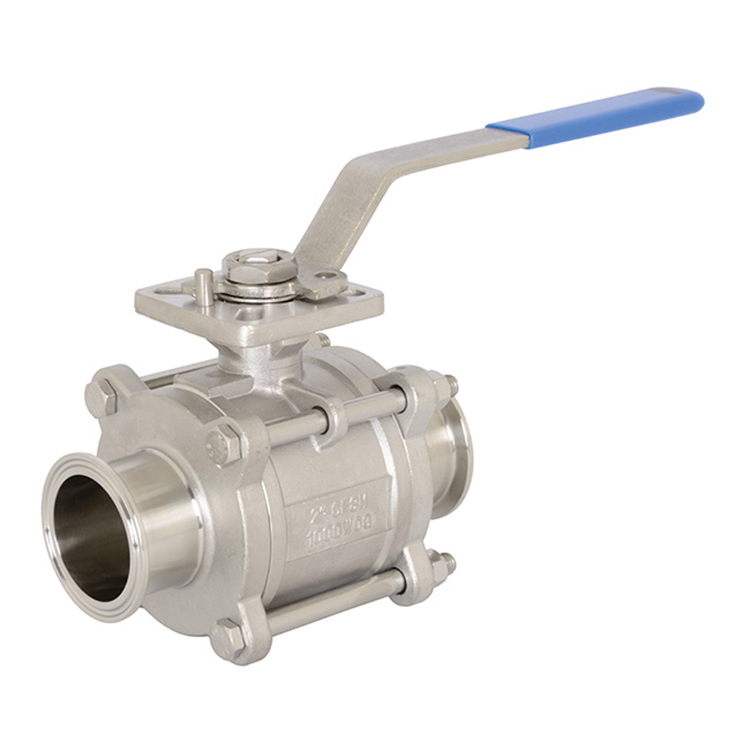

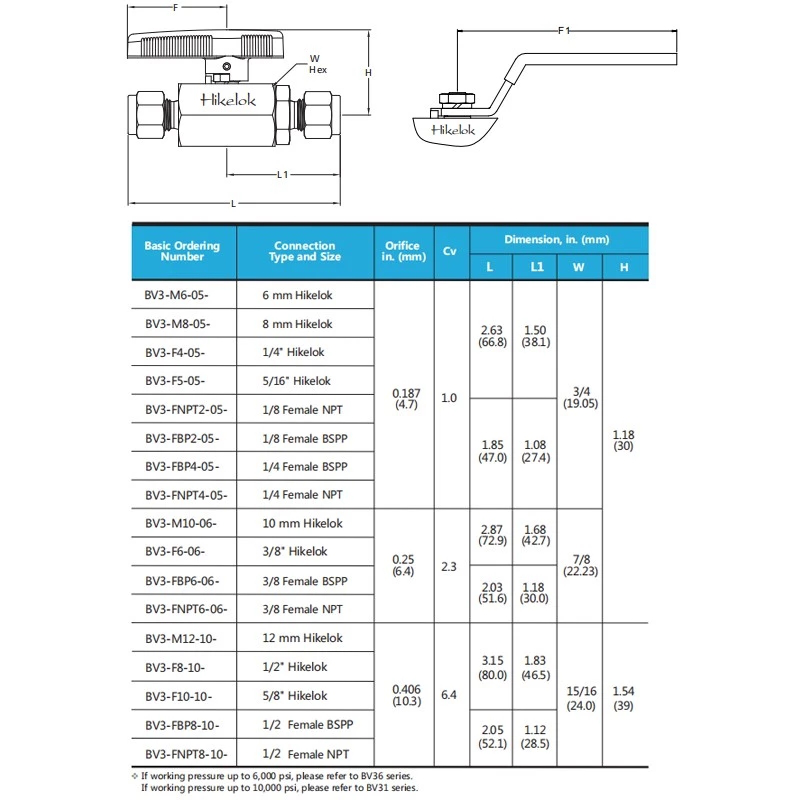

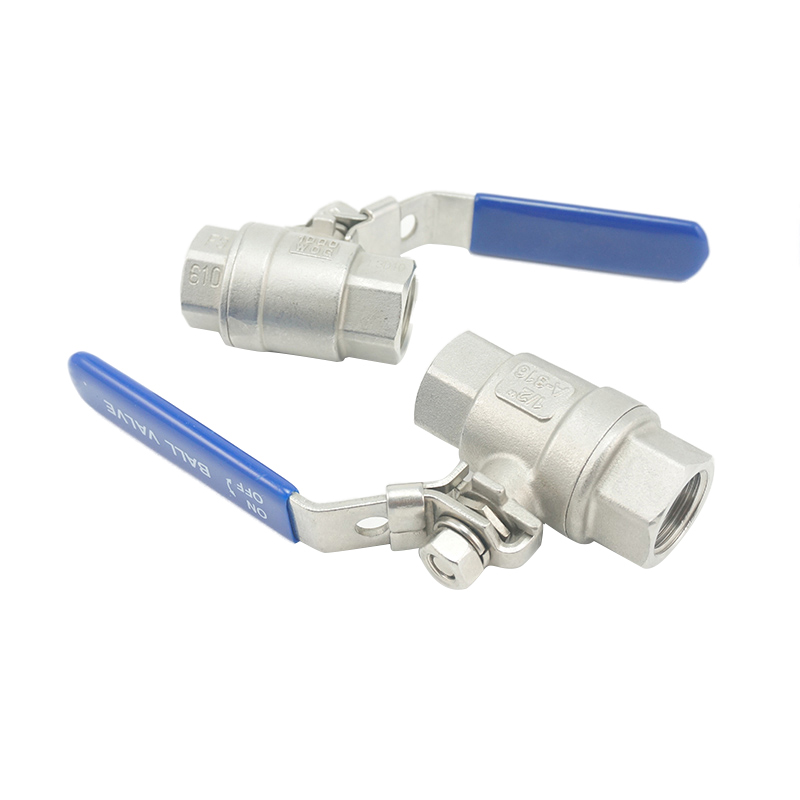

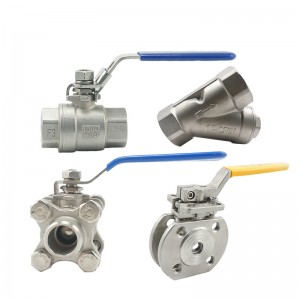

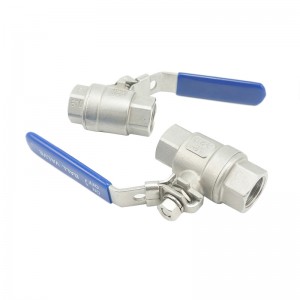

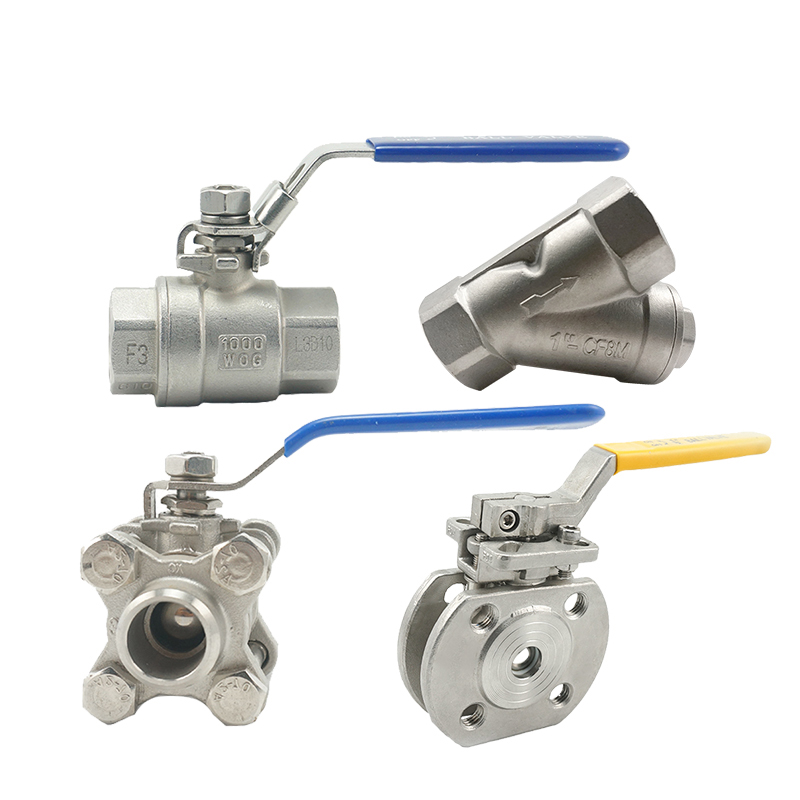

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
ボールバルブでも長期間使用後しっかりと閉じ、多くのサイクル、および信頼性の後にも行うことにより、耐久性があります。 これらの資質は、それらを彼らはしばしばゲートやグローブバルブに好まれる遮断および制御アプリケーションのための優れた選択肢となっていますが、それらは、絞りアプリケーションでの細かな制御を欠いています。

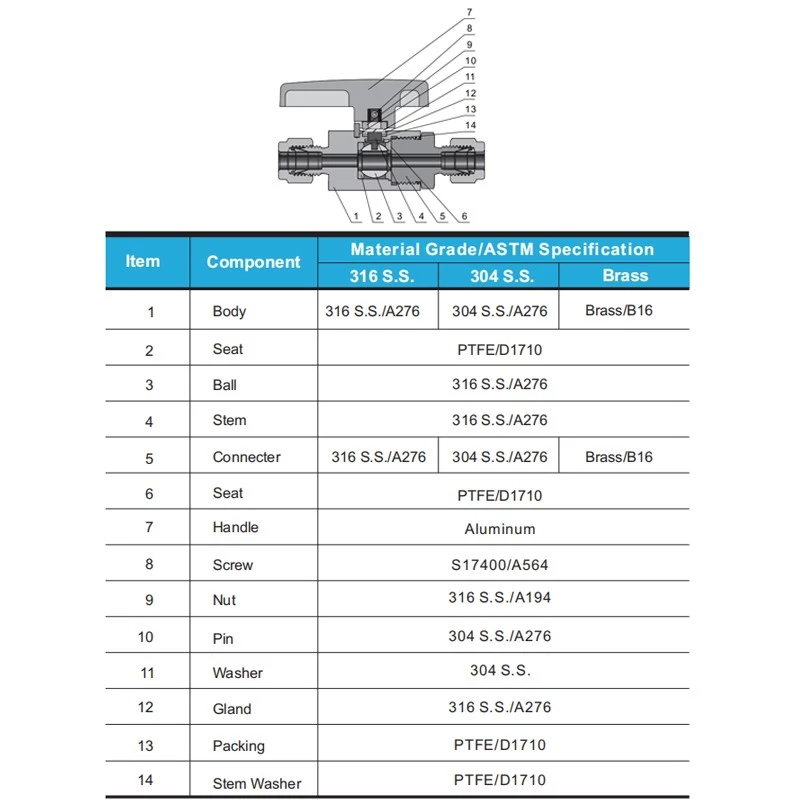

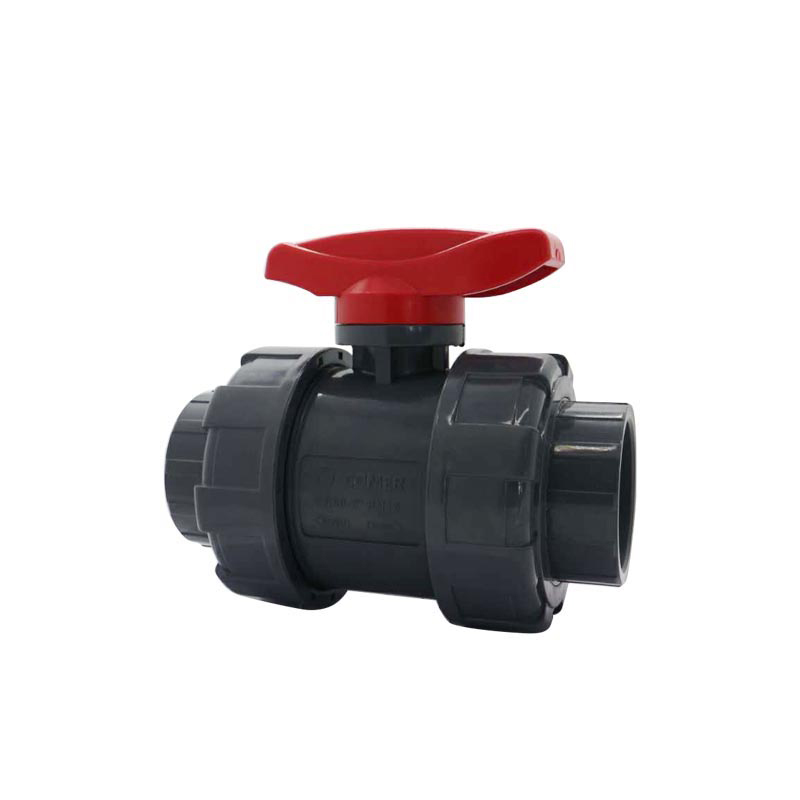

The ball valve's ease of operation, repair, and versatility lend it to extensive industrial use, supporting pressures up to 1,000 bar (100 MPa; 15,000 psi) and temperatures up to 752 °F (400 °C), depending on design and materials used. Sizes typically range from 0.2 to 48 inches (5.1 to 1,219.2 mm). Valve bodies are made of metal, plastic, or metal with a ceramic; floating balls are often chrome plated for durability. One disadvantage of a ball valve is that they trap water in the center cavity while in the closed position. In the event of a freeze, the sides can crack due to expansion of ice forming. Some means of insulation or heat tape in this situation will usually prevent damage. Another option for cold climates is the "freeze tolerant ball valve". This style of ball valve incorporates a freeze plug in the side so in the event of a freeze up, the freeze plug ruptures (acts as a sacrificial disk), thus making for an easy repair. Now instead of replacing the whole valve, just screw in a new freeze plug.
VALVES FROM関数は次のとおりです。
停止と流れを開始
流れを減少または増加
流れの方向を制御します
流量又はプロセス圧力を調整します
一定の圧力の配管システムを和らげます
バルブの分類
以下は、機械的な動きに基づいて、一般的に使用されるバルブの分類の一部です:
Linear Motion Valves. The valves in which the closure member, as in gate, globe, diaphragm, pinch, and lift Check Valves, moves in a straight line to allow, stop, or throttle the flow.
ロータリーモーションバルブ。 弁閉鎖部材は、バタフライ、ボール、プラグのように、角又は円形の経路に沿って移動eccentric-バルブをチェックスイングするとき、バルブは、回転運動のバルブと呼ばれます。
Quarter Turn Valves. Some rotary motion valves require approximately a quarter turn, 0 through 90°, motion of the stem to go to fully open from a fully closed position or vice versa.
MOTIONに基づくバルブの分類
バルブタイプ | リニアモーション | 回転運動 | 四分の一回転 |
ゲート | はい | NO | NO |
グローブ | はい | NO | NO |
プラグ | NO | はい | はい |
玉 | NO | はい | はい |
バタフライ | NO | はい | はい |
スイングチェック | NO | はい | NO |
横隔膜 | はい | NO | NO |
ピンチ | はい | NO | NO |
安全性 | はい | NO | NO |
救済 | はい | NO | NO |
バルブタイプ | リニアモーション | 回転運動 | 四分の一回転 |
クラス評価
バルブの圧力 - 温度定格は、クラス番号を付しています。 ASME B16.34、バルブ、フランジ、スレッド、および溶接エンドは、最も広く使用されているバルブの規格の一つです。 標準、特別な、限られた:それは、クラスの3種類を定義します。 ASME B16.34は、クラス150、300、400、600、900、1500、2500、および4500のバルブカバーしています。
