Temperature Boundaries of ASTM A106 And A333: How To Choose Between High-Temperature And Low-Temperature Tubes

ASTM A106 and ASTM A333 steel pipes serve different temperature conditions in industrial piping. ASTM A106 seamless carbon steel pipe is designed for high-temperature service in refineries, power plants, and steam systems, while ASTM A333 covers seamless and welded pipe for low-temperature applications requiring verified toughness. Temperature affects steel strength, ductility, impact resistance, and long-term reliability; elevated temperatures may reduce strength and cause creep, whereas low temperatures increase brittle fracture risk. Selection should not rely on the standard name alone but on design temperature, pressure, grade, wall thickness, impact testing, and applicable piping codes. This article compares ASTM A106 and ASTM A333 to help engineers and buyers choose safe, compliant piping for high- or low-temperature service.

ASTM A106 vs. ASTM A333: Standards and Temperature Applications

ASTM A106 and ASTM A333 are widely used steel pipe specifications for industrial piping, but they serve different temperature requirements. ASTM A106 covers seamless carbon steel pipe for high-temperature service, while ASTM A333 covers seamless and welded pipe for low-temperature service. Understanding their scope, grades, and testing helps engineers select suitable materials.

Quick Comparison

2.1 ASTM A106: High-Temperature Service

Commonly used in refineries, power plants, petrochemical facilities, and industrial steam systems. Seamless construction suits elevated temperatures and internal pressure.

Note: ASTM A106 does not establish one universal maximum operating temperature. Allowable use depends on grade, design pressure, wall thickness, material properties, and applicable piping code.

At elevated temperatures, consider reduced material strength and long-term creep effects. Proper design calculations are essential.

2.2 ASTM A333: Low-Temperature Service

Covers seamless and welded pipe for low-temperature service, including cold-region pipelines, refrigeration systems, and industrial processes where brittle fracture resistance matters.

Key feature: Grade-specific impact-testing requirements. Charpy V-notch testing assesses energy absorption at a specified temperature.

Note: ASTM A333 is not automatically suitable for every cryogenic application. Evaluate MDMT, grade, impact results, and design code.

2.3 How to Choose the Appropriate Standard

Temperature Boundaries of ASTM A106 and ASTM A333

Understanding the temperature boundaries of ASTM A106 and ASTM A333 is essential for selecting materials for industrial piping. ASTM A106 is for high-temperature service, while ASTM A333 is for low-temperature service. Neither establishes one universal limit — actual allowable temperature depends on grade, material properties, design pressure, wall thickness, and applicable piping code.

Key distinction: A material specification's testing requirements differ from the temperature limits permitted by the complete piping design.

Quick Comparison

3.1 ASTM A106: High-Temperature Considerations

Used in steam lines, refineries, power plants, and process piping. At higher temperatures, steel experiences reduced allowable stress, and creep may become important under sustained stress.

Key considerations:

ASTM A106 Grade B is common for conventional high-temperature piping. Compliance with ASTM A106 does not automatically suit every high-temperature application.

3.2 ASTM A333: Low-Temperature Considerations

Used in cold-region pipelines, refrigeration systems, and low-temperature industrial facilities. At low temperatures, some steels become susceptible to brittle fracture.

ASTM A333 addresses this through grade-specific requirements, including impact testing where required.

Key selection factors:

ASTM A333 Grade 6 is widely used in low-temperature piping. Do not assume it suits every sub-freezing or cryogenic service.

3.3 How to Determine the Appropriate Temperature Boundary

ASTM A106 vs. ASTM A333: Key Differences in Performance and Testing

ASTM A106 and ASTM A333 steel pipes are used in industrial pressure piping, but they address different temperature-related requirements. ASTM A106 is for high-temperature service, while ASTM A333 is for low-temperature service where toughness is essential. Their differences involve grades, mechanical properties, impact testing, and application requirements.

Quick Comparison

4.1 Chemical Composition and Mechanical Properties

ASTM A106 covers seamless carbon steel in Grades A, B, and C. Grade B is widely used in process piping for its balance of strength, availability, and fabrication suitability.

ASTM A333 covers seamless and welded pipe in Grades 1, 3, 6, and 7. Requirements vary by grade based on intended low-temperature service.

Both control chemical composition and mechanical performance. Neither standard alone guarantees suitability for every operating temperature. Evaluate grade alongside pressure, wall thickness, design temperature, and piping codes.

4.2 Impact Testing and Low-Temperature Toughness

This is a main difference between the two standards.

If ASTM A106 pipe is considered for low-temperature service, suitability must be separately established under the design code.

For cold environments or low-temperature fluids, verify the A333 grade and review impact-test results.

4.3 Performance at High and Low Temperatures

Neither specification guarantees performance outside its intended service conditions.

4.4 Manufacturing, Inspection, and Documentation

Confirm before ordering:

• Dimensions and wall thickness

• Surface condition

• Mechanical test results

• Material traceability

How to Choose Between ASTM A106 and ASTM A333

Choosing between ASTM A106 and ASTM A333 steel pipes depends mainly on operating temperature, pressure, impact toughness, and application requirements. Both cover carbon steel pipes for industrial piping, but they are designed for different service conditions. ASTM A106 is for high-temperature service, while ASTM A333 is for low-temperature applications where brittle fracture resistance is important.

Selection Guide at a Glance

5.1 Evaluate the Operating Temperature

Temperature is the first factor to consider.

ASTM A106 — seamless carbon steel pipe for high-temperature applications including steam lines, refineries, power plants, and process piping. Suitability depends on grade, design metal temperature, allowable stress, and piping code.

ASTM A333 — designed for low-temperature service, available in several grades. Grade 6 is common, but verify against the project's MDMT and impact-testing requirements.

Note: Do not choose based only on ambient temperature. Consider startup, shutdown, and abnormal operating conditions.

5.2 Consider Pressure and Mechanical Requirements

Operating pressure affects required wall thickness and material selection. Evaluate design pressure, diameter, wall thickness, allowable stress, and safety factors.

For cold environments, adequate impact toughness reduces brittle fracture risk.

5.3 Check Testing and Quality Requirements

Confirm before ordering:

• Material test certificate

• Chemical composition

• Tensile properties

• Impact-test results

• Dimensions and inspection requirements

5.4 Match the Pipe to the Application

5.5 Confirm Project Specifications Before Purchasing

The final choice should follow project design documents and applicable piping code. Neither standard should be selected based only on its name suggesting high- or low-temperature suitability. Grade, manufacturing, dimensions, inspection, and service conditions all affect performance.

Our Recommended ASTM A106 and ASTM A333 Steel Pipe Products and Global Shipping Services

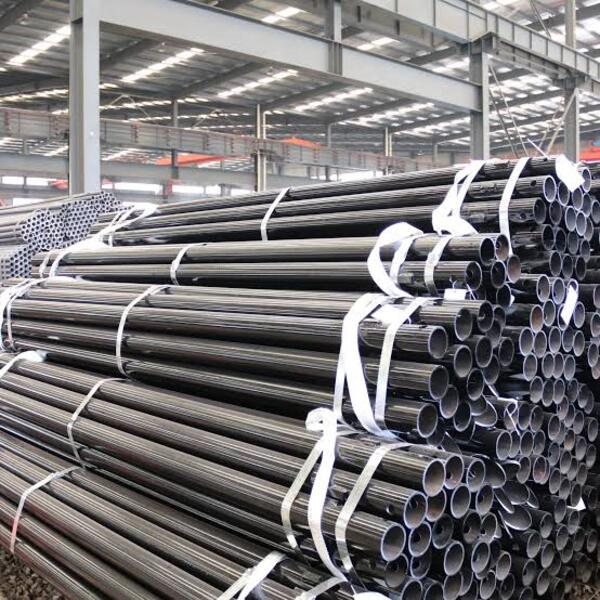

We supply ASTM A106 seamless carbon steel pipes for high-temperature service and ASTM A333 seamless and welded pipes for low-temperature applications requiring verified impact toughness. ASTM A106 Grades A, B, and C suit power generation, refinery, petrochemical, and steam systems, while ASTM A333 Grade 6 and other grades serve cold-region pipelines and low-temperature process lines. Products can be specified by grade, outside diameter, wall thickness, length, heat treatment, impact-testing requirements, end preparation, and inspection documentation. For international orders, pipes are securely bundled, clearly marked, and shipped by sea freight with commercial invoices, packing lists, and material test certificates. To request a quotation, please provide the applicable ASTM edition, grade, dimensions, quantity, operating temperature and pressure, inspection requirements, destination port, and delivery schedule. Confirming specifications early helps ensure safe, compliant, and efficient procurement of ASTM A106 and ASTM A333 steel pipes.

Conclusion:

ASTM A106 and ASTM A333 carbon steel pipes serve different temperature conditions in industrial piping. ASTM A106 seamless pipe is generally preferred for high-temperature service in steam systems, refineries, power plants, and petrochemical facilities, while ASTM A333 is designed for low-temperature applications requiring verified impact toughness to reduce brittle fracture risk. Grade selection should be based on minimum and maximum design metal temperatures, design pressure, wall thickness, mechanical properties, chemical composition, impact-testing requirements, and applicable piping codes. Neither standard provides a single universal temperature limit for all grades and applications. For international procurement, buyers should confirm the ASTM edition, grade, dimensions, inspection documentation, packaging, and shipping arrangements before ordering. Matching pipe material to actual service conditions helps improve safety, compliance, delivery efficiency, and long-term performance of industrial piping systems.

FAQ

Q1: What is the main temperature difference between ASTM A106 and ASTM A333?

ASTM A106 is intended for high-temperature service, while ASTM A333 covers steel pipe for low-temperature service; actual limits depend on the grade, design code, and operating conditions.

Q2: Can ASTM A106 pipe be used at low temperatures?

Only when its suitability for the specified minimum design metal temperature is established through applicable material requirements, toughness assessment, and engineering codes.

Q3: Is ASTM A333 Grade 6 suitable for low-temperature service?

ASTM A333 Grade 6 is commonly used for low-temperature piping, but the required impact testing and minimum design temperature must be verified for the specific application.

Q4: Can ASTM A333 pipe be used for high-temperature applications?

Its suitability must be assessed against the selected grade's properties, applicable code limits, pressure, and design temperature; ASTM A106 is generally the more direct starting point for conventional high-temperature carbon steel piping.

Q5: What information is needed to select ASTM A106 or ASTM A333 pipe?

Provide the minimum and maximum design temperatures, design pressure, pipe dimensions, required grade, applicable code, testing requirements, and service conditions.
