t şeklinde

Kısa Açıklama:


  • Anahtar Kelimeler: Equal Tee, Unequal Tee, Cross Tee, Socket Tee, Short Tee, Forging Tee
  • Boyutu: '36 '1/2 NPS', 15 ila 900 DN WT: 2-80mm SCH 40/80 / XXS
  • Malzeme ve Standart: Karbon Çelik --- ASTM A234 WPB / WPC, ANSI B 16.9, ASTM A105 / A106 / A53; Paslanmaz Çelik --- ASTM 403 304 / 304L, 316 / 316L, 316Ti, 321,317L, 310S; Alaşım Çelik --- ASTM A234 WP1 / 5/9/11/12/22/91
  • Bitiş: Kare / Düz Ends (düz kesim, testere ile kesilmiş, meşale kesme), Beveled / Dişli Ends bitiyor
  • Ambalaj: / Ahşap Tepsi Ahşap kabin içinde Paketli
  • Kullanımı: Oil And Gas Transmissions;Petroleum And Oil Refining;Water Treatment Systems;Chemical Industries; Sanitary Tubing;Power Stations;Machines And Equipment;Heat Exchange
  • Ürün ayrıntısı

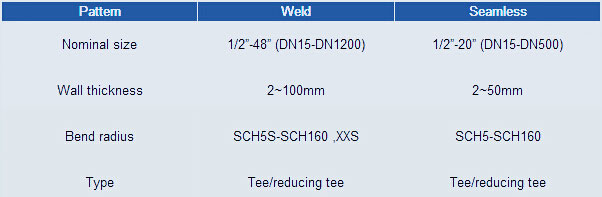

    Şartname

    Standart

    Boyama ve Kaplama

    Ambalaj ve Yükleme

    Boru Tee, Tee Parçaları

    A tee is also called triplet,three way and "T" pieces and it can be used to either combine or split a fluid flow. Most common are tees with the same inlet and outlet sizes, but 'reducing' tees are available as well. it means the one or two ends are differ in dimension.due to thisdimension differ,the makes the tee fittings with the capacity to control the volume when requried.

    Steel pipe tee has three branches that can change fluid direction. It has T-shaped or Y-shaped, and include Equal Tee and Reducing Tee (Reducer Tee). Steel tee is widely used in pipe networks for convey liquids and gases.

    Types of steel pipe tee:

    şube çapları ve işlevlerine göre vardır:

    Eşit Tee

    Azaltma Te (Azaltıcı Tee).

    bağlantı türleri göre şunlardır:

    Butt Weld Tee

    Soket Kaynaklı Tee

    Dişli Te.

    Malzeme türlerine göre vardır:

    Karbon Çelik Boru Tee

    Alaşım Çelik Tee

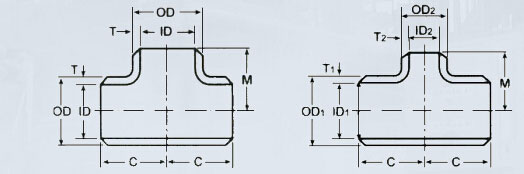

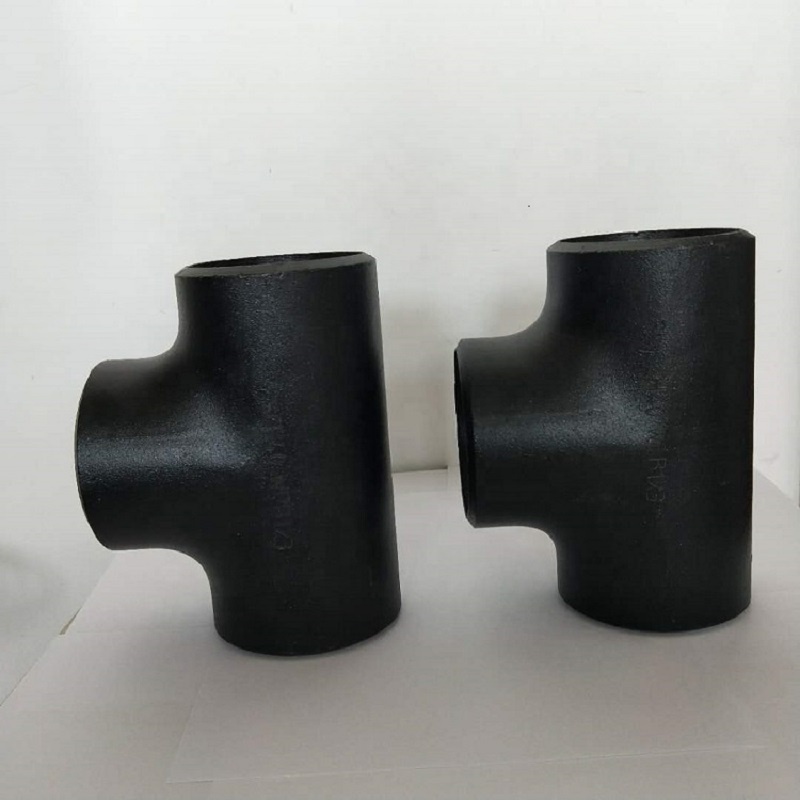

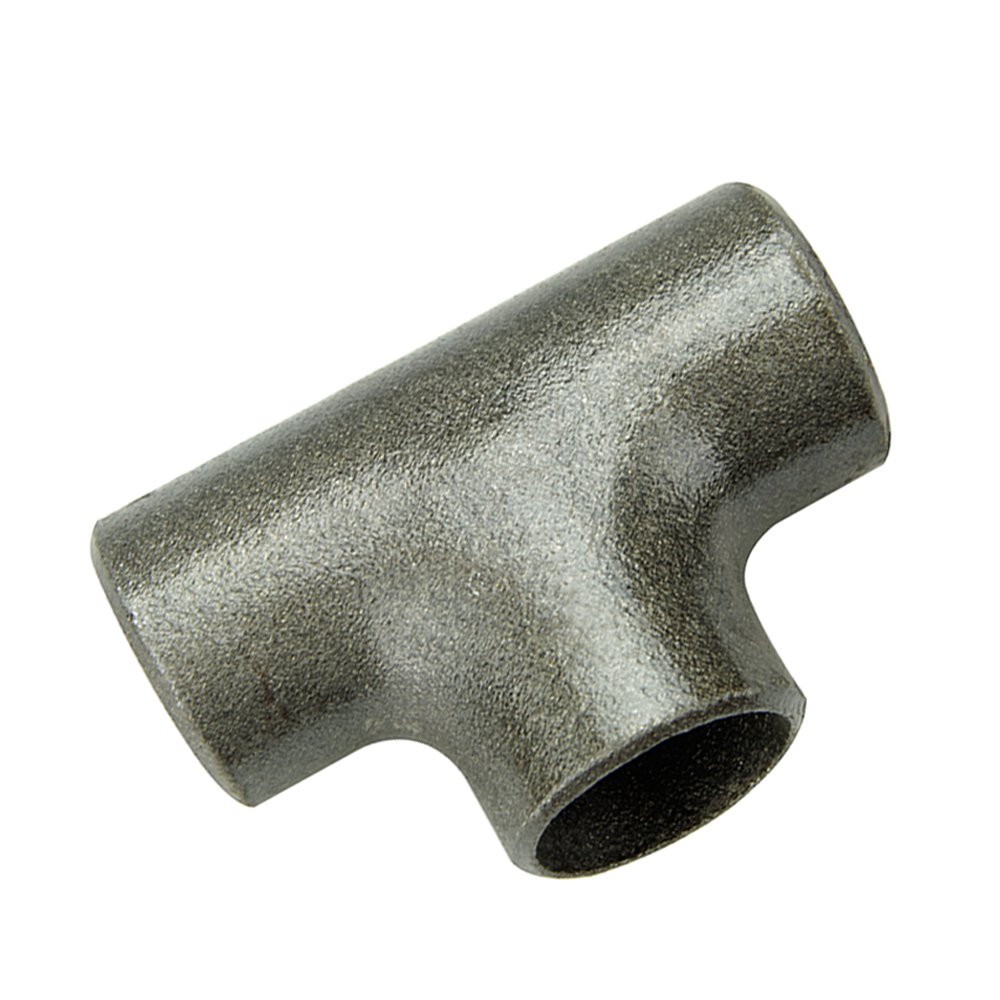

    Tee-01 tee-02

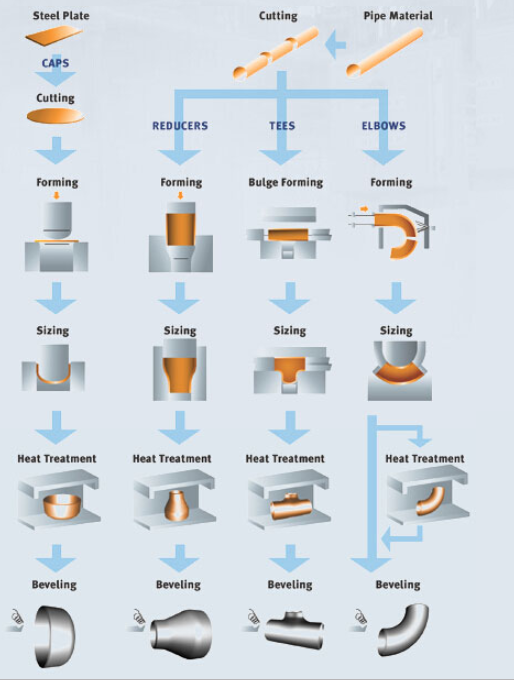

    süreç

    tee-03

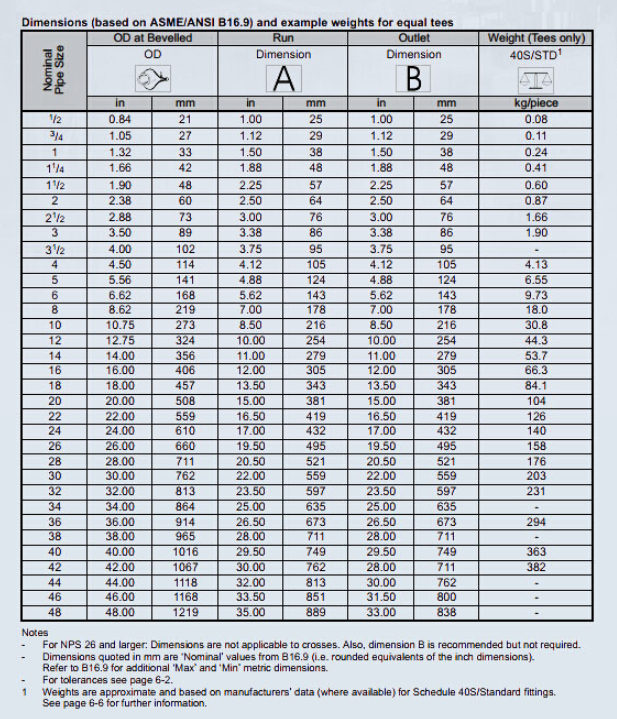

    Steel Equal Tee

    Equal tee: Three branches of tee have same diameters. Also named as Straight Tee.

    Steel Equal Tee Description usually as below:

    Eg: 6'' Tee ASME B16.9 BW Wrought

    Standard ASTM A234 GR. WPB SMLS

    Wall thickness Schedule STD

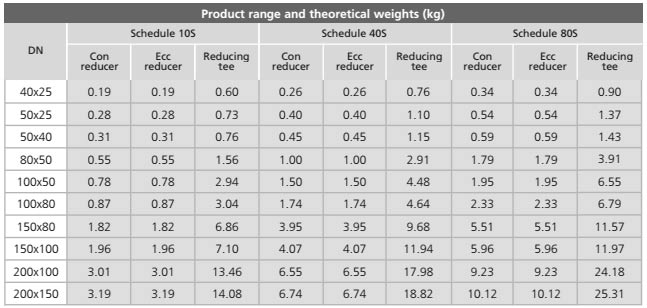

    Steel Reducing Tee (Reducer Tee)

    Reducing tee (Reducer Tee): The branch diameter is smaller than main diameter. The reducing tee is usually described as NPS diameters in 4” x 4” x 3”,  where 4” is the main line pipe diameter, and 3” is the reducing branch.



    Butt Weld Tee

    Butt weld tee is widely used in petroleum, aerospace pharmacy, chemical industry, metallurgy, electric power, military industry, engineering support and other industrial pipelines.

    Ends in plain or beveled, connected by butt welding process. It can withstand higher pressure than other types. The size of butt weld tee should be specified in pipe NPS (DN) and thickness in schedule, where the socket weld tee or thread tee thickness should be specified in the pressure level.

    Butt weld tee is divided into seamless cold-drawn tee and seam welding tee in the production process.



    Soket Kaynaklı Tee

    Socket weld tee is a kind of high pressure pipe connection fitting. Like the other fittings, it has a trapezoidal area where the pipe can inserted into the tee branch and weld together. It is commonly used in small diameter systems.

    Socket weld tee is described as NPS and Pressure ratings 3000#, 6000# and 9000#, same as threaded tee.



    Threaded Tee

    In the manufacturing process, threaded pipe tee has forging and casing process. Forging is formed by heating forging with ingots or round bars, then turning on a lathe to process threads. Casting means that the ingot is melted and poured into the tee model after it is cooled.

    Based on socket tee form, the branch end can be threaded to male or female. So there are male tee and female tee, which if the tube with male NPT threads, then the tee shall be with female NPT threads.



    Pipe tees have three female openings in a T-shaped.

    There are straight pipe tees which have the same size openings.

    Reducing pipe tees have one opening of different size and two openings of the same size.

    There are sanitary pipe tees which are used in waste lines. These kinds of pipe tees have a curved branch which is designed for a clean out plug. They are used to prevent obstruction of waste.

    A compression pipe tee uses compression fittings on two or more ends.

    A test pipe tee has a threaded opening. This opening is used in conjunction with a threaded plug for a clean-out opening on a drain pipe.


  • Önceki:
  • Sonraki:

  • tee-04

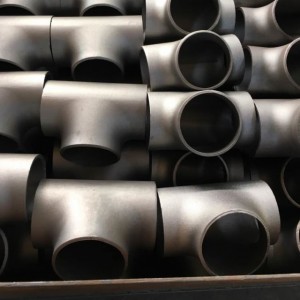

    Karbon Çelik Tee

    Karbon çelik tee malzemesi: ASTM A234 WPB WPC; MSS SP-75 WPHY-42, WPHY-46, WPHY-52, WPHY-56, 60, 65 ve 70.

    alın kaynağı T parçaları ASME / ANSI B16.9,

    soket kaynak ve dişli T parçaları ASME / ANSI B16.11.



    Alaşım Çelik Tee

    Alaşımlı çelik malzemesi: ASTM A234 WP1, İP 5, WP9, WP11, WP22, WP91

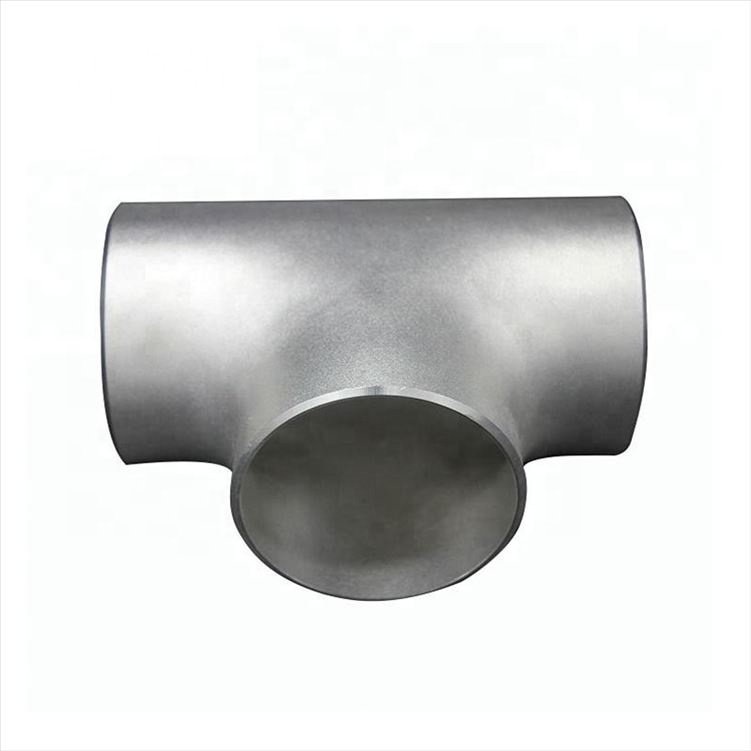

    Paslanmaz Çelik Tee

    Paslanmaz çelik tee yaygın kimyasal, sağlık, gıda ve diğer sektörlerde kullanılmaktadır. Avantajları farklı çalışma ortamları için geçerlidir ve iyi korozyon direncine sahiptir.

    Standartlar: ASTM A403 (paslanmaz çelik boru parçaları için ortak Standardı) ASTM A270 (Sağlık Boru Standardı)

    Sınıf: TP 304, 304L, 316, 316, 310, 317 ve 321.

    Tee-05

    Işık Yağlama, Siyah Boyama

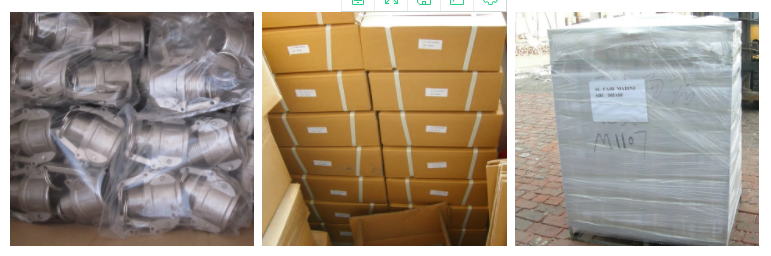

    tee ambalaj
