Ringlock Scaffolding

Short Description:


  • Keywords: Ring-Lock Scaffolding ,Ringlock Scaffolding System
  • Size: Ø48.3*3.25*1000/2000/3000 or as your request
  • Specification: M48, M60
  • Certification:  ISO9001, SGS, CCIC etc
  • Material: Q235, Q195, Q345
  • Certificate: SGS, CE
  • Surface Treatment: Galvanized
  • Features: Automatic Welding
  • Product Detail

    Specification

    System Features

    Ring-Lock Scaffolding System consists of hot dipped galvanized steel pie and modular components that are assembled together using integral wedge connectors. Ring-Lock system is a modular scaffold system which can provide major saving in labor cost while meeting the demands for safety, ease of handling and reductions in maintenance.

    Components:
    Ring-Lock Standard With Spigot, Ring-Lock Ledger, Ring-Lock Diagonal, Wedge Pin, Base Collar, Steel Plank, Steel Stair Case.

    Feature:
    - Time efficient during assembly and dismantling
    - Safe and simple one-man assembly
    - No loose parts
    - Maintenance free

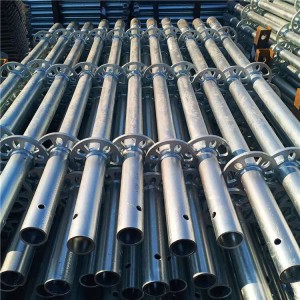

    1. Standard

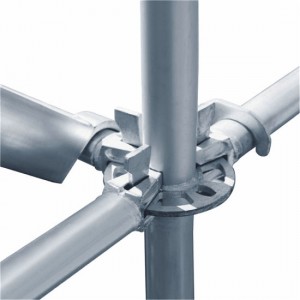

    Standard is made of a certain length of Q345 steel tube welded with rosettes by a 0.5m pitch modulus and welded with sleeves at the top of steel tube. It has two type’s heavy duty (Z type) and standard type (B type), the diameter of Z type is ∅60.3×3.2mm and the diameter of B type is ∅48.3×3.2mm. The length of vertical has 0.5m, 1.0m,1.5m, 2.0m, 2.5m, 3.0m.

    2. Ledger

    Horizontal Ledger

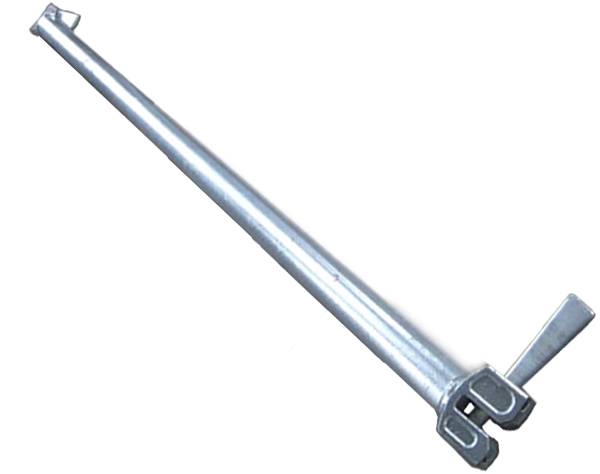

    Ledger is connected to the rosette on the standard and is made of steel tube by a 0.3m modulus and welded with ledger ends. Ledger is made of Q235 steel tube, size is ∅48.3×2.5mm. The length of ledger has 0.3m, 0.6m, 0.9m, 1.2m, 1.5m, 1.8m and 2.0m.

    3. Diagonal Brace

    Scaffolding Diagonal Brace

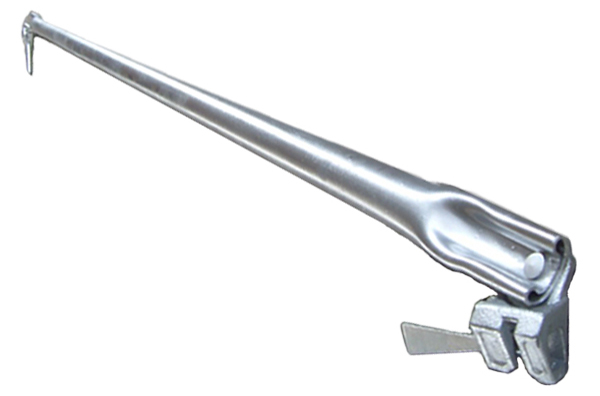

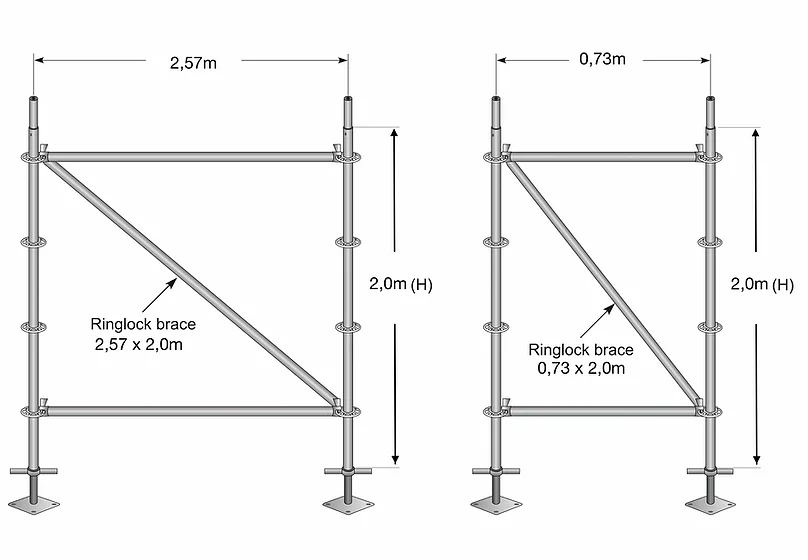

    Diagonal brace is connected to the rosette on the standard and is made of steel tube and brace ends by welding, it has two types vertical type and level type, the diameter of vertical type is ∅48.3×2.5mm and ∅33.7×2.3mm, and level type is ∅48.3×2.5mm. Vertical type is made of Q195 steel tube and level is Q235B. The length of brace can design according to the ledger length or steps like 1.0m and 1.5m, such as 1.2m ledger we can use 1.2×1.0m or 1.2×1.5m brace.

    4. Adjustable Base Jack

    Base jack is a adjustable jack which install at the bottom of vertical, consist of bottom plate, screw rod and handle nut. The material of bottom plate is steel plate Q235, the material of screw rod is steel 20# and the material of handle nut is casting steel ZG270-500. Z type vertical include ?48mm screw rod and handle nut and B type vertical include ?38mm screw rod and handle nut. The length

    5. Adjustable U-head Jack

    U-head Jack is a adjustable Jack which install on the top of vertical, consist of support plate, screw rod and handle nut. The material of support plate is steel plate Q235, the material of screw rod is steel 20# and the material of handle nut is casting steel ZG270-500. Z type vertical include ∅48mm screw rod and handle nut and B type vertical include ∅38mm screw rod and handle nut. The length between screw rod and handle nut is not less than 5

    6. Steel Plank

    scaffolding plank

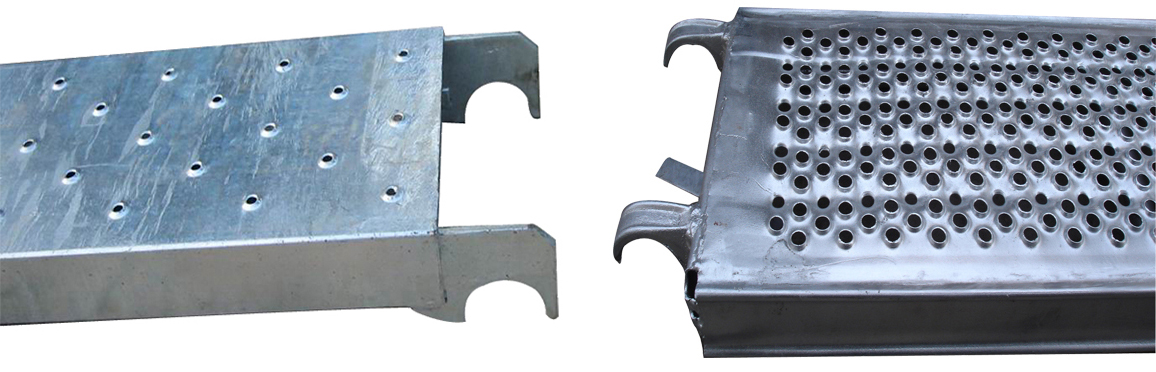

    Hook the steel plank on the scaffold and fasten it firmly with the clamp plate. Steel plank is made of Q235 steel plate. It has 1.5m and 2.0m two sizes.

    7. Stair

    A climbing ladder fastened on a horizontal of scaffold for construction persons to pass up and down. It’s made of Q235B steel plate. It has 1.5m and 2.0m two sizes.

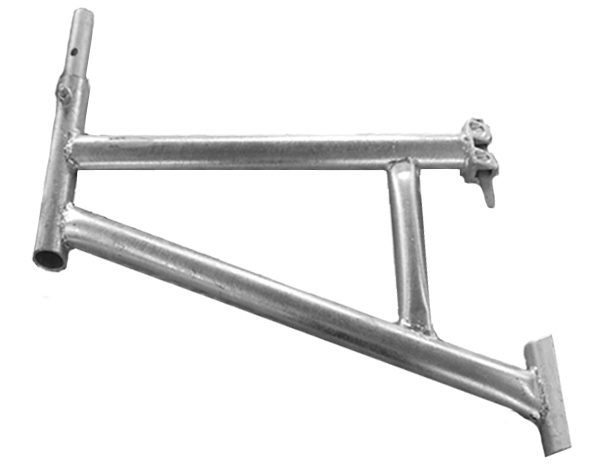

    8. Bracket

    Bracket

    Bracket is a side cantilever triangular truss which to be connected with rosette of standard. Material is Q235 steel tube. Size such as 0.3m, 0.6m and 0.9m can design on request.

    In addition, other fittings include wall tire, double-channel steel and toe board. Size can design on request


  • Previous:
  • Next:

  • RINGLOCK STANDARD WITH SPIGOT
    (48.3mm x 3.2mm, Q345, Hot Dipped Galvanized)

    Description

    Weight/ length

    Ring-Lock Standard 500mm

    2.76kg

    Ring-Lock Standard 1000mm

    5.18kg

    Ring-Lock Standard 1500mm

    7.61kg

    Ring-Lock Standard 2000mm

    10.03kg

    Ring-Lock Standard 2500mm

    12.45kg

    Ring-Lock Standard 3000mm

    14.87kg

    Ring-Lock Standard 4000mm

    19.72kg

    RINGLOCK LEDGER
    (48.3mm x 3.0mm, Q235, Hot Dipped Galvanized)

    Description

    Weight/ length

    Ring-Lock Ledger 1000mm

    4.62kg

    Ring-Lock Ledger 1500mm

    6.50kg

    Ring-Lock Ledger 2000mm

    8.38kg

    Ring-Lock Ledger 2500mm

    10.27kg

    Ring-Lock Ledger 3000mm

    12.16kg

    RINGLOCK DIAGONAL
    (48.3mm x 3.2mm, Q235, Hot Dipped Galvanized)

    Description

    Weight/ length

    Ring-Lock Diagonal 1000x2000mm

    10.06kg

    Ring-Lock Diagonal 1500x2000mm

    10.95kg

    Ring-Lock Diagonal 2000x2000mm

    12.13kg

    Ring-Lock Diagonal 2500x2000mm

    13.50kg

    Ring-Lock Diagonal 3000x2000mm

    15.01kg

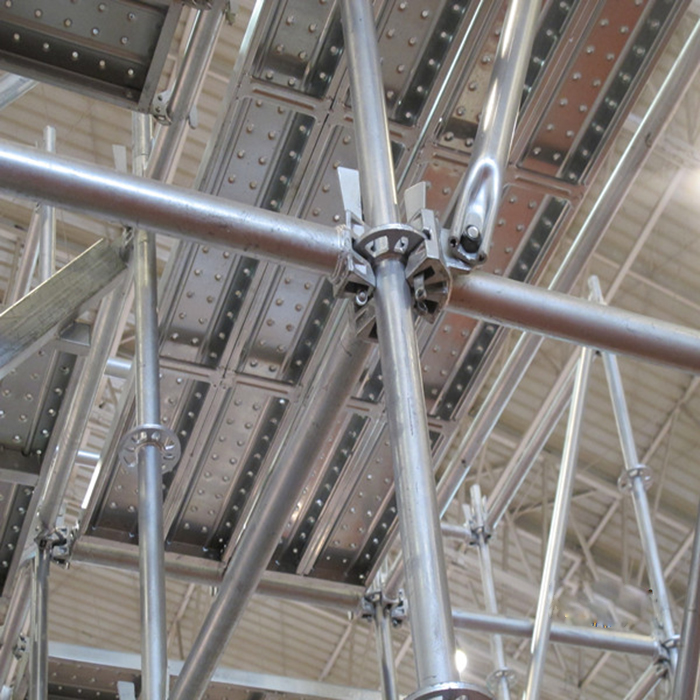

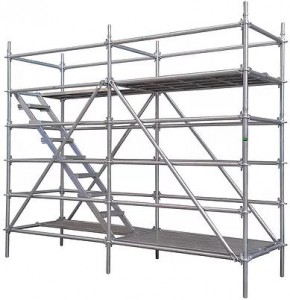

    The Ringlock scaffolding provides a universal system, which is fast, strong and safe for all applications. It’s used for professional scaffolding, where flexibility and efficiency are important. Its time saving all-round connections ensure that a 90-degree angle can be achieved without time-consuming. It also has a high load capacity, high technical capabilities and built-in safety factors. This system is also quicker to erect and offers more safety features than traditional tube and fitting

    Ringlock scaffolding_看图王.web

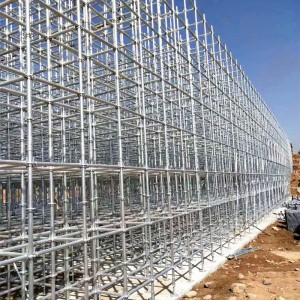

    Ringlock scaffolding is one of the most popular types of scaffolding systems in the world. As a modular scaffolding system, it is extremely versatile and can be erected from the ground up or suspend. Ringlock scaffolding can also be erected in a stationary configuration, which makes it perfect for safe work at height.

    The challenge of Ringlock scaffolding is to decide what components are needed to create a solution that works for your job site. Our team of engineers are always available to find the best solution for each case.
