Các UOE LSAW ống thép mill features the most advanced technology and process, achieves high production efficiency, stable product quality and is equipped with complete inspection equipment. UOE mill adopts U & O forming, the formed pipes are welded inside through five internal welding stations with three wires, and welded outside through four external welding stations with three wires. In accordance with different requirements of the customers, the welded pipe can be expanded either by mechanical or hydrostatic expand to improve dimensional accuracy, and eliminate residual stress.
Thông số kỹ thuật
Outside Diameter 508mm- 1118mm (20"- 44")
Wall Thickness: 6.0-25.4mm 1/4"-1"
Quality Standards: API、DNV、ISO、DEP、EN、ASTM、DIN、BS、JIS、GB、CSA
Length: 9-12.3m (30'- 40')
Grades: API 5L A-X90,GB/T9711 L190-L625
JOCE slaw THÉP ỐNG là đường kính lớn dọc ngập arc hàn (SAWL) Dây chuyền sản xuất ống ở Trung Quốc. Các nhà máy thông qua quá trình uốn tiến bộ, có tính năng phân bố đều căng thẳng hình thành, tính đồng nhất cao quy mô, kích thước vô hạn biến & phạm vi poduct rộng, và tính linh hoạt cao, vv
Thông số kỹ thuật
Outside Diameter:Φ406mm- 1626mm (16" - 64" )
Wall Thickness:6.0- 75mm (1/4" - 3" )
Quality Standards:API、DNV、ISO、DEP、EN、ASTM、DIN、BS、JIS、GB、CSA
Length:3-12.5m ( 10'- 41' )
Grades:API 5L A-X100, GB/T9711 L190-L690

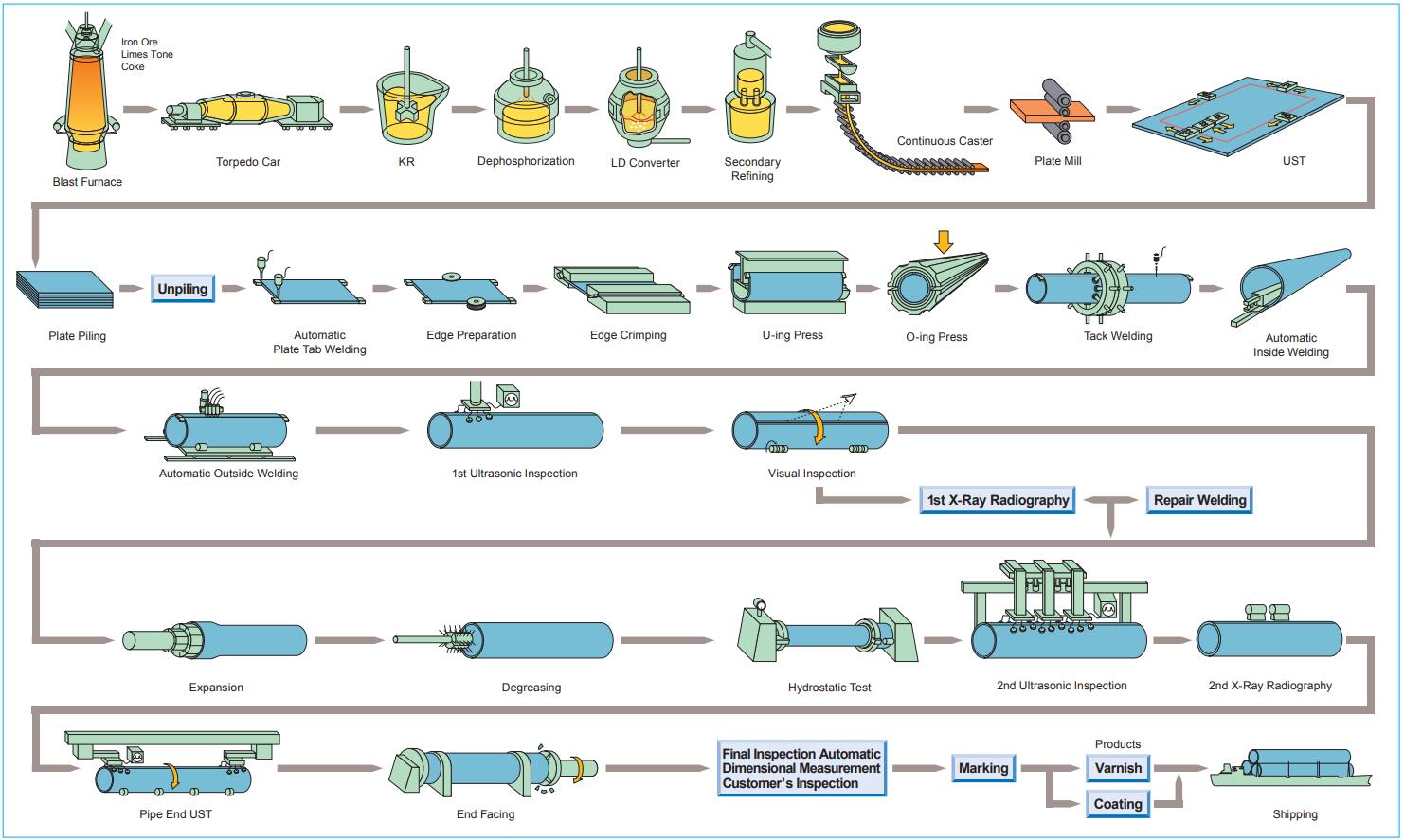

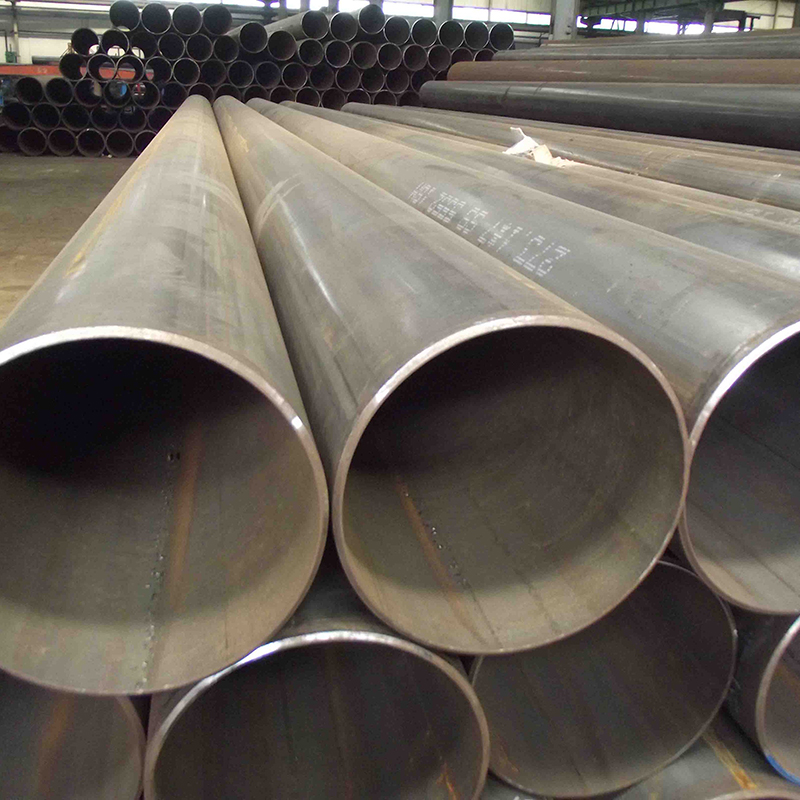

LSAW (Longitudinal double submerge arc welding) carbon steel pipe is a type of SAW pipe made of steel plates that were hot rolled by JCOE or UOE forming technology. JCOE technology represents the shaping and forming processes involved during manufacturing as well as the inner and outer welding and cold expansion carried out after welding.
LSAW pipe used to convey low pressure liquid or high pressure petroleum or natural gas, and can be also used widely in structural supports or foundation. The advantage for LSAW type is they could produce more thick wall thickness of pipes, maximum to 120mm.
Features:
- Large diameter steel pipes
- Thick walls
- High-Pressure resistance
- Low-temperature resistance
Tests:
- Chemical Component Analysis
- Mechanical Properties – Elongation, Yield Strength, Ultimate Tensile Strength
- Technical Properties – DWT Test, Impact Test, Blow Test, Flattening Test
- X-ray Test
- Exterior Size Inspection
- Hydrostatic Test
- UT Test
Đường kính ngoài |
Tường dày (mm) |
||||||||||||||||
inch |
mm |
6.4 |
7.1 |
7,9 |
9,53 |
12,7 |
14,3 |
15,9 |
19,1 |
22.2 |
25,4 |
28,6 |
31,8 |
34,9 |
38,1 |
41,3 |
44,5 |
16 |
406,4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
18 |
457 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
508 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
22 |
559 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
24 |
610 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
26 |
660 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
28 |
711 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
30 |
762 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
32 |
813 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
34 |
864 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
36 |
914 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
38 |
965 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
40 |
1016 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
42 |
1067 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
44 |
1118 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
46 |
1168 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
48 |
1219 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
52 |
1321 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
56 |
1422 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60 |
1524 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
64 |
1626 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dung sai của đường kính ngoài và tường dày
loại | Tiêu chuẩn | |||||
SY / T5040-2000 | SY / T5037-2000 | SY / T9711.1-1977 | ASTM A252 | AWWA C200-97 | API 5L PSL1 | |
Ống lệch cuối OD | ± 0,5% D | ± 0,5% D | -0.79mm~+2.38mm | <± 0.1% T | <± 0.1% T | ± 1.6mm |
độ dày của tường | ± 10,0% T | D <508mm, ± 12,5% T | -8%T~+19.5%T | <-12,5% T | -8%T~+19.5%T | 5.0mm <T <15.0mm, ± 0.11 |
D> 508mm, ± 10,0% T | T≥15.0mm, ± 1.5mm |
Thành phần hóa học và tính chất cơ học
Tiêu chuẩn | Cấp | Thành phần hóa học (max)% | Thuộc tính cơ khí (min) | |||||
C | Mn | Si | S | P | Năng suất (Mpa) | Độ bền kéo (Mpa) | ||
GB / T700-2006 | Một | 0,22 | 1,4 | 0,35 | 0,050 | 0,045 | 235 | 370 |
B | 0,2 | 1,4 | 0,35 | 0,045 | 0,045 | 235 | 370 | |
C | 0,17 | 1,4 | 0,35 | 0.040 | 0.040 | 235 | 370 | |
D | 0,17 | 1,4 | 0,35 | 0,035 | 0,035 | 235 | 370 | |
GB / T1591-2009 | Một | 0,2 | 1,7 | 0,5 | 0,035 | 0,035 | 345 | 470 |
B | 0,2 | 1,7 | 0,5 | 0.030 | 0.030 | 345 | 470 | |
C | 0,2 | 1,7 | 0,5 | 0.030 | 0.030 | 345 | 470 | |
BS En10025 | S235JR | 0,17 | 1,4 | - | 0,035 | 0,035 | 235 | 360 |
S275JR | 0,21 | 1,5 | - | 0,035 | 0,035 | 275 | 410 | |
S355JR | 0.24 | 1,6 | - | 0,035 | 0,035 | 355 | 470 | |
DIN 17100 | ST37-2 | 0,2 | - | - | 0,050 | 0,050 | 225 | 340 |
ST44-2 | 0,21 | - | - | 0,050 | 0,050 | 265 | 410 | |
ST52-3 | 0,2 | 1,6 | 0.55 | 0.040 | 0.040 | 345 | 490 | |
JIS G3101 | SS400 | - | - | - | 0,050 | 0,050 | 235 | 400 |
SS490 | - | - | - | 0,050 | 0,050 | 275 | 490 | |
API 5L PSL1 | Một | 0,22 | 0.9 | - | 0.03 | 0.03 | 210 | 335 |
B | 0,26 | 1.2 | - | 0.03 | 0.03 | 245 | 415 | |
X42 | 0,26 | 1.3 | - | 0.03 | 0.03 | 290 | 415 | |
X46 | 0,26 | 1,4 | - | 0.03 | 0.03 | 320 | 435 | |
X52 | 0,26 | 1,4 | - | 0.03 | 0.03 | 360 | 460 | |
X56 | 0,26 | 1.1 | - | 0.03 | 0.03 | 390 | 490 | |
X60 | 0,26 | 1,4 | - | 0.03 | 0.03 | 415 | 520 | |
X65 | 0,26 | 1,45 | - | 0.03 | 0.03 | 450 | 535 | |
X70 | 0,26 | 1,65 | - | 0.03 | 0.03 | 585 | 570 |
Nhẹ dầu, nhúng nóng mạ kẽm, mạ kẽm điện, Đen, Bare, Varnish sơn / dầu chống gỉ, sơn bảo vệ
