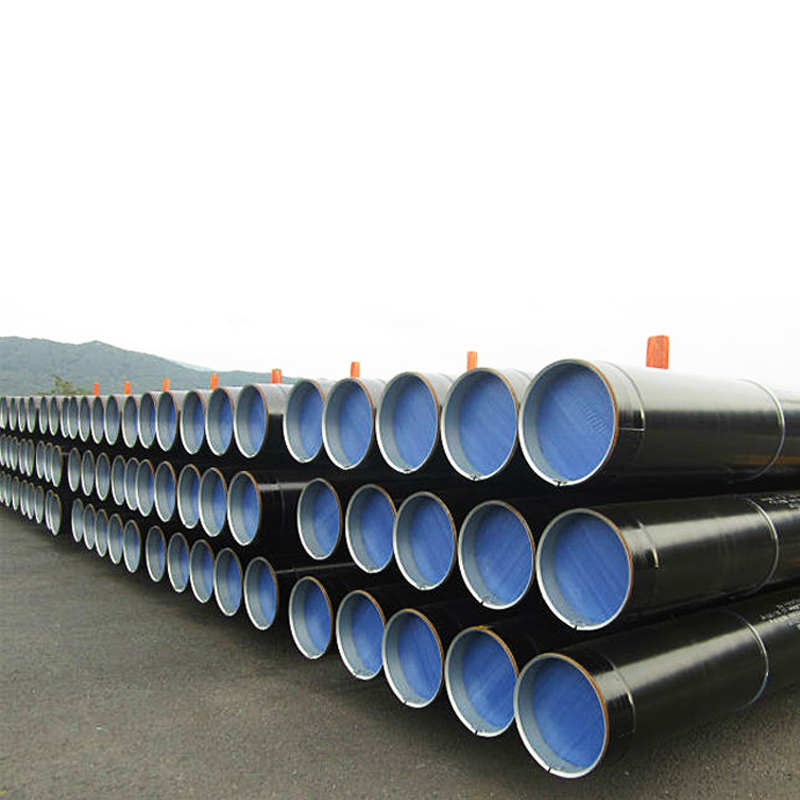

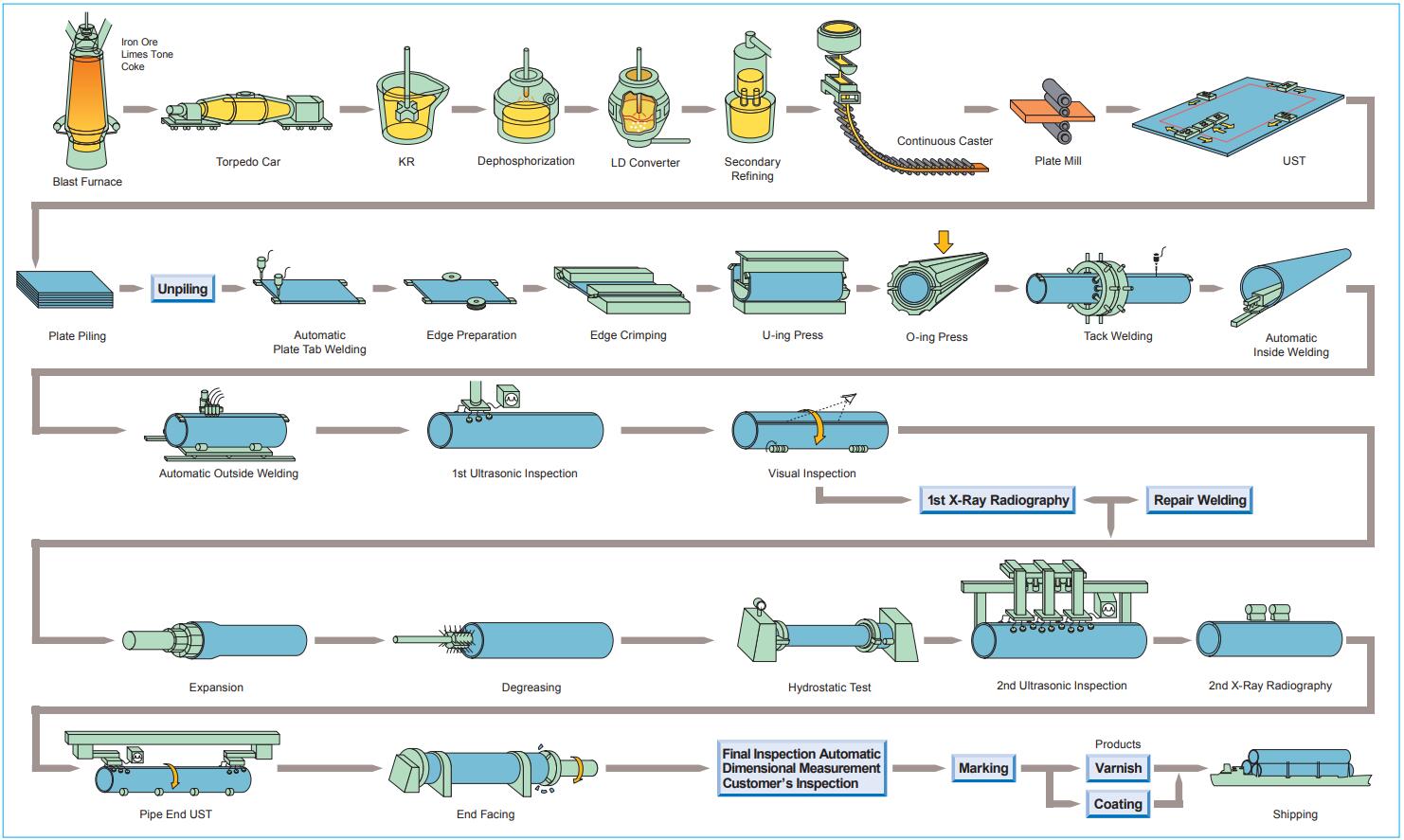

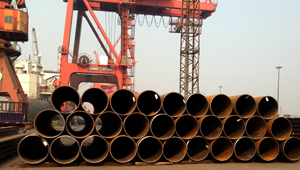

ЮОЕ LSAW STEEL PIPE mill features the most advanced technology and process, achieves high production efficiency, stable product quality and is equipped with complete inspection equipment. UOE mill adopts U & O forming, the formed pipes are welded inside through five internal welding stations with three wires, and welded outside through four external welding stations with three wires. In accordance with different requirements of the customers, the welded pipe can be expanded either by mechanical or hydrostatic expand to improve dimensional accuracy, and eliminate residual stress.
Характеристики
Outside Diameter 508mm- 1118mm (20"- 44")
Wall Thickness: 6.0-25.4mm 1/4"-1"
Quality Standards: API、DNV、ISO、DEP、EN、ASTM、DIN、BS、JIS、GB、CSA
Length: 9-12.3m (30'- 40')
Grades: API 5L A-X90,GB/T9711 L190-L625

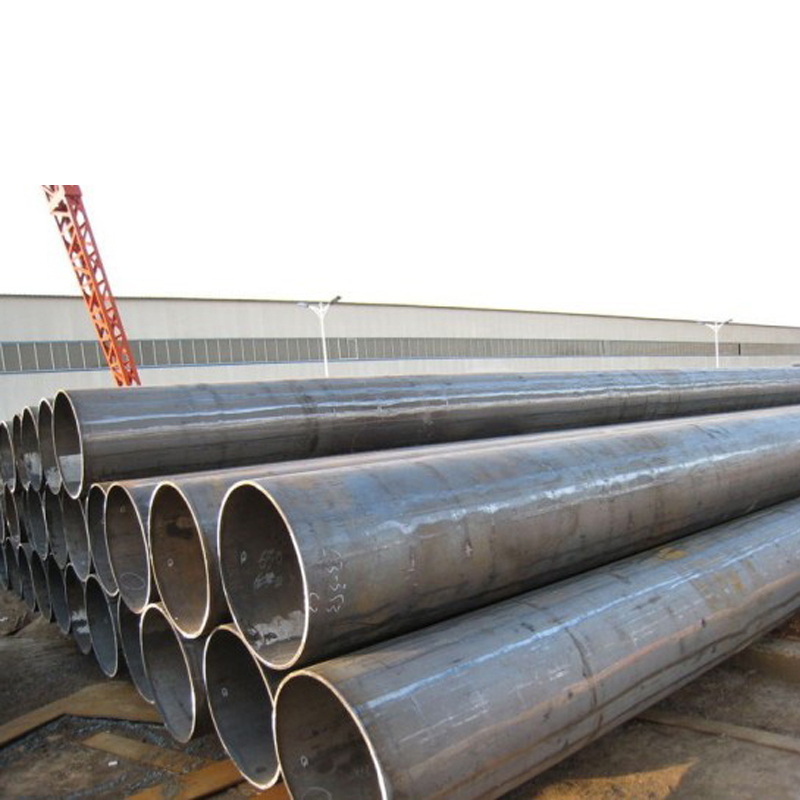

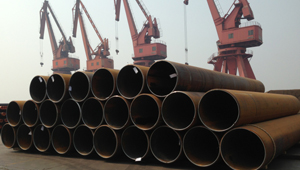

JOCE Slaw стальной трубы большой диаметр продольной флюсом сварные (САЖА) трубы производственной линии в Китае. Мельница принимает прогрессивный процесс гибки, показывая равномерно распределенный образующий стресс, высокую однородность измерения, бесконечное изменение размеры & широкий спектр Poduct, и высокую гибкость и т.д.
Характеристики
Outside Diameter:Φ406mm- 1626mm (16" - 64" )
Wall Thickness:6.0- 75mm (1/4" - 3" )
Quality Standards:API、DNV、ISO、DEP、EN、ASTM、DIN、BS、JIS、GB、CSA
Length:3-12.5m ( 10'- 41' )
Grades:API 5L A-X100, GB/T9711 L190-L690

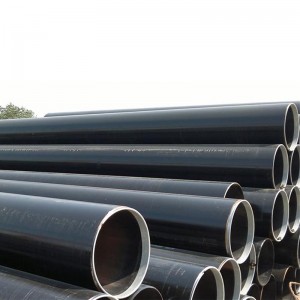

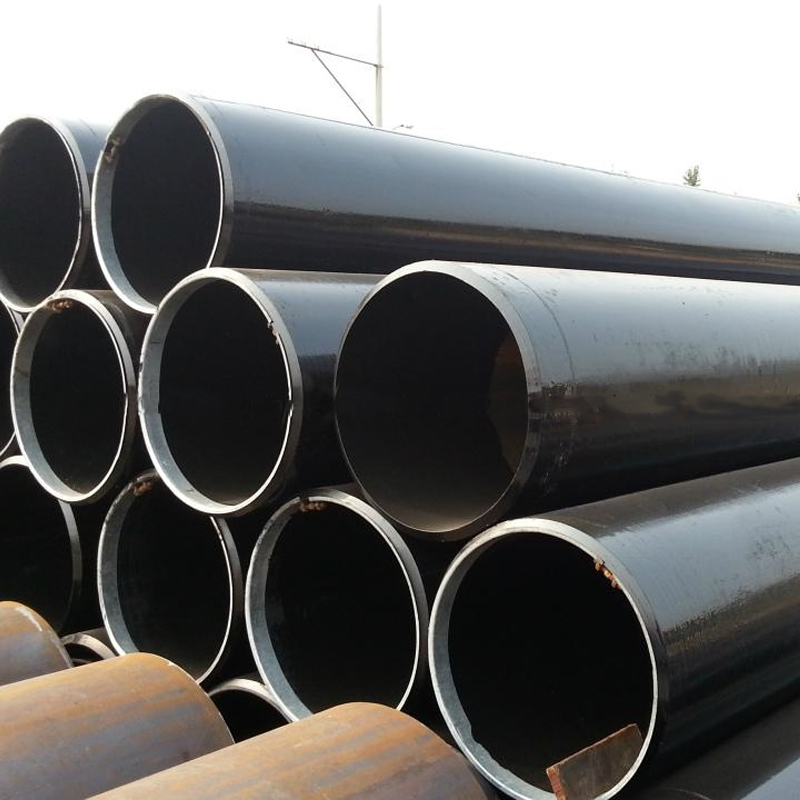

LSAW (Longitudinal double submerge arc welding) carbon steel pipe is a type of SAW pipe made of steel plates that were hot rolled by JCOE or UOE forming technology. JCOE technology represents the shaping and forming processes involved during manufacturing as well as the inner and outer welding and cold expansion carried out after welding.
LSAW pipe used to convey low pressure liquid or high pressure petroleum or natural gas, and can be also used widely in structural supports or foundation. The advantage for LSAW type is they could produce more thick wall thickness of pipes, maximum to 120mm.
Features:
- Large diameter steel pipes
- Thick walls
- High-Pressure resistance
- Low-temperature resistance
Tests:
- Chemical Component Analysis
- Mechanical Properties – Elongation, Yield Strength, Ultimate Tensile Strength
- Technical Properties – DWT Test, Impact Test, Blow Test, Flattening Test
- X-ray Test
- Exterior Size Inspection
- Hydrostatic Test
- UT Test
Out Диаметр |
Толщина стенки (мм) |
||||||||||||||||
дюйм |
мм |
6,4 |
7,1 |
7,9 |
9,53 |
12,7 |
14,3 |
15,9 |
19,1 |
22,2 |
+25,4 |
28,6 |
31,8 |
34,9 |
38,1 |
41,3 |
44,5 |
16 |
406,4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
18 |
457 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
508 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
22 |
559 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
24 |
610 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
26 |
660 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
28 |
711 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
30 |
762 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
32 |
813 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
34 |
864 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
36 |
914 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
38 |
965 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
40 |
1016 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
42 |
1067 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
44 |
1118 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
46 |
1168 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
48 |
1219 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
52 |
1321 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
56 |
1422 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60 |
1524 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
64 |
1626 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Допуск наружного диаметра и толщины стенки,
Типы | стандарт | |||||
SY / T5040-2000 | SY / T5037-2000 | SY / T9711.1-1977 | ASTM A252 | AWWA C200-97 | API 5L PSL1 | |
Труба отклонение конца OD | ± 0,5% D | ± 0,5% D | -0.79mm~+2.38mm | <± 0,1% Т | <± 0,1% Т | ± 1.6mm |
толщина стенки | ± 10,0% T | D <508 мм, ± 12,5% T | -8%T~+19.5%T | <-12,5% Т | -8%T~+19.5%T | 5.0mm <Т <15.0mm, ± 0,11 |
D> 508 мм, ± 10,0% T | T≥15.0mm, ± 1,5мм |
Химический состав и механические свойства
стандарт | класс | Химический состав (макс)% | Механические свойства (мин) | |||||
C | Миннесота | си | S | п | Предел текучести (МПа) | Предел прочности при растяжении (МПа) | ||
GB / T700-2006 | A | 0,22 | 1.4 | 0,35 | 0,050 | 0,045 | 235 | 370 |
В | 0.2 | 1.4 | 0,35 | 0,045 | 0,045 | 235 | 370 | |
C | 0,17 | 1.4 | 0,35 | 0,040 | 0,040 | 235 | 370 | |
D | 0,17 | 1.4 | 0,35 | 0,035 | 0,035 | 235 | 370 | |
GB / T1591-2009 | A | 0.2 | 1,7 | 0,5 | 0,035 | 0,035 | 345 | 470 |
В | 0.2 | 1,7 | 0,5 | 0,030 | 0,030 | 345 | 470 | |
C | 0.2 | 1,7 | 0,5 | 0,030 | 0,030 | 345 | 470 | |
BS EN10025 | S235JR | 0,17 | 1.4 | - | 0,035 | 0,035 | 235 | 360 |
S275JR | 0,21 | 1,5 | - | 0,035 | 0,035 | 275 | 410 | |
S355JR | 0,24 | 1,6 | - | 0,035 | 0,035 | 355 | 470 | |
DIN 17100 | ST37-2 | 0.2 | - | - | 0,050 | 0,050 | 225 | 340 |
ST44-2 | 0,21 | - | - | 0,050 | 0,050 | 265 | 410 | |
St52-3 | 0.2 | 1,6 | 0,55 | 0,040 | 0,040 | 345 | 490 | |
JIS G3101 | SS400 | - | - | - | 0,050 | 0,050 | 235 | 400 |
SS490 | - | - | - | 0,050 | 0,050 | 275 | 490 | |
API 5L PSL1 | A | 0,22 | 0.9 | - | 0,03 | 0,03 | 210 | 335 |
В | 0,26 | 1.2 | - | 0,03 | 0,03 | 245 | 415 | |
X42 | 0,26 | 1,3 | - | 0,03 | 0,03 | 290 | 415 | |
X46 | 0,26 | 1.4 | - | 0,03 | 0,03 | 320 | 435 | |
X52 | 0,26 | 1.4 | - | 0,03 | 0,03 | 360 | 460 | |
X56 | 0,26 | 1,1 | - | 0,03 | 0,03 | 390 | 490 | |
X60 | 0,26 | 1.4 | - | 0,03 | 0,03 | 415 | 520 | |
X65 | 0,26 | 1,45 | - | 0,03 | 0,03 | 450 | 535 | |
X70 | 0,26 | 1,65 | - | 0,03 | 0,03 | 585 | 570 |

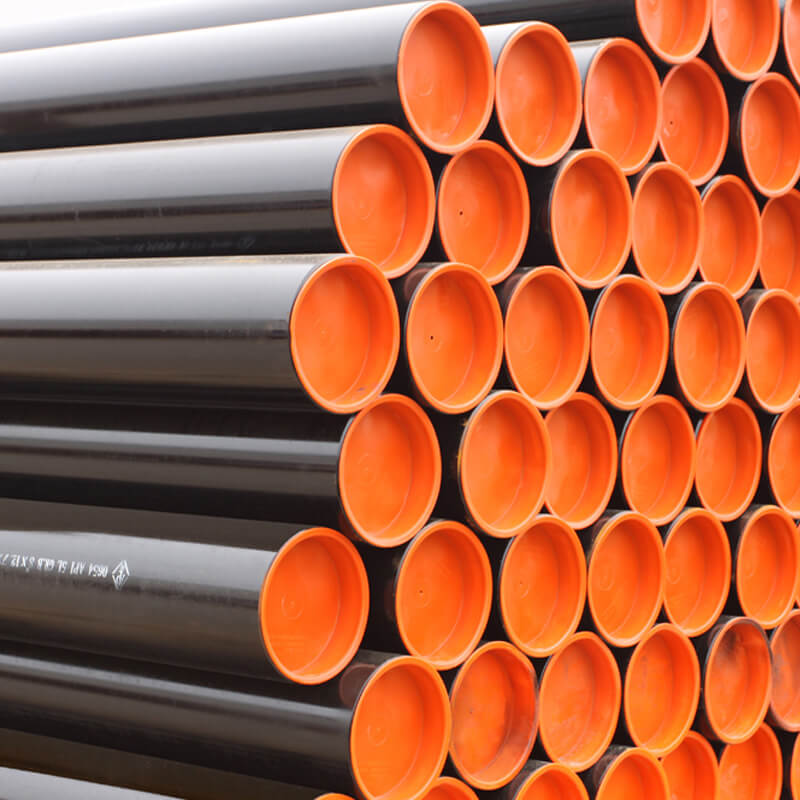

Слегка смазанные, горячее цинкование, Гальваническое покрытие, черная, Голая, лаковое покрытие / анти ржавчина нефть, защитные покрытия
